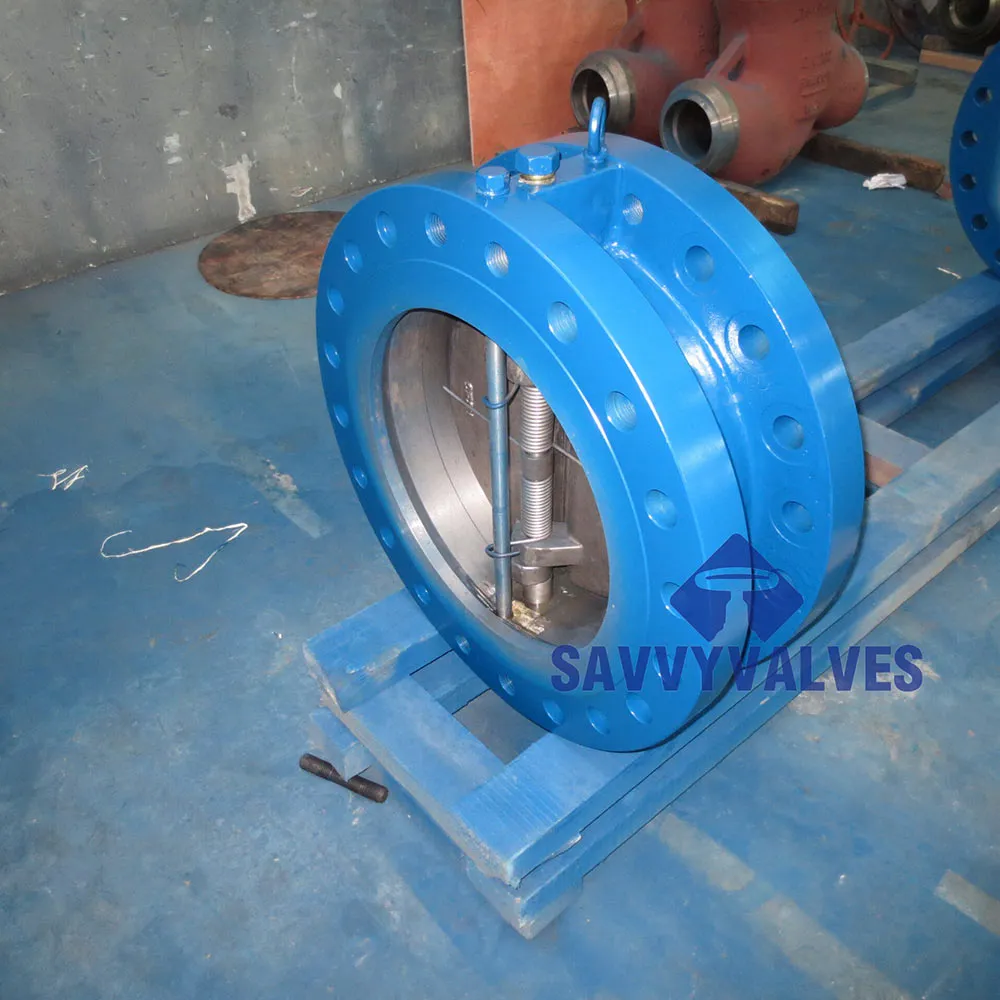

Dual Plate Check Valve: Material Selection and Industrial Adaptability

Dual Plate Check Valve is a versatile fluid control component widely used in industrial pipelines, with its performance heavily dependent on high-quality material selections for core parts. Its body and bonnet are fabricated from a range of robust materials, including ASTM A216 WCB/WCC, ASTM A217 WC6/WC9, and corrosion-resistant alloys like MONEL K400/K500 and INCONEL 625/718, paired with an HF sealing area to ensure tightness under varied pressure and temperature. Dual Plate Check Valve’s disc shares similar material options with the body, enhancing structural consistency, while its shaft adopts ASTM A182 F304/F316 or INCONEL 625 for superior tensile strength, making it suitable for harsh media such as chemicals and high-temperature steam.

Dual Plate Wafer Check Valve is a space-saving variant of the core product, integrating the same material system as Dual Plate Check Valve for consistent reliability

This valve features a wafer-style design that clamps between pipeline flanges, eliminating the need for extra flange ends, and uses SS316 or INCONEL X-750 springs to control disc movement, ensuring quick and smooth opening/closing. Dual Plate Wafer Check Valve retains the integral stellite HF seat of the standard model, boosting sealing performance and making it ideal for compact pipeline systems in water treatment and HVAC industries.

Dual Plate Check Valve Wafer Type refines the wafer design with precision-engineered material matching to meet demanding industrial standards

Like the base Dual Plate Check Valve, it utilizes A351 CF8/CF8M for corrosion resistance in acidic environments and C83600 bronze for low-temperature applications, adapting to diverse working conditions. Dual Plate Check Valve Wafer Type’s material customization capability, including special alloys, allows it to fit specific scenarios such as petrochemical pipelines where durability and leak-proof performance are critical.

Advance Dual Plate Check Valve elevates performance through optimized material combinations and structural upgrades, building on the foundation of standard Dual Plate Check Valve

It adopts high-grade INCONEL 718 for shafts and MONEL K500 for discs in extreme conditions, with enhanced HF sealing areas to resist wear and corrosion. Advance Dual Plate Check Valve also offers tailored material solutions beyond standard options, catering to high-pressure, high-temperature systems in power generation and offshore industries.

Dual Plate Check Valve Lug Type integrates lugged connections with the material advantages of Dual Plate Check Valve, enabling independent installation and maintenance

Its body is available in ASTM A352 LCB/LCC for cryogenic use and A995 4A/5A for high-strength requirements, while the stellite HF seat ensures long-term sealing stability. Dual Plate Check Valve Lug Type is widely applied in marine and industrial pipelines, where its material durability and installation flexibility are highly valued.

In summary, Dual Plate Check Valve serves as the core of the product series, with its diverse and customizable material specifications influencing the functionality of all variants. Dual Plate Wafer Check Valve, Dual Plate Check Valve Wafer Type, Advance Dual Plate Check Valve, and Dual Plate Check Valve Lug Type all inherit the reliable material system of the base model while adapting to specific installation and performance needs. From standard alloys to special customized materials, the material selections ensure these valves excel in various industrial scenarios, solidifying their role as essential fluid control components. Their consistent material quality and adaptive designs make them indispensable for ensuring pipeline safety and efficiency across industries.

Dual Plate Check Valve FAQ

1. What materials are used for the body and bonnet of the dual plate check valve?

The body and bonnet of the dual plate check valve adopt materials like ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, with the sealing area treated by HF. Special materials such as A995 4A/5A, copper alloys C83600/C95400/C95800 and alloys MONEL K400/K500, H-276, INCONEL 625/718 are also available.

2. What materials can be selected for the disc of the dual plate check valve?

The disc of the dual plate check valve has multiple material options, including ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M. It also supports customization with A995 4A/5A, copper alloys, MONEL, H-276 and INCONEL 625/718, all with HF treatment.

3. What are the common shaft materials for the dual plate check valve?

Common shaft materials for the dual plate check valve cover ASTM A182 F6A, F304, F316, XM-19, 17-4PH. High-performance alloys like INCONEL 625/718 and MONEL K-500 are also widely used to ensure stable operation.

4. What type of seat is equipped on the dual plate check valve?

The dual plate check valve is equipped with an integral stellite seat processed with HF technology, which enhances sealing performance and wear resistance for long-term use.

5. What materials are the springs of the dual plate check valve made of?

The springs of the dual plate check valve are mainly made of SS316 and INCONEL X-750. Other special materials can be customized according to specific application requirements.
