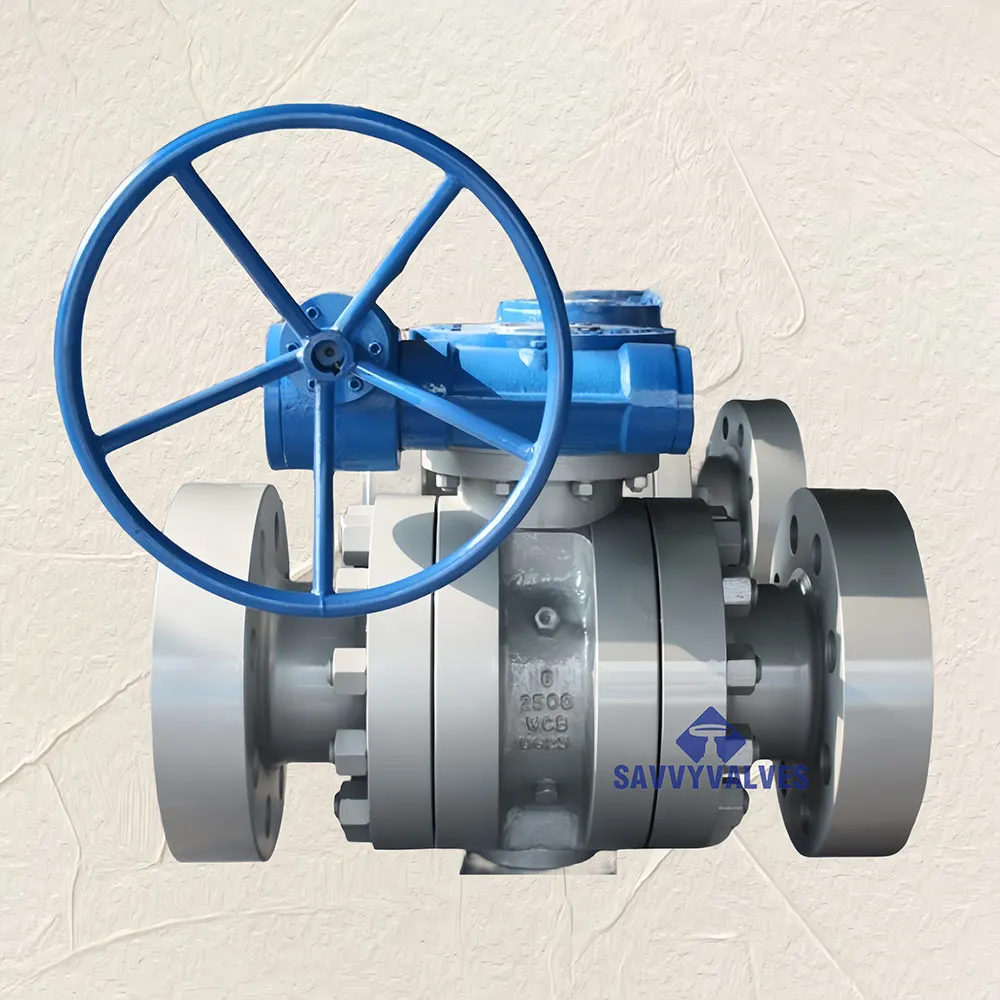

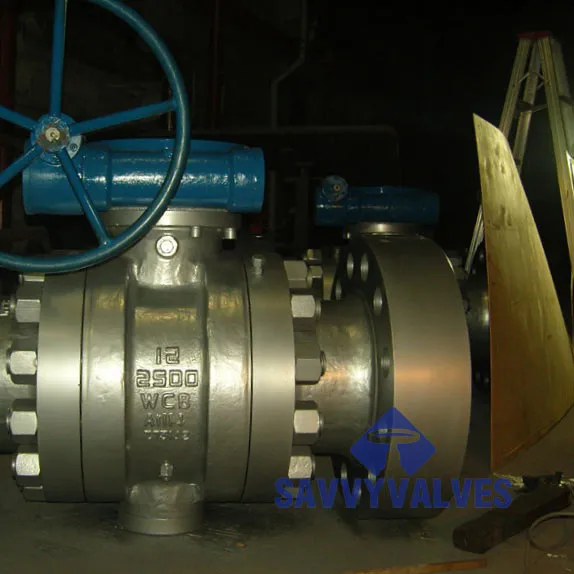

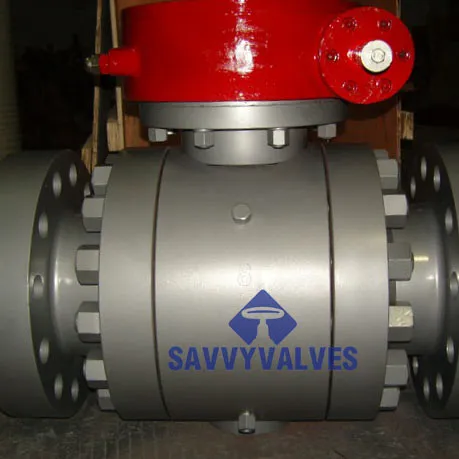

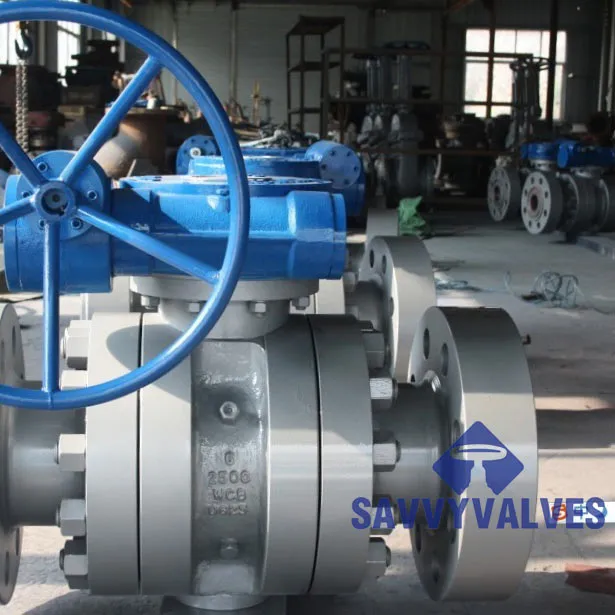

Size: 2″~60″.
Pressure Rating: 2500LB~4500LB
Design Temperature: -196℃~800℃
General applications: water, oil , gas
Design & Manufacture: API 6D , ASME B16.34 are basic,other norms could be used according to orders.
F TO F dimensions: API 6D, ASME B16.10, BS EN 558
Connection: ASME B16.5, ASME B16.47, EN 1092, JIS 5K-20K. BW, RTJ are available.
Safety design: anti-static, fire proof, anti-blow out stem.
Additional: Double block and bleed, SOFT SEATED OR METAL SEATED.
TYPICAL MATERIAL LIST
BODY: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718.
BALL: ASTM A105, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
STEM: A182 F6A, F304, F304L, F316, F316L, F51, F53,17-4PH, XM-19, C95400, C95800, C83600, INCONEL 625, INCONEL 718, MONEL K400, MONEL K500, H-276
SEAT COLLAR:A182 F6A, F304, F304L, F316, F316L, F51, F53,17-4PH, XM-19, C95400, C95800, C83600, INCONEL 625, INCONEL 718, MONEL K400, MONEL K500, H-276
SEAT INSERT: RPTFE, DEVLON,NYLON, MOLON,PCTFE, PEEK ETC.
SPRING: INCONEL X-750
OPERATOR: LEVER OR GEAR OR ACTUATED
OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.
TEST AND INSPECTION
Inspection and approval norm: API598, API6D.
QUALITY CONTROL
100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.
GUATANTEE
SAVVY VALVES provide 12 months service life at least, free spares and maintenance instruction will be provided when required.
