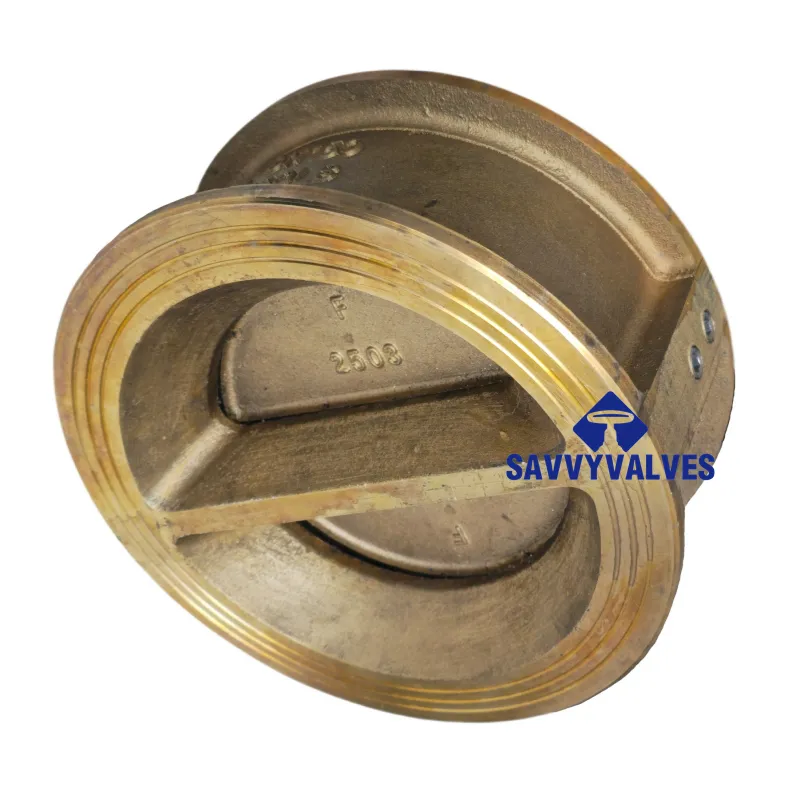

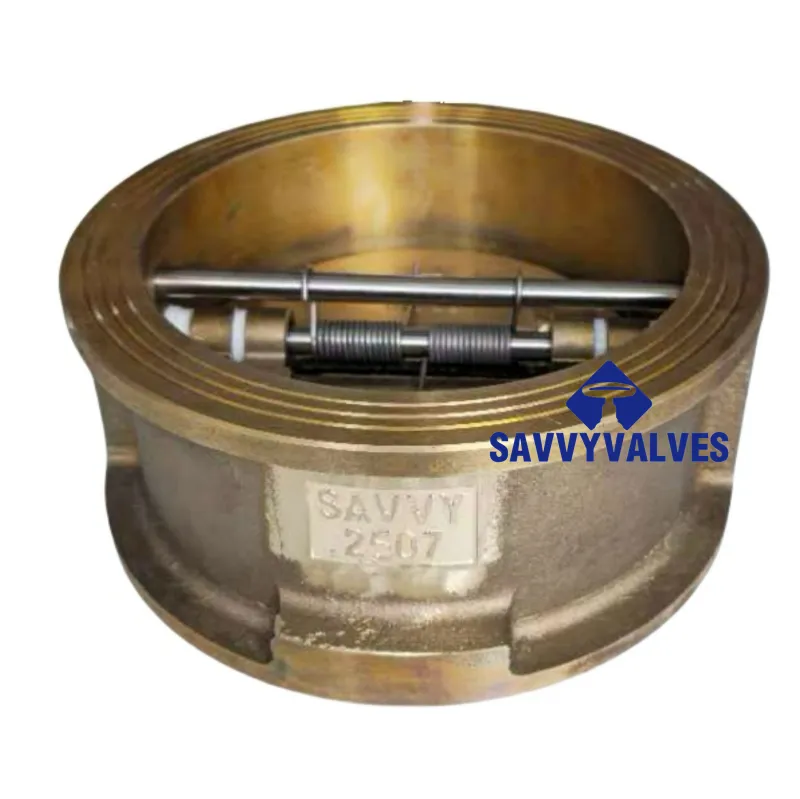

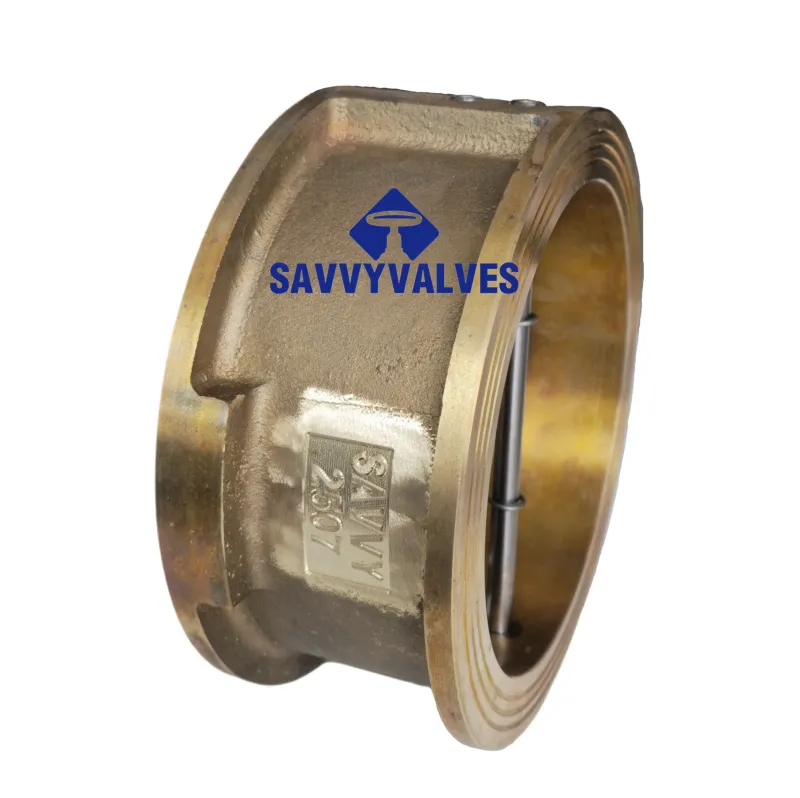

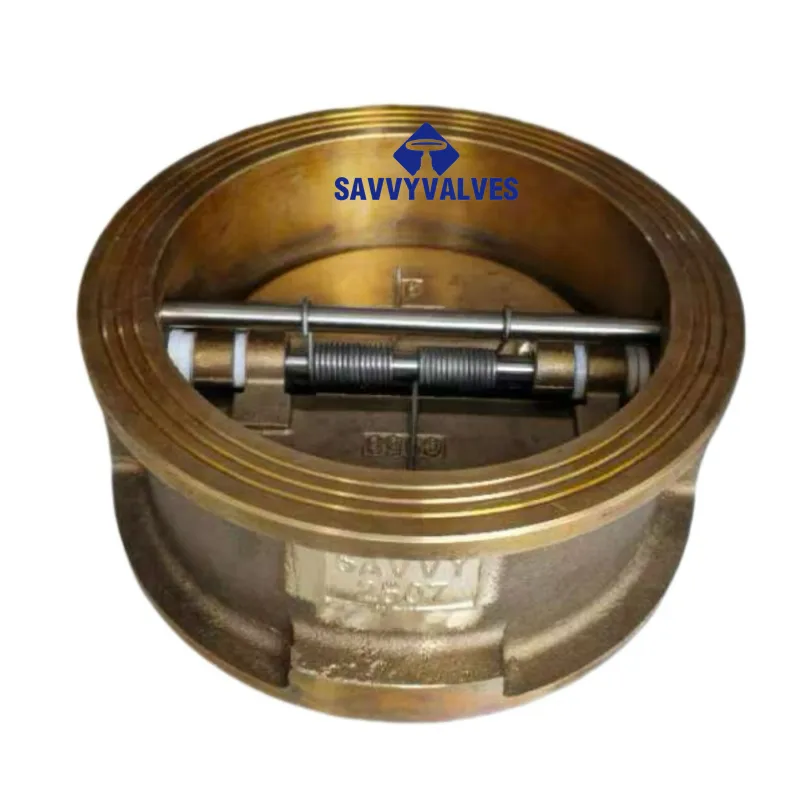

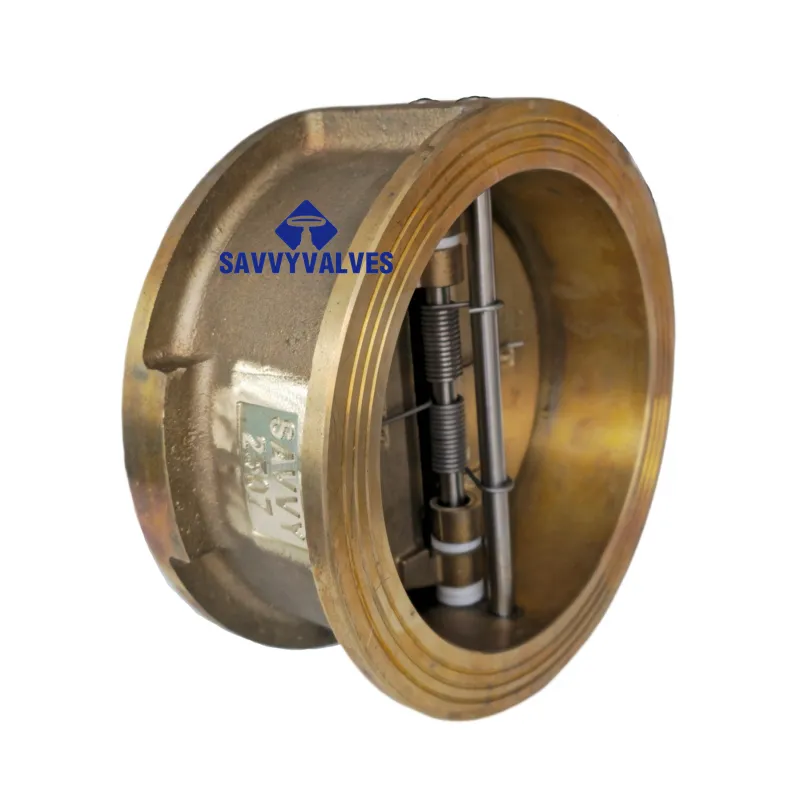

C95800 dual disc check valve

1. Sealing System
o Pure FKM (Viton®) seats bonded directly to C95800 discs
o Zero metal sealing components – eliminates galling risk
o Leakage rate: ≤ 0.01 ml/min per inch seat dia. (Class VI)
2. Simplified Disc Design
o No Stellite hardfacing – cost-optimized for non-abrasive services
o Disc surface: Machined to Ra 3.2 μm for optimal rubber adhesion
3. Standard Hinge Mechanism
o No torsion springs (non-slam feature removed)
o Gravity-assisted closing (vertical installation required for optimal performance)

DUAL PLATE WAFER CHECK VALVE | PN16 | SOFT SEAT DESIGN

PARAMETER	SPECIFICATION	NOTES
Valve Type	Dual Plate Check Valve	Standard design (no anti-slam)
Design Standard	API 594 / ASME B16.34	Wafer type per Annex A
Size Range	DN 50 to DN 1200 (2" to 48")	Full bore (100% port)
Pressure Rating	PN16 (16 bar @ 120°C)
End Connection	RF Flanges per EN 1092-1	Face-to-face: EN 558-20
Body Material	ASTM B148 C95800 (Ni-Al Bronze)	UNS C95800
Disc Material	ASTM B148 C95800 (No hardfacing)	As-cast surface finish Ra ≤ 3.2 μm
Shaft Material	Monel K500 (UNS N05500)	Solution-treated & aged
Seat Material	Full Fluororubber (FKM)	Viton® FKM-75, bonded to disc
Spring Material	Monel K500
Hinge Bushings	Self-lubricating bronze	Maintenance-free
Temperature Range	Standard: -20°C to +150°C	Seat limit: -29°C to +200°C (short term)
Flow Direction	Horizontal / Vertical upflow
Hydrostatic Test Press	24 bar (1.5 × PN16) per EN 12266-1
Seat Leakage Class	API 598 Class VI (Soft seat)	Bubble-tight shutoff
Cracking Pressure	≤ 0.1 bar
Flow Coefficient (Kvs)	2800 (for DN150 valve)	Higher vs. metal-seat designs
Max Flow Velocity	8 m/s
Seal Configuration	Elastomer-to-Body Direct Sealing	No metal-to-metal contact
Certifications	• PED 2014/68/EU Cat. II • WRAS	Material Certs: EN 10204 3.1

KEY UPDATES & FEATURES

Sealing System
- Pure FKM (Viton®) seats bonded directly to C95800 discs
- Zero metal sealing components – eliminates galling risk
- Leakage rate: ≤ 0.01 ml/min per inch seat dia. (Class VI)
Simplified Disc Design
- No Stellite hardfacing – cost-optimized for non-abrasive services
- Disc surface: Machined to Ra 3.2 μm for optimal rubber adhesion
Standard Hinge Mechanism
- No torsion springs (non-slam feature removed)
- Gravity-assisted closing (vertical installation required for optimal performance)

PERFORMANCE DATA

Characteristic	Value
Cycle Life (Water)	>50,000 cycles
Max Backpressure Resistance	25 bar (PN16 × 1.56)
Chemical Compatibility	Water, oils, H₂S ≤2000 ppm, weak acids (pH>4)
Installation Angle Limit	Vertical: 0°±10° Horizontal: ±3° level

MATERIAL SPECIFICS

Fluororubber Seats (Viton® FKM-75):

Hardness: 75 Shore A
Compression Set: ≤15% (70h @ 200°C per ASTM D395)
Fluid Resistance: Swell ≤10% in ASTM Oil #3 @ 150°C

Disc (C95800 without hardfacing):

Max Surface Pressure: 50 MPa (with FKM seat)
Surface Finish: CNC-machined to Ra ≤3.2 μm

COMPLIANCE & APPLICATIONS

Standards:

API 594 (Dimensional/Testing)
ISO 5208 (Leakage Testing)
WRAS (Water Supply Regulations)

Typical Services:

Cooling water systems
Hydraulic oil return lines
Low-abrasion chemical transfer (e.g., glycol, solvents)
Potable water distribution

OPTIONAL FEATURES

▢ EPDM Seats (for ozone/steam resistance)
▢ Disc Protection Coatings (e.g., Xylan® for sticky media)
▢ Position Indicator
▢ PTFE Hinge Bushings (extended chemical resistance)
