Rubber Joint With Flange

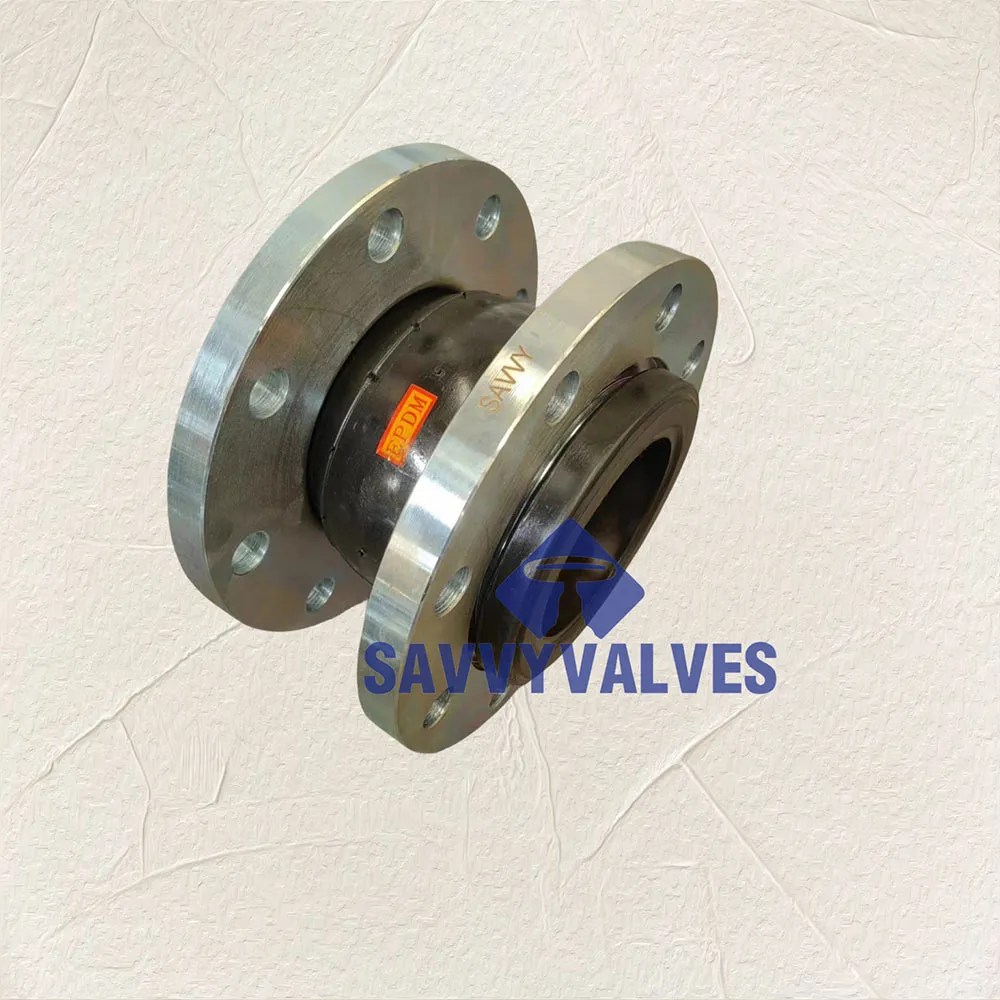

PHOTO SHOWS SPECIFICATIONS AS BELOW
SIZE: 6″
RATING: 150LB
BODY AND BONNET : CS Q345B
RUBBER SLEEVE: EPDM

Description

GENERAL

Size: 2″~48″, DN50~DN1200.

Pressure Rating: 50LB~150LB,PN6~PN16,5K~16K

Design Temperature: CWP AMBIENT

General applications: water, oil , gas

Design & Manufacture: API 594, API 6D, ASME B16.34 are basic,other norms could be used according to orders.

F TO F dimensions: API 6D, API 594, ASME B16.10, BS EN 558, JIS 45SERIES

Connection: AS PER ASME B16.5,ASME B16.47, EN 1092, JIS 5K-20K.RF, RTJ are available.

Structure : LOOSE FLANGE WITH RUBBER SLEEVE

GENERAL MATERIAL

FLANGE: CARBON STEEL, STAINLESS STEEL

RUBBER SLEEVE: NBR, EPDM, BUNA-N, VITON

OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST

Inspection and approval norm: API598, API6D.

QUALITY CONTROL:

100% Chemical analysis and mechanical test with raw materials of each heat numbers.

100% DPT test with the castings, partly MT or UT test, RT is always available if required.

100% hydraulic test with the shell and seal and low pressure air test.

GUATANTEE

SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.

HOT SALE PRODUCTS

For over 10 years, we have been a leading supplier of industrial valves for major global projects in water supply, oil & gas, and desalination.

How To Use A Rubber Joint With Flange In Piping Systems?

A Rubber Joint With Flange is designed to absorb movement, vibration, and noise in piping systems while compensating for misalignment and thermal expansion. To use it effectively, the rubber joint should be installed between two flanged pipe ends using appropriate bolts and gaskets to ensure a secure, leak-proof seal. It's important to align the flanges properly and avoid overstressing the joint by exceeding its rated pressure or temperature limits. These joints are especially beneficial in systems that experience frequent mechanical stress, such as HVAC, water treatment, and chemical pipelines. The rubber material offers excellent flexibility and chemical resistance, while the flanged ends simplify installation and removal. Regular inspection helps maintain performance and safety. By reducing mechanical strain on connected equipment, a rubber joint with flange enhances the longevity and reliability of the entire system.
