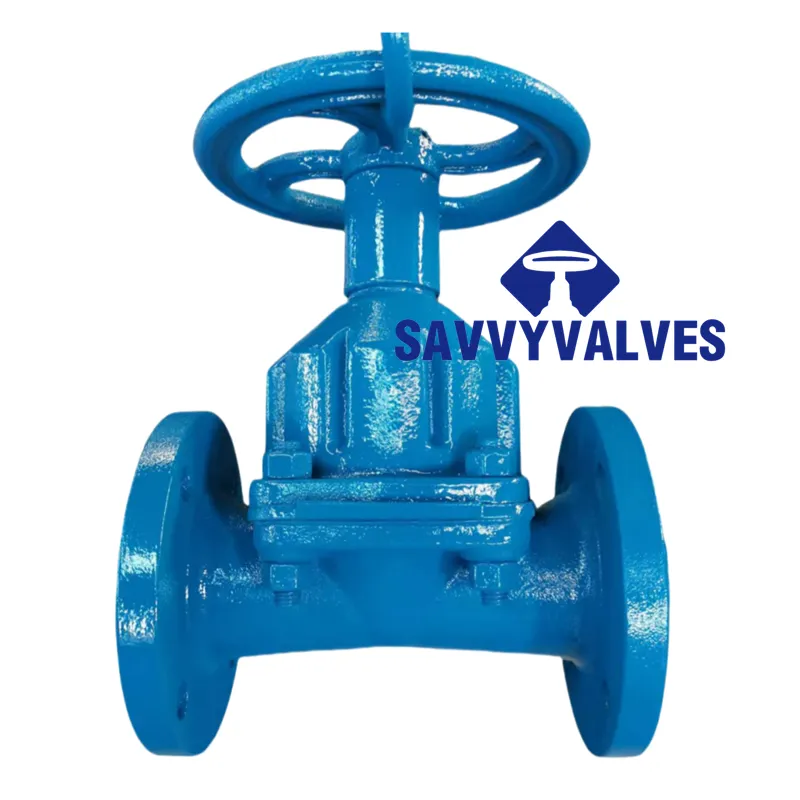

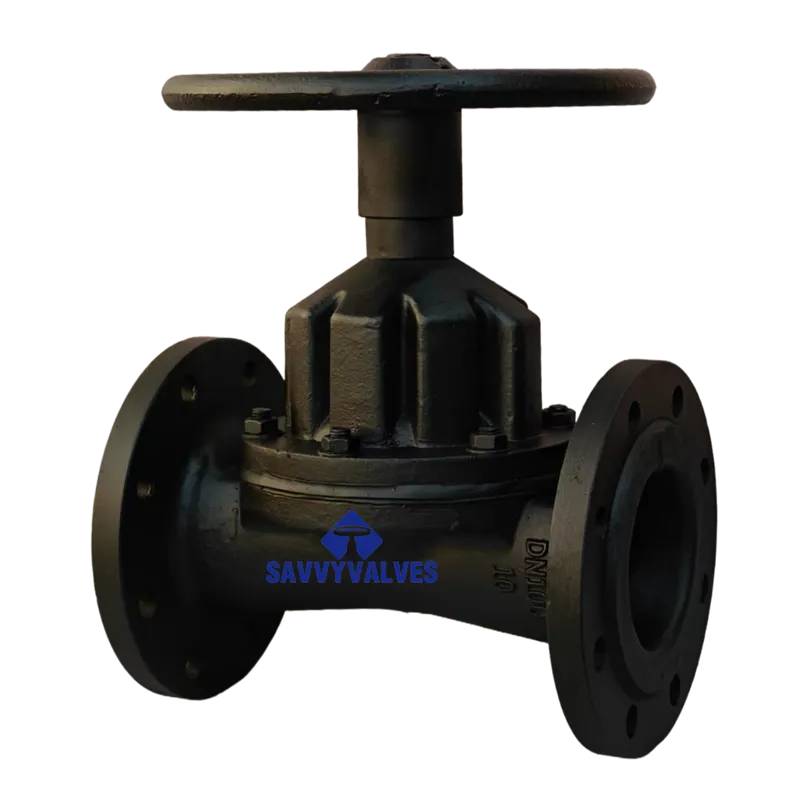

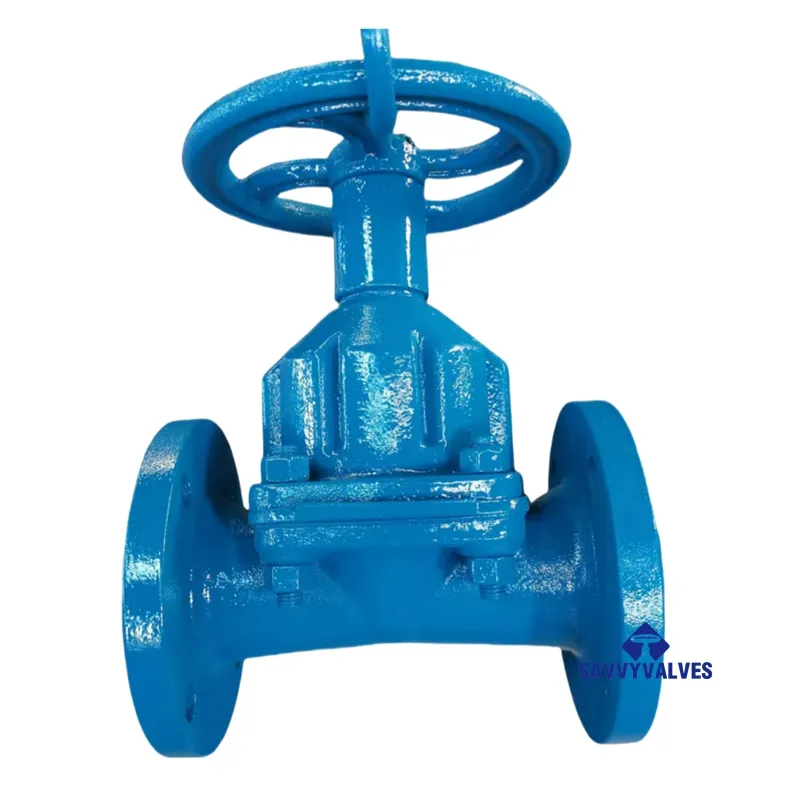

4″ 150LB Hypalon Fully Lined Diaphragm Valve

Description

Straight-Through Diaphragm Valve Technical Datasheet

(Non-Weir, Reduced-Bore Design)
Compliance: BS5156 ∙ Materials: Ductile Iron + Full EPDM Lining

 Critical Technical Data

 Straight-Through vs. Full Bore: Key Differences

 Design Advantages of Straight-Through Configuration

1. Optimized for Slurries & Viscous Fluids
• Smooth, obstruction-free flow path prevents particle buildup (e.g., wastewater sludge, pulp).
2. Robust Pressure Containment
• Thicker ductile iron walls (enabled by reduced bore) withstand surge pressures up to 1.5×PN.
3. Simplified Maintenance
• Top-entry diaphragm replacement (no pipe disassembly).
4. Cost-Effective Corrosion Protection
• Full EPDM lining isolates ductile iron from corrosive media (pH 3–12).

 Limitations & Design Notes

• Not Pigable: Reduced bore prevents pipeline pigging.
• Chemical Limits: EPDM incompatible with oils, aromatics, concentrated acids (>20% H₂SO₄).
• Temperature: Max. 130°C (EPDM) – derate pressure above 80°C.
• Actuator Sizing: Higher torque required vs. weir-type due to larger diaphragm area.
