TECHNICAL DATA SHEET

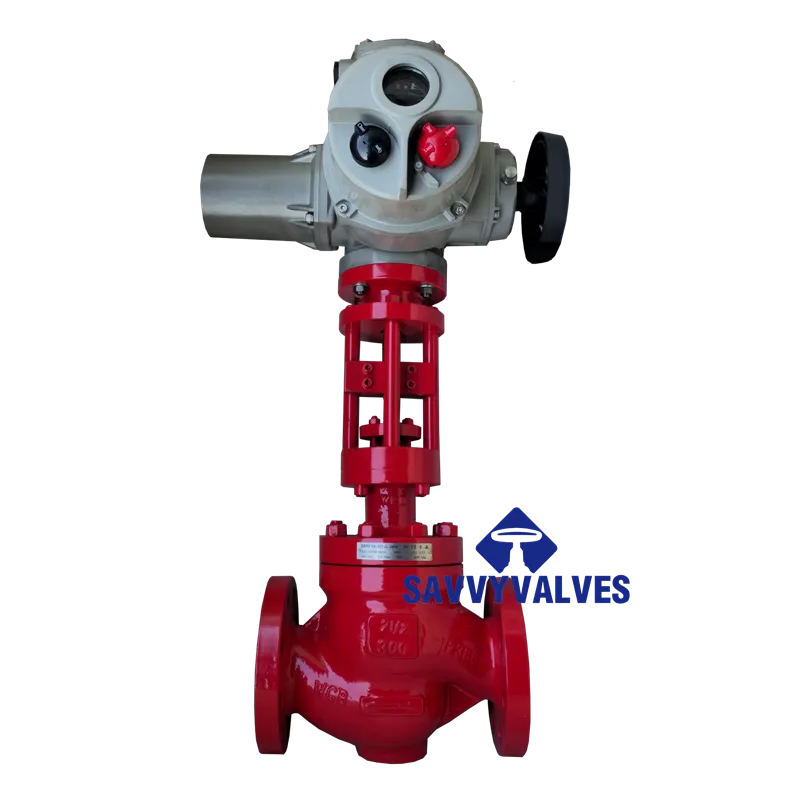

Electric Modulating Control Valve (Balanced Cage-Guided Globe Valve, Equal Percentage, Explosion-Proof)
- General Information
|
Item
|
Specification
|
|
Valve Type
|
Electric Modulating Control Valve, Balanced Cage-Guided, Globe Pattern
|
|
Size Range
|
DN25 – DN300 (1″ to 12″)
|
|
Pressure Rating
|
PN16 / PN25 / PN40 / PN64 / PN100 / Class 150 / 300 / 600
|
|
End Connection
|
Flanged (RF / RTJ) per ASME B16.5 or EN 1092-1
|
|
Design Standard
|
IEC 60534-2-1 / ASME B16.34 / DIN EN 1349
|
|
Face to Face Standard
|
IEC 60534-3-1 / ASME B16.10
|
|
Test Standard
|
IEC 60534-4 / ANSI/FCI 70-2
|
|
Service
|
Steam, Water, Oil, Gas, Chemical Fluids
|
|
Temperature Range
|
-196°C to +450°C (Depending on trim and gasket selection)
|
|
Flow Characteristic
|
Equal Percentage (EQ%)
|
|
Action Type
|
Air-to-Close / Air-to-Open (Fail-Safe Position: Specify)
|
- Bill of Materials (Materials of Construction)
|
Part Name
|
Qty.
|
Material
|
Material Specification / Notes
|
|
Body
|
1
|
WCB / CF8 / CF8M / WC6
|
ASTM A216 Gr.WCB (Carbon Steel) / ASTM A351 CF8/CF8M (SS)
|
|
Bonnet
|
1
|
WCB / CF8 / CF8M
|
Same as body material
|
|
Seat Ring
|
1
|
304 / 316 / 17-4PH
|
Stainless Steel, Hard-faced (Stellite) optional
|
|
Valve Plug
|
1
|
304 / 316 / 17-4PH
|
Balanced design with pressure equalization holes
|
|
Cage / Seat Cage
|
1
|
304 / 316
|
Balanced cage-guided design
|
|
Stem
|
1
|
304 / 316 / 17-4PH
|
Rolled threads for high strength
|
|
Piston Rings
|
1 set
|
PTFE / Graphite / Carbon-filled PTFE
|
For balanced plug sealing
|
|
Bonnet Gasket
|
1
|
Spiral Wound 316/Graphite
|
With inner/outer ring
|
|
Bonnet Bolts & Nuts
|
Set
|
A193 B7 / A194 2H
|
Carbon steel or stainless steel
|
|
Packing
|
Set
|
PTFE V-Ring / Graphite
|
Live-loaded (Belleville springs) optional
|
|
Packing Flange
|
1
|
Carbon Steel / SS
|
Standard
|
|
Gland / Follower
|
1
|
Carbon Steel / SS
|
Standard
|
|
Name Plate
|
1
|
Stainless Steel
|
MSS SP-25 / IEC 60534 marking
|
- Electric Actuator Specifications
|
Item
|
Specification
|
|
Actuator Type
|
Electric Modulating Actuator (Linear Stroke)
|
|
Model Series
|
3610L Series / PSL Series / Comparable
|
|
Control Signal
|
4-20 mA DC / 0-10V DC (Programmable)
|
|
Feedback Signal
|
4-20 mA DC (Position feedback)
|
|
Power Supply
|
220V AC 50Hz / 110V AC 60Hz / 24V DC (Specify)
|
|
Servo Amplifier
|
Built-in (integral) – no external amplifier required
|
|
Protection Class
|
IP65 / IP67 (Weatherproof)
|
|
Explosion-Proof Rating
|
Exd IIB T4 (Flameproof)
|
|
Ambient Temperature
|
-20°C to +70°C
|
|
Handwheel
|
Manual override / Handwheel standard
|
|
Motor Protection
|
Thermal overload protection
|
|
Duty Cycle
|
50% to 100% (Modulating duty)
|
|
Travel Speed
|
1.0 – 4.2 mm/s depending on model and thrust
|
- Material Specifications & Rationale
|
Component
|
Material
|
Rationale
|
|
Valve Body
|
WCB / CF8/CF8M
|
Carbon steel for general service; stainless steel for corrosive media. Cast construction per ASTM standards.
|
|
Trim (Plug & Seat)
|
304/316 SS
|
Standard trim materials; hard-facing (Stellite) available for erosive services.
|
|
Balanced Cage Design
|
–
|
Pressure-balanced plug with piston rings reduces unbalanced forces, allowing smaller actuator and higher shut-off differential pressure . Cage provides guiding and flow characterization.
|
|
Packing
|
PTFE / Graphite
|
PTFE for general service up to 230°C; Graphite for high temperature up to 450°C .
|
- Flow Characteristics & Sizing Data
- Flow Characteristic: Equal Percentage (EQ%)
- Description: Valve gain increases as flow increases. Compensates for system pressure drop variations, providing stable control over entire range. Recommended for pressure control and temperature control loops .
- Inherent Rangeability: 50:1
Rated Flow Coefficients (Kv / Cv) – Typical Values
|
DN (mm)
|
Seat Dia. (mm)
|
Rated Kv (EQ%)
|
Rated Cv (EQ%) ~Kv x 1.16
|
Travel (mm)
|
|
25
|
26
|
10
|
11.6
|
16
|
|
32
|
32
|
16
|
18.6
|
16
|
|
40
|
40
|
25
|
29
|
25
|
|
50
|
50
|
40
|
46.4
|
25
|
|
65
|
66
|
63
|
73
|
40
|
|
80
|
80
|
100
|
116
|
40
|
|
100
|
100
|
160
|
186
|
40
|
|
125
|
125
|
250
|
290
|
60
|
|
150
|
150
|
400
|
464
|
60
|
|
200
|
200
|
630
|
731
|
60
|
|
250
|
250
|
1000
|
1160
|
100
|
|
300
|
300
|
1600
|
1856
|
100
|
Note: Actual Kv values may vary by manufacturer. Consult sizing software for specific conditions.
- Dimensional Data (Reference)
*Note: Face-to-face dimensions per IEC 60534-3-1 / ASME B16.10. Actual dimensions vary by manufacturer and pressure class.*
|
DN (mm)
|
L (mm) PN16/25
|
L (mm) PN40
|
L (mm) PN64/100
|
H (mm) Open (Approx)
|
Actuator Model (Typical)
|
|
25
|
185
|
190
|
200
|
~700
|
361LSA-20 / PSL202
|
|
32
|
205
|
210
|
220
|
~720
|
361LSA-20 / PSL202
|
|
40
|
222
|
230
|
251
|
~730
|
361LSA-20 / PSL202
|
|
50
|
250
|
255
|
286
|
~740
|
361LSB-30 / PSL204
|
|
65
|
276
|
285
|
311
|
~830
|
361LSB-30 / PSL204
|
|
80
|
298
|
310
|
337
|
~850
|
361LSB-50 / PSL208
|
|
100
|
350
|
355
|
394
|
~870
|
361LSC-65 / PSL208
|
|
150
|
451
|
460
|
475
|
~1150
|
361LSC-99 / PSL312
|
|
200
|
600
|
615
|
630
|
~1170
|
361LSC-160 / PSL320
|
|
250
|
670
|
685
|
700
|
~1320
|
Custom / Larger actuator
|
|
300
|
735
|
750
|
765
|
~1520
|
Custom / Larger actuator
|
Flange Details: Drilled per ASME B16.5 or EN 1092-1 as specified.
- Performance & Testing
|
Parameter
|
Specification / Value
|
|
Seat Leakage Class
|
ANSI/FCI 70-2 Class IV (0.01% of rated Cv)
|
| |
Optional: Class V (0.0005 ml/min/inch seat dia. per psi diff.)
|
|
Basic Error
|
±2.0% (with 3610L actuator)
|
|
Hysteresis (Dead Band)
|
≤ 1.0%
|
|
Repeatability
|
≤ 0.5%
|
|
Shell Test Pressure
|
1.5 x Rated Pressure
|
|
Seat Test Pressure
|
1.1 x Rated Pressure
|
|
Maximum Allowable Differential Pressure
|
Up to 10 MPa (depending on size and trim selection)
|
|
Noise Reduction
|
Cage with multi-hole / reduced noise trim optional
|
- Features & Benefits
|
Feature
|
Description
|
|
Balanced Cage-Guided Design
|
Reduces dynamic and unbalanced forces, enabling higher shut-off pressures and smaller actuator selection . Cage provides precise guiding, reducing vibration and noise.
|
|
Equal Percentage Flow Characteristic
|
Provides excellent control at low flow rates and stable gain throughout operating range. Ideal for pressure, temperature, and level control loops where system pressure drop varies .
|
|
Integrated Electric Actuator
|
Built-in servo amplifier accepts direct 4-20mA control signal; no external positioner required .
|
|
Explosion-Proof Certification
|
Exd IIB T4 certified for hazardous locations (Zone 1, Zone 2) . Suitable for oil & gas, chemical, and petrochemical plants.
|
|
Live-Loaded Packing (Optional)
|
Belleville springs maintain constant packing force, compensating for wear and thermal cycles; reduces fugitive emissions.
|
|
Interchangeable Trim
|
Cage, seat, and plug can be replaced without removing valve body from pipeline (top-entry access via bonnet).
|
- Application Guidelines
- Suitable Applications:
- Continuous modulating control of liquids, gases, and steam
- Pressure reducing stations
- Temperature control (heat exchangers)
- Flow control loops
- Boiler feedwater control
- Chemical injection
- Not Suitable For:
- On-Off isolation duty (use dedicated shut-off valves)
- Slurries or fluids with suspended solids (may damage cage and seat)
- Severe cavitation without anti-cavitation trim
- Actuator Sizing Guidelines
|
Actuator Model
|
Thrust (N)
|
Speed (mm/s)
|
Suitable Valve Size (PN16, typical)
|
|
361LSA-20 / PSL202
|
2000
|
2.1
|
DN25-50
|
|
361LSB-30 / PSL204
|
3000
|
3.5
|
DN50-80
|
|
361LSB-50 / PSL208
|
5000
|
1.7
|
DN80-100
|
|
361LSC-65 / PSL312
|
6500
|
3.4
|
DN100-150
|
|
361LSC-99 / PSL320
|
10000
|
2.0
|
DN150-200
|
|
361LSC-160
|
16000
|
1.0
|
DN200-250
|
Note: Final actuator selection depends on shut-off pressure, flow direction, and safety requirements.
- Special Options
|
Option
|
Description
|
|
Low-Noise Trim
|
Multi-hole cage design reduces aerodynamic noise by 10-15 dB
|
|
Anti-Cavitation Trim
|
Special cage design to delay cavitation onset
|
|
Heated / Cooled Actuator
|
For extreme ambient temperatures
|
|
Extended Bonnet
|
For cryogenic or high-temperature service (>250°C)
|
|
Oxygen Service Cleaning
|
Degreased and cleaned per CGA G-4.1
|
|
NACE Compliance
|
For sour service (H₂S)
|
|
Special Materials
|
Alloy 20, Hastelloy C, Monel, Duplex SS
|
- Marking & Documentation
- Valve Marking: Per MSS SP-25 / IEC 60534 (Size, Pressure Class, Material, Manufacturer, Heat No., Flow Arrow)
- Actuator Marking: Model, Serial No., Power Supply, Ex Marking
- Standard Documentation:
- Material Test Certificates (EN 10204 3.1)
- Pressure Test Report
- Certified Dimensional Drawing
- Actuator IOM Manual
- Calibration Certificate
- Optional Documentation:
- NACE Report
- PMI Test Report
- NDT Reports (RT, PT, MT)
- SIL Certificate
Procurement Notes
- Valve Size & Pressure Class: Specify DN (mm) and PN/Class rating based on process conditions.
- Body Material: Confirm material (WCB carbon steel / CF8M stainless steel / others).
- Flow Characteristic: Equal Percentage is specified; confirm if linear is required for specific applications.
- Actuator: Confirm power supply (220V / 110V / 24V) and control signal (4-20mA standard).
- Fail-Safe Position: Specify fail-open (air-to-close) or fail-closed (air-to-open).
- Packing Material: PTFE for standard service up to 230°C; Graphite for high temperature >230°C.
- Seat Leakage Class: Class IV standard; specify if Class V is required.
- Accessories: Specify if limit switches, position transmitter, or heater/thermostat are required.
*This technical data sheet complies with IEC 60534, ASME B16.34, and ANSI/FCI 70-2 standards for electric modulating control valves .*
