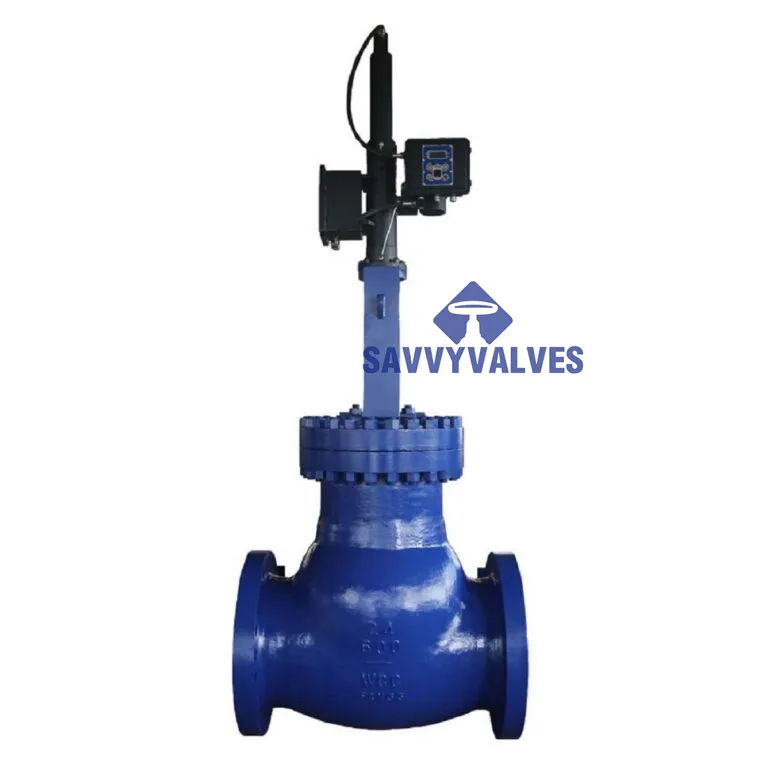

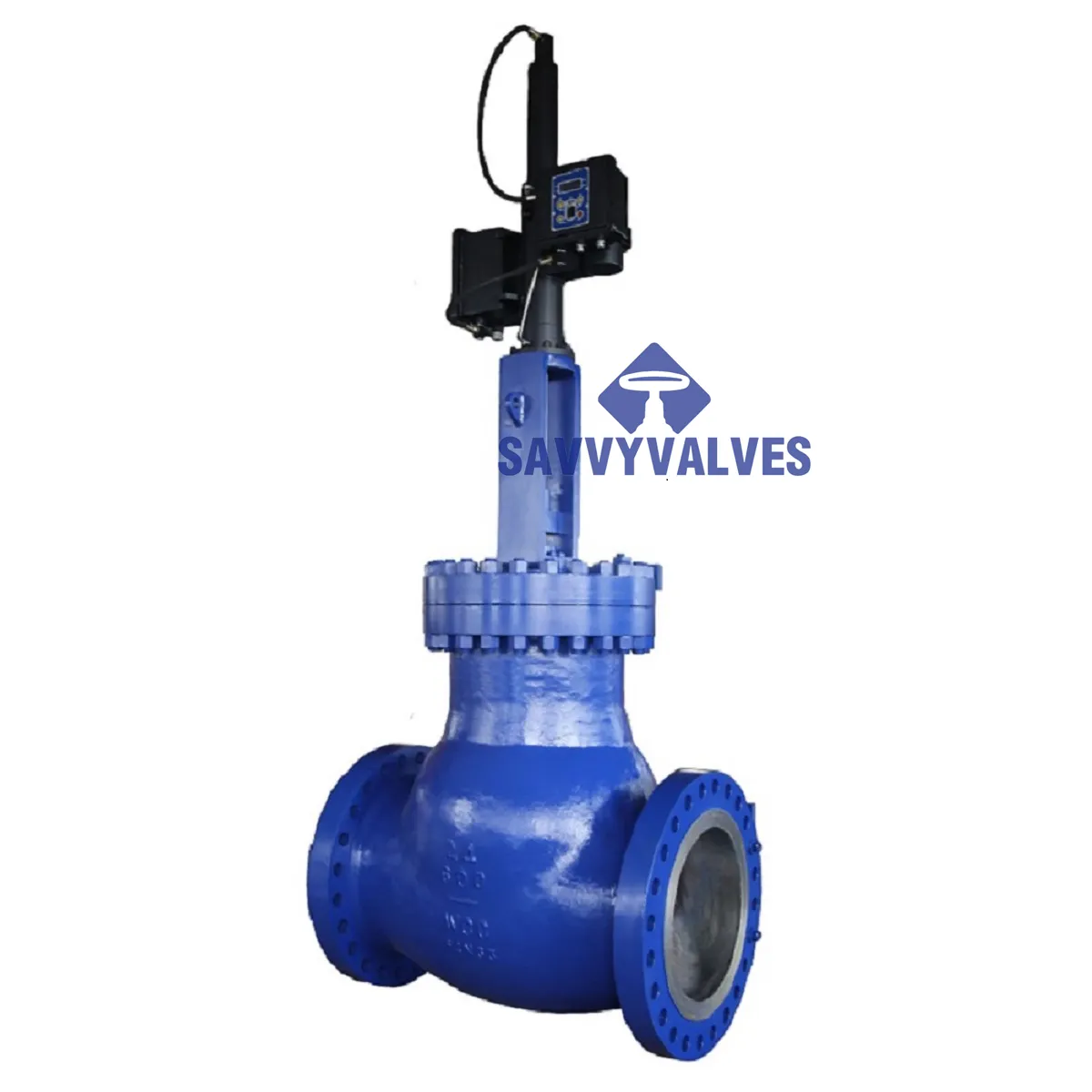

SAVVY 24″ 600lb Electric Hydraulic Balanced Caged Control Valve Type Globe

SAMPLE SPECIFICATIONS
SIZE:24″
RATING:600LB
BODY AND BONNET : ASTM A216 WCC
PLUG: ASTM A182 F316 +STELLITE 6
STEM: ASTM A182 F6A
CAGE: ASTM A276 416
SEAT: ASTM A105+STELLITE 6
ACTUATION: ELECTRIC HYDRAULIC ACTUATOR

Description

GENERAL

Size: 2″ and above.

Pressure Rating: 150LB and above

Design Temperature: ASME B16.34 pressure temperature rating.

General applications: water, oil , gas

DESIGN

Design & Manufacture: API 600, API 6D , ASME B16.34 are basic,other norms could be used according to orders.

F TO F dimensions: API 6D, ASME B16.10, BS EN 558

Connection: ASME B16.5, EN 1092, JIS 5K-20K. BW, RTJ are available.

Structure : FLEXIBLE OR SOLID DISC, OS&Y, BB, FB.

GENERAL MATERIAL

BODY AND BONNET: ASTM A216 WCB.

PLUG: ASTM A216 WCB+HARD FACED

CAGE: ASTM A276 416

STEM: ASTM A 182 F6A, F304,F316,XM-19, 17-4PH, INCONEL 718, MONEL K-500

SEAT:ASTM A105+HARD FACED.

OPERATOR: ELECTRIC HYDRAULIC ACTUATOR ON OFF TYPE OR MODULATING TYPE

OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST

Inspection and approval norm: API598, API6D.

QUALITY CONTROL:

100% Chemical analysis and mechanical test with raw materials of each heat numbers.

100% DPT test with the castings, partly MT or UT test, RT is always available if required.

100% hydraulic test with the shell and seal and low pressure air test.

GUATANTEE

SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.

HOT SALE PRODUCTS

For over 10 years, we have been a leading supplier of industrial valves for major global projects in water supply, oil & gas, and desalination.

What Is A SAVVY 24″ 600lb Electric Hydraulic Balanced Caged Control Valve Type Globe?

The SAVVY 24″ 600lb electric hydraulic balanced caged control valve type globe is an advanced flow control solution designed for precise regulation in high-pressure, large-diameter pipeline systems. With a 24-inch size and a 600lb pressure rating, this valve is ideal for demanding industrial applications such as power generation, petrochemical, and oil and gas processing. The electric hydraulic actuator ensures accurate and responsive control, while the balanced caged design enhances stability, reduces noise, and prevents cavitation under variable flow conditions. As a globe-type valve, it offers excellent throttling capabilities and durability. The balanced structure allows the valve to operate smoothly under high differential pressures with less actuator force, improving energy efficiency and system reliability. This type of valve is often chosen for its robust construction, long service life, and ability to maintain control accuracy even in challenging environments. Regular inspection and calibration are essential for optimal performance.
