U Section Flange Butterfly Valve Nylon Coated

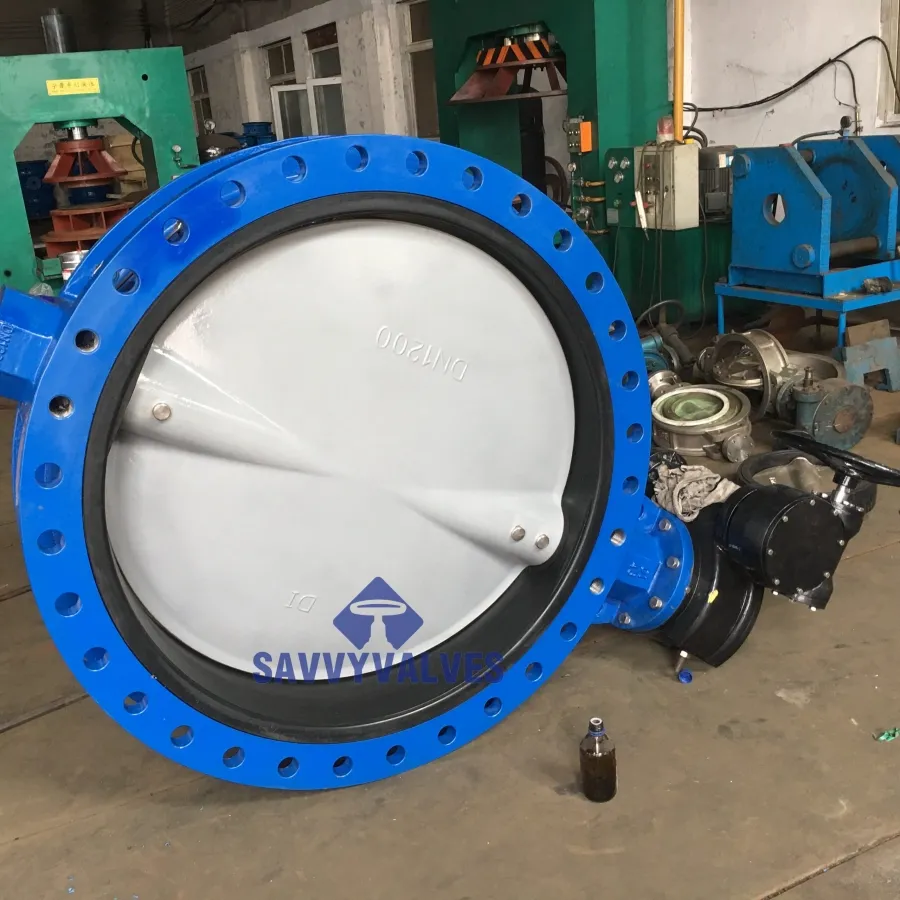

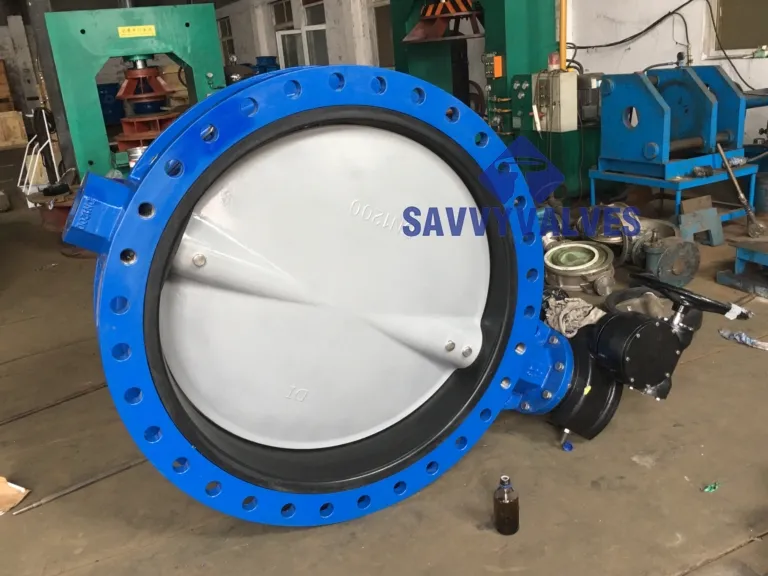

PHOTO SHOWS SPECIFICATIONS AS BELOW
SIZE: DN1200
RATING: PN16
BODY: ASTM A395
DISC: ASTM A536 65-45-12+ NYLON11 COATING
STEM: SS316
SEAT: EPDM
ACTUATION: GEAR

GENERAL DESIGNED SPECIFICATIONS

Size:14″~80″.
Pressure Rating: PN6~PN20
General applications: Water. Oil. Gas.
Design & Manufacture: API 609 BS 5155 EN593 are basic, ASME B16.34 ,other norms could be used according to orders.
F TO F dimensions: API 609, ASME B16.10, BS EN 558
Connection: ASME B16.5, EN 1092, JIS 5K-20K. BW, RTJ are available.
Safety design: anti-blow out stem.
REPLACEABLE CARTRIDGE RUBBER SEAT

TYPICAL MATERIAL LIST

BODY: ASTM A126 CAST IRON , ASTM A536 DUCTILE IRON, ASTM A216 WCB, A351 CF8 CF8M CF3 CF3M, A995 4A 5A ,C95400,C95800

DISC: ASTM A536 DUCTILE IRON, ASTM A351 CF8, CF8M, ALUMINIUM BRONZE C95400, C95800, DSS 2205, 2507

STEM: 13CR,SS304 SS316, XM-19, 17-4PH, INCONEL 718, MONEL K-500

SEAT: EPDM, NBR, VITON

OPERATOR: GEAR UNIT

OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST AND INSPECTION

Inspection and approval norm: API598, API6D.

QUALITY CONTROL

100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.

GUATANTEE

SAVVY VALVES provide 12 months service life at least, free spares and maintenance instruction will be provided when required.

HOT SALE PRODUCTS

For over 10 years, we have been a leading supplier of industrial valves for major global projects in water supply, oil & gas, and desalination.

What Are The Advantages Of A U Section Flange Butterfly Valve Nylon Coated?

The U section flange butterfly valve nylon coated is designed for enhanced durability and corrosion resistance, making it a reliable choice in harsh environments such as marine, chemical, and wastewater applications. The U section body provides added strength and structural stability, especially useful where the piping system is subject to vibration or pressure variations. The nylon coating offers excellent protection against rust, chemicals, and wear, significantly extending the service life of the valve. This coating also ensures smoother operation by reducing friction on moving parts. With a flanged connection for secure installation, the valve is easy to maintain and suitable for both on-off and throttling functions. The combination of robust construction, reliable sealing, and protective coating makes this butterfly valve ideal for systems demanding low maintenance, long-term performance, and superior corrosion resistance.
