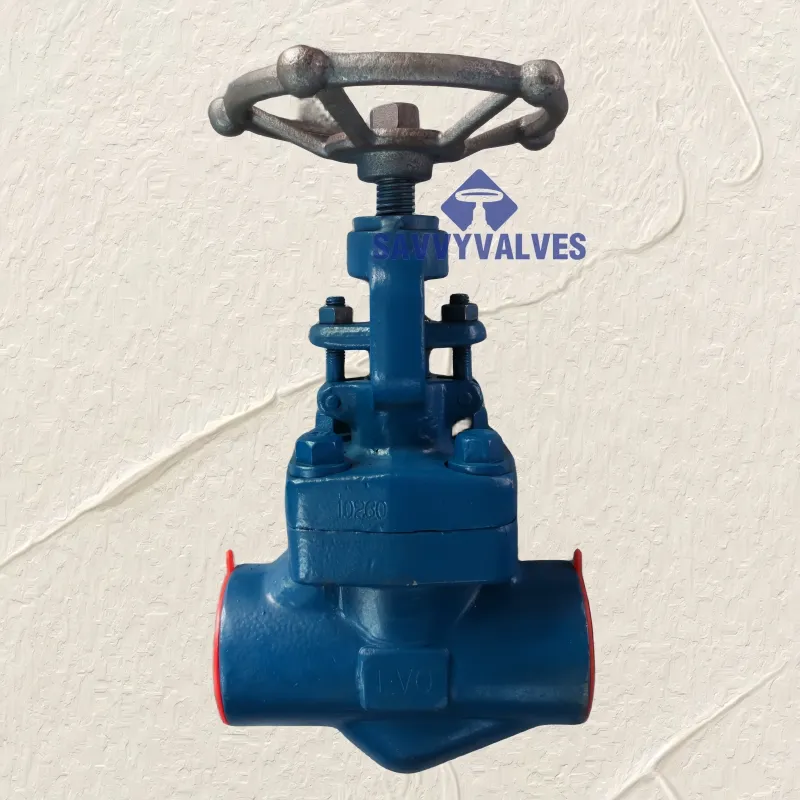

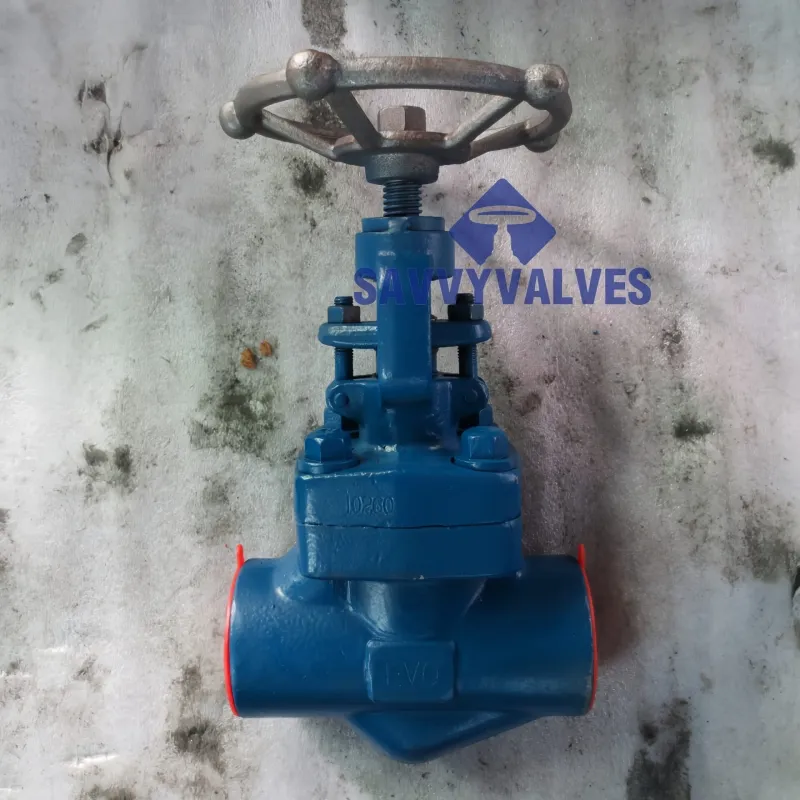

API 602 pattern forged globe valve

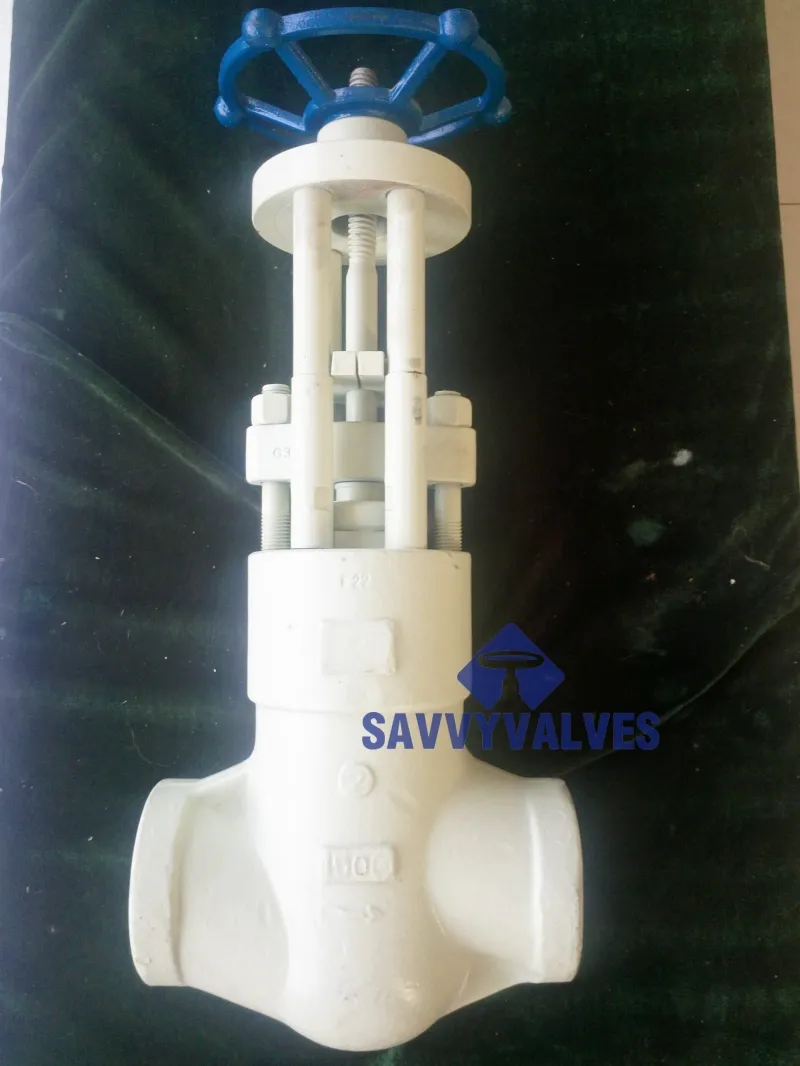

PHOTO SHOWS SPECIFICATIONS AS BELOW
SIZE:1″
RATING:800LB
BODY AND BONNET : ASTM A105
DISC: ASTM A105+STELLITE 6
STEM: ASTM A182 F316
SEAT: ASTM A182 F316+STELLITE 6
ACTUATION: HAND WHEEL

GENERAL

Size: 1/8″~4″.
Pressure Rating:150LB~4500LB
Design Temperature: -196℃~800℃.
General applications: water, oil , gas
Design & Manufacture: API 602, API 600, ASME B16.34 are basic,other norms could be used according to orders.
F TO F dimensions: API 6D, ASME B16.10, BS EN 558
Connection: SW AS PER ASME B16.11 ,FLANGE AS PER ASME B16.5, EN 1092, JIS 5K-20K, BW, RTJ are available.
Structure : SOLID DISC, OS&Y, BOLTED BONNET/PRESSURE SEAL BONNET/WELDED BONNET.
OPERATOR: HAND WHEEL, ELECTRIC ACTUATED

GENERAL MATERIAL

BODY AND BONNET: ASTM A105, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718 .
DISC: ASTM A105, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
STEM: A182 F6A,F304,F304L,F316,F316L,F51,F53,17-4PH,XM-19,C95400,C95800,C83600,INCONEL 625,INCONEL 718,MONEL K400,MONEL K500, H-276
SEAT: A182 F6A,F304,F304L,F316,F316L,F51,F53,17-4PH,XM-19,C95400,C95800,C83600,INCONEL 625,INCONEL 718,MONEL K400,MONEL K500, H-276
OPERATOR: WHEEL
OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST AND INSPECTION

Inspection and approval norm: API598, API6D.

QUALITY CONTROL:

100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.

GUATANTEE:

SAVVY VALVES provide 12 months service life at least, free spares and maintenance instruction will be provided when required.

HOT SALE PRODUCTS

For over 10 years, we have been a leading supplier of industrial valves for major global projects in water supply, oil & gas, and desalination.

What Are The Advantages Of An API 602 Pattern Forged Globe Valve In Compact Piping Systems?

The API 602 pattern forged globe valve is specifically designed for compact, high-pressure piping systems where precise flow control and durability are essential. Manufactured in accordance with API 602 standards, it ensures dimensional consistency, reliable sealing, and compatibility with other pressure-containing components. The forged steel construction offers enhanced strength, resistance to thermal stress, and improved grain structure over cast alternatives, making it ideal for severe service applications such as power generation, petrochemicals, and oil and gas. The globe valve design allows for excellent throttling performance and flow regulation, while the compact body style fits well in tight or confined spaces. With options for bolted or welded bonnets, hard-faced trim, and backseat features, this valve provides flexibility, ease of maintenance, and long service life. Its robust structure and precise control make it a trusted choice for critical operations demanding both performance and safety.
