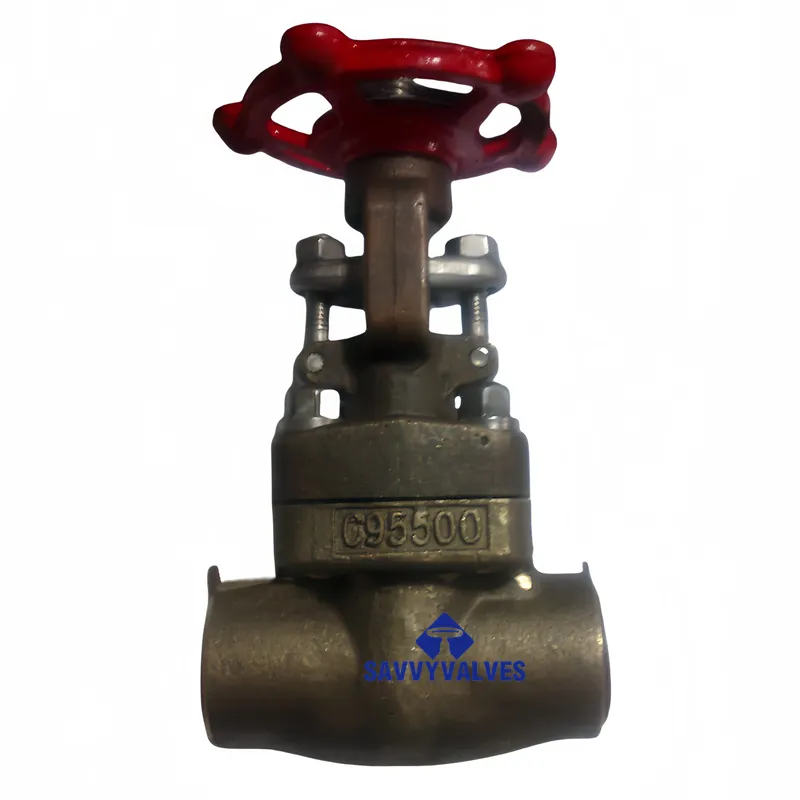

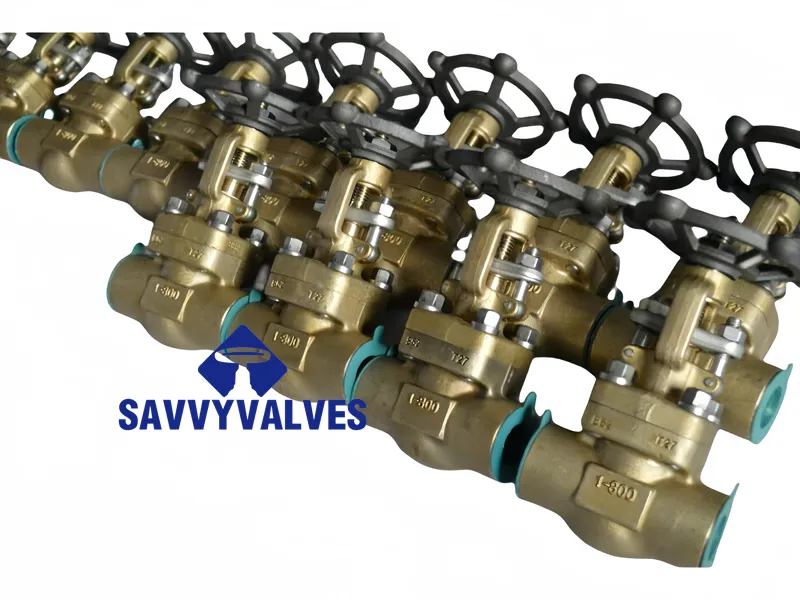

C95500 Al-bronze Gate Valve

Description

TECHNICAL DATA SHEET

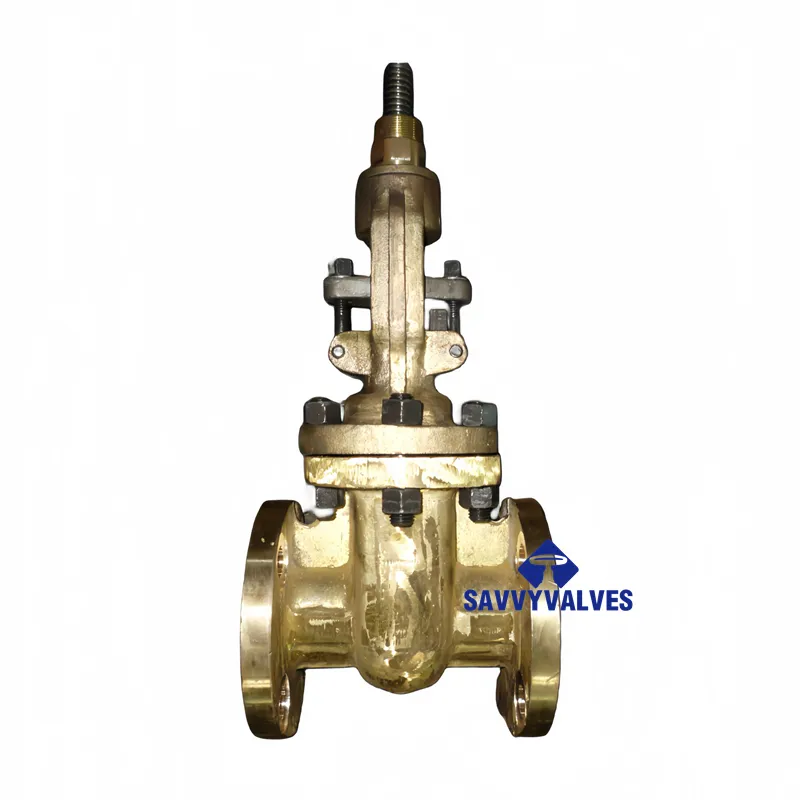

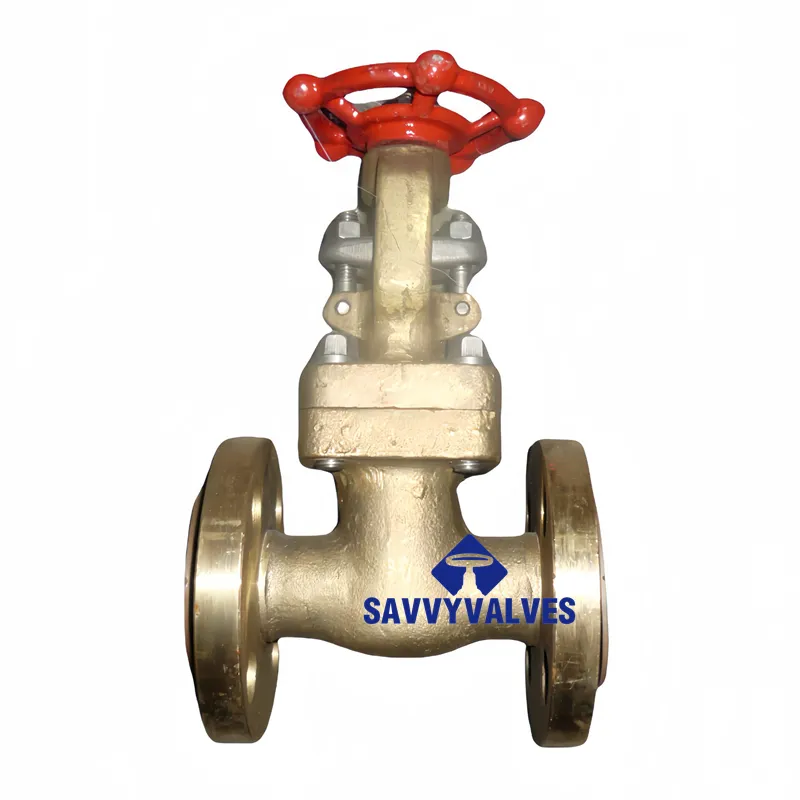

PRODUCT: ALUMINUM BRONZE GATE VALVE, FLANGED OR THREADED ENDS

1. VALVE DESCRIPTION

• Type: Gate Valve (Solid Wedge or Parallel Slide)
• Operation: Manual (Handwheel)
• Design Standard:
• Flanged: API 602 / ASME B16.34 / MSS SP-80
• Threaded: ASME B1.20.1 (NPT) / BS 21 (BSP) / MSS SP-80
• Pressure Rating: ASME 150 LB (PN 20)
• Body/Bonnet: Bolted Bonnet (BB)
• Stem Operation: Outside Screw & Yoke (OS&Y)
• Seat Design: Renewable Seat Rings (RS)

2. SIZE AND CONNECTION OPTIONS

*¹ Larger threaded valves (e.g., NPS 2½”) are non-standard; confirm feasibility.*

3. MATERIALS OF CONSTRUCTION

*² For corrosive environments, specify SS bolting (A193 B8/B8M).*

4. DESIGN FEATURES

• Ends:
• Flanged: ASME B16.5 RF drill pattern.
• Threaded: Tapered threads (NPT/BSP) with thread protectors.
• Seats: Renewable seat rings (RS) secured by retaining rings.
• Stem Seal: Adjustable gland packing (Graphite/PTFE).
• Backseat: Integral to bonnet for stem seal under pressure.
• Operation: Rotating handwheel lifts stem/gate (OS&Y design).

5. TESTING & CERTIFICATION

*³ Threaded valves: Shell test pressure = 2x max working pressure (per API 598).*

6. DIMENSIONS & FINISH

• Face-to-Face: ASME B16.10 (Flanged) / Manufacturer Std (Threaded).
• Flange Dimensions: ASME B16.5, 150 LB RF.
• Surface Finish:
• External: As-cast or primer-coated (RAL 5015).
• Internal: Smooth bore (Ra ≤ 3.2 μm).
• Threads: Coated with anti-galling compound.

7. MARKING & PACKING

• Marking:
• Per MSS-SP-25: Size, Pressure Class, Material (e.g., “AL-BZ”), Flow Arrow, Manufacturer ID.
• Packing:
• Flanged: Wooden crate + VCI paper + flange covers.
• Threaded: Cardboard box + thread protectors.

8. OPTIONS (UPON REQUEST)

• Connections: RTJ flanges, Socket Weld (SW), Buttweld (BW).
• Materials:
• Stem: Monel K500 / SS316.
• Bolting: A320 L7 (Low-Temp) / A193 B8M (SS316).
• Certifications: NACE MR0175, DNV-GL, PED 2014/68/EU.
• Accessories: Locking handwheel, position indicator, gear operator.

Key Notes for Procurement:

1. Threaded Valve Limits: Max NPS 2″ for standard designs; confirm pressure derating for sizes >1″.
2. Corrosion Protection: Specify SS bolting (A193 B8M) for seawater/offshore use.
3. Standards: API 602 covers flanged valves ≤ NPS 4″; threaded valves follow MSS SP-80.
4. Testing: Threaded valves require higher shell test pressure (see API 598 Sec 5.3).
