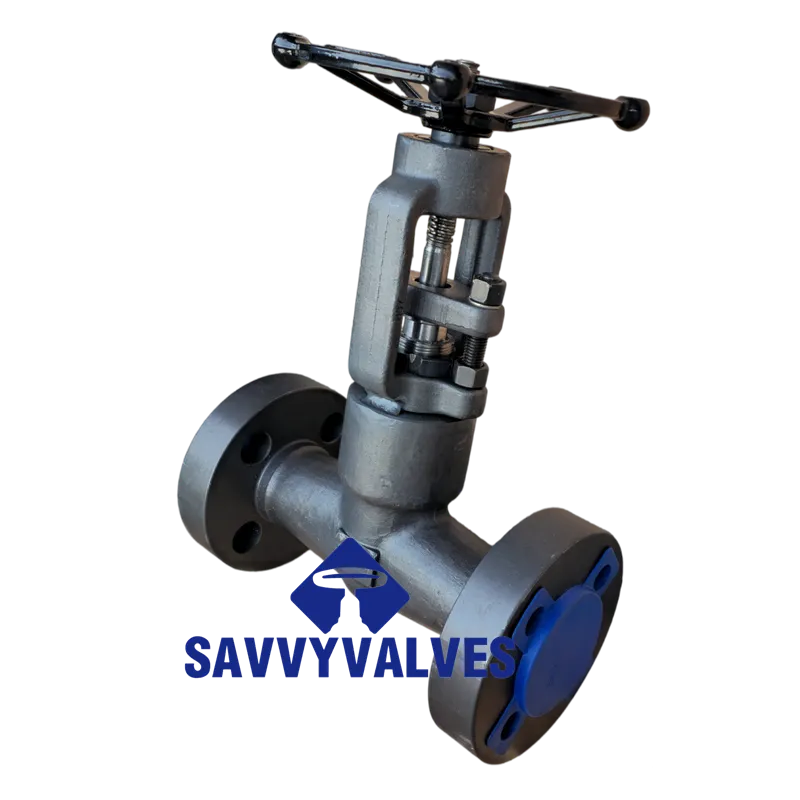

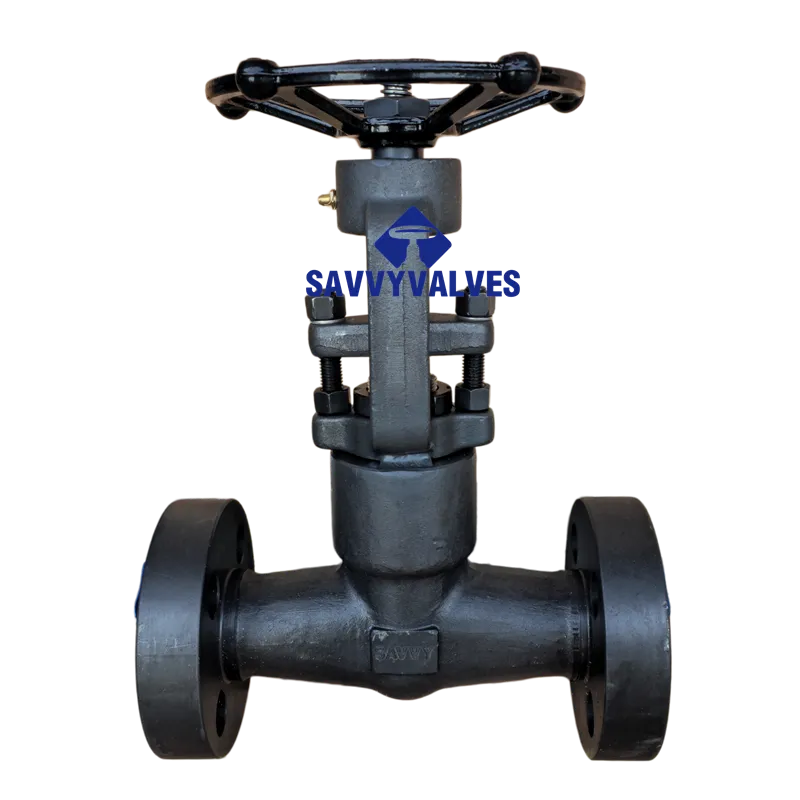

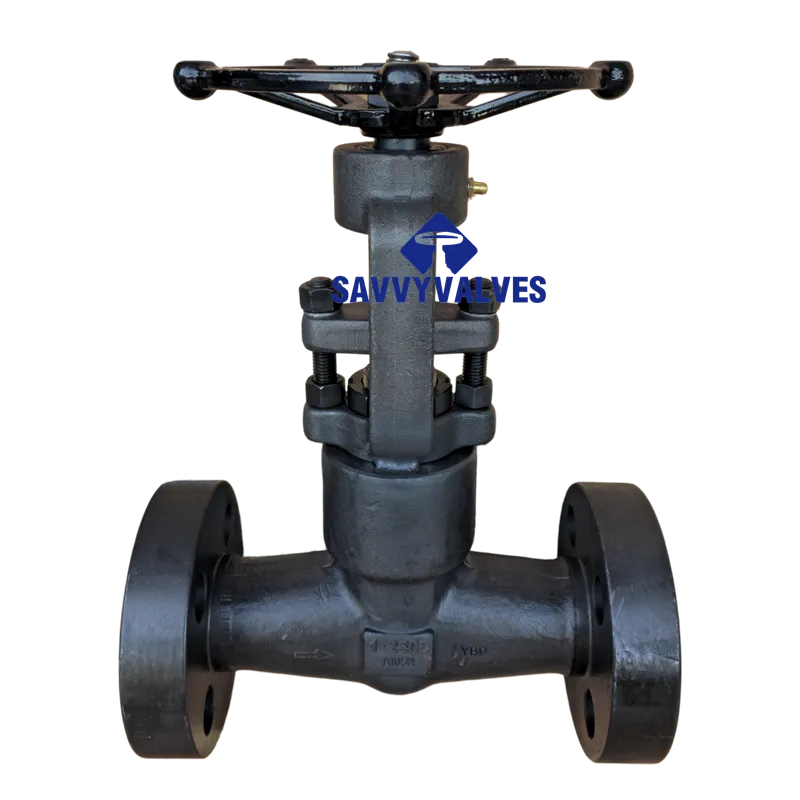

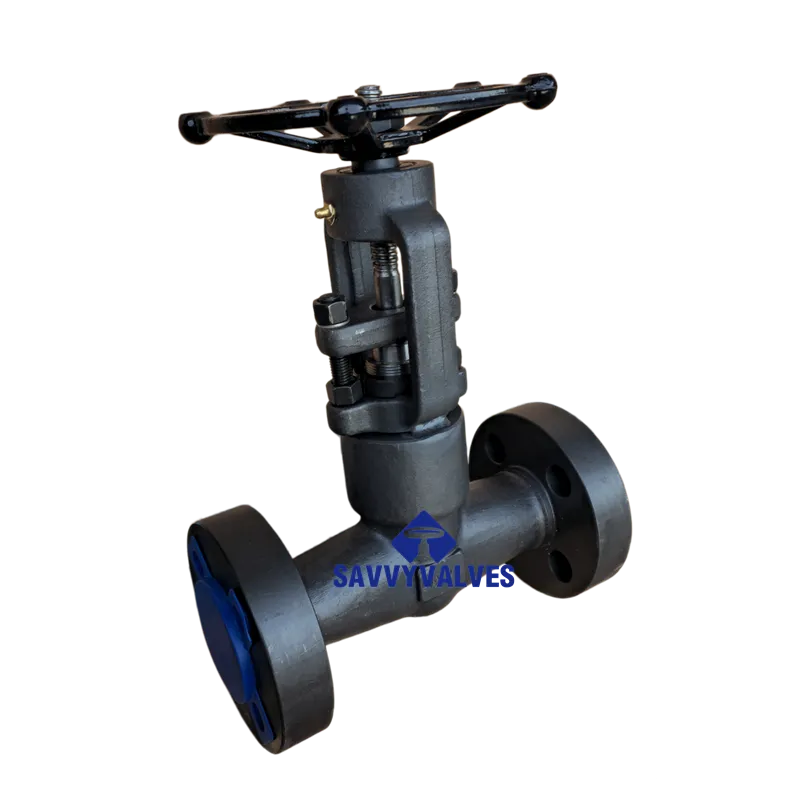

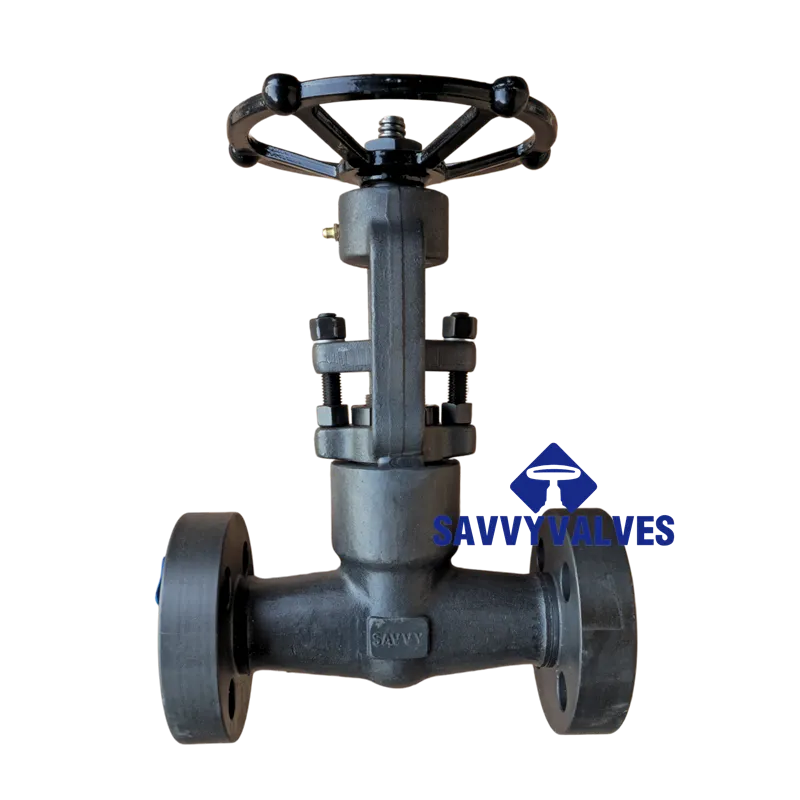

Closed Die Forged Globe Valve 1″-2500LB

Design & Manufacture API 602, ASME B16.34, BS5352
End Connection SW: ASME B16.11; NPT: ASME B1.20.1; Flanged: ASME B16.5
Pressure-Temp. Rating ASME B16.34
Inspection & Testing API 598

Description

GENERAL DATA

Item	Parameter	Remarks/Options
1. Valve Type	Forged Steel Globe Valve (Handwheel Operated)	Outside Screw & Yoke (OS&Y)
2. Model Code	J61H / J61Y – 2500Lb	J61H (Alloy/SS trim), J61Y (Stellite faced)
3. Nominal Size	NPS 1″ (DN25)	Full Bore or Reduced Bore (Full Bore std.)
4. Pressure Rating	Class 2500Lb	ASME B16.34
5. Connection Type	□ Socket Weld (SW) □ Threaded (NPT) □ Flanged	SW: ASME B16.11 / Thread: ASME B1.20.1 / Flanged: ASME B16.5
6. Face to Face (L)	186 mm (SW/NPT) / 216 mm (Flanged)	SW/NPT: API 602 / Flanged: ASME B16.10
7. Applicable Media	□ Water, Steam, Oil □ Nitric/Acetic Acid
8. Applicable Temp.	Refer to material selection	-29℃ ~ +550℃ (Material dependent)

DESIGN CODES & STANDARDS

Item	Standard
Design & Manufacture	API 602, ASME B16.34, BS5352
End Connection	SW: ASME B16.11; NPT: ASME B1.20.1; Flanged: ASME B16.5
Pressure-Temp. Rating	ASME B16.34
Inspection & Testing	API 598
Marking	MSS SP-25

III. DIMENSIONS & WEIGHT (1″-2500Lb)

Dimension	Socket Weld / Threaded	Flanged	Remarks
Length (L)	186 mm	216 mm	Flanged per ASME B16.10
Height (H-Open)	321 mm / 333 mm	340 mm (approx.)	Vendor dependent
Handwheel Dia. (W)	160 mm / 180 mm	200 mm (approx.)
Approx. Weight	10.5 kg ~ 10.8 kg	14.5 kg ~ 16.0 kg	Flanged type heavier
Flange Facing	—	RTJ (Ring Type Joint)	Std. for Class 2500
Drilling	—	ASME B16.5	1″-2500Lb: 8-Φ25.4, 101.6mm BC

MAIN COMPONENT MATERIALS (Per API 602 Standard)

No.	Part Name	Carbon Steel (CS)	Alloy Steel (AS)	Stainless Steel (SS)	Selection
1	Body	ASTM A105N	ASTM A182 F22	ASTM A182 F304(L)/F316(L)	□
2	Bonnet	ASTM A105N	ASTM A182 F22	ASTM A182 F304(L)/F316(L)	□
3	Disc	ASTM A276 420	ASTM A276 304	ASTM A276 304(L)/316(L)	□
4	Stem	ASTM A182 F6a	ASTM A182 F304	ASTM A182 F304(L)/F316(L)	□
5	Seat Surface	J61H: Integral/Hardfaced J61Y: Stellite
6	Gasket	316 + Flex. Graphite	316 + PTFE	□
7	Packing	Flexible Graphite	PTFE	□
8	Handwheel	ASTM A197	□
9	Stud/Nut	A193 B7 / A194 2H	A193 B16 / A194 4	A193 B8 / A194 8	□
Temp. Range	-29℃ ~ 425℃	-29℃ ~ 550℃	-29℃ ~ 200℃ (or higher)

Note: “L” grade = Low Carbon, better intergranular corrosion resistance. Materials listed are industry standards compiled from multiple manufacturers.

CONSTRUCTION FEATURES & REQUIREMENTS

Bonnet Type: □ Bolted Bonnet (Std.) □ Pressure Seal Bonnet □ Welded Bonnet
Disc Design: Standard Globe Type; Options: Needle Type, Check Valve Type
Backseat: Integral backseat design allows repacking under pressure in full open position.
Flange Facing: RTJ (Ring Type Joint) as standard for Class 2500. Optional: MFG (Male-Female), T&G (Tongue & Groove) upon request.
