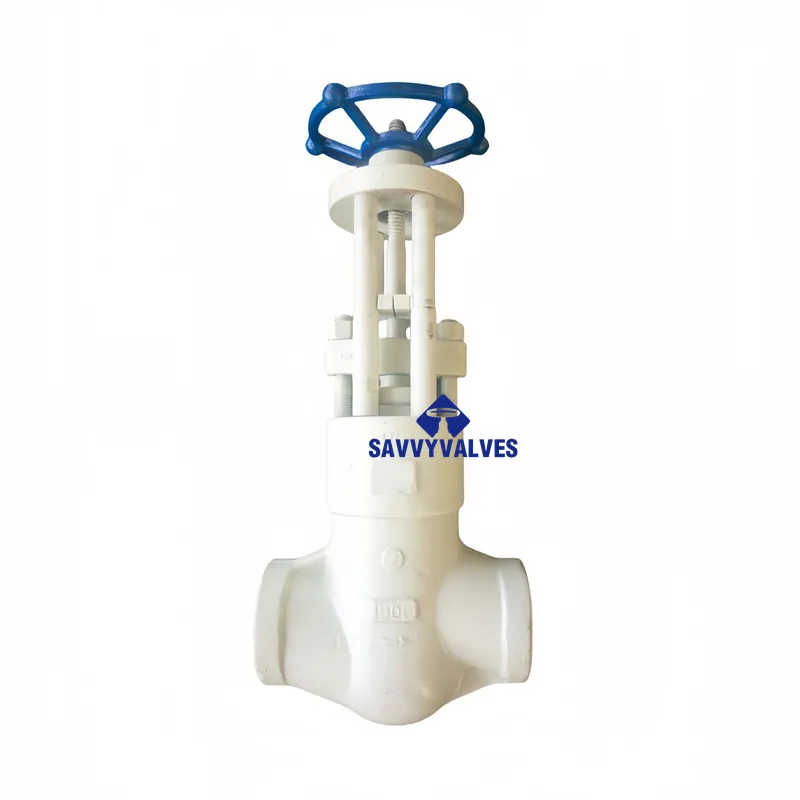

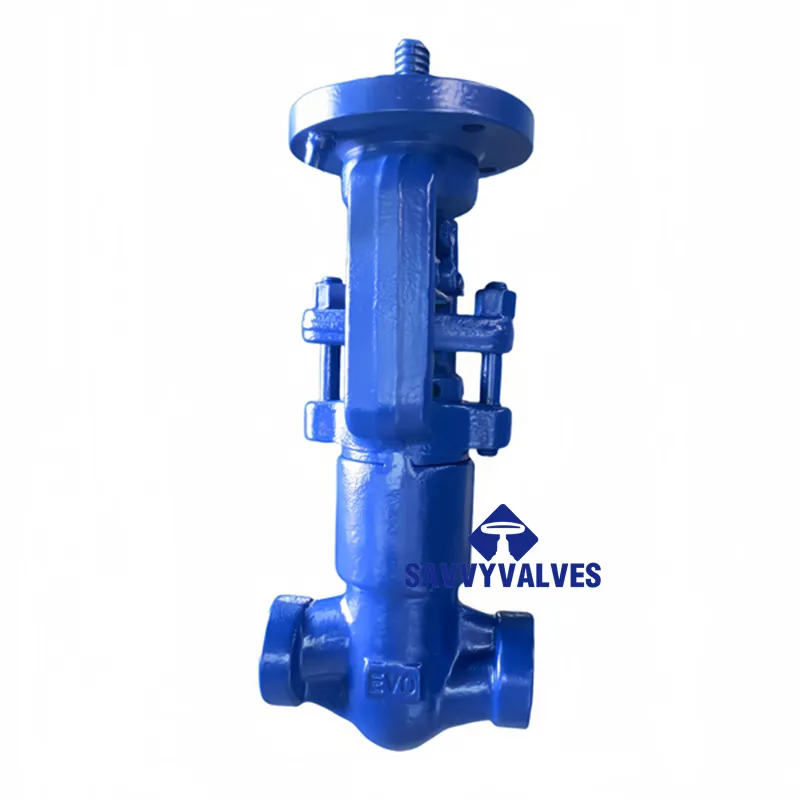

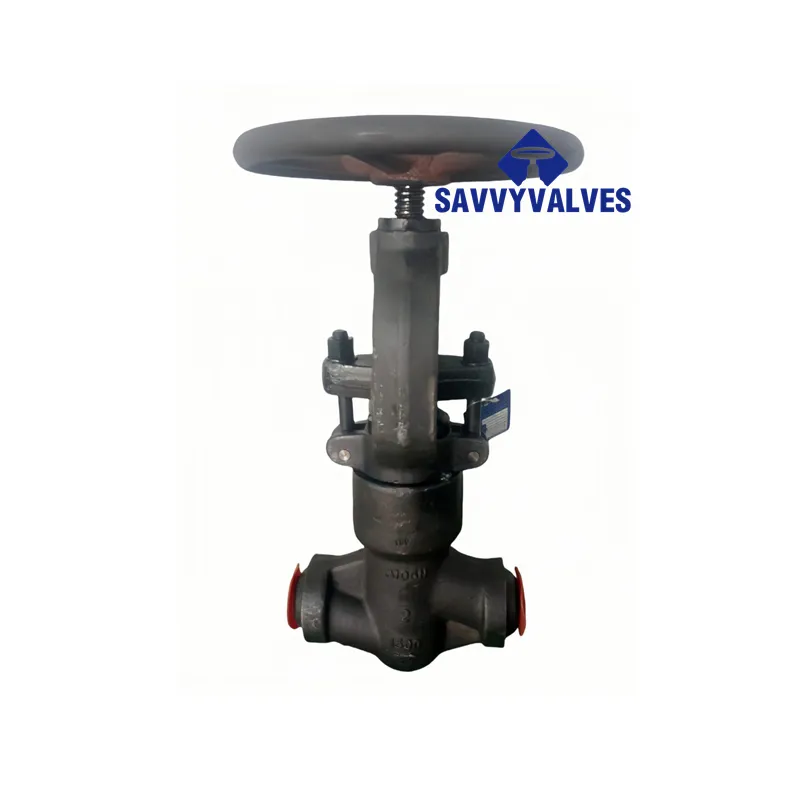

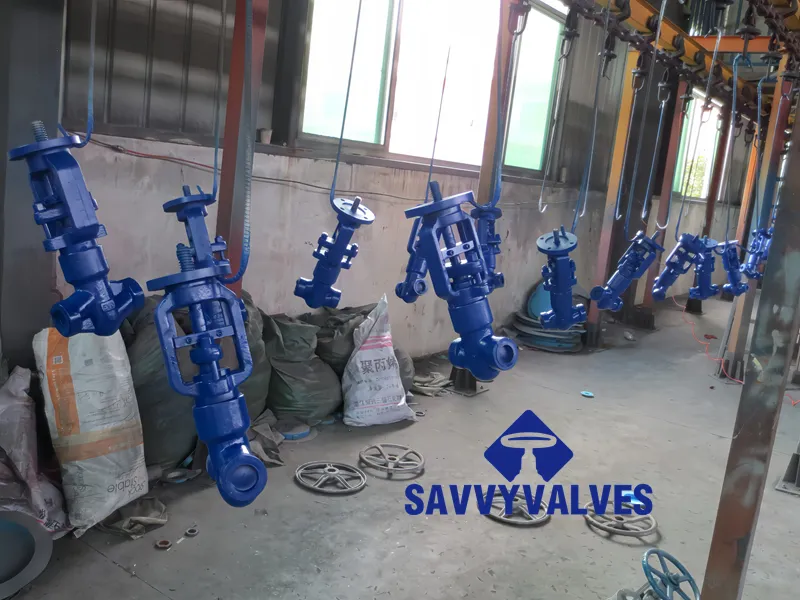

Class 1500 Closed Die Forged PSB Globe Valve

Valve Type Globe Valve (Stop-Check Optional)
Bonnet Type Self-Sealing Bonnet (Pressure Seal Design)
Design Standard ASME B16.34, API 623
Size Range (NPS) 2″ to 24″
Pressure Class ASME 1500 LB
Temperature Range -29°C to 593°C (-20°F to 1100°F)
End Connections • Butt Weld (ASME B16.25)
• Flanged (ASME B16.5 Class 1500)
Face-to-Face ASME B16.10 Class 1500
Body Material Forged Steel (ASTM A182)

Description

Class 1500 Die-Forged PSB Globe Valve (ASME B16.34)

GENERAL SPECIFICATIONS

Parameter	Technical Requirement
Valve Type	Globe Valve (Stop-Check Optional)
Bonnet Type	Self-Sealing Bonnet (Pressure Seal Design)
Design Standard	ASME B16.34, API 623
Size Range (NPS)	2″ to 24″
Pressure Class	ASME 1500 LB
Temperature Range	-29°C to 593°C (-20°F to 1100°F)
End Connections	• Butt Weld (ASME B16.25) • Flanged (ASME B16.5 Class 1500)
Face-to-Face	ASME B16.10 Class 1500
Body Material	Forged Steel (ASTM A182)

CONSTRUCTION MATERIALS

Component	Material Standard	Grade/Details
Body & Bonnet	ASTM A182	F22 / F91 / F316 (Forged)
Bonnet Seal	Self-Energizing Seal	Inconel Pressure Seal Ring
Stem	ASTM A182	F6a (13Cr) or F316
Seat & Disc	Stellite Overlay	#6 or #21 Alloy

III. SELF-SEALING BONNET MECHANISM

Feature	Technical Principle
Sealing Method	Pressure-Actuated Self-Energizing • System pressure compresses seal ring against bonnet groove • Sealing force ↑ as pressure ↑ (Zero leakage >600 PSI)
Seal Ring	Inconel 600/625 (Conical Section)
Gasket	Not Required (Seal ring replaces gasket)
Advantage	Eliminates bolt re-torquing in high-temperature service

PERFORMANCE DATA

Feature	Specification
Bonnet Leakage	ASME B16.34 Class A (Zero detectable leak)
Seat Leakage Class	Class IV (Standard), Class VI (Optional)
Fire-Safe Rating	API 607 Certified

APPLICATIONS

► High-Pressure Systems (>100 bar) where thermal cycling causes bolt relaxation
► Power plant steam headers & turbine inlets
► Refinery hydrocracker units

TECHNICAL HIGHLIGHTS

SELF-SEALING BONNET: Pressure-energized seal ensures zero leakage at 593°C/1100°F without bolt re-tightening
NO GASKET FAILURE RISK: Metallic seal ring replaces conventional gaskets
AUTOMATIC SEALING FORCE: Sealing pressure increases proportionally with system pressure
