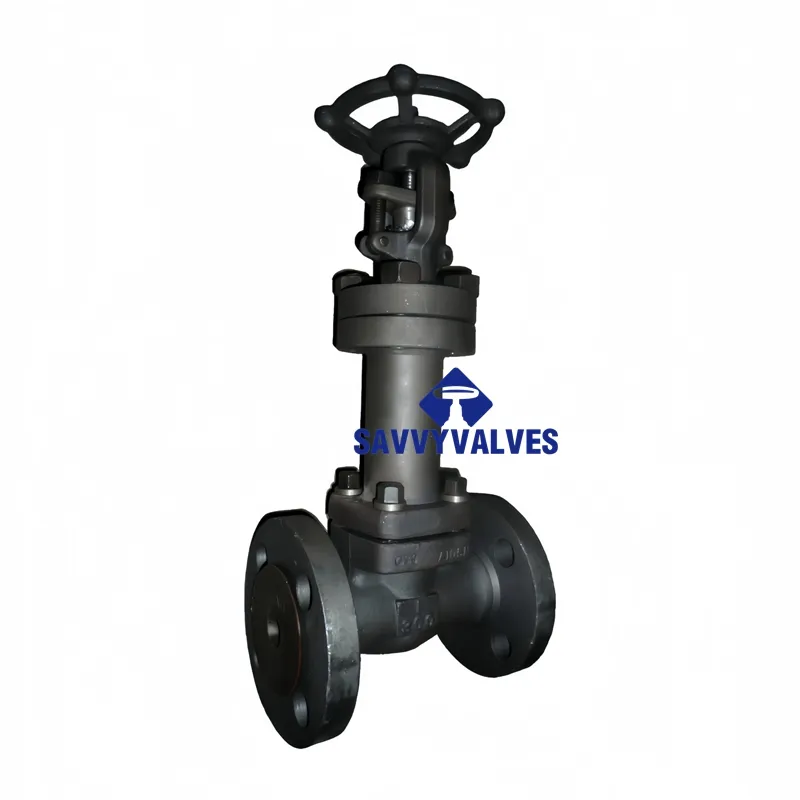

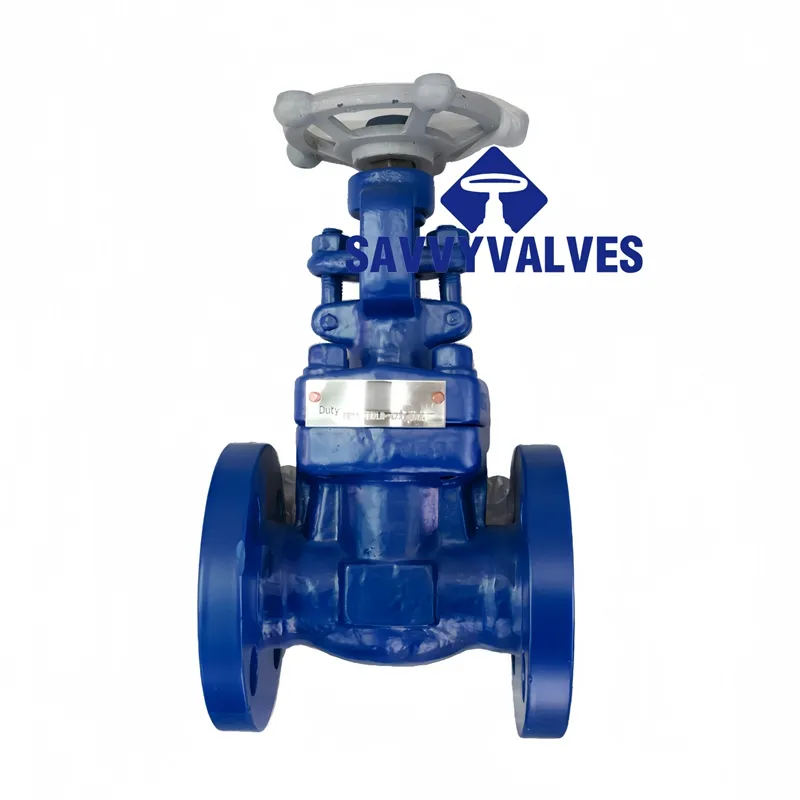

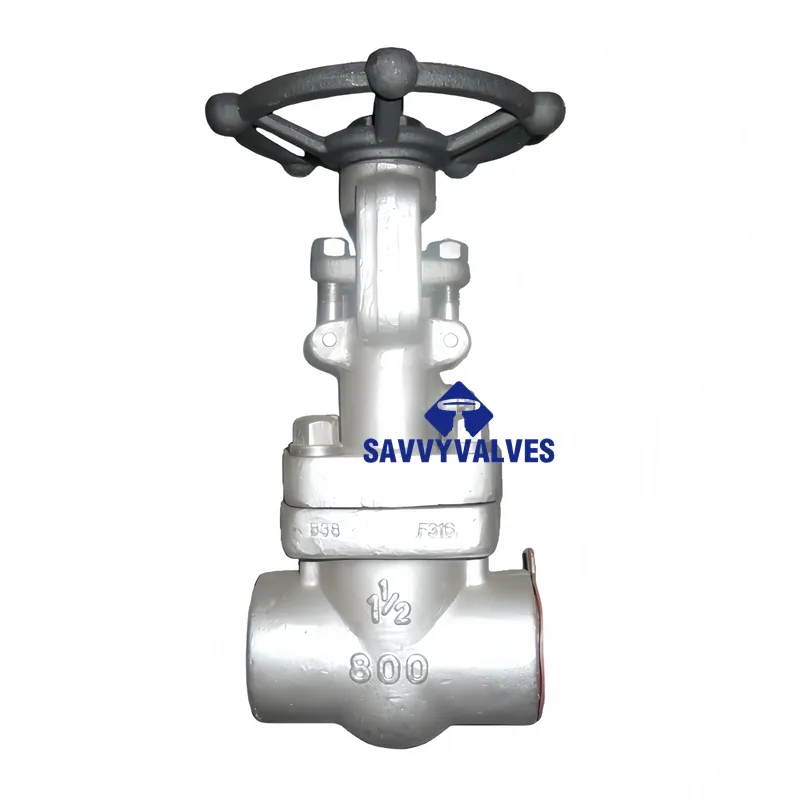

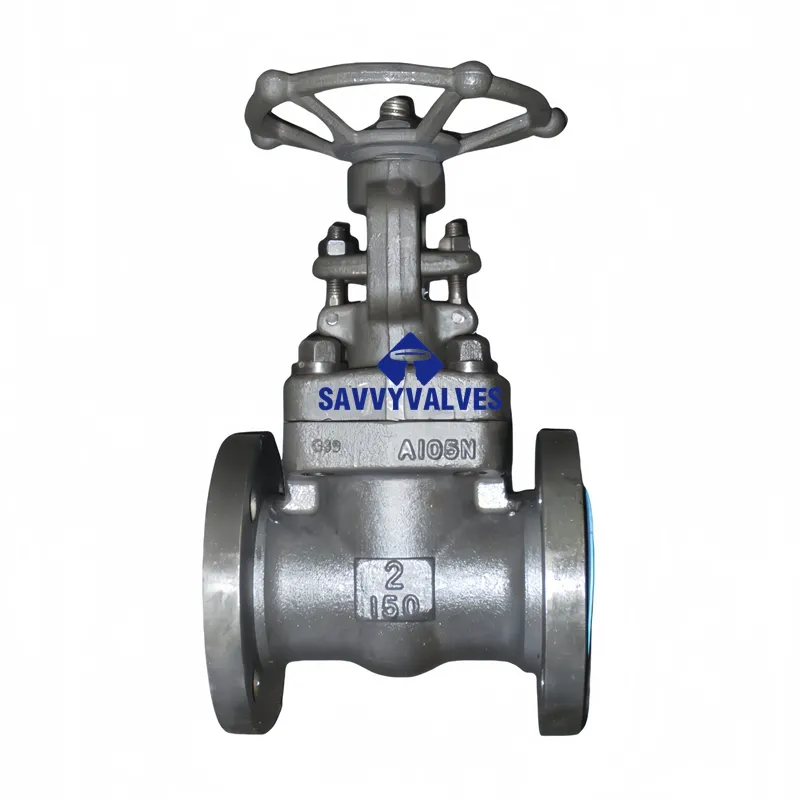

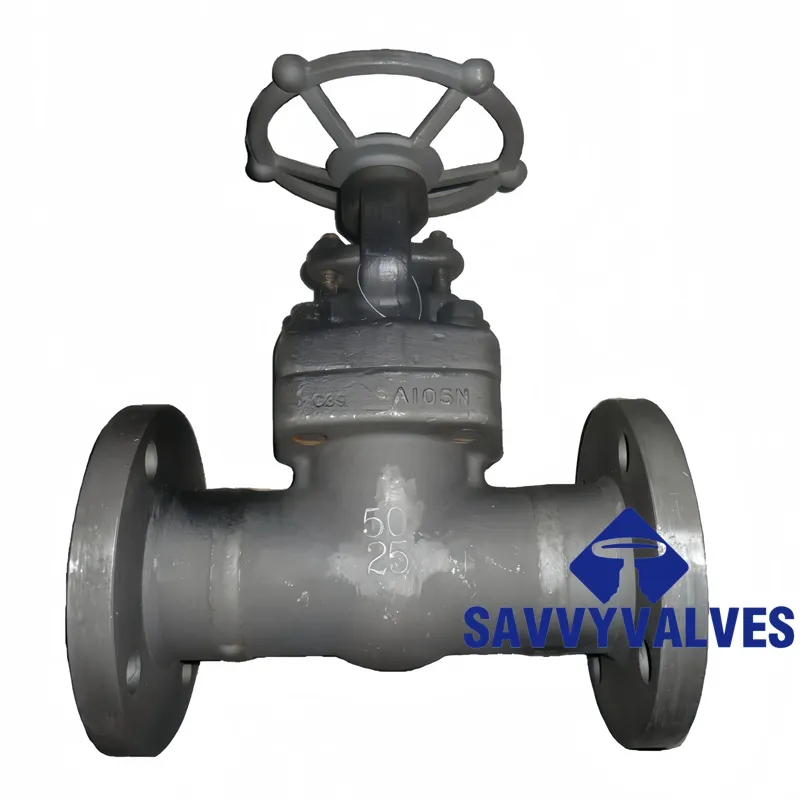

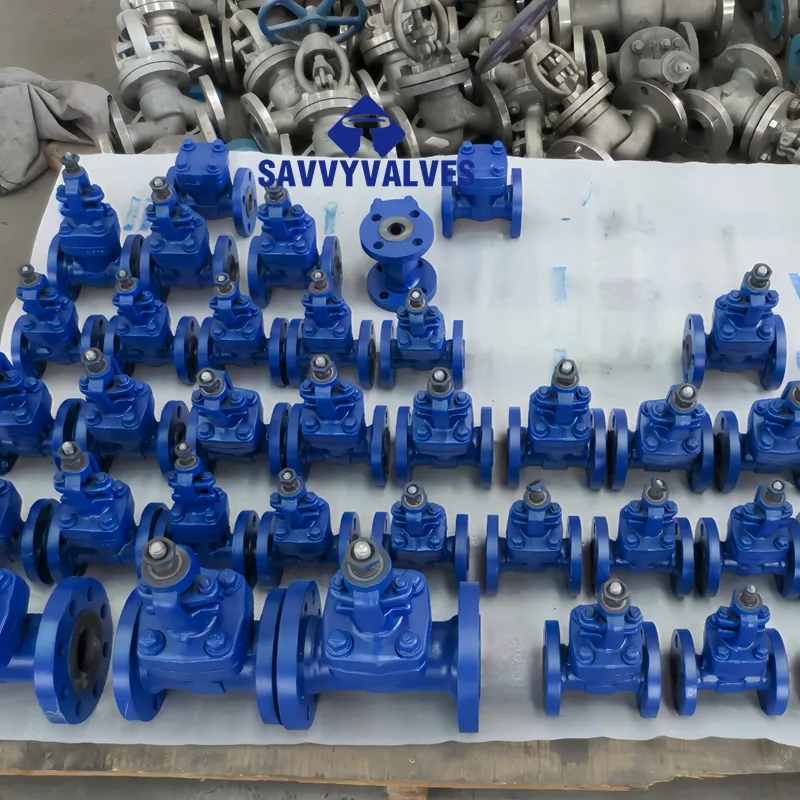

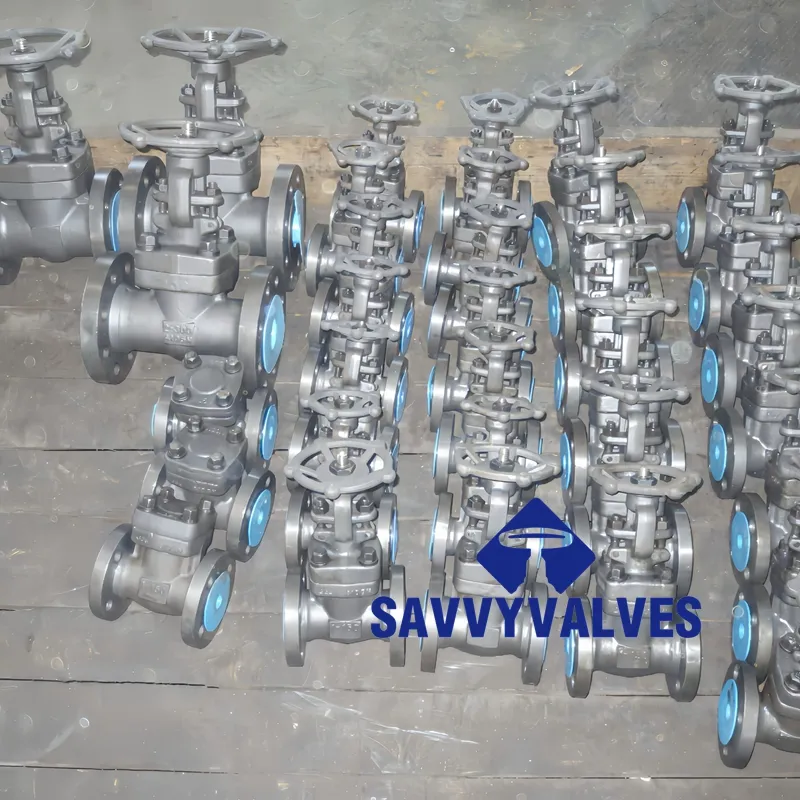

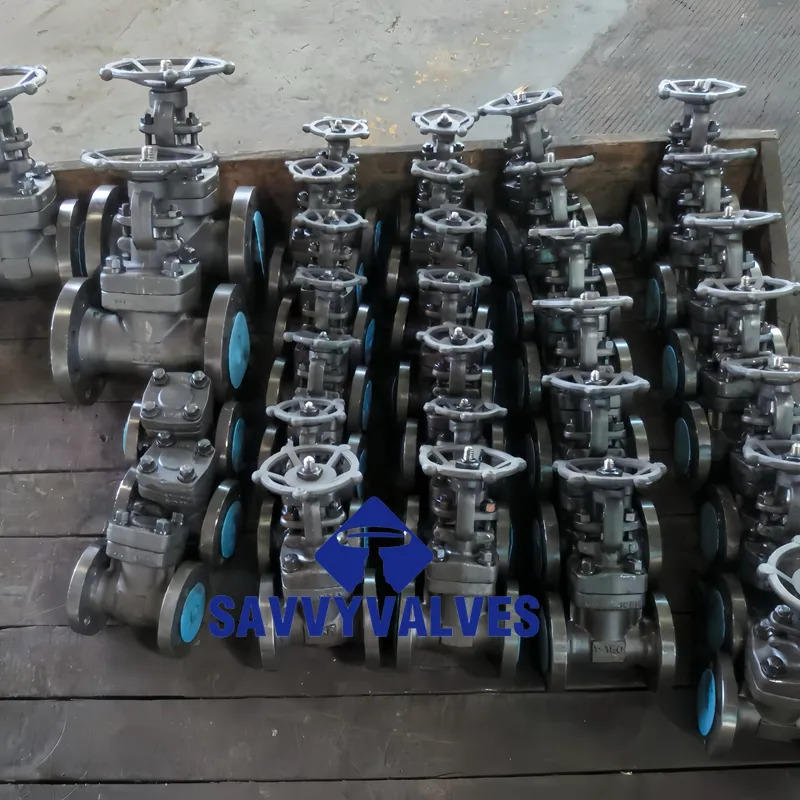

API 602 FORGED STEEL GATE VALVE TECHNICAL DATASHEET
*Bolted Bonnet · OS&Y · F6a Trim · ¼”-4″ · 150-1500LB*
DESIGN & MATERIAL SPECIFICATIONS
|
Parameter |
Specification |
Standard |
Notes |
|
Valve Type |
Flexible Wedge Gate Valve |
API 602 9th Ed |
Bidirectional sealing |
|
Size Range |
¼” to 4″ (DN8 to DN100) |
ASME B16.10 |
|
|
Pressure Class |
150LB · 300LB · 600LB · 900LB · 1500LB |
ASME B16.34 |
|
|
End Connections |
Socket Weld (SW) · NPT · Raised Face Flange (RF) |
ASME B16.11/B16.5 |
RF faces per B16.5 |
|
Body/Bonnet |
ASTM A105 Forged Carbon Steel |
NACE MR0175 |
-29°C to 425°C service |
|
Trim Package |
F6a Hardfaced |
API 602 Trim 5 |
Stellite 6 overlay ≥2.5mm |
|
Gate Disc |
A105 + Stellite 6 |
Flexible wedge design |
|
|
Stem |
ASTM A182 F6a (13Cr SS) |
Nitrided surface 22-30 HRC |
|
|
Seats |
Integral Stellite 6 overlay |
Full circumferential sealing |
|
|
Gasket |
Spiral Wound SS316/Graphite |
API 600 Annex F |
Fire safe design |
|
Operation |
Handwheel (Standard) · Gear Operator (Opt) |
OS&Y rising |
