MSS SP-85 Standard cast iron globe valve

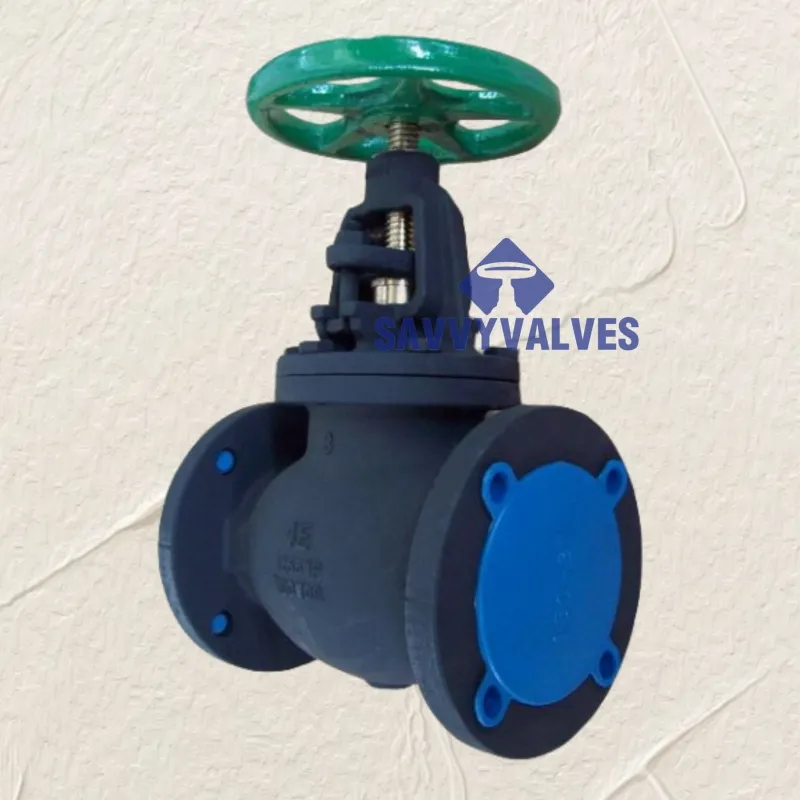

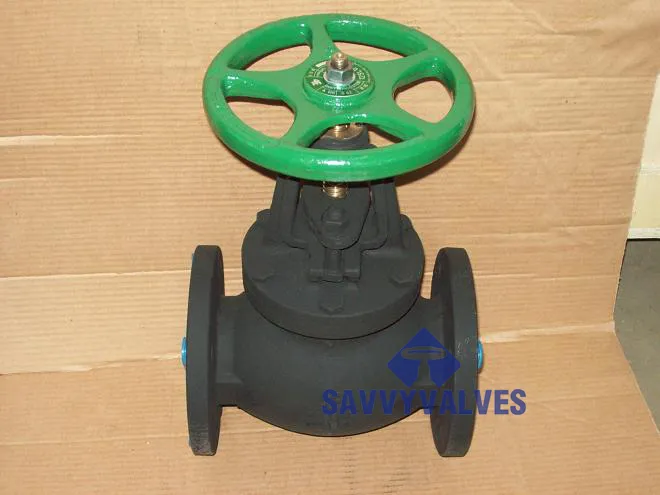

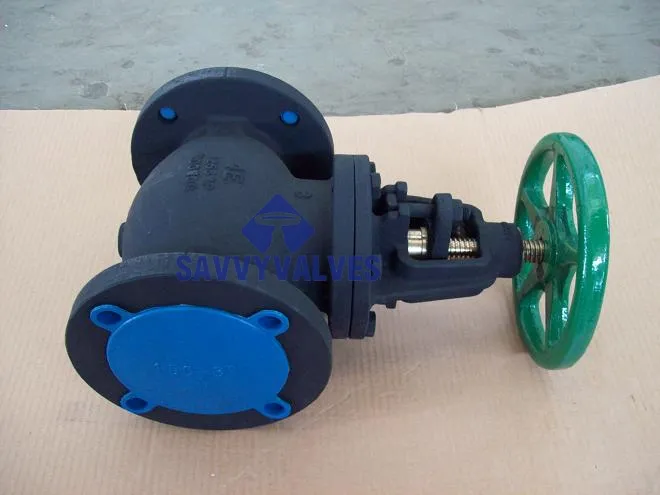

PHOTO SHOWS SPECIFICATIONS AS BELOW
SIZE:8″
RATING:125LB
BODY AND BONNET : ASTM 536 65-45-12
DISC: ASTM 536 65-45-12 + BRONZE B62/B148
SHAFT: BRONZE B62/B148
SEAT: BRONZE B62/B148
HAND WHEEL: DUCTILE IRON

GENERAL DESIGN SPECIFICATIONS

Size: 2″~48″, DN50~DN1200
Pressure Rating: 125LB/150LB,PN6~PN16,JIS 5K-16K
Design Temperature: CWP AMBIENT.
General applications: water, oil , gas
Design & Manufacture: API 594, API 6D, ASME B16.34 , MSS SP-85, BS 5152 are basic,other norms could be used according to orders.
F TO F dimensions: API 6D, API 594, ASME B16.10, BS EN 558
Connection: ASME B16.5,ASME B16.47, EN 1092, JIS 5K-20K. RF, FF are available.
Structure : RISING STEM, BOLTED BONNET, FULL BORE, METAL SEATED
OPERATOR: HAND WHEEL

TYPICAL MATERIAL LIST

BODY AND BONNET: ASTM A126 ,ASTM A536 65-45-12, A395.
DISC: ASTM A126 ,ASTM A536 65-45-12, A395
SHAFT: ASTM A 182 F6A, F304,F316,XM-19, 17-4PH, INCONEL 718, MONEL K-500
SEAT: SS304,SS316, C95400,C95800,C83600, B148, B62
HAND WHEEL: DUCTILE IRON

OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST AND INSPECTION

Inspection and approval norm: API598, API6D.

QUALITY CONTROL

100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.

GUATANTEE

SAVVY VALVES provide 12 months service life at least, free spares and maintenance instruction will be provided when required.

HOT SALE PRODUCTS

For over 10 years, we have been a leading supplier of industrial valves for major global projects in water supply, oil & gas, and desalination.

What Are The Typical Applications Of An MSS SP-85 Standard Cast Iron Globe Valve?

The MSS SP-85 standard cast iron globe valve is widely used in low- to medium-pressure systems for flow regulation and shut-off, particularly in water supply, HVAC, fire protection, and general industrial services. Manufactured in accordance with the MSS SP-85 standard, it ensures consistent quality, dimensional compatibility, and safe performance in non-critical applications. The cast iron body offers excellent corrosion resistance and durability for non-aggressive media, while the globe valve design provides precise throttling capabilities, making it suitable for systems requiring controlled flow. Its bolted bonnet, renewable seat, and rising stem construction allow for easy maintenance and reliable sealing. Often operated manually, it can also be fitted with actuators for automated control. Economical, dependable, and easy to install, this valve is ideal for building systems and process lines where ruggedness and long-term performance are important but extreme pressures or temperatures are not present.
