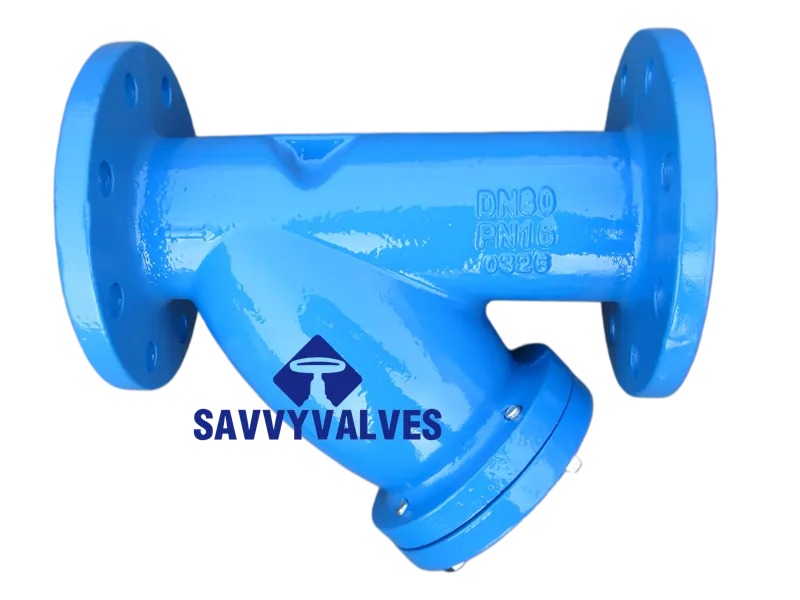

Y-Type Strainer – Flanged – Ductile Iron – Stainless Steel Mesh

Product Name: Flanged Y-Type Strainer

1. General Information

2. Design Standards & Specifications

3. Main Component Materials

4. Filter Mesh Specifications

5. Technical Parameters & Dimensions (Reference)

Flange Drilling: PN16 / Class 150

Note: Dimensions are for reference only. Actual dimensions may vary by manufacturer.

6. Testing & Inspection

7. Features & Options

• Ductile Iron Body: Higher strength and impact resistance compared to gray cast iron.
• Stainless Steel Screen: Corrosion-resistant, easy to clean, and replaceable.
• Flanged Connections: Easy installation and removal from pipeline.
• Bottom Drain / Blow-off Connection: Allows purging of debris without removing the screen (threaded plug or flanged outlet optional).
• Coating: Fusion Bonded Epoxy (FBE) or solvent-free epoxy for corrosion protection (optional).
• Screen Options:
• Perforated screen (standard for coarse filtration).
• Wire mesh lined screen (for finer filtration).
• Dual-element screens available upon request.
• Magnetic Insert: Optional magnetic rod to capture ferrous particles.

8. Installation & Maintenance Notes

• Install with the screen chamber pointing vertically downward for easy cleaning.
• Flow direction must match the arrow on the body.
• Provide adequate space below the strainer for screen removal.
• Regularly open the blow-off valve or remove the screen for cleaning, depending on the debris load.
• Check gasket condition during screen maintenance and replace if necessary.

Note: This data sheet provides general specifications. For specific projects, please refer to the manufacturer’s final drawings and parameters.
