Metal seated cast iron swing check valve

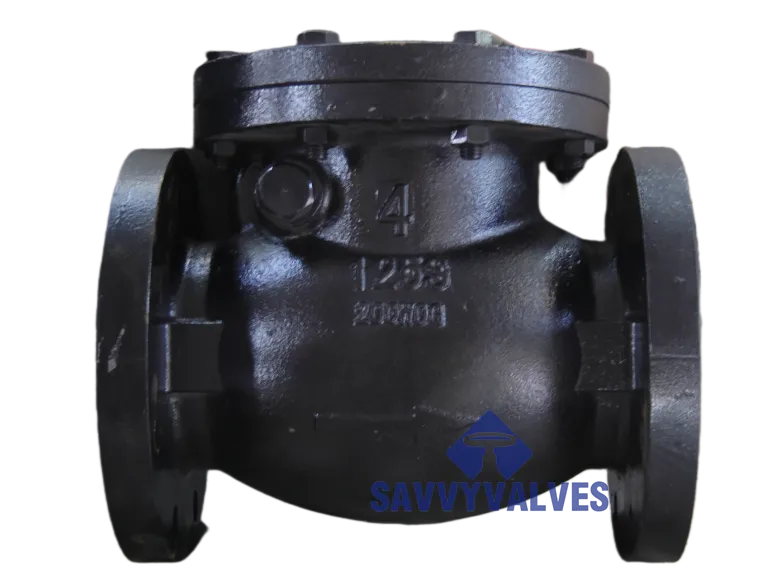

PHOTO SHOWS SPECIFICATIONS AS BELOW
SIZE:4″
RATING:125LB
BODY AND BONNET : ASTM 536 65-45-12
DISC: ASTM 536 65-45-12 + BRONZE B62/B148
SHAFT: BRONZE B62/B148
SEAT: BRONZE B62/B148

GENERAL

Size: 2″~48″, DN50~DN1200
Pressure Rating: 125LB/150LB,PN6~PN16,JIS 5K-16K
Design Temperature: CWP AMBIENT.
General applications: water, oil , gas
Design & Manufacture: API 594, API 6D, ASME B16.34 , MSS SP-71, BS 5153 are basic,other norms could be used according to orders.
F TO F dimensions: API 6D, API 594, ASME B16.10, BS EN 558
Connection: ASME B16.5,ASME B16.47, EN 1092, JIS 5K-20K. RF, FF are available.
Structure : SWING DISC, BB, FULL BORE, METAL SEATED

GENERAL MATERIAL

BODY AND BONNET: ASTM A216 WCB.
DISC: ASTM A216 WCB+HARD FACED
SHAFT: ASTM A 182 F6A, F304,F316,XM-19, 17-4PH, INCONEL 718, MONEL K-500
SEAT:ASTM A105+HARD FACED.
OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST

Inspection and approval norm: API598, API6D.

QUALITY CONTROL:

100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.

GUATANTEE:

SAVVY VALVES provide 12 months service life at least, free spares and maintenance instruction will be provided when required.

HOT SALE PRODUCTS

For over 10 years, we have been a leading supplier of industrial valves for major global projects in water supply, oil & gas, and desalination.

What Is The Application Of A Metal Seated Cast Iron Swing Check Valve?

The metal seated cast iron swing check valve is widely used in water supply, HVAC systems, and low-pressure industrial pipelines where durability and backflow prevention are essential. Its swing-type disc opens with forward flow and swings shut when flow reverses, providing a reliable one-way flow mechanism. The metal seat ensures longevity in systems where soft seats might wear or degrade over time, particularly in slightly abrasive or higher temperature environments. Constructed from cast iron, the valve is both cost-effective and strong, making it suitable for general service use. It’s often chosen for applications involving hot water, cooling systems, and non-corrosive fluids. With its simple design and easy maintenance, this valve offers dependable operation and long service life, especially in systems where flow direction stability and minimal pressure loss are important.
