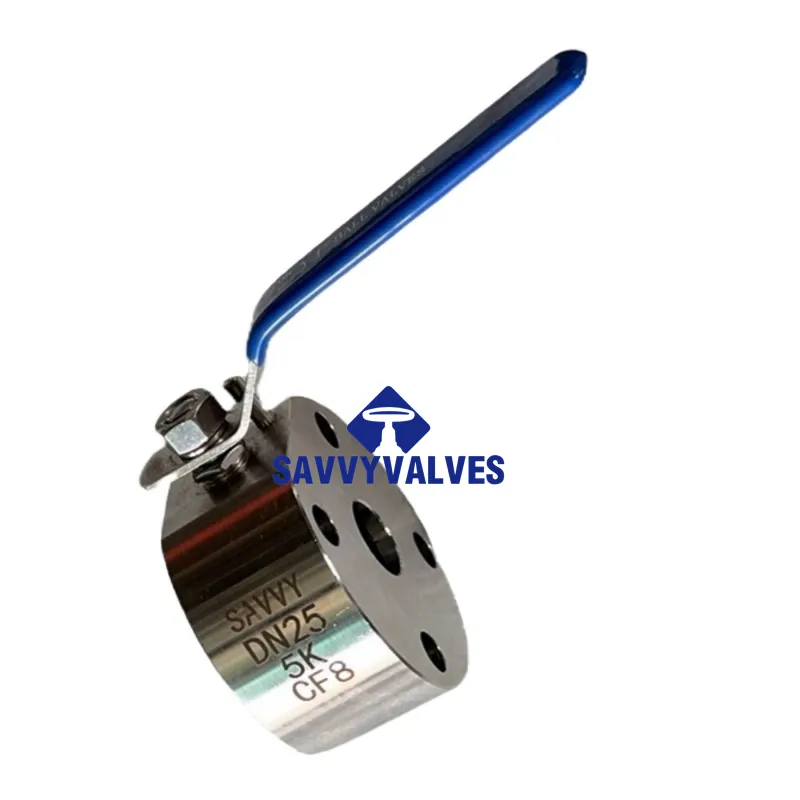

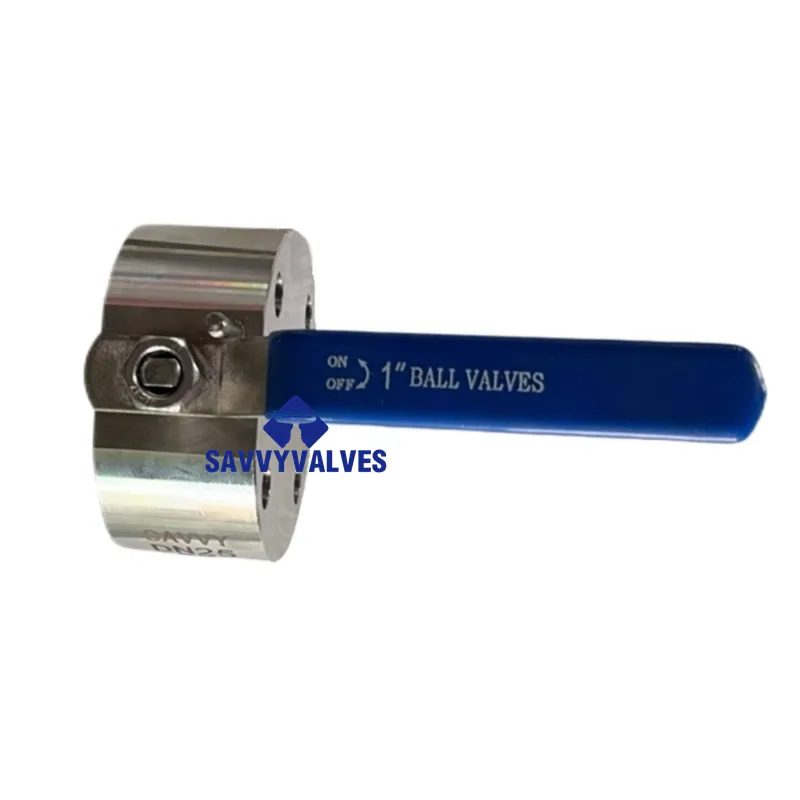

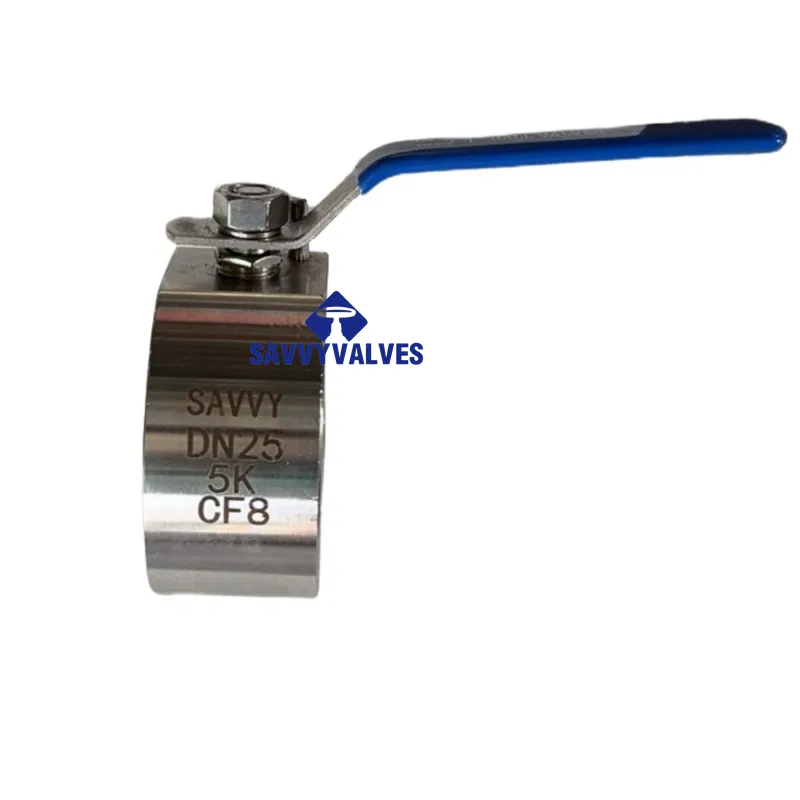

Size: 25A
Pressure Rating: JIS 5K
Key Materials:
Body: ASTM A182 F304
Ball: ASTM A182 F304 + Hard Chrome Plated (HCR)
Stem: ASTM A182 F304
Seat: PTFE (Polytetrafluoroethylene)
Operator: Lever
Connection End: Wafer type, drilled per JIS B2220 5K standard
Configuration: Unique compact wafer-style body
Surface Finish: Sandblasted and degreased
Temperature Range: –29°C to 425°C
QUALITY CONTROL:
100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.
GUATANTEE
SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.
