SAVVY 42″ 600lb Flexible Wedge Gate Valve, Bb, Os&Y,Rs. Motorised

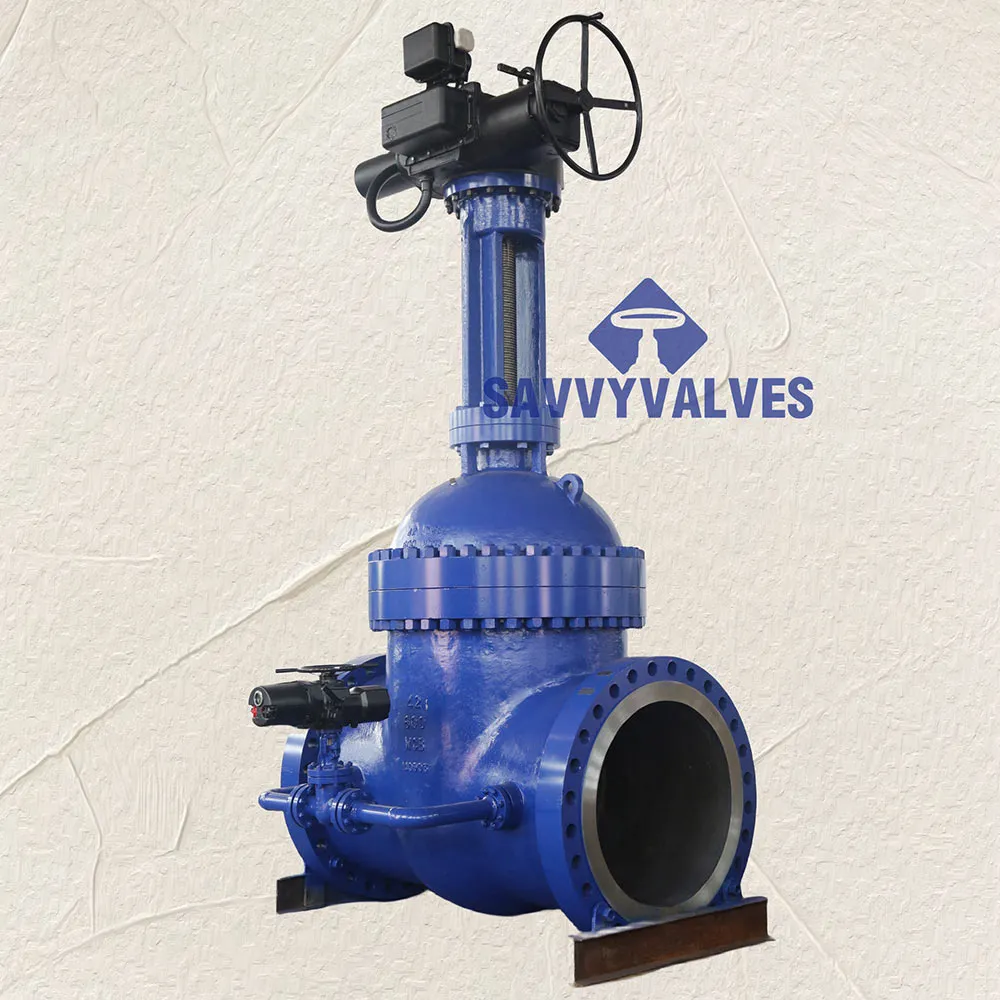

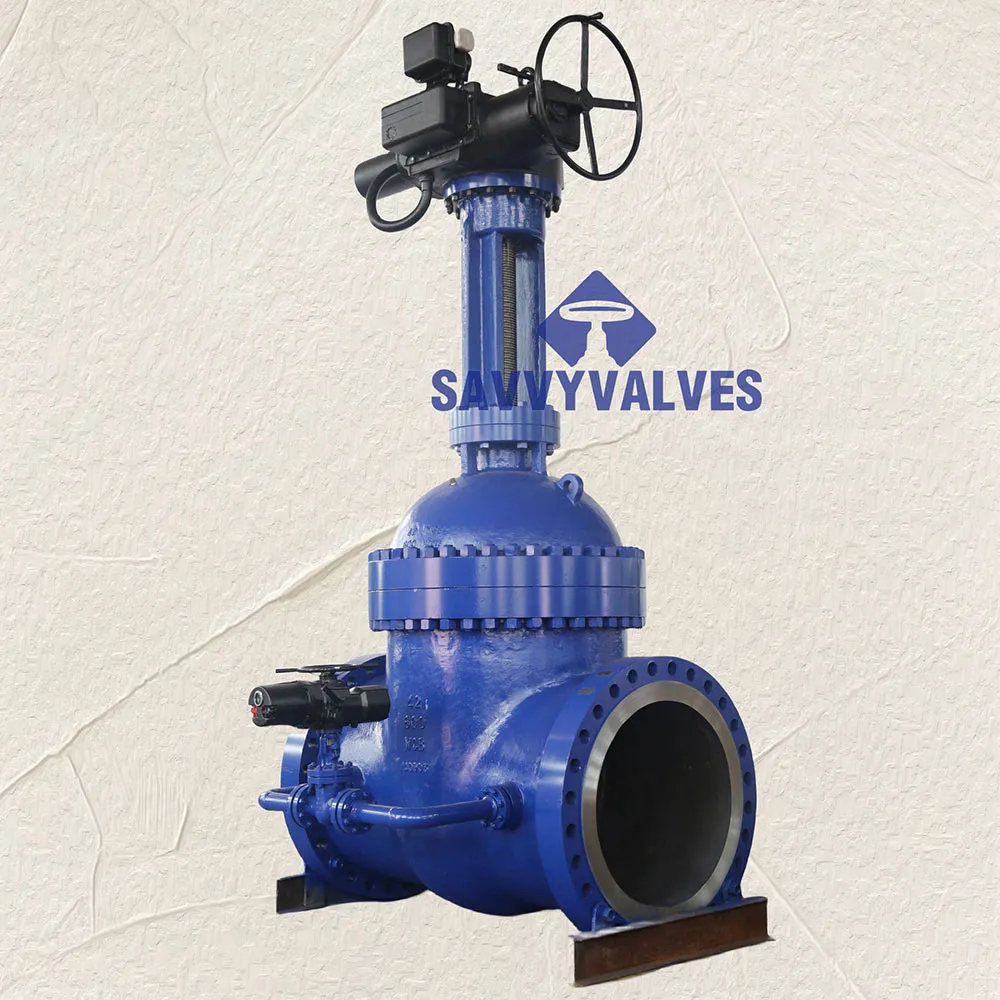

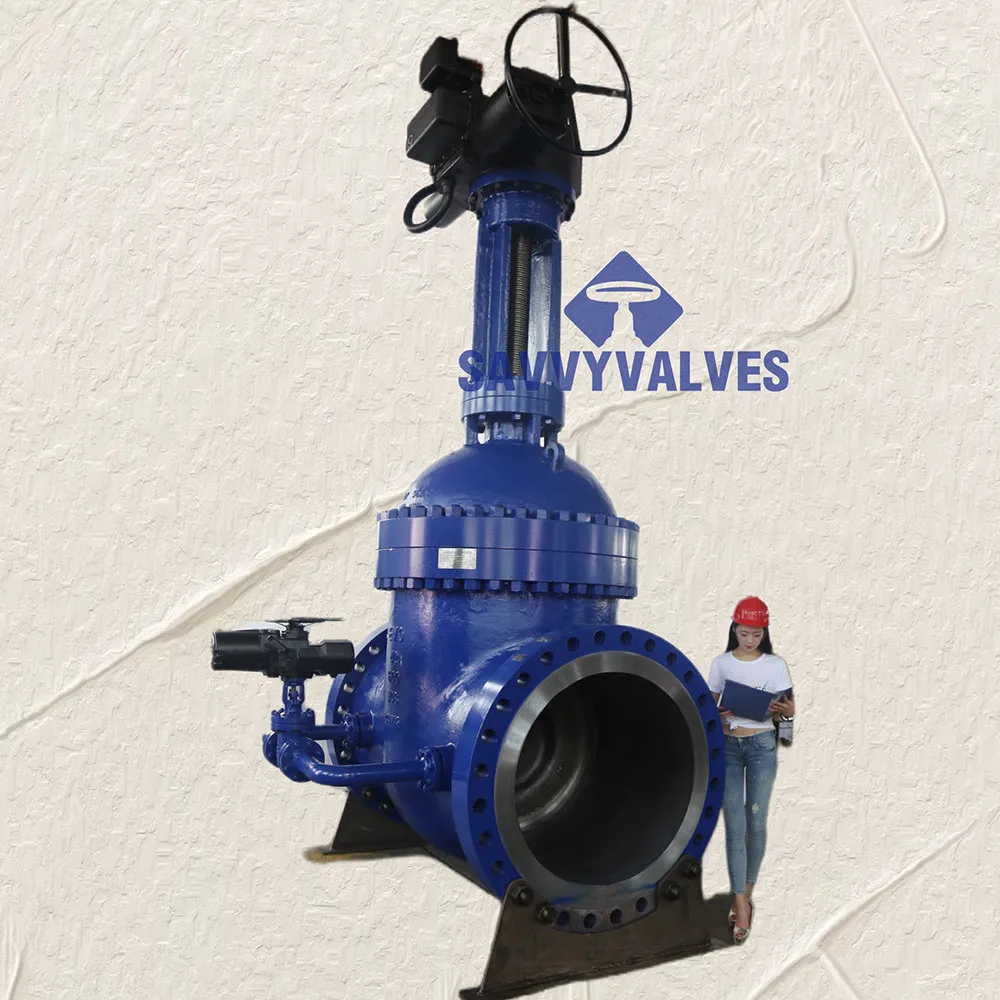

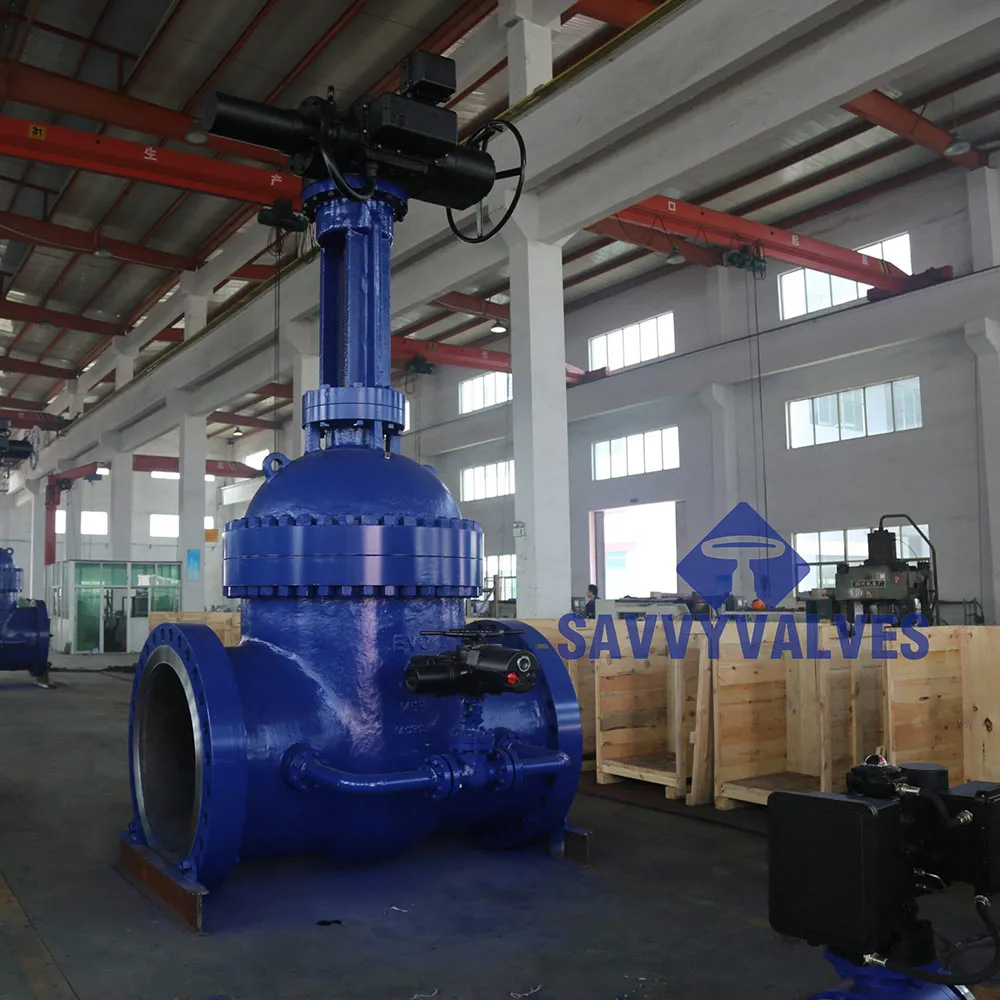

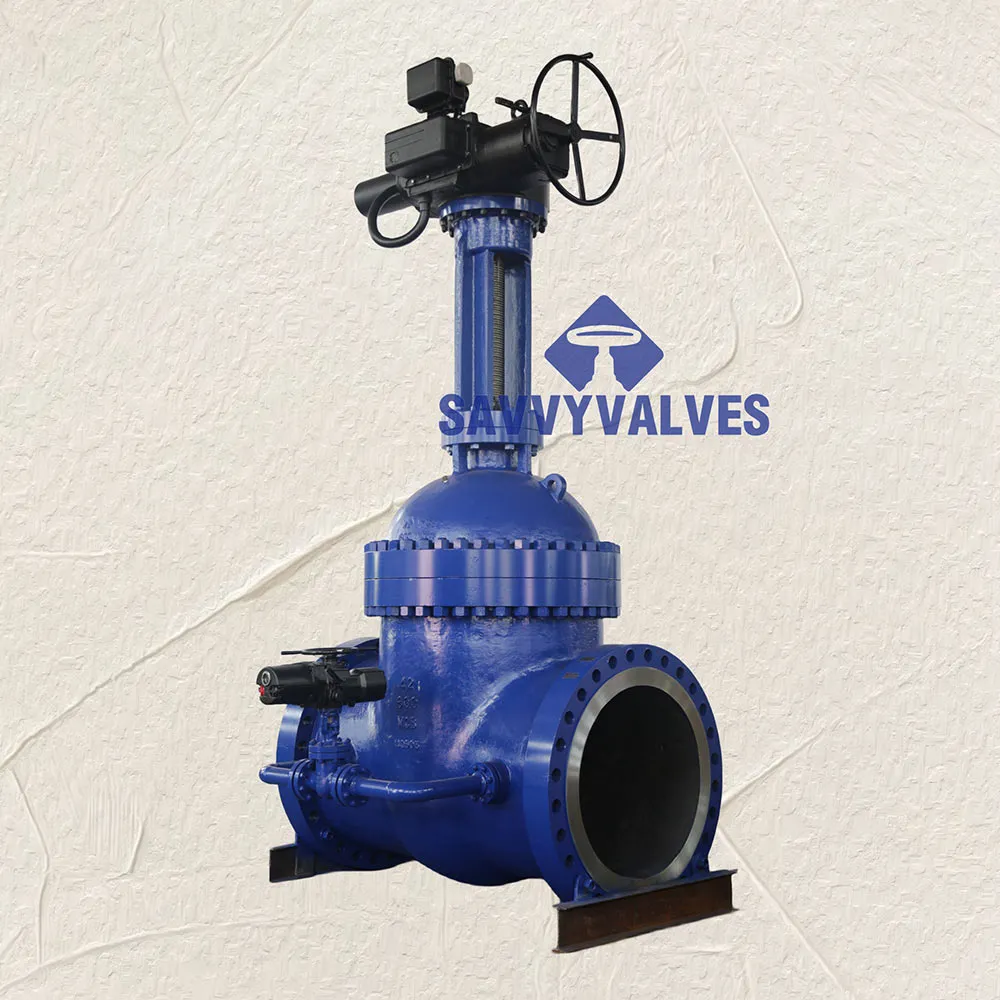

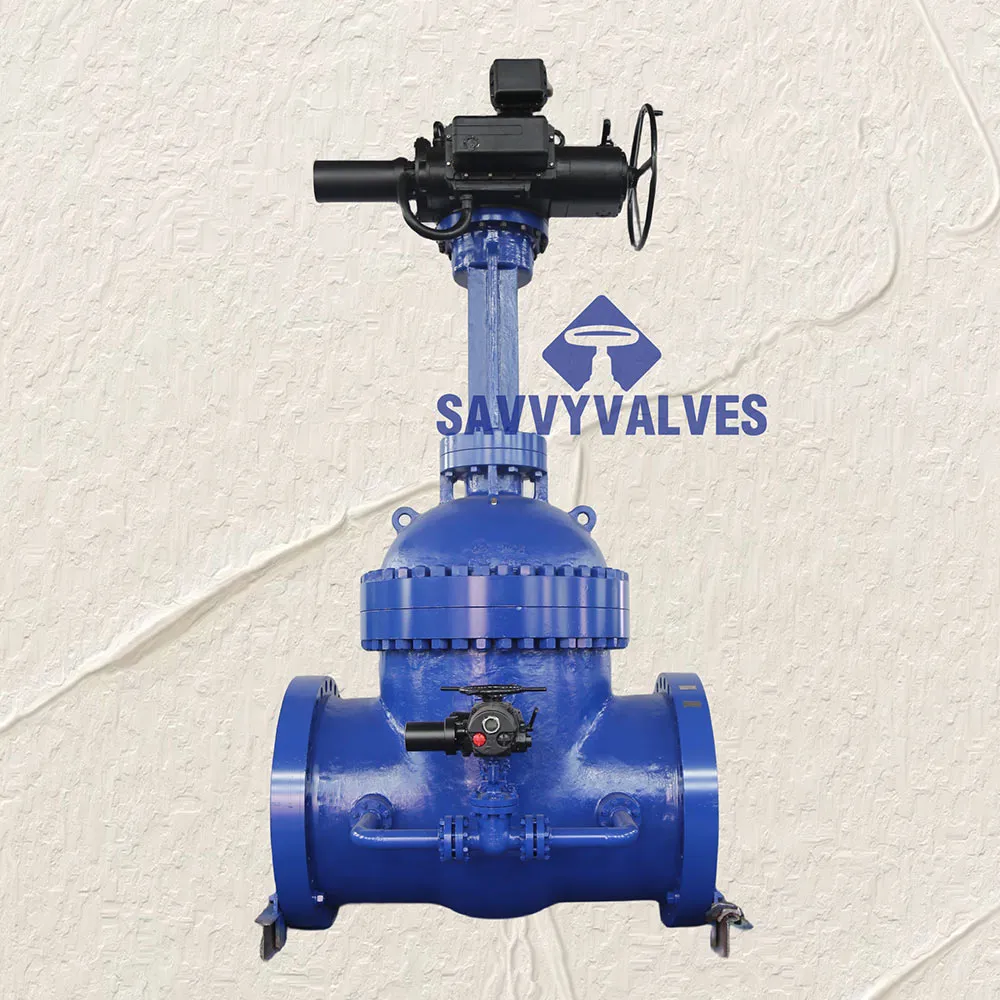

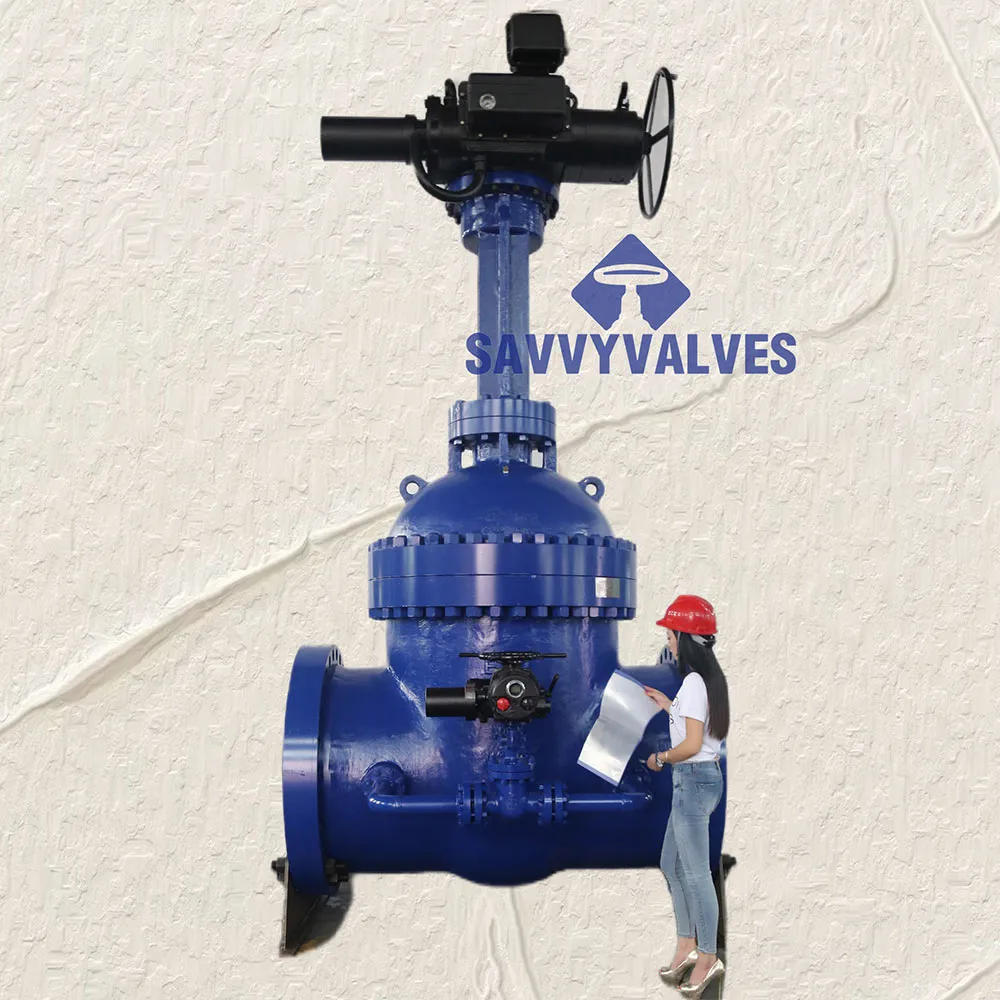

PHOTO SHOWS SPECIFICATIONS AS BELOW
SIZE:42″br> RATING:600LBbr> BODY AND BONNET : ASTM A216 WCBbr> DISC: ASTM A216 WCB+STELLITE 6, FLEXIBLE WEDGE, FULL PORTbr> STEM: ASTM A182 F6Abr> SEAT: ASTM A105+STELLITE 6br> ACTUATION: LIMITORQUE SMC-5 480V AC, 3PH, 60HZ, WITH MANUAL OVERIDE.br>

Description

GENERAL DESIGN SPECIFICATIONS

Size: 2″~60″

Pressure Rating: 150LB~4500LB

Design Temperature: -196℃~800℃

General applications: water, oil , gas

Design & Manufacture: API 600, API 6D , ASME B16.34 are basic,other norms could be used according to orders.

F TO F dimensions: API 6D, ASME B16.10, BS EN 558

Connection: ASME B16.5,ASME B16.47 A&B, EN 1092, JIS 5K-20K. BW, RTJ are available.

Structure : SOLID DISC, OS&Y, BB, FB. PRESSURE SEAL BONNET AND WELDED BONNET IS AVAILABLE.

TYPICAL MATERIAL LIST

BODY AND BONNET: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718.

DISC: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
+HARD FACED

STEM: A182 F6A, F304, F304L, F316, F316L, F51, F53,17-4PH, XM-19, C95400, C95800, C83600, INCONEL 625, INCONEL 718, MONEL K400, MONEL K500, H-276

SEAT:A182 F6A, F304, F304L, F316, F316L, F51, F53,17-4PH, XM-19, C95400, C95800, C83600, INCONEL 625, INCONEL 718, MONEL K400, MONEL K500 +HARD FACED.

OPERATOR: ELECTRIC ACTAUTED

OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST AND INSPECTION

Inspection and approval norm: API598, API6D.

QUALITY CONTROL

100% Chemical analysis and mechanical test with raw materials of each heat numbers.

100% DPT test with the castings, partly MT or UT test, RT is always available if required.

100% hydraulic test with the shell and seal and low pressure air test.

GUATANTEE

SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.

HOT SALE PRODUCTS

For over 10 years, we have been a leading supplier of industrial valves for major global projects in water supply, oil & gas, and desalination.

What Is A SAVVY 42″ 600lb Flexible Wedge Gate Valve BB OS&Y RS Motorised?

The SAVVY 42″ 600lb flexible wedge gate valve, BB, OS&Y, RS, motorised is a heavy-duty valve designed for reliable shutoff in high-pressure, large-diameter pipelines, commonly used in power plants, oil and gas, and water distribution systems. The “42-inch” size accommodates very high flow volumes, and the “600lb” rating ensures it can handle substantial pressure levels. The flexible wedge design allows for better sealing performance and tolerance to thermal expansion, minimizing leakage. “BB” (bolted bonnet) ensures secure body integrity, while “OS&Y” (outside screw and yoke) provides easy visual indication of valve position and facilitates packing adjustments. “RS” (rising stem) further aids in monitoring valve operation. The motorised actuator allows remote and automated operation, improving efficiency and safety in complex systems. This valve is ideal for critical services requiring durability, precise control, and minimal maintenance over extended periods.
