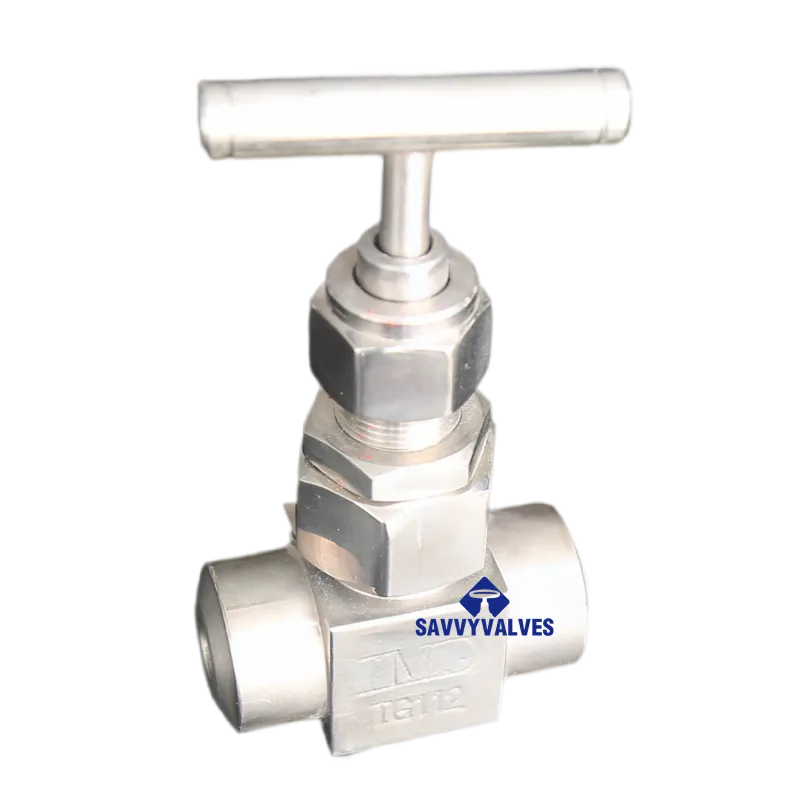

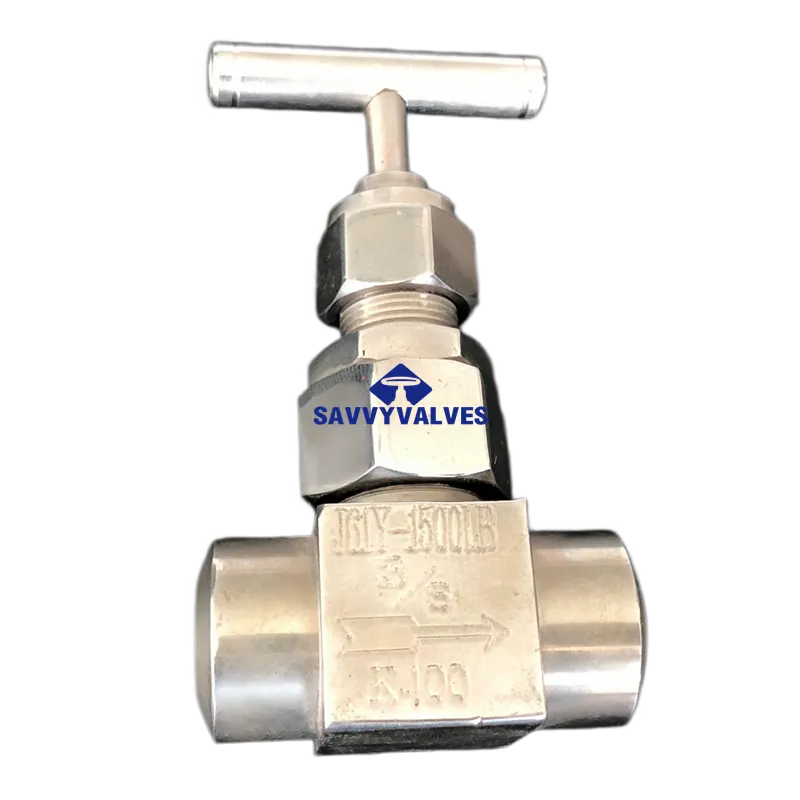

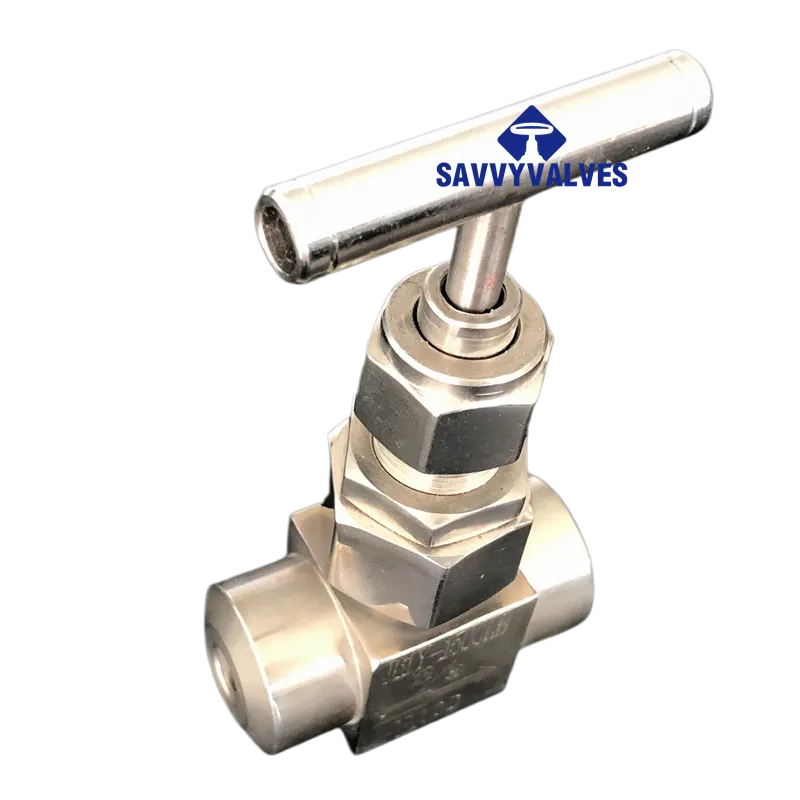

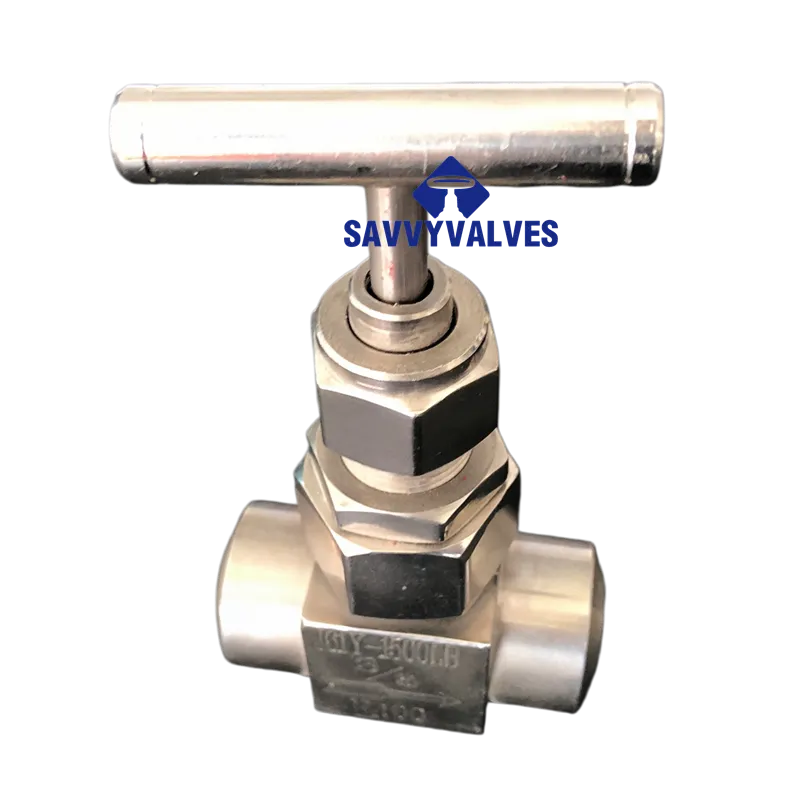

Monel Needle Globe Valve Butt Welded End

Description

Technical Data Sheet

Needle Valve – Monel Body – Butt Welding Ends

Product Name: Monel Alloy Butt Weld Needle Valve

1. General Information

2. Design Standards & Specifications

3. Main Component Materials

4. Technical Parameters & Dimensions (Reference)

**Butt Weld Needle Valve (Type J61W) – Main Dimensions **

Note: The above dimensions are for reference only. Actual dimensions should conform to the manufacturer’s certified drawings.

5. Testing & Inspection

• Shell Test Pressure: 48.0 MPa (1.5 x Rated Pressure)
• High Pressure Seat Test: 35.2 MPa (1.1 x Rated Pressure)
• Air Tightness Test: 0.6 MPa

6. Optional Features

• Disc/Needle Type: Conical Needle / Ball Type Disc
• Packing Type: Standard Packing / Bellows Seal (for severe conditions)
• Operation: Handwheel / Locking Device

GUATANTEE:
