TECHNICAL DATA SHEET

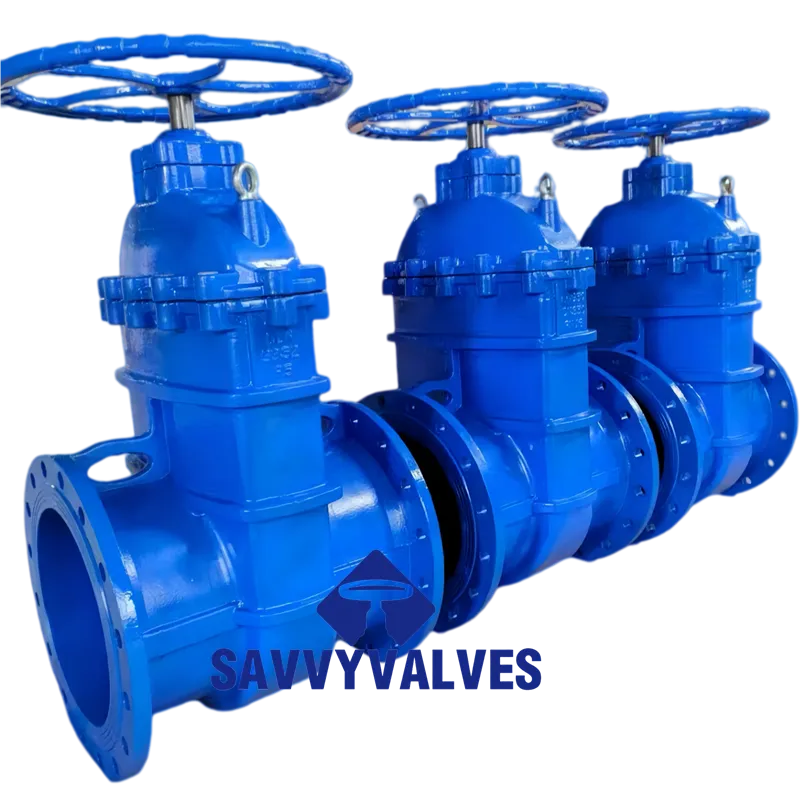

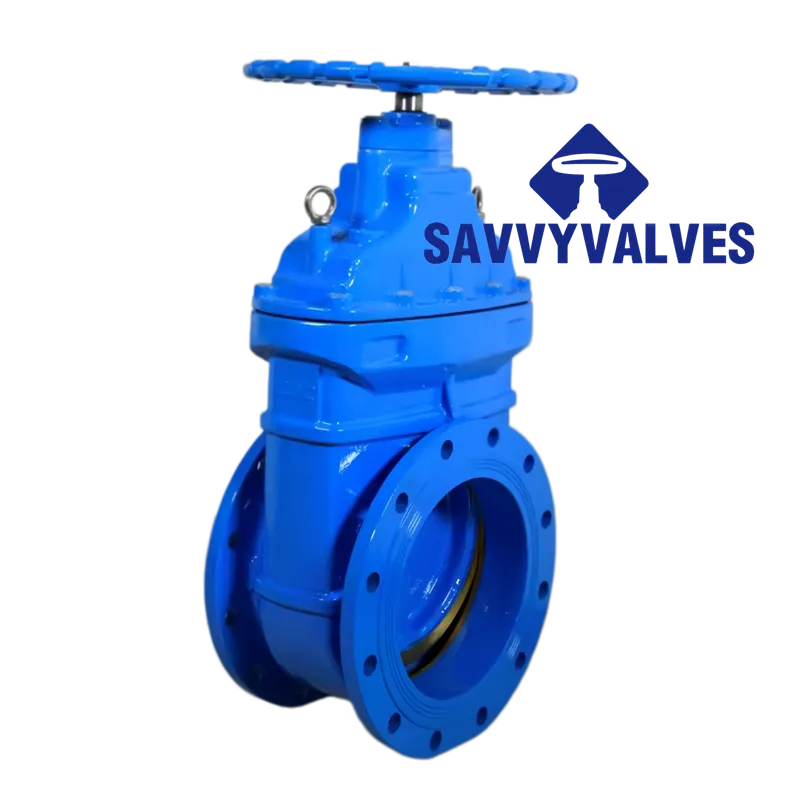

German Standard Non-Rising Stem Bronze Seated Gate Valve
- BASIC VALVE INFORMATION
|
Item
|
Specification
|
|
Valve Type
|
Bronze Seated Gate Valve (Metal Seated)
|
|
Stem Type
|
Non-Rising Stem (NRS)
|
|
Seat/Sealing Surface
|
Bronze / Aluminum Bronze
|
|
End Connection
|
Flanged, Raised Face (RF)
|
|
Nominal Size
|
DN40 – DN600 (1½” – 24″)
|
|
Pressure Rating
|
PN10 / PN16 / PN25 / PN40
|
|
Body Material
|
Ductile Iron / Cast Iron / Bronze
|
|
Operation
|
Handwheel / T-Key / Bevel Gear / Electric Actuator
|
|
Service Medium
|
Water / Steam / Oil / Gas / Seawater / General Purpose
|
- APPLICABLE CODES & STANDARDS
|
Standard
|
Description
|
|
DIN EN 12288
|
Industrial valves – Copper alloy gate valves
|
|
DIN 3352
|
Gate valves – General requirements
|
|
EN 558-1
|
Face-to-face dimensions – Series 14 (F4) and Series 15 (F5)
|
|
DIN 3202 F4 / F5
|
Face-to-face dimensions for gate valves
|
|
EN 1092-2
|
Flanges and their joints – Circular flanges for pipes, valves, fittings and accessories, Part 2: Cast iron flanges
|
|
ISO 7005-2
|
Metallic flanges – Part 2: Cast iron flanges
|
|
EN 12266 / ISO 5208
|
Industrial valves – Pressure testing of valves
|
|
EN 1074-1/2
|
Valves for water supply – Fitness for purpose requirements
|
|
DIN 3230
|
Valve testing – Pressure test requirements
|
- MATERIALS OF CONSTRUCTION
|
Component
|
Material
|
Standard / Remarks
|
|
Body
|
Ductile Iron (GGG-40/GGG-50)
Gray Iron (GG-25)
Bronze (for all-bronze valves)
|
EN-GJS-400-15 / EN-GJL-250
Tin Bronze / Aluminum Bronze
|
|
Bonnet / Cover
|
Ductile Iron / Gray Iron / Bronze
|
Same as body material
|
|
Gate / Wedge
|
Ductile Iron / Cast Iron
Bronze (for all-bronze valves)
|
With integral bronze seat ring or bronze overlay
|
|
Seat Ring (Body)
|
Bronze / Aluminum Bronze
|
Press-fit or welded-in bronze ring
Sealing surface: Bronze-on-Bronze
|
|
Seat Ring (Gate)
|
Bronze / Aluminum Bronze
|
Bronze seat ring or hardfaced overlay
|
|
Stem
|
Stainless Steel
Aluminum Bronze / Nickel Aluminum Bronze
|
AISI 420 / SS304 / SS316
For seawater service
|
|
Stem Nut / Yoke Nut
|
Bronze / Aluminum Bronze
|
High strength, self-lubricating
|
|
Back Seat / Thrust Washer
|
Bronze / Tin Bronze
|
For repacking under pressure
|
|
Gland Packing
|
Graphite / PTFE / Non-asbestos
|
For stem sealing
|
|
Gasket (Bonnet)
|
Spiral Wound / Graphite + SS
|
Or O-ring type for resilient seal
|
|
Bolting / Nuts
|
Stainless Steel / Zinc Plated Carbon Steel
|
A2 / A4 Stainless Steel
|
|
Handwheel
|
Ductile Iron / Malleable Iron
|
With direction indicator (open/close)
|
|
Coating
|
Epoxy Coating (FBE)
No coating for all-bronze valves
|
Internal & external, RAL 5015 (blue) / RAL 5005, min. 250μm
|
- DESIGN & PERFORMANCE CHARACTERISTICS
|
Parameter
|
Specification
|
|
Pressure Class
|
PN10 / PN16 / PN25 / PN40
|
|
Working Pressure
|
10 bar / 16 bar / 25 bar / 40 bar
|
|
Shell Test Pressure
|
PN10: 15 bar
PN16: 24 bar
PN25: 37.5 bar
PN40: 60 bar
|
|
Seat Test Pressure
|
PN10: 11 bar
PN16: 17.6 bar
PN25: 27.5 bar
PN40: 44 bar
|
|
Design Temperature Range
|
-29°C to +200°C (standard)
-29°C to +425°C (with SS trim)
|
|
Max. Working Temperature
|
200°C continuous service (Bronze seated)
|
|
Leakage Rate
|
Rate A (Zero leakage) per ISO 5208 / EN 12266
|
|
Flow Characteristic
|
Full bore, linear (on-off service only)
|
|
Stem Sealing
|
Back seat design – repackable under pressure
O-ring option available
|
|
Direction of Closing
|
Clockwise to close (handwheel)
|
|
Position Indication
|
Visual indicator on stem / handwheel (open/close)
|
|
Flow Direction
|
Bidirectional
|
- DIMENSIONS & CONNECTIONS
|
Item
|
Dimension (mm)
|
|
Flange Standard
|
EN 1092-2 PN10/PN16/PN25/PN40
|
|
Flange Drilling
|
Per EN 1092-2 – PN10/PN16/PN25/PN40 drilling
|
|
Face-to-Face Length
|
EN 558-1 Series 14 (F4) – Short pattern
EN 558-1 Series 15 (F5) – Long pattern
DIN 3202 F4 / F5
|
|
Flange Face
|
Raised Face (RF) / Flat Face (FF)
|
|
Waterway Diameter
|
Full bore, smooth flow passage
|
|
Stem Diameter
|
Per DIN 3352 minimum requirements
|
|
Handwheel Diameter
|
As per torque requirements
|
- REFERENCE DIMENSIONS (PN16 – Series 14 F4)
|
DN
|
L (F4)
|
D
|
k
|
No. of Holes
|
d2
|
H (approx)
|
Weight (kg)
|
|
40
|
140
|
150
|
110
|
4
|
18
|
___
|
1.89
|
|
50
|
150
|
165
|
125
|
4
|
18
|
___
|
2.5
|
|
65
|
170
|
185
|
145
|
4
|
18
|
___
|
___
|
|
80
|
180
|
200
|
160
|
8
|
18
|
___
|
___
|
|
100
|
190
|
220
|
180
|
8
|
18
|
___
|
4.17
|
|
125
|
200
|
250
|
210
|
8
|
18
|
___
|
5.66
|
|
150
|
210
|
285
|
240
|
8
|
22
|
___
|
6.97
|
|
200
|
230
|
340
|
295
|
8
|
22
|
___
|
___
|
|
250
|
250
|
405
|
355
|
12
|
26
|
___
|
13.29
|
|
300
|
270
|
460
|
410
|
12
|
26
|
___
|
___
|
Note: Dimensions are for reference only. Please consult manufacturer for certified dimensional drawings.
- TESTING & INSPECTION
|
Test
|
Standard / Requirement
|
|
Shell Test
|
EN 12266 / ISO 5208 – 1.5 x Rated Pressure – No visible leakage
|
|
Seat Test (High Pressure)
|
1.1 x Rated Pressure – Rate A leakage
|
|
Seat Test (Low Pressure)
|
5–6 bar – Zero leakage
|
|
Back Seat Test
|
Visual inspection during operation – No leakage
|
|
Material Certification
|
Mill certificates / EN 10204 3.1 (if required)
|
|
Coating Test
|
Holiday detection, thickness measurement (250–400 microns)
|
- SPECIAL REQUIREMENTS & REMARKS
- Bronze Seated Design (Metal-to-Metal)
- Sealing surface: Bronze-on-Bronze – Bronze seat rings on both body and gate.
- Suitable for high temperature applications up to 200°C+.
- Excellent wear resistance and anti-galling properties.
- Ideal for steam, high temperature water, oil, and gas services.
- Non-Rising Stem (NRS)
- Stem does not rise when valve opens/closes.
- Suitable for limited space installations.
- Stem threads isolated from line media – no corrosion or fouling.
- Back Seat Design
- Integral back seat allows repacking under pressure (full open position).
- Ensures safe maintenance without system shutdown.
- Material Options
- Ductile Iron body with Bronze trim – Most common for industrial applications.
- All-Bronze construction – For seawater, marine, and corrosive environments.
- Aluminum Bronze – Enhanced corrosion resistance for aggressive media.
- Bidirectional Sealing
- Bronze seated design provides tight shut-off in both flow directions.
- Applications
- Suitable for: Steam systems, Hot water, Thermal oil, Marine/Seawater, General industrial piping.
- Optional Features
- Bypass arrangement for large sizes.
- Gear operator for larger DN sizes.
- Electric or pneumatic actuation.
- Extended stem for buried service.
- NACE compliance for sour service.
