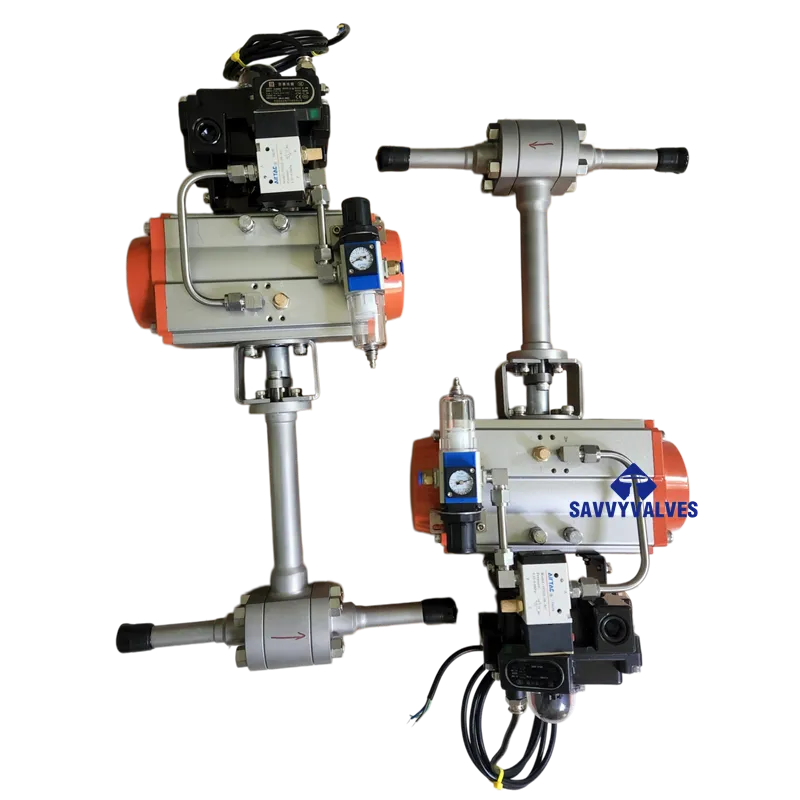

3-Piece Open Die Forged Cryogenic Ball Valve cw SA Pneumatic Actuated

3-Piece Open Die Forged Cryogenic Ball Valve cw SA Pneumatic Actuated

Valve Type Floating Ball Valve, 2-Piece Split Body, Side-Entry, Anti-Static, Anti-Blowout Stem
Size Range DN15 – DN300 (½” to 12″)
Pressure Rating Class 150 / 300 / 600 (PN16 – PN100)
End Connection Flanged Ends (Raised Face / RTJ) per ASME B16.5
Design Standard BS 6364 / ISO 28921-1 / MSS SP-134 / ASME B16.34 / API 6D
Face to Face Standard ASME B16.10 / ISO 5752 / BS 6364 Table 1
Test Standard API 598 / API 6D / BS 6364
Service LNG, LO2, LN2, LAr, Ethylene, Methane, Cryogenic Industrial Gases
Temperature Range -196°C to +80°C (-320°F to +176°F)
Bore Type Full Bore / Reduced Bore (Specify)

3-Piece Open Die Forged Cryogenic Ball Valve c/w SA Pneumatic Actuated

Description

TECHNICAL DATA SHEET

Cryogenic Floating Ball Valve (2-Piece, Flanged Ends, Stainless Steel)

  1. General Information

Item

Specification

Valve Type

Floating Ball Valve, 2-Piece Split Body, Side-Entry, Anti-Static, Anti-Blowout Stem

Size Range

DN15 – DN300 (½” to 12″)

Pressure Rating

Class 150 / 300 / 600 (PN16 – PN100)

End Connection

Flanged Ends (Raised Face / RTJ) per ASME B16.5

Design Standard

BS 6364 / ISO 28921-1 / MSS SP-134 / ASME B16.34 / API 6D

Face to Face Standard

ASME B16.10 / ISO 5752 / BS 6364 Table 1

Test Standard

API 598 / API 6D / BS 6364

Service

LNG, LO2, LN2, LAr, Ethylene, Methane, Cryogenic Industrial Gases

Temperature Range

-196°C to +80°C (-320°F to +176°F)

Bore Type

Full Bore / Reduced Bore (Specify)

  1. Bill of Materials (Materials of Construction)

Part Name

Qty.

Material

Material Specification / Notes

Body Halves

2

Stainless Steel

ASTM A182 F304/F304L (Forged) or ASTM A351 CF8/CF3 (Cast)

Ball

1

Stainless Steel

ASTM A182 F304/F316 (Forged), Chrome Plated / Surface Ra ≤ 0.4µm

Stem

1

Stainless Steel

ASTM A182 F304/F316, Anti-Blowout Design

Seat (Downstream)

1

PCTFE / RPTFE

Spring-Energized PCTFE (Preferred for -196℃) or Glass-Filled RPTFE

Seat (Upstream)

1

PCTFE / RPTFE

Optional Bidirectional Design

Stem Seals / Packing

Set

PTFE + Graphite

Live-Loaded Packing (Belleville Springs) at Ambient Zone

Body Gasket

2

PTFE / Spiral Wound

PTFE or SS+Graphite Spiral Wound

Body Bolts & Nuts

Set

Stainless Steel

ASTM A193 B8M (Bolts) / ASTM A194 8M (Nuts)

Thrust Washer / Bearing

1

PTFE / Reinforced PTFE

Reduces operating torque

Anti-Static Device

1

Stainless Steel

Ball-to-Stem / Stem-to-Body

Stop / Locking Device

1

Stainless Steel

Optional for safety

Name Plate

1

Stainless Steel

MSS SP-25 marking

  1. Material Specifications & Rationale

Component

Material

Rationale

Body & Bonnet

A182 F304/F316 / A351 CF8/CF8M

Austenitic stainless steel retains ductility and impact toughness at -196°C. F304L/CF3 grades offer enhanced resistance to intergranular corrosion after welding. All components undergo cryogenic stabilization treatment per BS 6364 .

Ball

A182 F304/F316

Hard chrome plating or electroless nickel coating improves surface hardness (Ra ≤ 0.4µm) and ensures low friction against PCTFE seat .

Seat

PCTFE (Spring-Energized)

PCTFE (Poly-chloro-tri-fluoro-ethylene) maintains dimensional stability and resilience at -196°C. Spring-energized design ensures bubble-tight shut-off even at low differential pressures .

Stem Seals

PTFE + Graphite

Extended bonnet positions packing away from cold zone; live-loading compensates for thermal cycles and prevents fugitive emissions .

  1. Cryogenic Design Features

Feature

Description

Benefit

Extended Bonnet

Length per BS 6364 (e.g., 250mm for DN50) keeps stem packing at ambient temperature .

Prevents ice formation on packing; ensures reliable stem sealing and operation.

Pressure Relief Hole

Upstream-side hole in ball prevents cavity pressure buildup during warm-up .

Eliminates risk of cavity over-pressurization and seat damage.

Anti-Static Device

Springs/plungers ensure electrical continuity between ball, stem, and body .

Prevents static charge accumulation in flammable cryogenic services.

Blowout-Proof Stem

Stem retained internally by shoulder or retaining ring .

Safety critical: prevents stem ejection under pressure.

Cryogenic Treatment

All pressure-containing parts thermally cycled to -196°C .

Stabilizes microstructure; ensures dimensional stability in service.

  1. Dimensional Data (Reference – Flanged Type)

*Note: Dimensions vary by manufacturer, pressure class, and extension length. Below are typical values based on ASME B16.10 / BS 6364 .*

Size

Face-to-Face (L)

Extension Length (E)

Height Open (H)

Handwheel Dia. (D)

Bolt Circle Dia.

No. of Holes

DN15 (½”)

108 mm

180 mm

210 mm

100 mm

60.5 mm (2.38″)

4

DN25 (1″)

127 mm

200 mm

240 mm

125 mm

79.4 mm (3.12″)

4

DN50 (2″)

178 mm

250 mm

310 mm

200 mm

120.7 mm (4.75″)

4

DN80 (3″)

203 mm

280 mm

370 mm

250 mm

152.4 mm (6.00″)

4

DN100 (4″)

229 mm

320 mm

440 mm

315 mm

190.5 mm (7.50″)

8

DN150 (6″)

394 mm

400 mm

570 mm

400 mm

241.3 mm (9.50″)

8

DN200 (8″)

457 mm

450 mm

680 mm

500 mm

298.5 mm (11.75″)

8

Flange Details: Raised Face (RF) per ASME B16.5. For RTJ (Ring Type Joint) or BW (Butt Weld) ends, specify separately .

  1. Performance & Testing (Per API 598 / BS 6364)

Test

Medium

Pressure / Condition

Acceptance Criteria

Shell (Body) Test

Water / Nitrogen

1.5 x Rated Pressure @ Ambient

No visible leakage

Seat (Seal) Test

Air / Nitrogen

1.1 x Rated Pressure @ Ambient

ISO 5208 Class VI (Bubble-tight)

Cryogenic Seat Test

Liquid Nitrogen

@ -196°C, 1.1 x Rated Pressure

≤ 0.1 Nm³/hr (He) per BS 6364 Annex A

Low Pressure Seat Test

Air

0.6 MPa (87 psi)

Bubble-tight

Stem Leakage Test

Helium

@ Ambient

ISO 15848-1 Class B (≤10⁻⁵ mbar·L/s)

Cavity Relief Test

Verify ball hole functions

Pressure relief to upstream side

Typical Test Pressures (Class 300 Example):

  • Shell Test: 7.7 MPa (1,117 psi)
  • Seat Test: 5.6 MPa (812 psi)
  1. Operating Torque & Actuation

Size

Torque @ Ambient (Nm)

Torque @ -196°C (Nm)

Recommended Operator

DN15 (½”)

8

12

Lever

DN25 (1″)

15

22

Lever

DN50 (2″)

45

68

Lever / Gear

DN80 (3″)

90

135

Gear

DN100 (4″)

160

240

Gear

DN150 (6″)

350

525

Gear / Actuator

DN200 (8″)

600

900

Gear / Actuator

Note: Torque values increase at cryogenic temperatures due to material contraction and seal compression . For actuated valves, specify pneumatic/electric/hydraulic actuator separately .

  1. Flow Characteristics (Full Bore)

Size

Flow Coefficient Cv (US gal/min)

Kv (m³/h)

DN15 (½”)

8 – 12

7 – 10

DN25 (1″)

30 – 40

26 – 35

DN50 (2″)

120 – 150

104 – 130

DN80 (3″)

280 – 320

242 – 277

DN100 (4″)

480 – 550

415 – 476

DN150 (6″)

1,100 – 1,300

952 – 1,125

DN200 (8″)

2,000 – 2,300

1,730 – 1,990

*Note: Reduced bore valves have lower Cv values (typically 60-80% of full bore).*

  1. Application Guidelines
  • Suitable Media:
    • LNG (Liquefied Natural Gas), Methane, Ethane, Ethylene
    • LO2 (Liquid Oxygen), LN2 (Liquid Nitrogen), LAr (Liquid Argon)
    • Liquid Hydrogen (with special material considerations)
  • Not Suitable For:
    • Media containing solid particles (may damage PCTFE seat)
    • High-temperature service >80°C (soft-seal degradation)
    • Fire-safe applications without special design (not API 607 compliant by default)
  • Installation Orientation: Any position (preferably stem vertical for extended bonnet applications)
  • Flow Direction: Bidirectional (with appropriate seat design)
  1. Special Requirements for Cryogenic Service

Requirement

Specification

Oxygen Service Cleaning

If service is LOX or oxygen-enriched, valve must be cleaned and packaged per CGA G-4.1 with special packaging to maintain cleanliness .

Material Traceability

Full traceability per EN 10204 Type 3.1 required for all pressure-containing parts .

Impact Testing

Charpy V-Notch impact tests at -196°C per ASTM A370 (minimum 41J average) .

PMI Testing

100% Positive Material Identification verification for all alloy components .

Cryogenic Cycle Testing

Optional: 200+ thermal cycles between ambient and -196°C to validate long-term performance.

Vacuum Jacket Compatibility

Extended bonnet length must match insulation thickness for cold box applications.

  1. Marking & Documentation
  • Marking: Per MSS SP-25 (Size, Pressure Class, Material, Manufacturer’s Logo, Heat No., Cryogenic Rating, CE/PED if applicable)
  • Documents:
    • Material Test Certificates (EN 10204 3.1)
    • Pressure Test Report (Ambient + Cryogenic)
    • Certified Dimensional Drawing
    • Cleaning & Degreasing Certificate (if oxygen service)
    • NDE Reports (RT/PT/MT as required)

Procurement Notes

  1. Pressure Class: Confirm required class (150LB / 300LB / 600LB) based on design pressure and temperature derating per ASME B16.34 .
  2. Bore Type: Specify Full Bore (for minimum pressure drop) or Reduced Bore (for cost/weight savings) .
  3. Seat Material: Confirm preference:
    • PCTFE: Better dimensional stability, preferred for cycling service at -196°C
    • RPTFE/PTFE: Lower cost, suitable for less demanding applications
  4. Extension Length: Specify if valve will be installed in vacuum-jacketed or cold box applications (custom extension length may be required).
  5. Actuation: If actuated (pneumatic/electric), provide torque requirements and control signal specifications .
  6. Special Cleaning: Specify if oxygen service cleaning is required (CGA G-4.1) .
  7. Fire-Safe Design: If fire-safe certification (API 607) is required, confirm with manufacturer as standard soft-seat designs are not fire-safe .

This technical data sheet complies with BS 6364, ASME B16.34, and API 6D requirements for cryogenic floating ball valves
