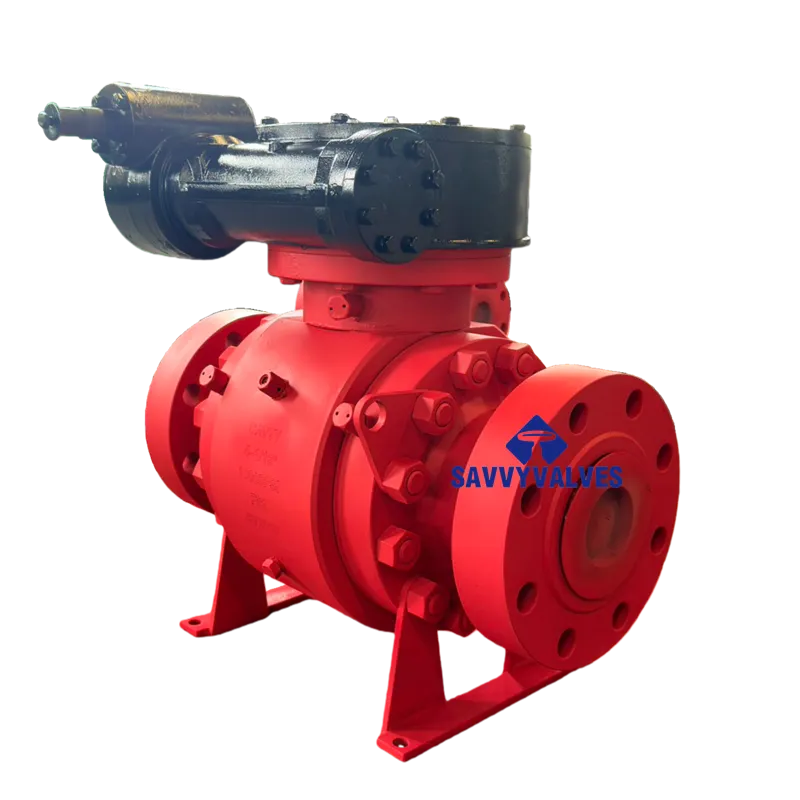

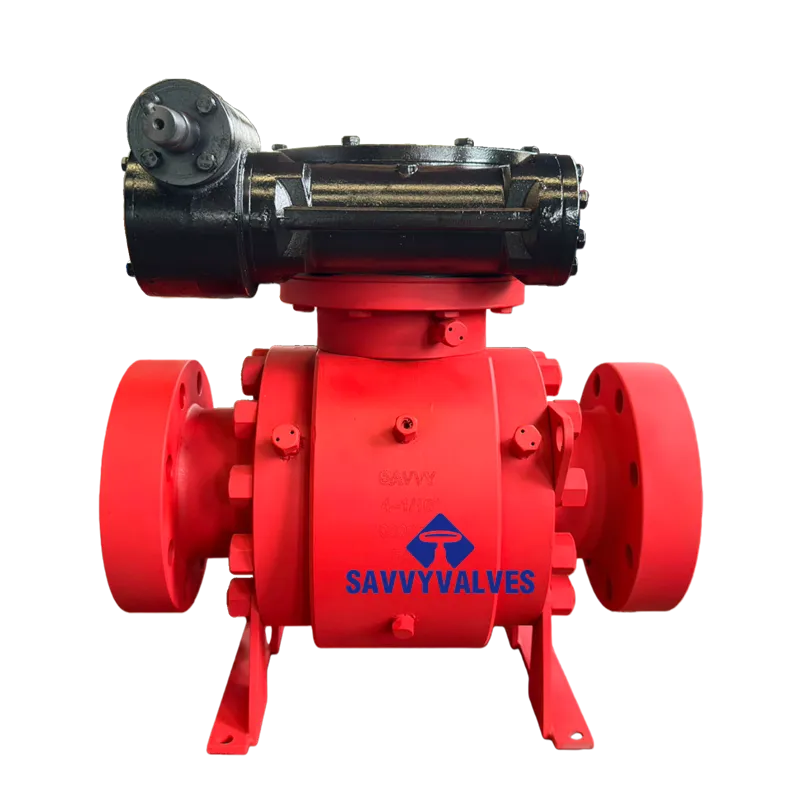

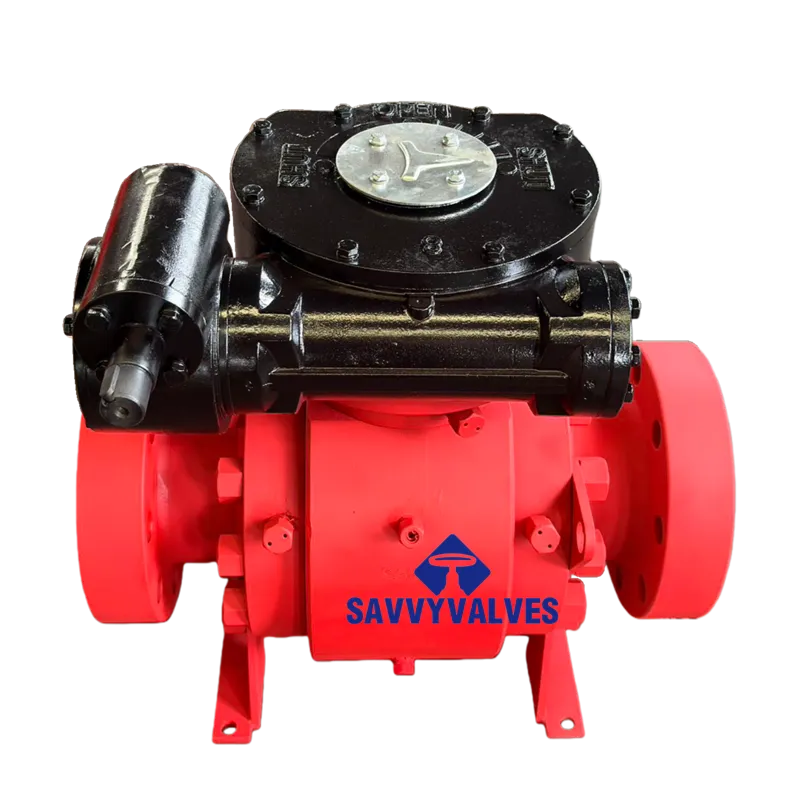

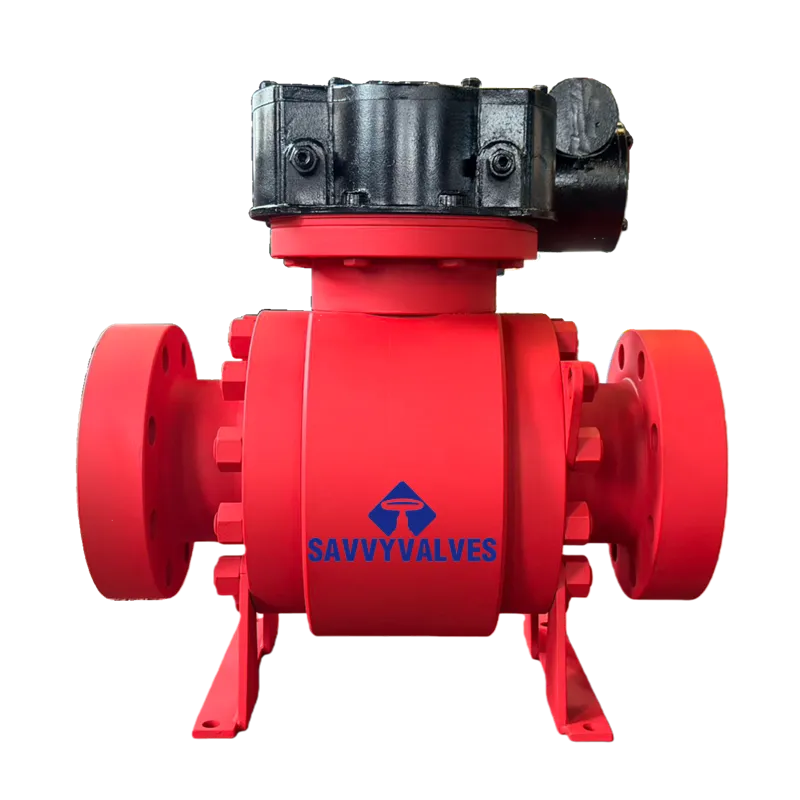

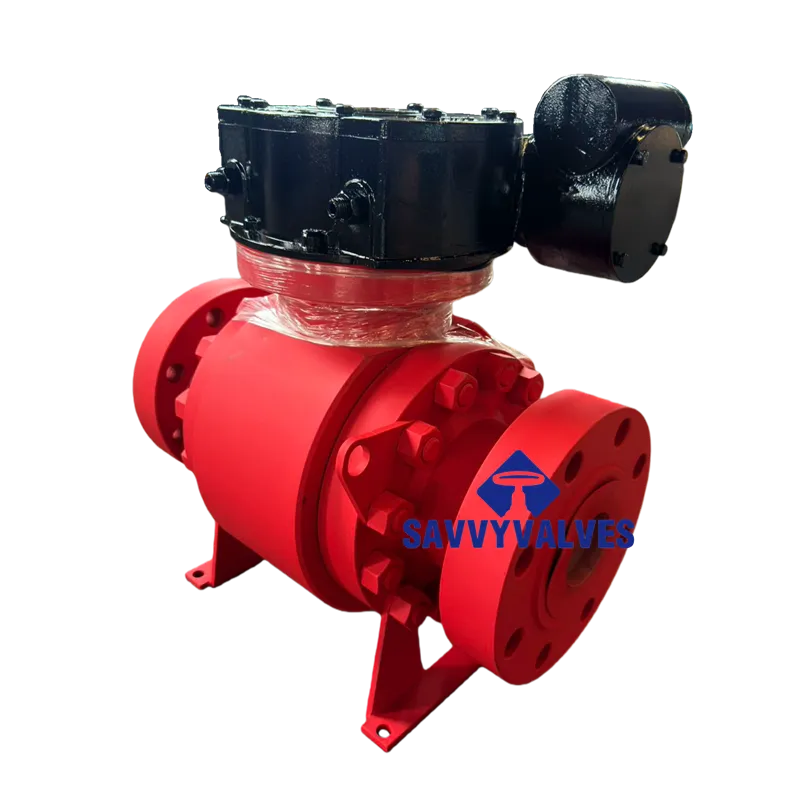

API 6A 10000PSI Trunnion Ball Valves

Description

API 6A TRUNNION MOUNTED BALL VALVE TECHNICAL DATA SHEET

PRODUCT DESIGNATION: Trunnion Mounted Ball Valve (API 6A)
DESIGN & MANUFACTURING STANDARD: API 6A, 21st Edition
PRESSURE-TEMPERATURE RATING: ASME B16.34
END CONNECTION: Flanged, RTJ, Buttweld

TECHNICAL SPECIFICATIONS:

• BORE SIZE: 2-1/16″, 3-1/8″, 4-1/16″, 5-1/8″ (Full/Reduced bore available), bigger size will be confirmed as per PO.
• PRESSURE CLASS: 2000psi, 3000psi, 5000psi, 10000psi, 15000psi
• TEMPERATURE CLASS: Class K (-60°C to +182°C)
• PRODUCT SPECIFICATION LEVEL: PSL 3G
• PERFORMANCE REQUIREMENT: PR 2
• MATERIAL CLASS: FF (Standard)
• OPERATION: Manual/Gear Operated/Hydraulic/Pneumatic

MATERIAL REQUIREMENTS:

• BODY: A182 F22/F316/F6a
• BALL & STEM: Inconel 625 + Stellite
• SEATS: Inconel 625+stllite
• BOLTING: A193 B7/A320 L7 PTFE coated

DESIGN FEATURES:

• Trunnion Mounted Design
• Double Block & Bleed (DBB) Function
• Anti-static Device
• Fire Safe Design (API 6FA/API 607)
• Blow-out Proof Stem
• Emergency Sealant Injection System
• Sour Service Capability (NACE MR0175)

TESTING REQUIREMENTS:

• SHELL HYDRO TEST: 1.5 × Rated Pressure
• SEAT HYDRO TEST: 1.1 × Rated Pressure (Both directions)
• SEAT GAS TEST: 0.55-1.1 MPa & Maximum Rated Pressure
• DBB TEST: As per API 6A
• FIRE TEST: API 6FA/API 607
• NDE: MPI/LPI/RT (As per PSL requirements)

SERVICE MEDIUM: Crude Oil, Natural Gas, Well Fluids, H₂S/CO₂ containing media

CERTIFICATION REQUIREMENTS: API 6A, API 6FA/607, NACE MR0175

REMARKS: This data sheet provides general technical specifications for API 6A Trunnion Mounted Ball Valves. Specific technical requirements shall be subject to the project purchase specification.
