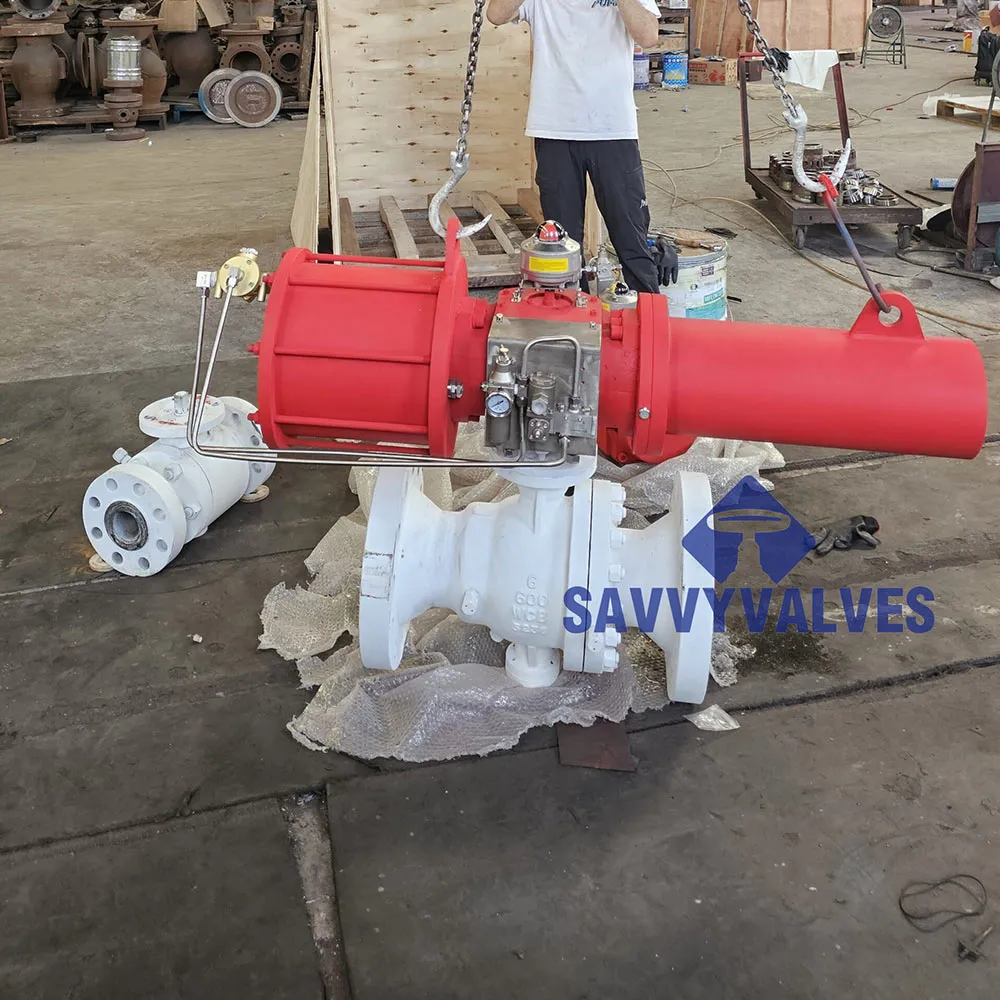

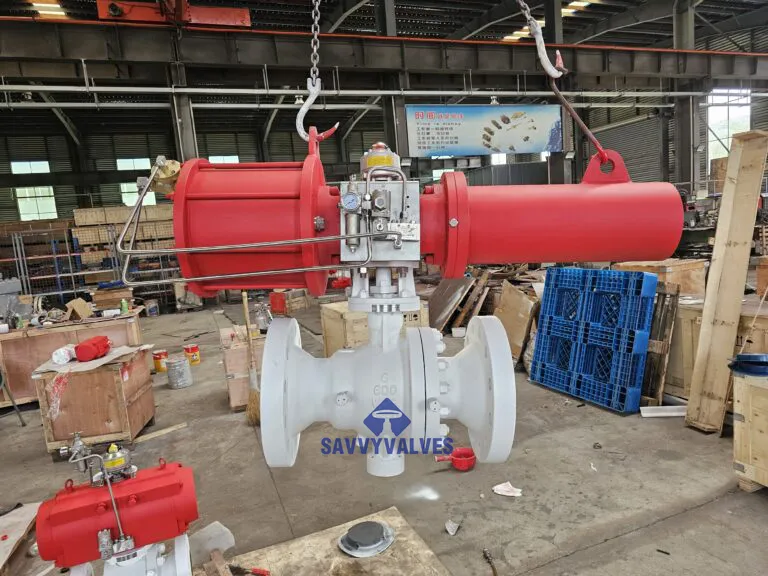

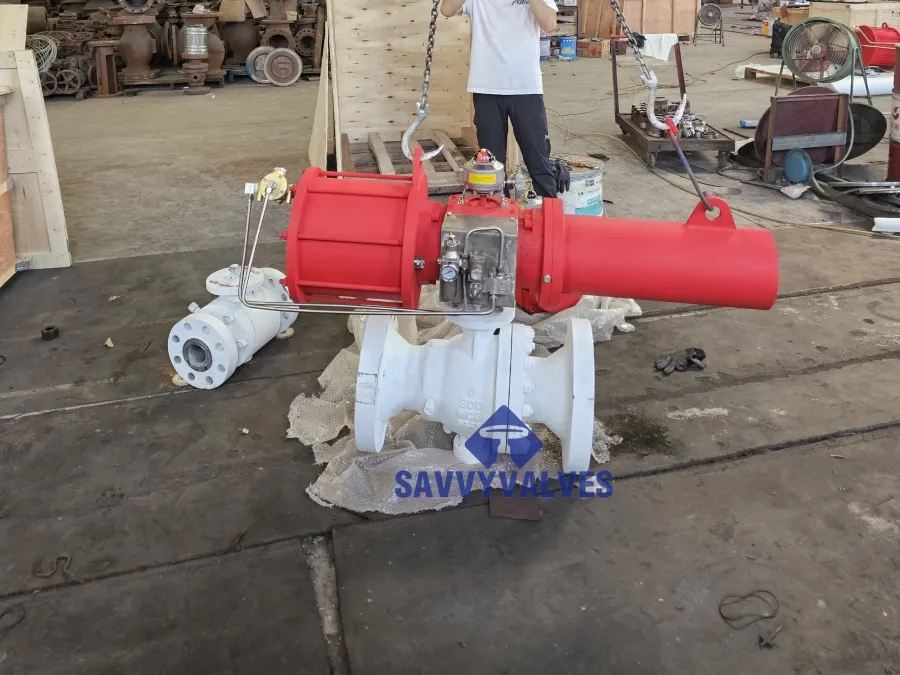

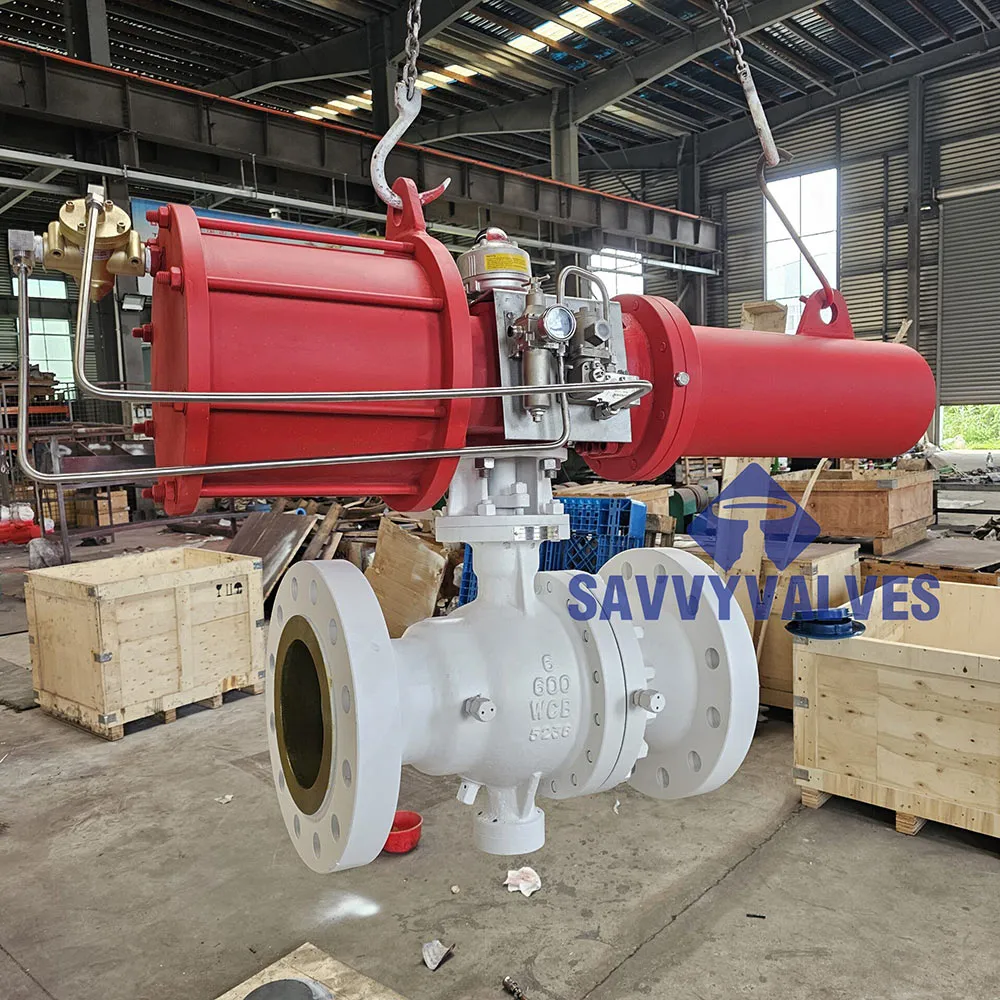

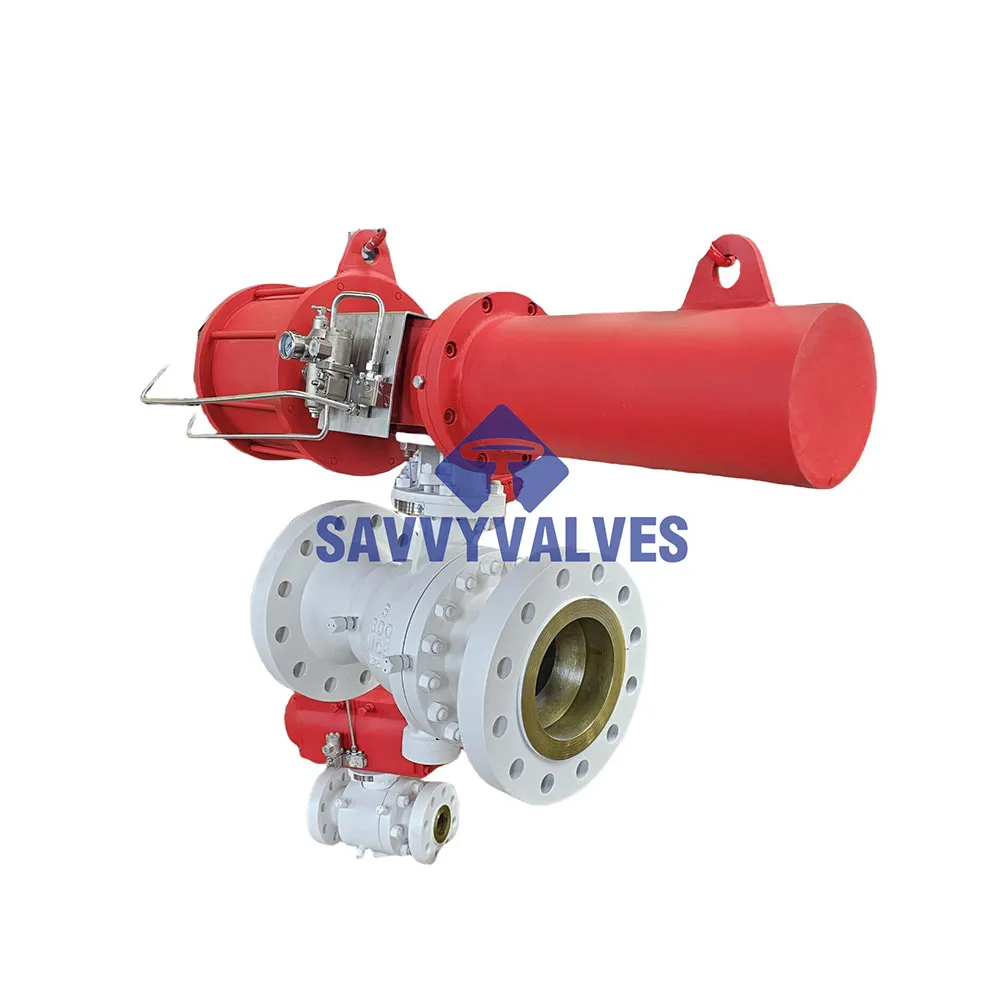

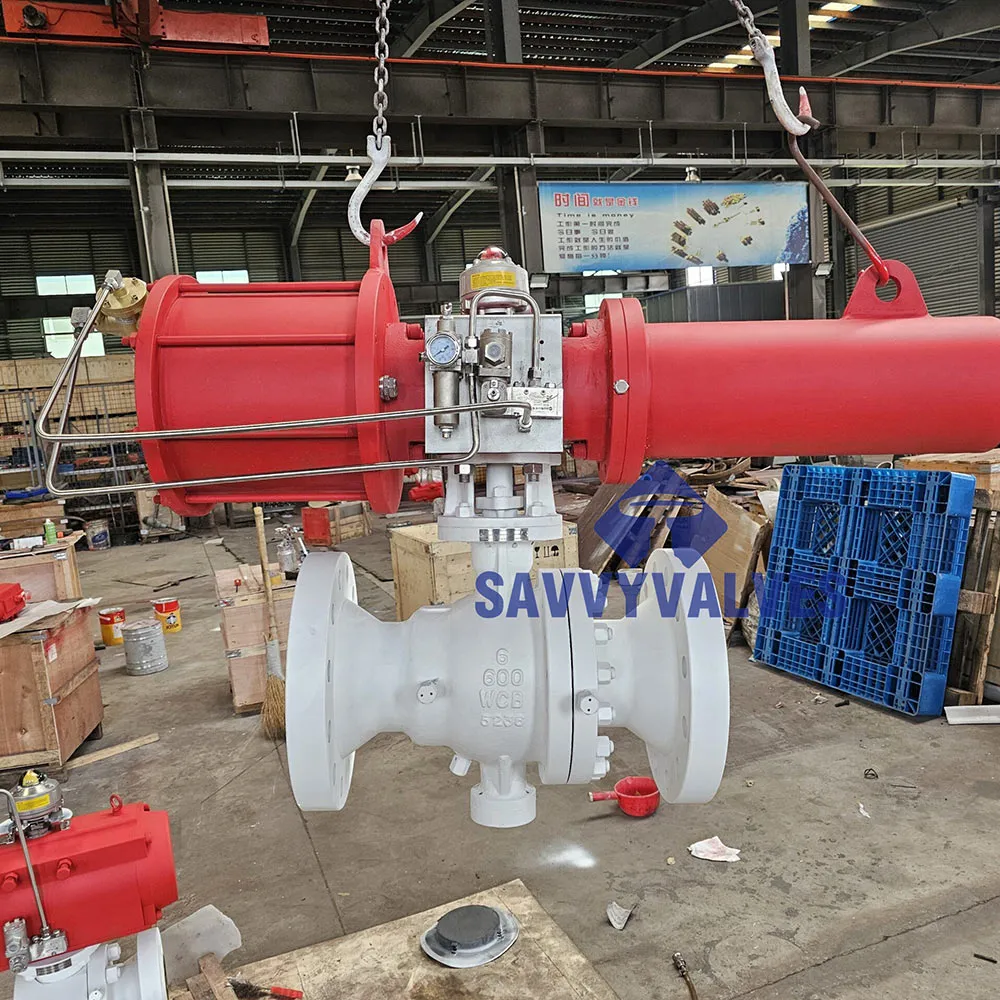

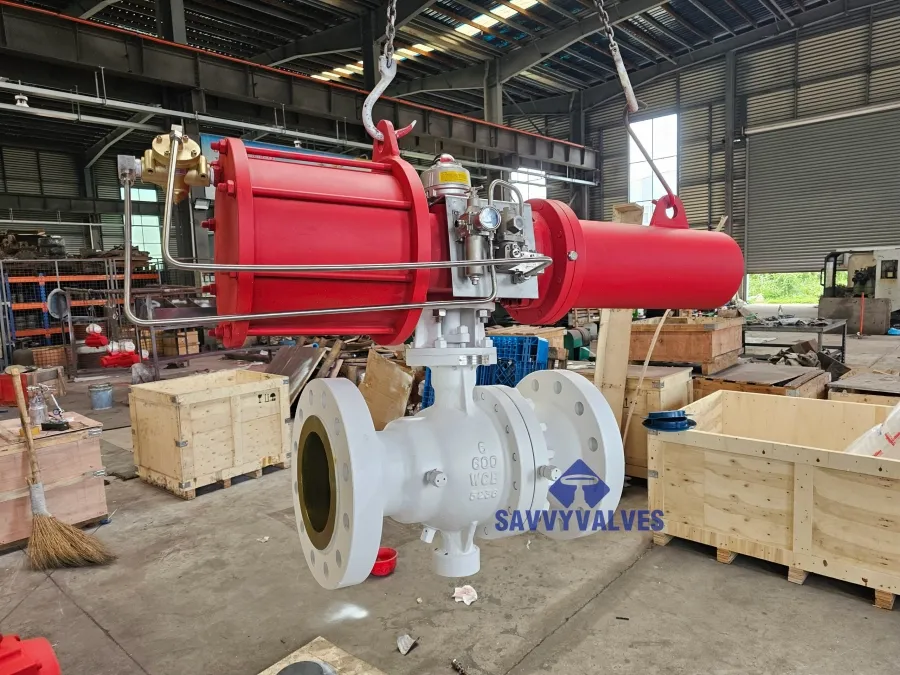

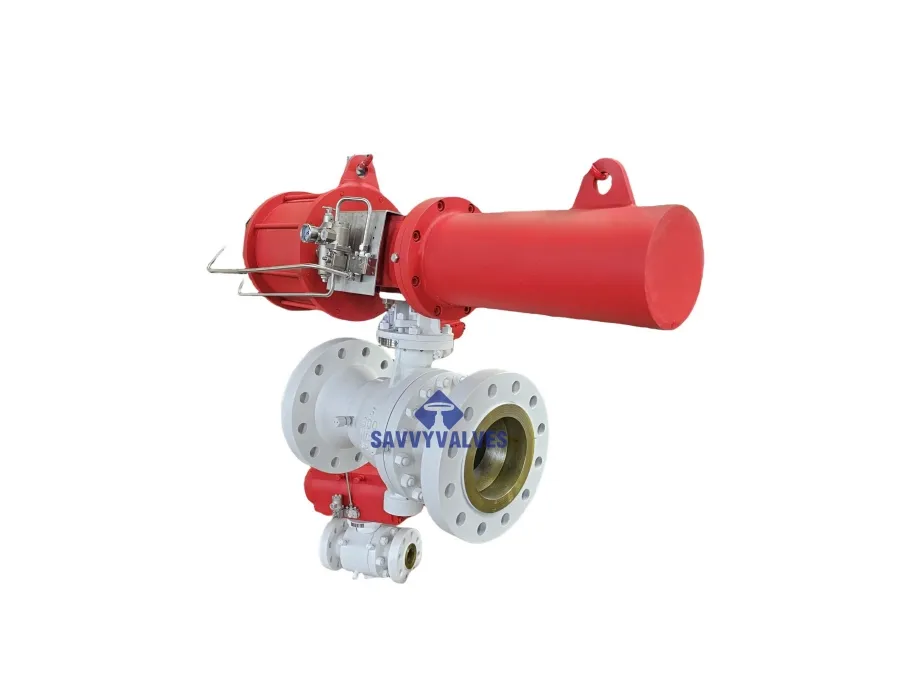

8″x6″ 600LB Emergency shut-down ball valve

Size:8″ x 6″
Rating: 600LB
Materials: ASTM A216 WCB body and bonnet
ASTM A182 F316L trims
RPTFE seat
Operator: Single acting spring return pneumatic

ESD valve, type Trunnion Ball Valve

Savvy trunnion ball valves are offered in 2 PC side entry, 3 PC side entry, welded body and top entry design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials.
Savvy trunnion ball valves are manufactured according to API 6D Design and fire safe tested per API 6FA and API 607 Standard.

PRODUCT RANGE
Sizes NPS 2 to NPS 60
API 6D Class 150 to Class 4500,
API 6A Class 3000 to Class 30000

DESIGN FEATURES
Full or Reduced Bore
RF, RTJ, BW or PE
Side entry, top entry, or welded body design
Double Block & Bleed (DBB)，Double Isolation & Bleed (DIB)
Emergency seat and stem injection
Anti-Static Device
Anti-Blow out Stem
Cryogenic or High Temperature Extended Stem

MATERIALS
Available Forged (A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5,) Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2) Monel, Inconel, Hastelloy,Titanium alloy

DESIGN STANDARD
Design & manufacture according to API 6D, API 608, ISO 17292
Face-to-face according to API 6D, ASME B16.10
End Connection according to ASME B16.5, ASME B16.47, MSS SP-44 (NPS 22 Only)
Test & inspection according to API 6D, API 598
Fire safe design according to API 6FA, API 607
Also available per NACE MR-0175, NACE MR-0103, ISO 15848

QUALITY CONTROL

100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.

GUATANTEE

SAVVY VALVES provide 12 months service life at least, free spares and maintenance instruction will be provided when required.

HOT SALE PRODUCTS

For over 10 years, we have been a leading supplier of industrial valves for major global projects in water supply, oil & gas, and desalination.

How Does The 8″x6″ 600LB Emergency Shut-Down Ball Valve Function In Critical Applications?

The 8″x6″ 600LB emergency shut-down ball valve is specifically designed for high-priority safety systems where immediate flow isolation is essential, such as in oil refineries, gas transmission lines, and chemical processing units. With an 8-inch inlet and 6-inch outlet, this reduced bore valve balances flow control with pressure integrity under Class 600 pressure ratings. It features a quarter-turn operation that enables rapid shut-off, often integrated with automated systems for fast response to emergencies like leaks, pressure surges, or fire. The full-metal construction and precision sealing ensure reliable performance in harsh conditions, while the compact design allows easy integration into tight pipeline layouts. Its role is critical in minimizing damage, protecting personnel, and ensuring system shutdown during hazardous events. Regular testing and preventive maintenance are vital to guarantee readiness and compliance with safety standards in demanding industrial environments.
