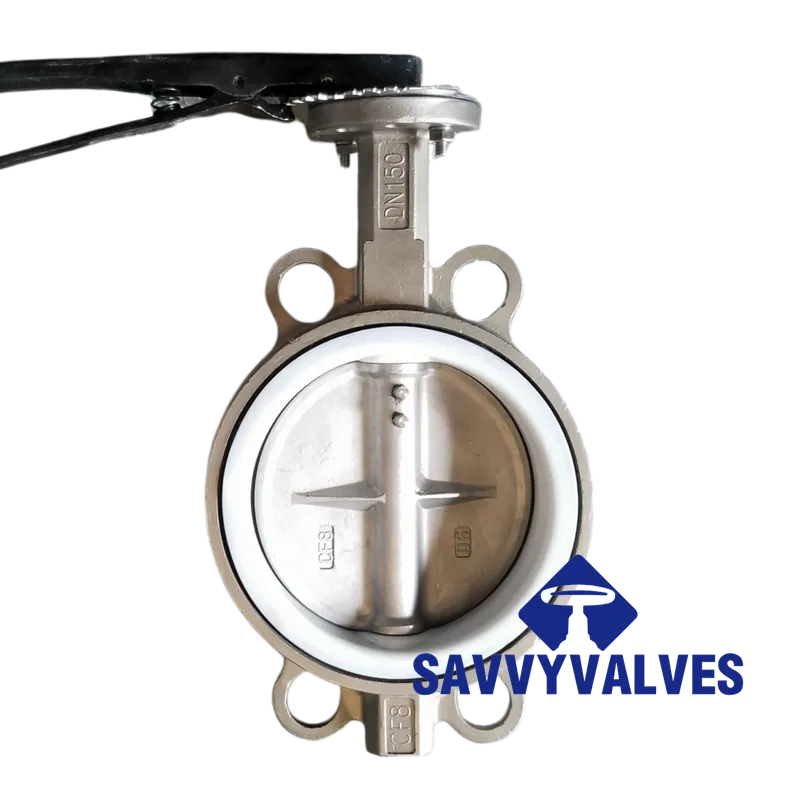

Economy Wafer-type Butterfly Valves (CF8/CF8/PTFE)

Economy Wafer-type Butterfly Valves (CF8/CF8/PTFE)

Description

Wafer Type Butterfly Valve Technical Data Sheet

(Stainless Steel Body / PTFE Seat)

Product Name: Wafer Type Concentric Butterfly Valve
Model: D71X / D371X – Series
Date: February 16, 2026

1. Product Overview

This valve features a wafer-type body design for easy installation between pipeline flanges. The valve is constructed entirely with stainless steel wetted parts (body and disc) and a PTFE (Polytetrafluoroethylene) seat, offering excellent corrosion resistance and chemical inertness. It is ideally suited for handling aggressive media in chemical, pharmaceutical, food processing, and water treatment industries.

2. General Technical Specifications

3. Material of Parts Specification

4. PTFE Seat Characteristics

• Chemical Resistance: PTFE is chemically inert and resistant to almost all industrial chemicals and solvents, except molten alkali metals and elemental fluorine at high temperatures.
• Temperature Resistance: Maintains stability from sub-zero temperatures up to 180°C.
• Low Friction: PTFE’s low coefficient of friction ensures low operating torque and extends valve life.
• Non-Stick Surface: Precribes adhesion of media, making it ideal for viscous or sticky fluids.
• FDA Compliance: PTFE materials can be supplied to meet FDA requirements for food and pharmaceutical applications upon request.

5. Main Technical Characteristics

1. Concentric Design: The stem passes through the center line of the disc, which contacts the PTFE seat for sealing. Simple, reliable, and cost-effective.
2. Full Stainless Steel Construction: All wetted parts (body, disc) are stainless steel, providing superior corrosion resistance compared to ductile iron or coated valves.
3. PTFE Lined Seat: The seat fully lines the body bore, isolating the body from the media and ensuring bubble-tight shut-off.
4. Wafer Type Body: The valve is centered between two pipe flanges using precision-machined locating lugs, allowing for easy installation and removal without special tools.
5. Bi-Directional Sealing: The PTFE seat design provides tight shut-off in both flow directions.

6. Pressure-Temperature Rating (PTFE Seat)

Note: Pressure ratings decrease at elevated temperatures due to material properties of PTFE.

7. Principal Dimensions & Connection Data (Reference PN10/16)

*Note: Final dimensions subject to approval drawings. Conforms to ISO 5752 Series 20 / API 609 Category A.*

8. Applicable Standards & Testing

• Design & Manufacture: API 609 Category A / ISO 5752 / EN 593 / GB/T 12238
• Face-to-Face: ISO 5752 Series 20 (Short pattern)
• Flange Compatibility: EN 1092-2, ASME B16.5 (via wafer mounting), JIS B2220
• Testing Standard: ISO 5208 / API 598
• Pressure Tests:
• Shell Test: 1.5 x Rated Pressure
• Seat Test: 1.1 x Rated Pressure (Bi-directional)
• Leakage Rate: Rate A (No visible leakage) per ISO 5208

9. Remarks

• This Stainless Steel + PTFE combination offers the best corrosion resistance for chemical applications.
• PTFE seat provides low torque operation and requires no maintenance.
• For higher temperature applications (>180°C), alternative seat materials such as RTFE or PEEK should be considered.
• Available with various disc and body options: CF8 (304), CF8M (316), or CF3M (316L) for enhanced corrosion resistance.
• Actuator mounting flange conforms to ISO 5211 for easy automation.

GUATANTEE:

SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.
