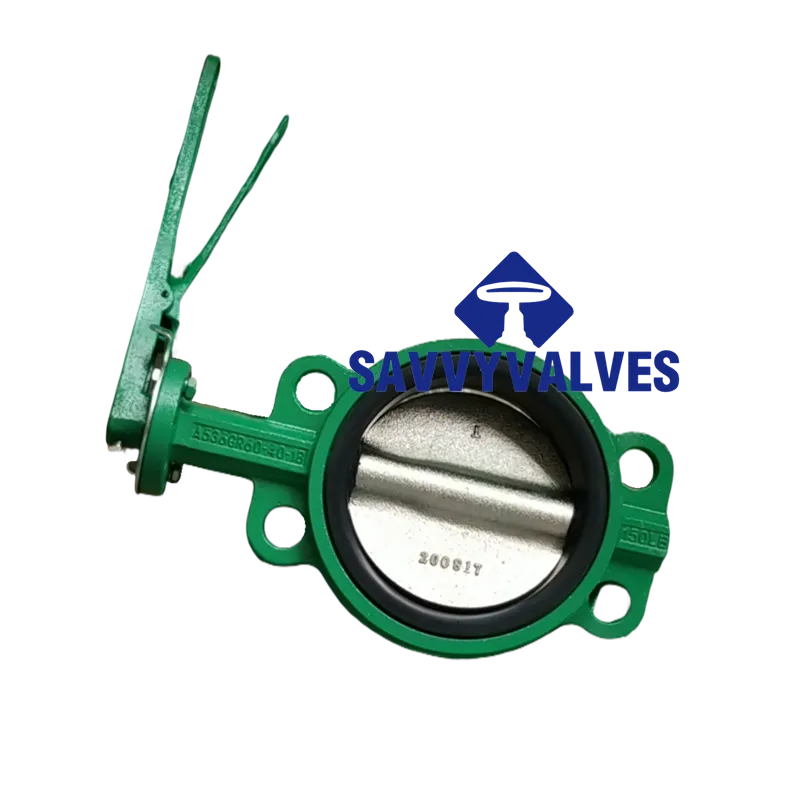

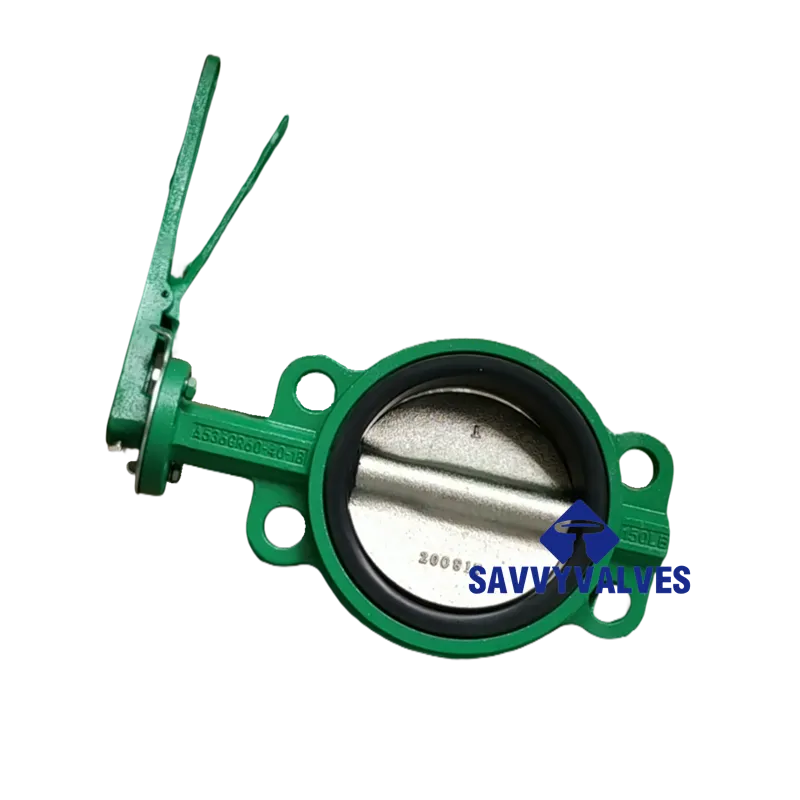

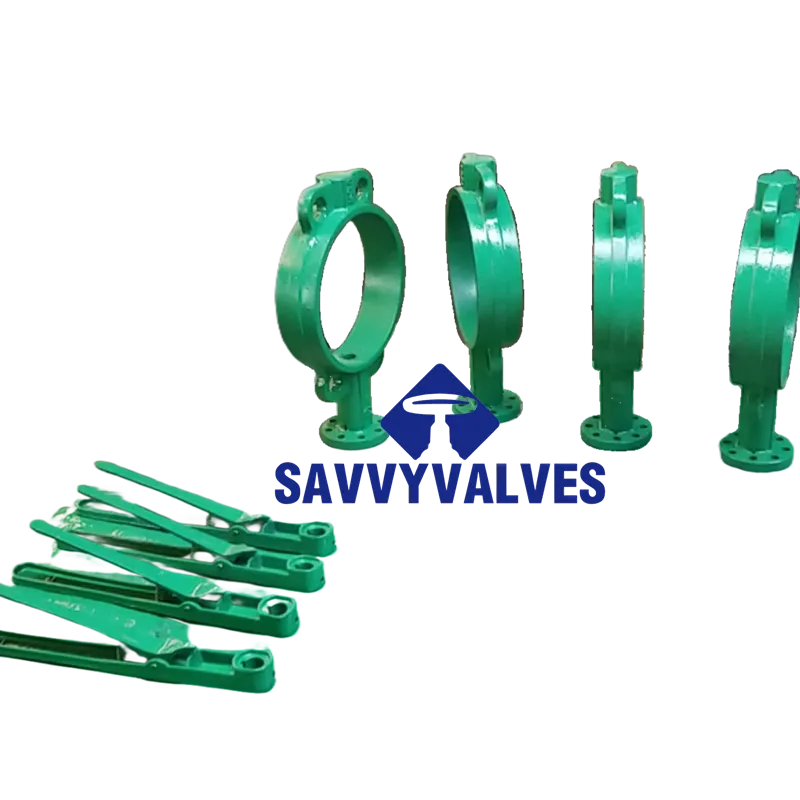

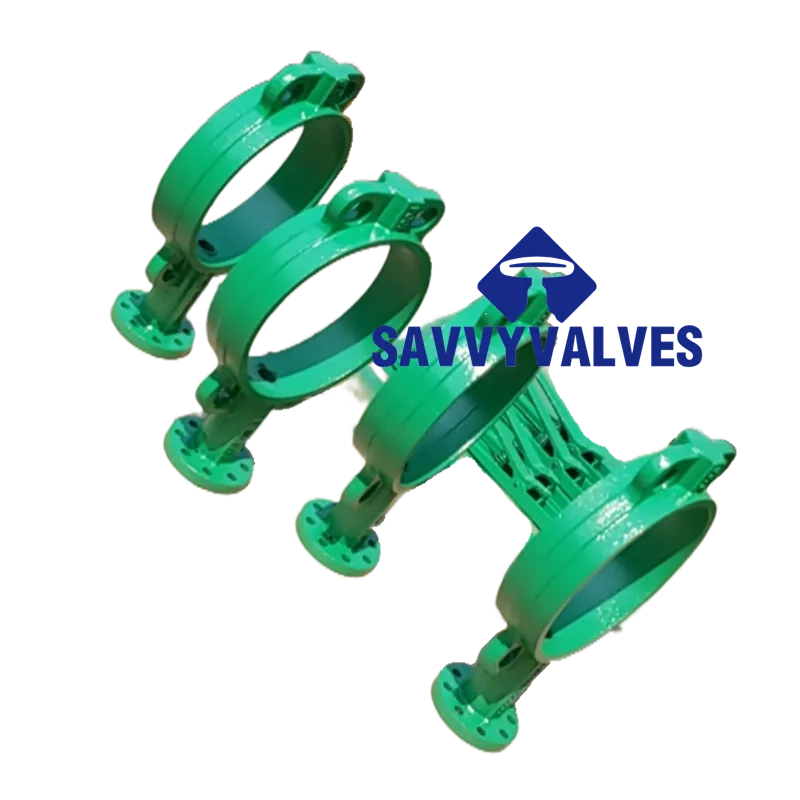

Wafer-Type Butterfly Valve -ASTM A536 60-40-18

Nominal Diameter (DN) DN50 ~ DN600 (Optional)
Nominal Pressure (PN) PN10/16 (Class 150), JIS 10K/16K
Temperature Range -20°C to +120°C (EPDM Seat)
-10°C to +180°C (PTFE Seat)
Applicable Media Water, Air, Oil, Weakly Corrosive Liquids
Connection Type Wafer-Type (ASME B16.5 / EN 1092-1/JIS B2220)
Actuation Lever, Gear, Pneumatic, Electric

Description

Wafer-Type Butterfly Valve (Cartridge Seat) – Technical Datasheet

Model: D71X-16C (Example)
Type: Centerline Design, Wafer-Type
Seat Type: Cartridge Replaceable Seat

Basic Parameters

Item	Specification
Nominal Diameter (DN)	DN50 ~ DN600 (Optional)
Nominal Pressure (PN)	PN10/16 (Class 150), JIS 10K/16K
Temperature Range	-20°C to +120°C (EPDM Seat) -10°C to +180°C (PTFE Seat)
Applicable Media	Water, Air, Oil, Weakly Corrosive Liquids
Connection Type	Wafer-Type (ASME B16.5 / EN 1092-1/JIS B2220)
Actuation	Lever, Gear, Pneumatic, Electric

Construction & Materials

Component	Material	Description
Body	Ductile Iron (GGG50) Carbon Steel (WCB) Stainless Steel (CF8/CF8M)	Epoxy Coated/Ni-Plated
Disc	SS304/316 Ductile Iron + Nylon Coating	Centerline Design, Low Flow Loss
Stem	Stainless Steel (416/304/316)	Through-Rod, Anti-Blowout
Seat	Cartridge Seat: – Seal: EPDM/NBR/VITON/PTFE – Support Ring: SS304 + Rubber Composite	Quick Replacement Without Body Removal
Sealing Type	Bidirectional Elastic Sealing	Zero Leakage (ANSI FCI 70-2)

III. Cartridge Seat Features

Modular Design: Seat pre-assembled in stainless steel retainer ring.
Rapid Replacement: Maintenance without pipeline disassembly (valve removed between flanges).
Zero-Leakage Sealing: Uniform compression under pressure fluctuations.
Extrusion Resistance: SS skeleton prevents deformation (10x longer life vs. standard seats).

Performance Specifications

Parameter	Value
Sealing Class	ANSI Class VI / ISO 5208 A
Flow Coefficient (Cv)	Refer to size-specific chart (e.g., DN100: Cv≈500)
Operating Torque	≤30% of standard butterfly valves
Cycles	≥100,000 (EPDM Seat)
Fire-Safe Option	API 607 (Optional)

Design & Testing

Installation: Sandwiched between ANSI/EN flanges (no threaded holes in body).
Shell Test: 1.5×PN (EN 12266).
Seat Test: 1.1×PN (bidirectional air/water).
Vacuum Test: 0.08 MPa (ISO 5208).

Standards & Certifications

Category	Standard
Valve Design	ISO 10631 / EN 593 / MSS SP-67
Flange Face	RF (Raised Face) ASME B16.5 / EN 1092-1
Fire Safety	API 607 (Optional)
Potable Water	WRAS/KTW (EPDM Seat)

VII. Options

Actuation: ISO 5211 mounting pad for pneumatic/electric actuators.
Stem Extension: For insulated lines (-40°C to +230°C).
Position Indicators: Mechanical/electronic limit switches.
Anti-Static Device: ISO 5211 compliance.

VIII. Applications

HVAC: Chilled/heating water systems.
Industrial: Chemical processing, compressed air.
Water Treatment: Filtration, pumping stations.
Marine: Seawater cooling (316SS body).
