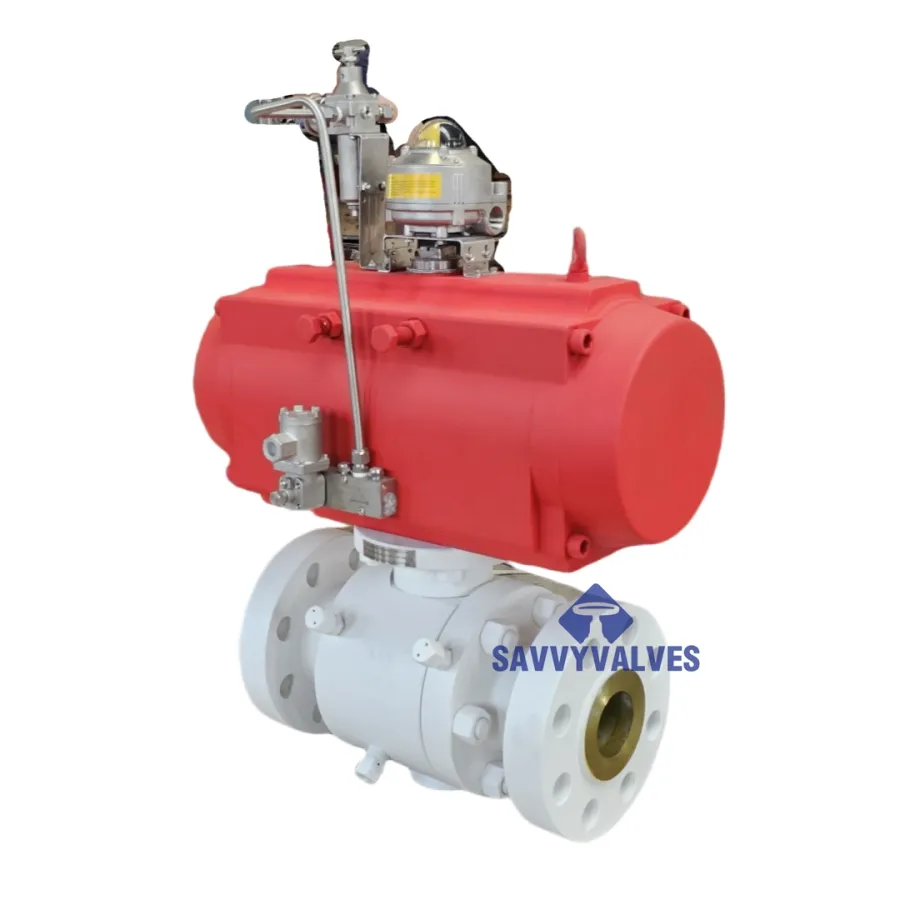

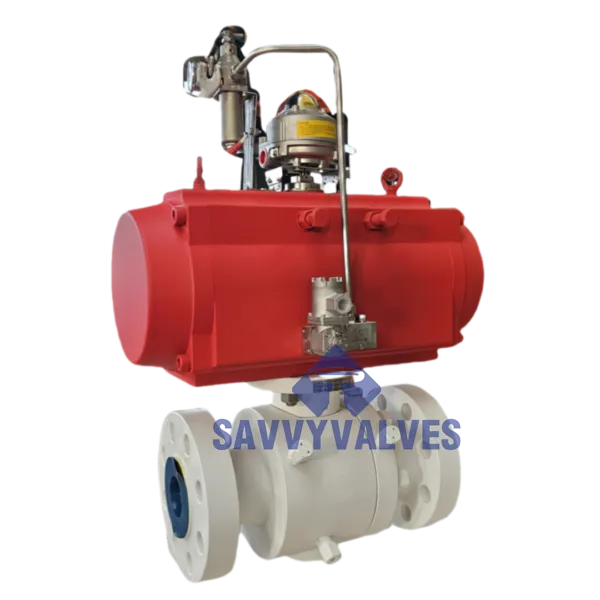

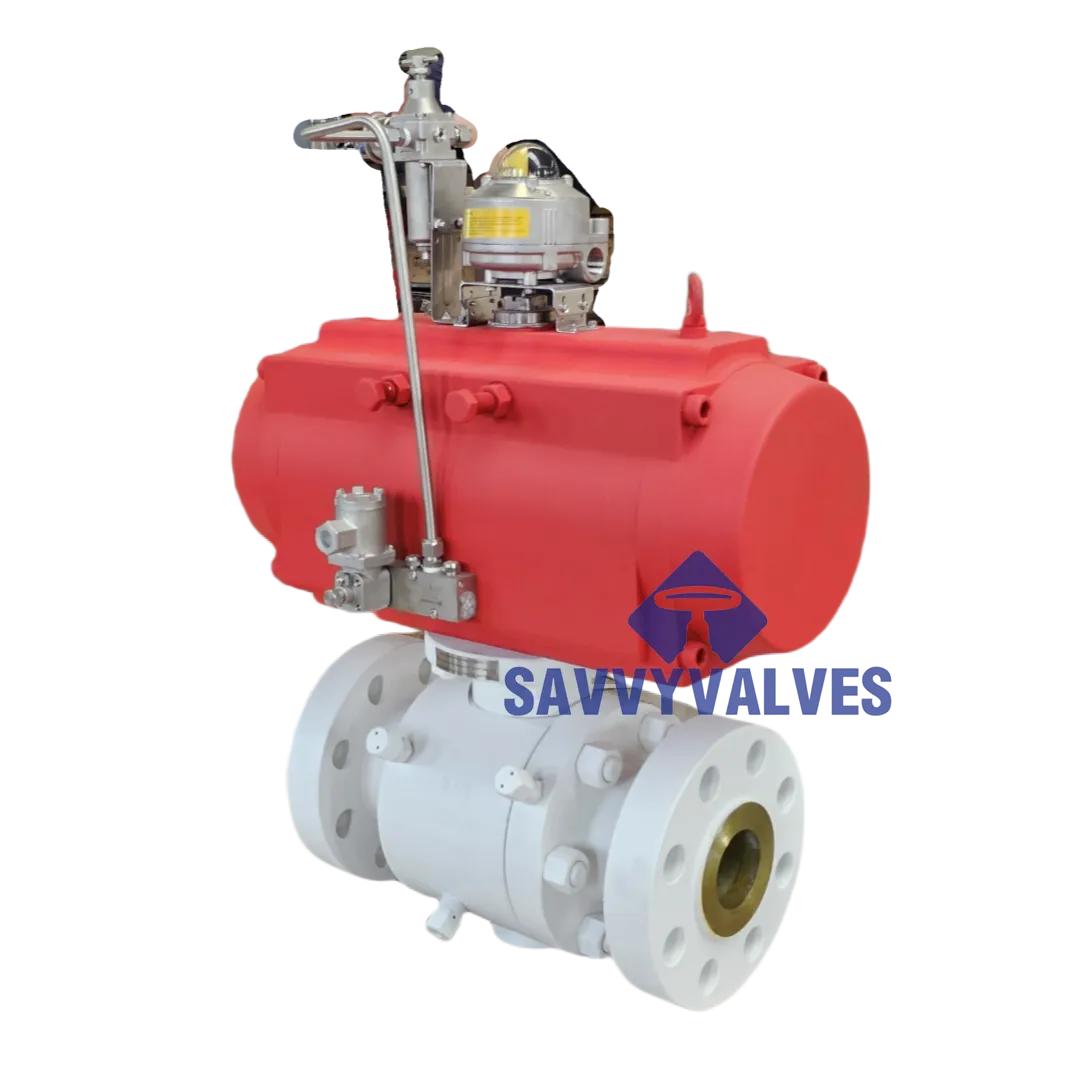

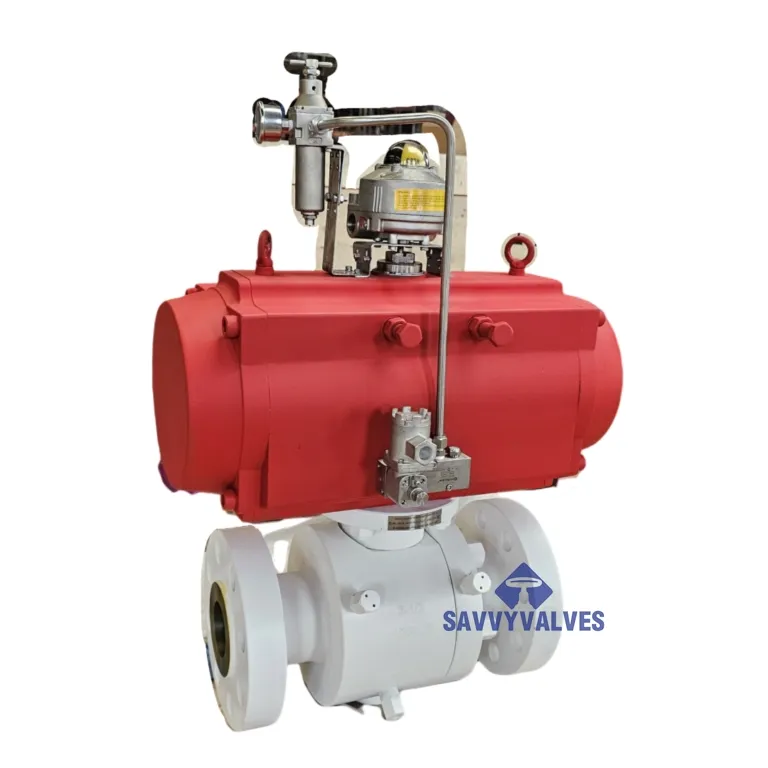

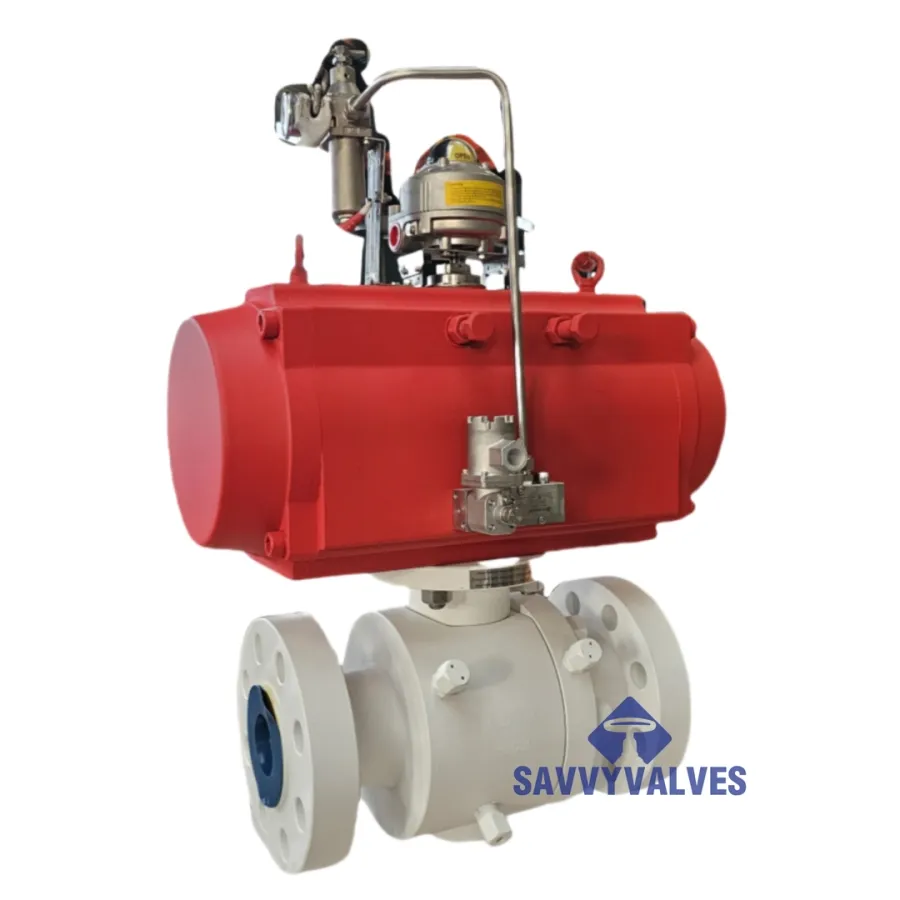

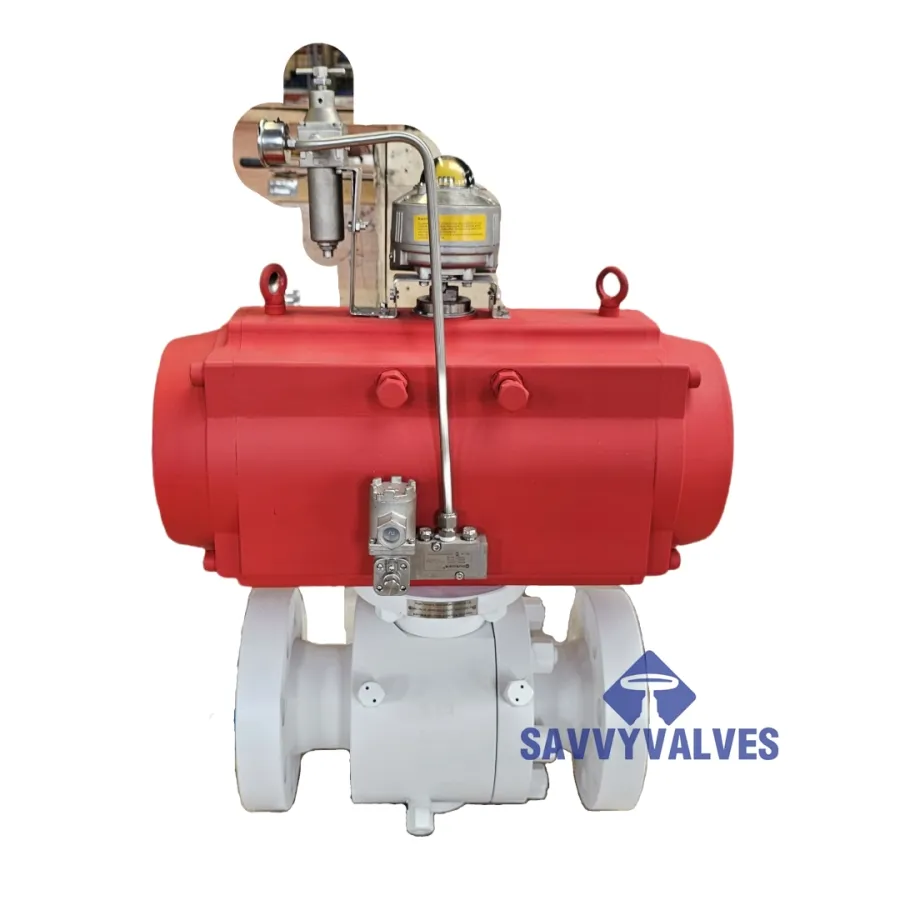

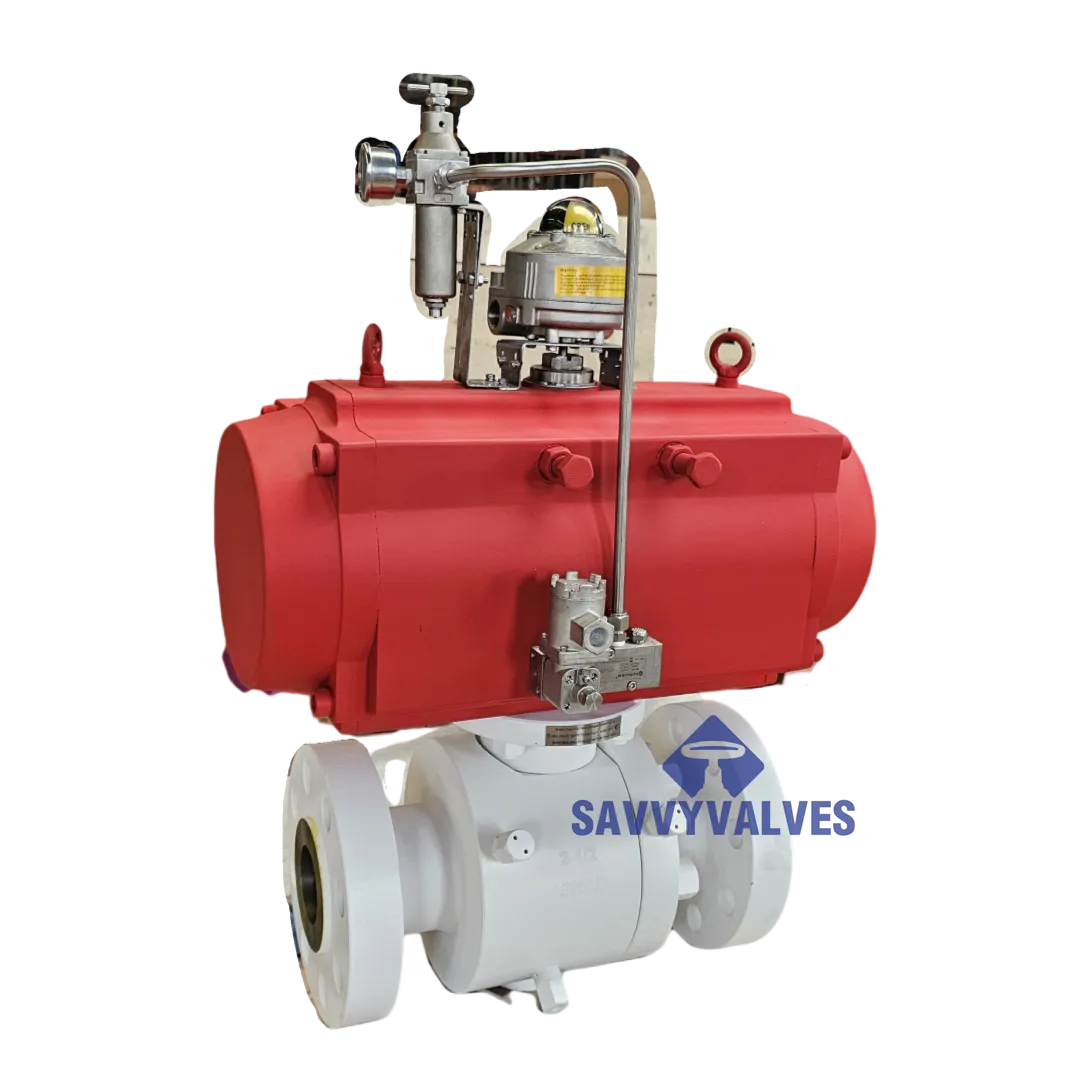

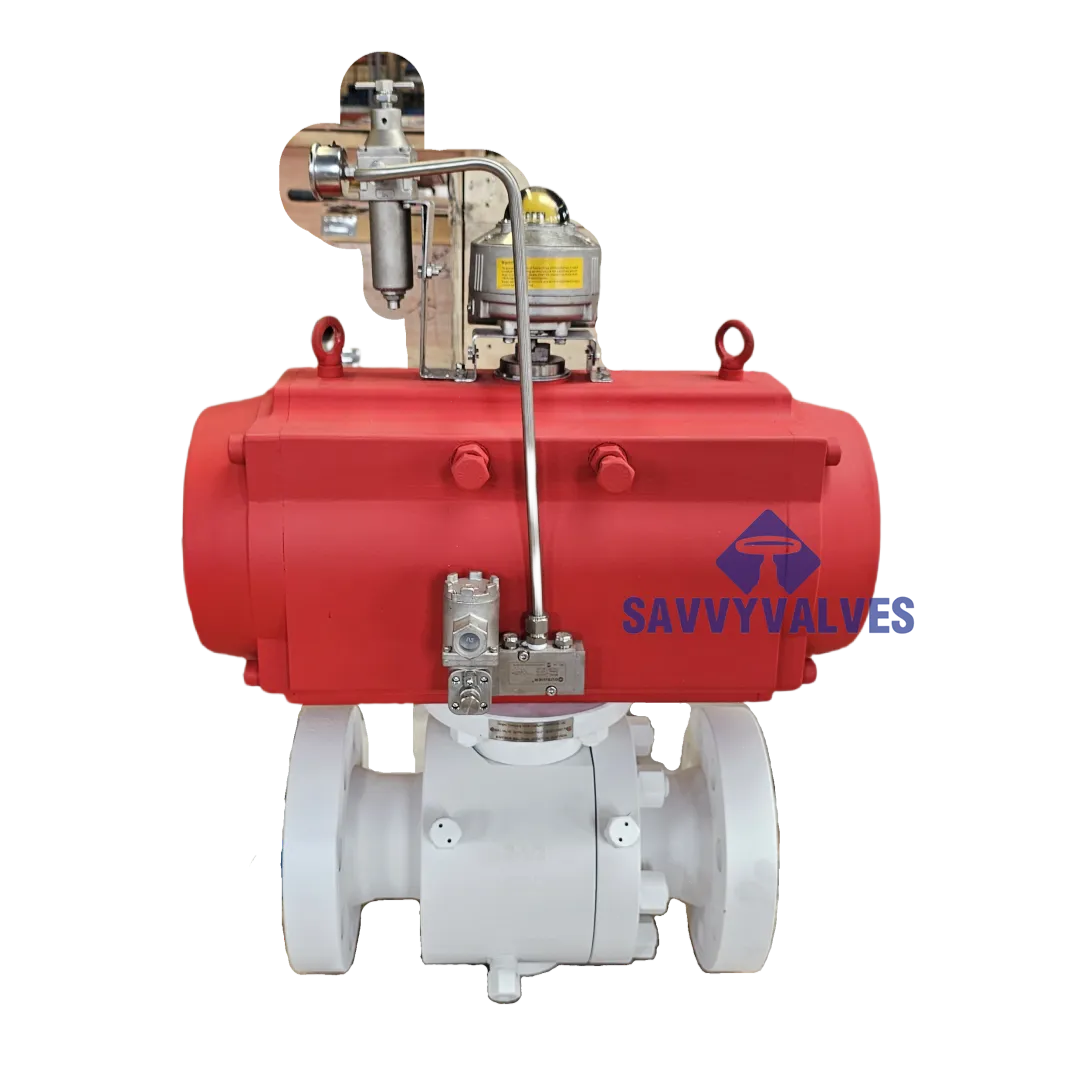

ESD valve, type Trunnion Ball Valve

Savvy trunnion emergency shut-down ball valves are offered in 2 PC side entry, 3 PC side entry, welded body and top entry design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials.
Savvy trunnion ball valves are manufactured according to API 6D Design and fire safe tested per API 6FA and API 607 Standard.

PRODUCT RANGE
Sizes NPS 2 to NPS 60
API 6D Class 150 to Class 4500,
API 6A Class 3000 to Class 30000

DESIGN FEATURES
Full or Reduced Bore
RF, RTJ, BW or PE
Side entry, top entry, or welded body design
Double Block & Bleed (DBB)，Double Isolation & Bleed (DIB)
Emergency seat and stem injection
Anti-Static Device
Anti-Blow out Stem
Cryogenic or High Temperature Extended Stem

MATERIALS
Available Forged (A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5,) Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2) Monel, Inconel, Hastelloy,Titanium alloy

DESIGN STANDARD
Design & manufacture according to API 6D, API 608, ISO 17292
Face-to-face according to API 6D, ASME B16.10
End Connection according to ASME B16.5, ASME B16.47, MSS SP-44 (NPS 22 Only)
Test & inspection according to API 6D, API 598
Fire safe design according to API 6FA, API 607
Also available per NACE MR-0175, NACE MR-0103, ISO 15848

GUATANTEE

SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.
