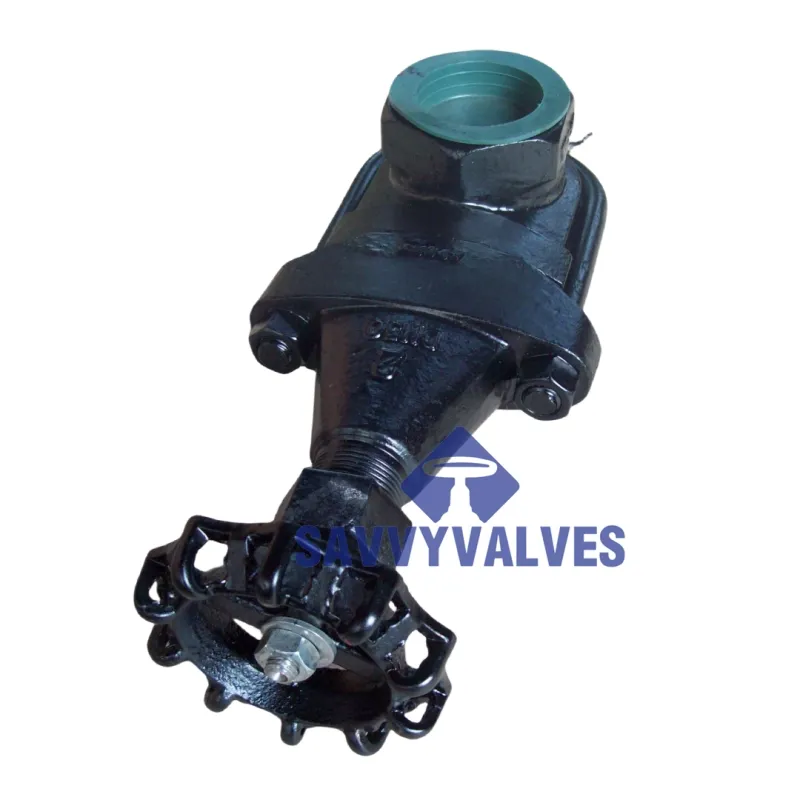

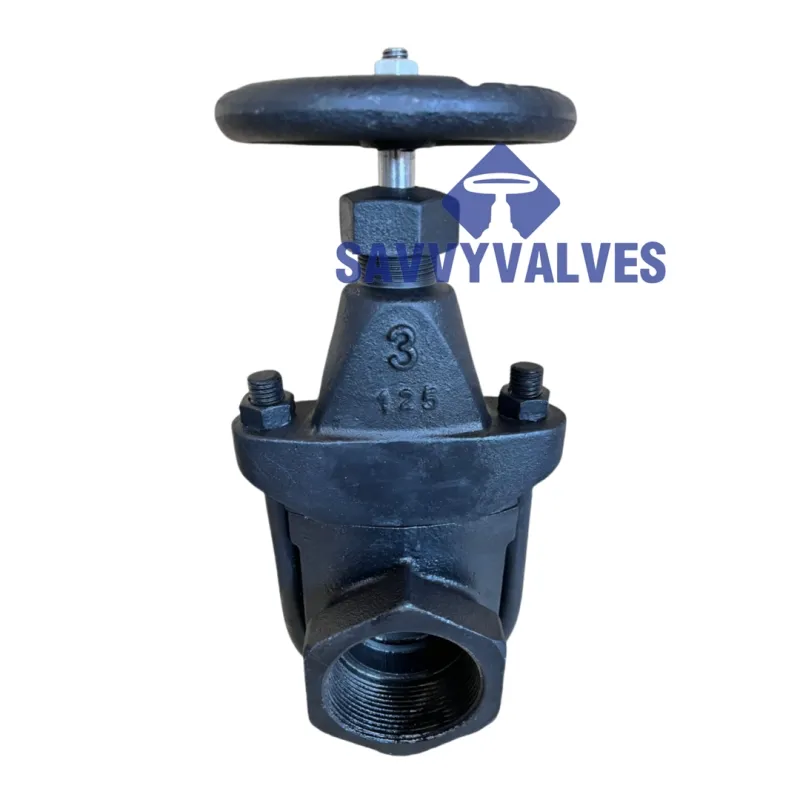

U bolt gate valve

• Size:3″
• Rating: 125LB
• Materials: Body and bonnet and wedge ASTM A126 GR.B
• Stem 410SS
• U bolt carbon steel
• Operator: handwheel

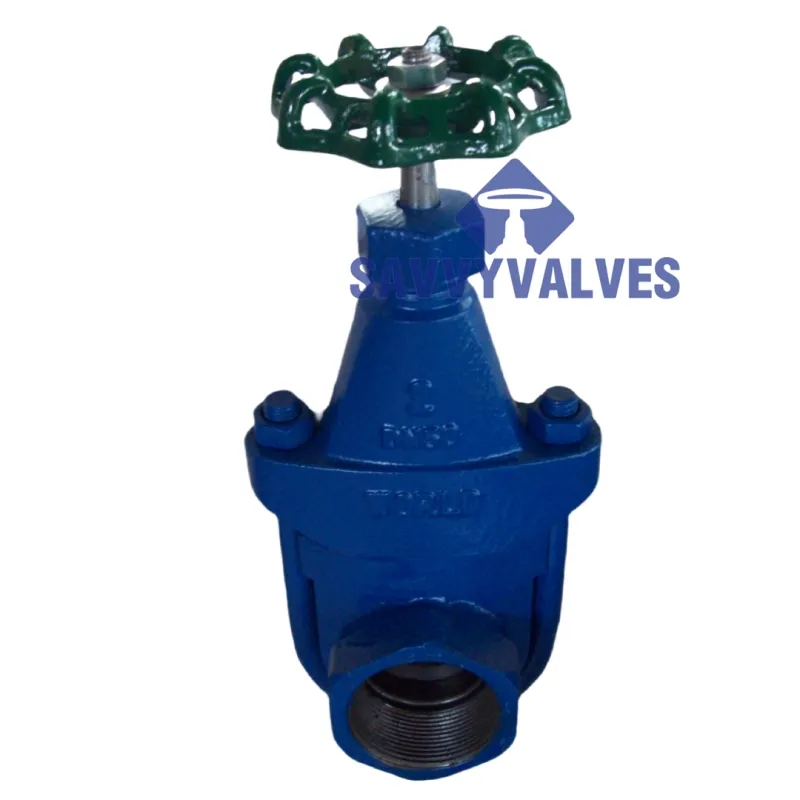

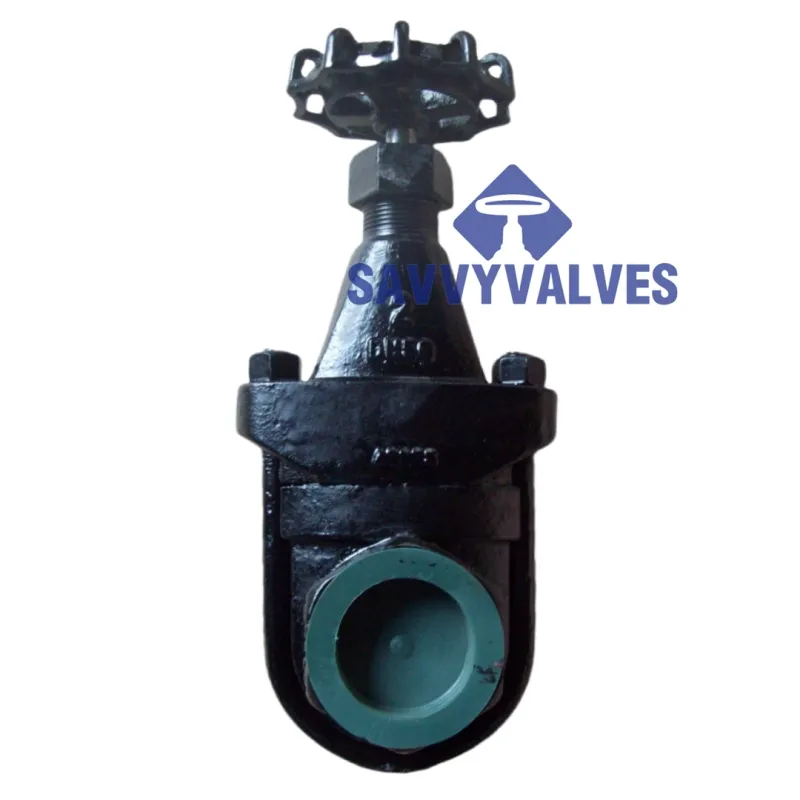

U bolt Gate Valve

Savvy U bolt valves are offered in bolted bonnet, OS&Y, and rising stem solid wedge type.

These U bolt valves are manufactured according to MSS SP-70 Design.

PRODUCT RANGE

Sizes NPS ½ to NPS 4

Class 125 to Class 250

MATERIALS

Normally cast iron A126 or ductile iron A395 or A536, other materials will be special made.

DESIGN FEATURES

Full or Reduced Bore

Bolted bonnet

Rising stem

Open stem and yoke.

Threaded

DESIGN STANDARD

Design & manufacture according to MSS SP-70

Face-to-face according to MSS SP-70

End Connection according to ANSI B2.1

Test & inspection according to API 598, MSS SP-70

TEST AND INSPECTION

Inspection and approval norm: API598, API6D.

QUALITY CONTROL

100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.

GUATANTEE

SAVVY VALVES provide 12 months service life at least, free spares and maintenance instruction will be provided when required.

HOT SALE PRODUCTS

For over 10 years, we have been a leading supplier of industrial valves for major global projects in water supply, oil & gas, and desalination.

What Is The Function Of A U Bolt Gate Valve In Pipeline Connections?

The U bolt gate valve is commonly used in systems where secure and stable flange connections are essential, such as in oil and gas pipelines, chemical processing, and water distribution. The “U bolt” in this context typically refers to the method of securing the valve to the pipeline flanges using U-shaped bolts, which offer strong mechanical stability and simplify installation in constrained spaces. This design allows for quick assembly and disassembly, making maintenance more efficient, especially in field operations. The gate valve itself provides reliable on-off flow control, featuring a full port design that minimizes pressure drop across the valve. When fully opened, it allows unimpeded fluid flow, and when closed, it ensures a tight seal to prevent leakage. With a rugged body construction and compatibility with high-pressure systems, the U bolt gate valve is valued for its durability, ease of maintenance, and reliable shut-off performance in demanding industrial environments.
