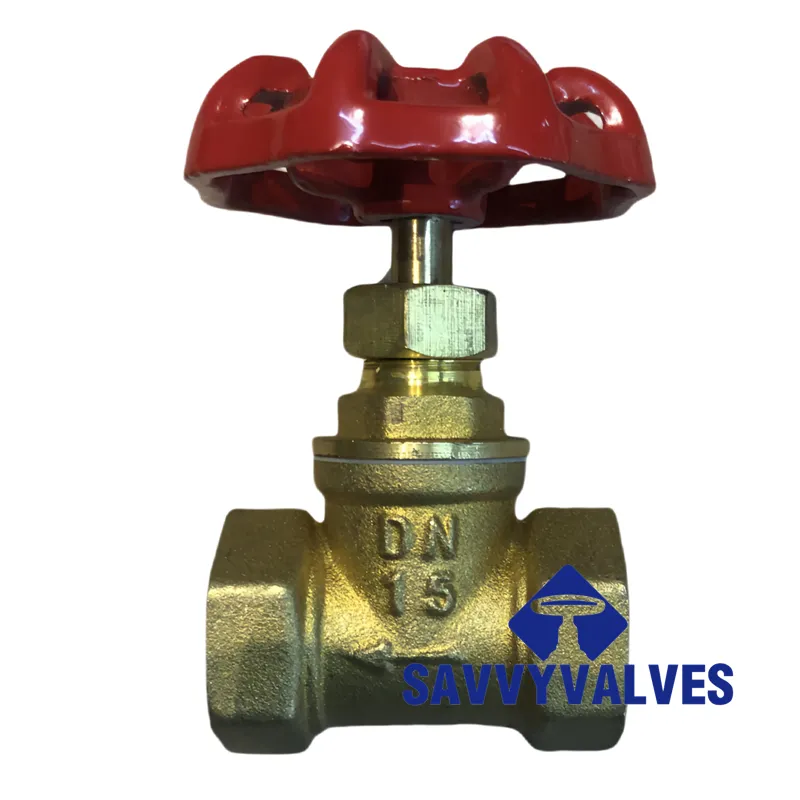

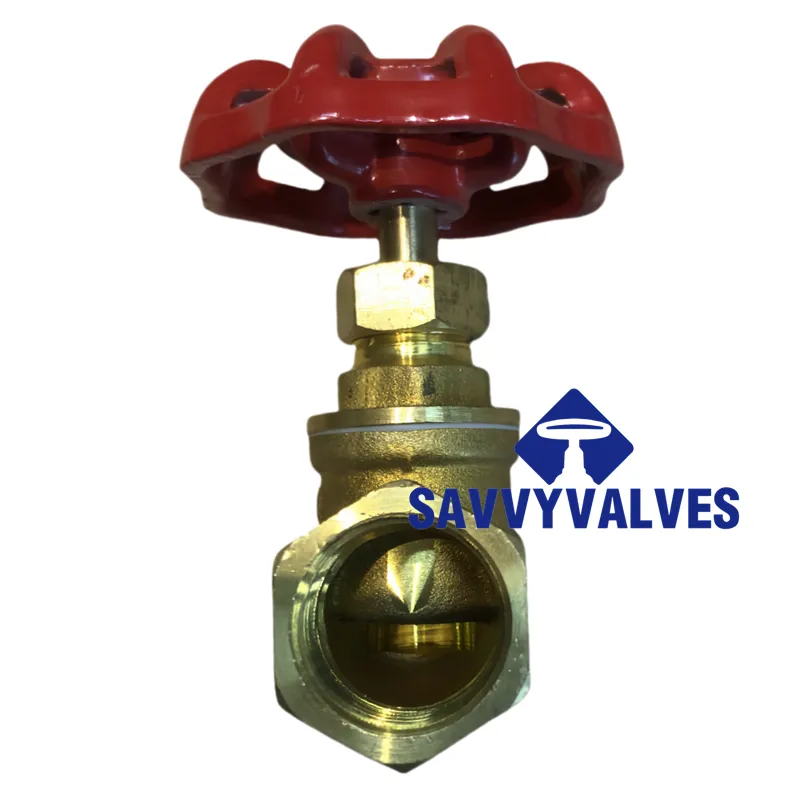

STRAIGHT PATTERN BRASS GLOBE VALVE TECHNICAL DATA SHEET
|
Parameter
|
Specification
|
|
Valve Type
|
Straight Pattern Globe Valve • Inside Screw Non-Rising Stem
|
|
Body/Bonnet Material
|
59-1 Brass (CuZn40Pb2 • GB/T 5231) • Lead Content: 0.8-1.9%
|
|
Size Range
|
¼” to 2″ (DN8 to DN50)
|
|
End Connections
|
Threaded: BSPT (ISO 228) / NPT (ASME B1.20.1)
|
|
Pressure Rating
|
200 PSI @ 100°C • 16 bar @ 120°C (Static)
|
|
Temperature Range
|
EPDM Seals: -20°C to 120°C • PTFE Seals: -10°C to 180°C
|
|
Flow Path
|
Z-Shaped Straight Through • Bidirectional (Optimal: Flow Under Disc)
|
|
Disc/Seat
|
Conical Brass Plug (59-1) + Integral Machined Brass Seat
|
|
Stem Design
|
Inside ACME Thread (59-1 Brass) • Square Head for Wrench
|
|
Bonnet Connection
|
Threaded (BSPT/NPT) • Seal: EPDM Gasket + Thread Sealant
|
|
Packing
|
Graphite Braid (ASTM F109) + EPDM Backup Ring
|
GUATANTEE:
SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.
