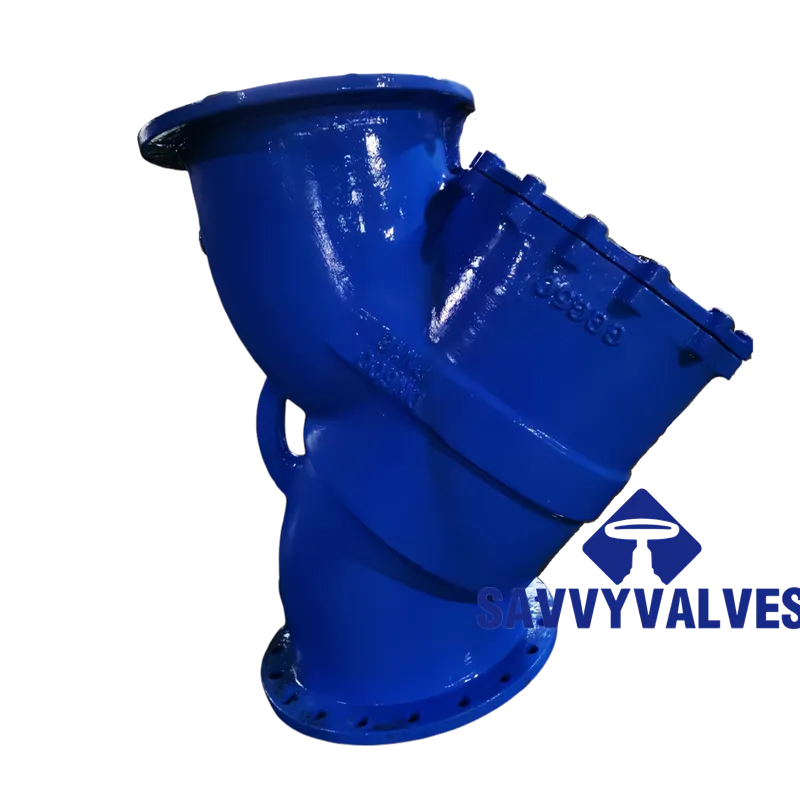

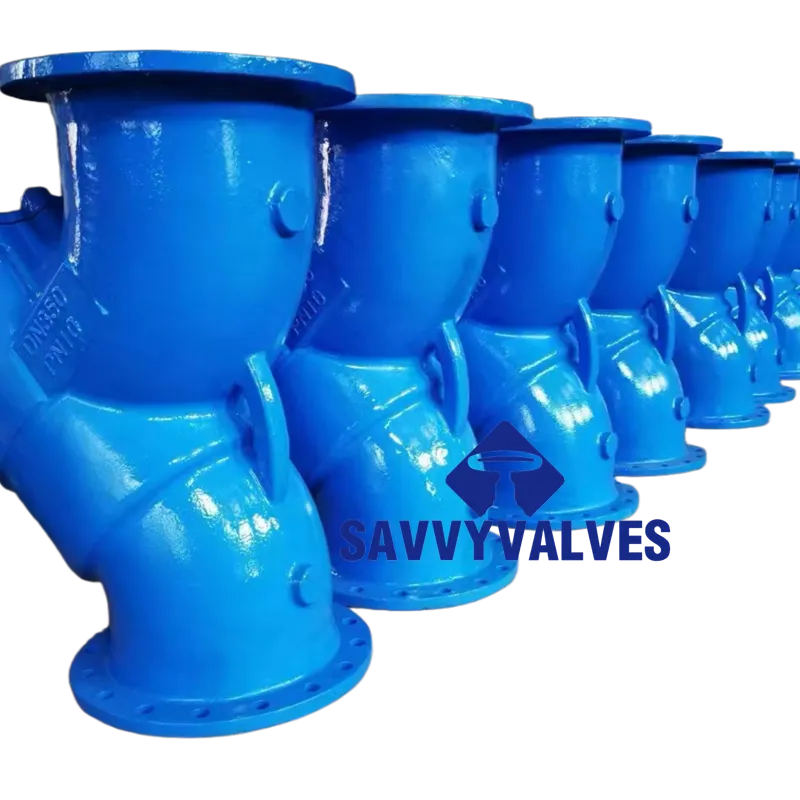

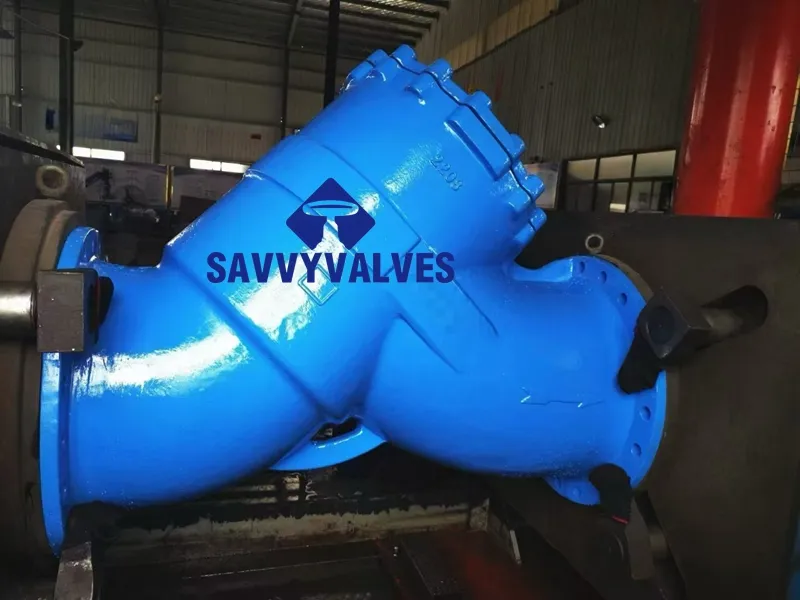

Y-Type Strainer – Technical Data Sheet
|
Parameter |
Specification |
|
Product Type |
Y-Type Strainer |
|
Pressure Rating |
PN 16 |
|
Body / Bonnet Material |
Ductile Iron GGG-50 (EN-GJS-500-7) |
|
Screen Basket Material |
Stainless Steel AISI 316 / 1.4401 |
|
Size Range |
2″ to 24″ (DN 50 to DN 600) |
|
Flange Standard |
EN 1092-2 (PN16) |
|
Test Pressure |
Shell Test: 25 Bar |
|
Operating Temperature |
-10°C to +120°C (Standard NBR Gasket) |
|
Standard Perforation |
0.5, 0.8, 1.0, 1.5, 2.0, 3.0 mm (Customizable) |
|
Gasket |
Standard NBR (Options: EPDM, FKM/Viton) |
|
Design & Manufacture |
EN 12516, ISO 5208 |
|
Compliance |
Pressure Equipment Directive (PED 2014/68/EU) |
GUATANTEE
SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.
