Gate valve BB RS OS&Y in bronze or brass

Gate valve BB RS OS&Y in bronze or brass

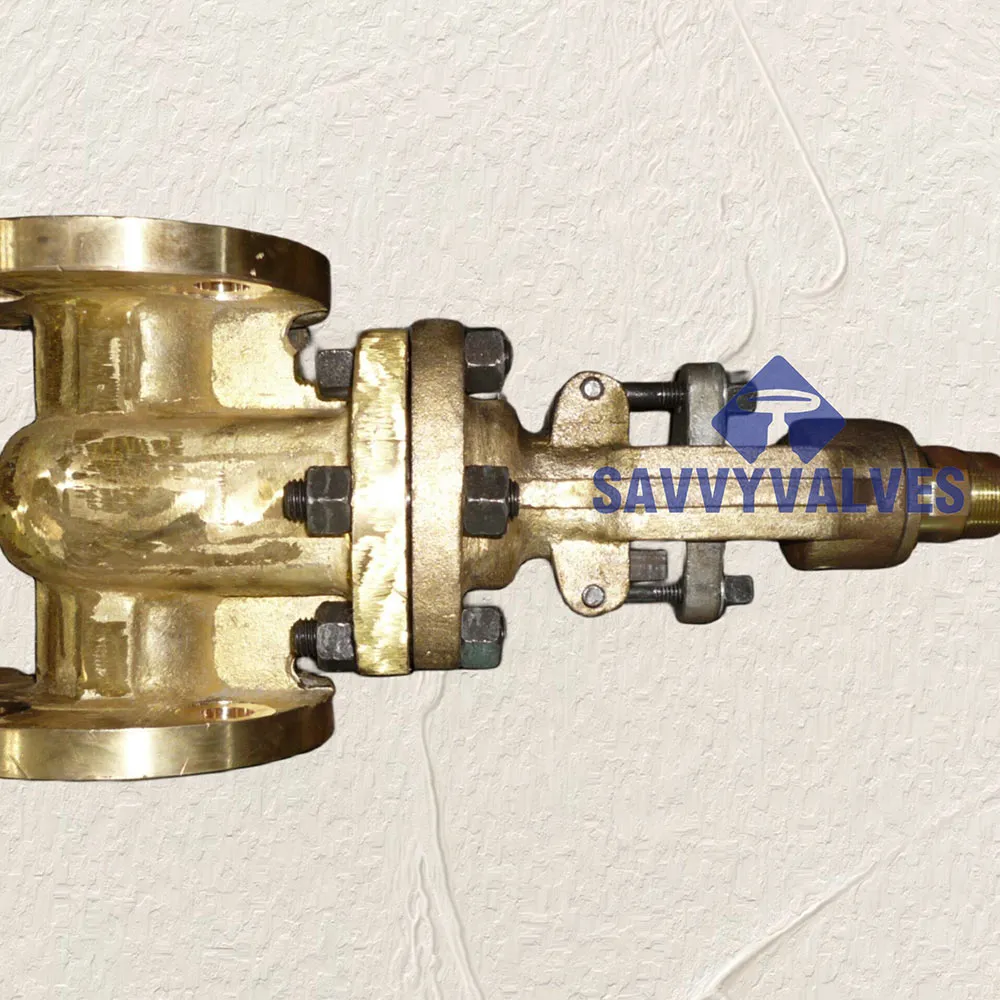

PHOTO SHOWS SPECIFICATIONS AS BELOW
SIZE:2″
RATING:150LB
BODY AND BONNET : C95500
DISC: C95500 SOLID
STEM: MONEL K500
SEAT: MONEL K500
ACTUATION: WHEEL

  • aboutimg1
  • GENERAL DESIGN SPECIFICATIONS

    Size: 1/4″~4″.
    Pressure Rating: up to 1500LB
    Design Temperature: ASME B16.34 pressure temperature rating.
    General applications: water, oil , gas
    Design & Manufacture: API 602, API 600, ASME B16.34 are basic,other norms could be used according to orders.
    F TO F dimensions: API 6D, ASME B16.10, BS EN 558
    Connection: ASME B16.5, EN 1092, JIS 5K-20K. BW, RTJ are available.
    Structure : SOLID DISC, OS&Y, BB, FB.





  • GENERAL MATERIAL

    BODY AND BONNET: ASTM B62, B148, C83600, C95400,C95800

    DISC: ASTM B62, B148, C83600, C95400,C95800

    STEM: ASTM B62, B148, C83600, C95400,C95800, MONEL K400 K500

    SEAT: ASTM B62, B148, C83600, C95400,C95800, MONEL K400 K500

    OPERATOR: WHEEL

    OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

    TEST AND INSPECTION

    Inspection and approval norm: API598, API6D.

  • aboutimg1





  • aboutimg1
  • QUALITY CONTROL

    100% Chemical analysis and mechanical test with raw materials of each heat numbers.
    100% DPT test with the castings, partly MT or UT test, RT is always available if required.
    100% hydraulic test with the shell and seal and low pressure air test.

    GUATANTEE

    SAVVY VALVES provide 12 months service life at least, free spares and maintenance instruction will be provided when required.





Why Choose A Gate Valve BB RS OS&Y In Bronze Or Brass?

The Gate Valve BB RS OS&Y in bronze or brass offers a dependable solution for controlling water, steam, or non-corrosive fluids in low to medium pressure systems. The BB (bolted bonnet) ensures secure sealing and easy access for maintenance, while the RS (rising stem) allows visible indication of valve position, aiding in manual operation and safety. The OS&Y (outside screw and yoke) design keeps the stem threads external, preventing contact with the fluid and reducing wear, which is especially valuable in clean or potable water systems. Bronze or brass construction provides excellent corrosion resistance, especially against water and atmospheric elements, making these valves ideal for marine, plumbing, and fire protection applications. Their mechanical strength, combined with good machinability and resistance to dezincification, ensures longevity and consistent performance. Choosing this type of gate valve offers a reliable, easy-to-maintain, and visibly operable solution for fluid control in critical environments.

Gate Valve Bb Rs Os&Y In Bronze Or Brass

Gate Valve Bb Rs Os&Y In Bronze Or Brass

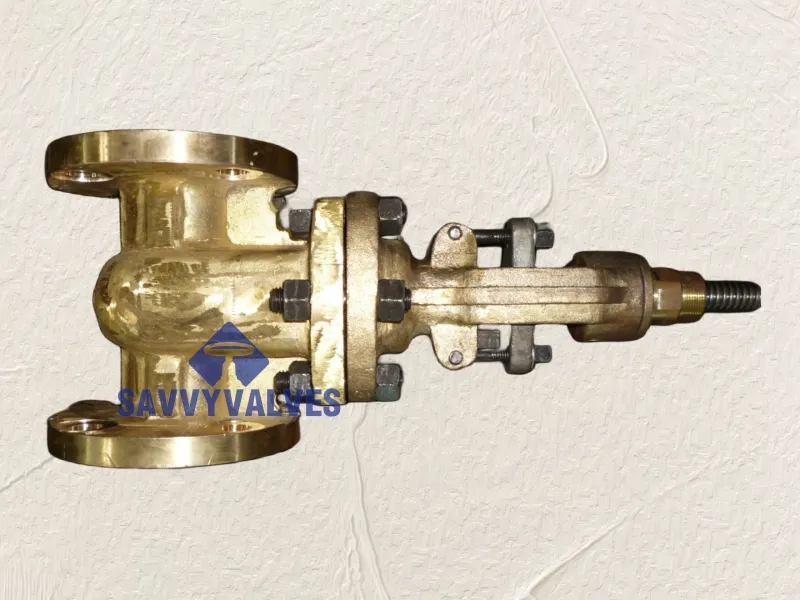

PHOTO SHOWS SPECIFICATIONS AS BELOW
SIZE:2″
RATING:150LB
BODY AND BONNET : C95500
DISC: C95500 SOLID
STEM: MONEL K500
SEAT: MONEL K500
ACTUATION: WHEEL

Description



  • GENERAL DESIGN SPECIFICATIONS

    Size: 1/4″~4″.

    Pressure Rating: up to 1500LB

    Design Temperature: ASME B16.34 pressure temperature rating.

    General applications: water, oil , gas

    Design & Manufacture: API 602, API 600, ASME B16.34 are basic,other norms could be used according to orders.

    F TO F dimensions: API 6D, ASME B16.10, BS EN 558

    Connection: ASME B16.5, EN 1092, JIS 5K-20K. BW, RTJ are available.

    Structure : SOLID DISC, OS&Y, BB, FB.

GENERAL MATERIAL

BODY AND BONNET: ASTM B62, B148, C83600, C95400,C95800

DISC: ASTM B62, B148, C83600, C95400,C95800

STEM: ASTM B62, B148, C83600, C95400,C95800, MONEL K400 K500

SEAT: ASTM B62, B148, C83600, C95400,C95800, MONEL K400 K500

OPERATOR: WHEEL

OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.


TEST AND INSPECTION

Inspection and approval norm: API598, API6D.


QUALITY CONTROL

100% Chemical analysis and mechanical test with raw materials of each heat numbers.

100% DPT test with the castings, partly MT or UT test, RT is always available if required.

100% hydraulic test with the shell and seal and low pressure air test.


GUATANTEE

SAVVY VALVES provide 12 months service life at least, free spares and maintenance instruction will be provided when required.
