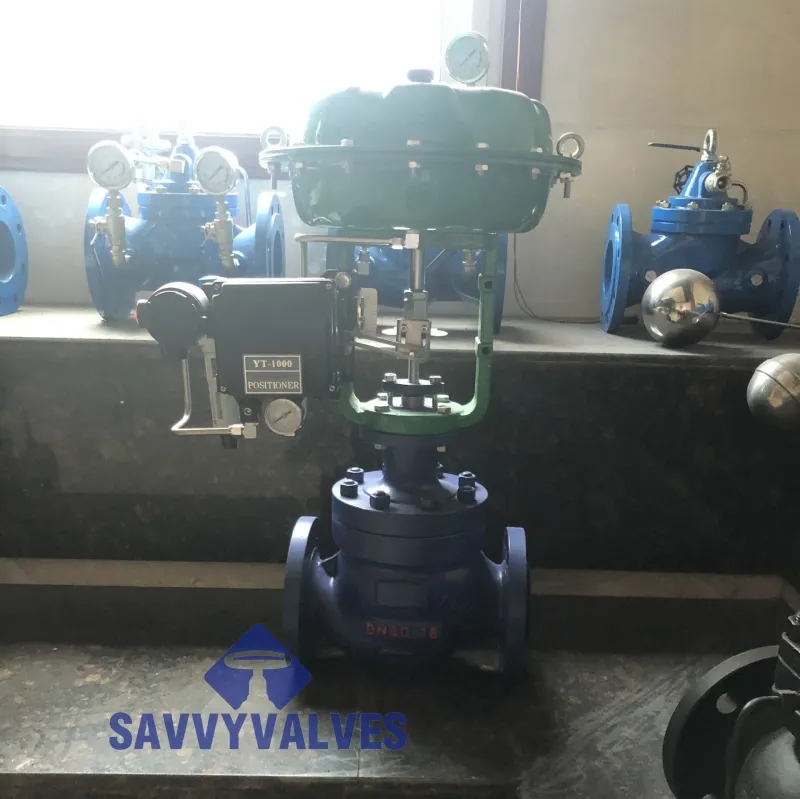

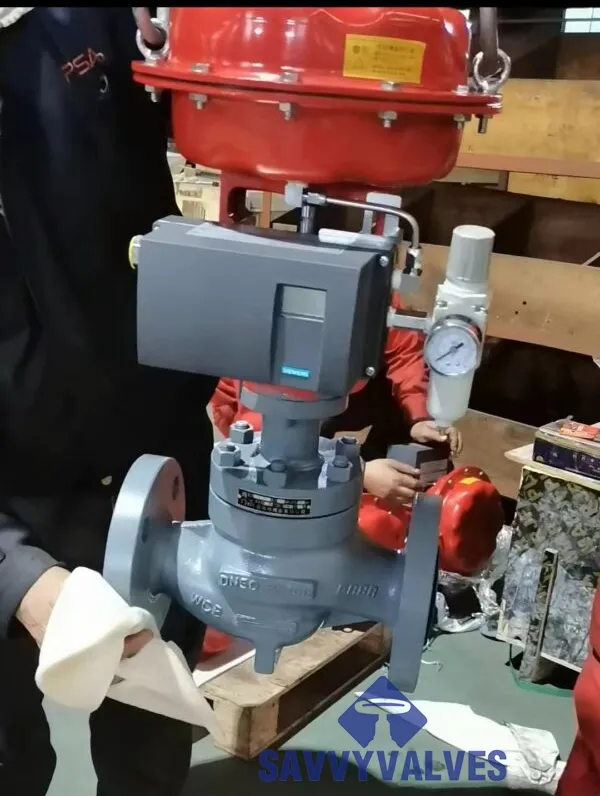

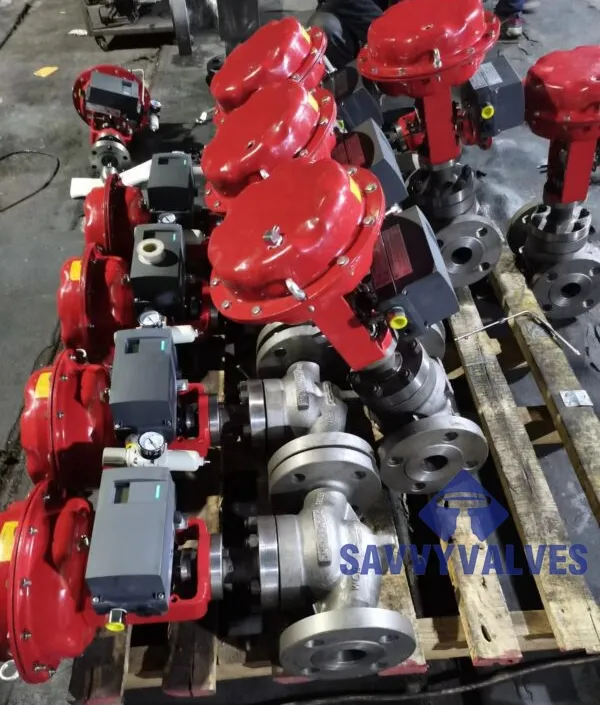

SAVVY Diaphragm Pneumatic Control Valve

SAMPLE SPECIFICATIONS
SIZE:2″
RATING:600LB
BODY AND BONNET : ASTM A216 WCC
PLUG: ASTM A182 F316 +STELLITE 6
STEM: ASTM A182 F6A
CAGE: ASTM A276 416
SEAT: ASTM A105+STELLITE 6
ACTUATION: DIAPHRAGM PNEUMATIC ACTUATED

GENERAL

Size: 2″ and above.
Pressure Rating: 150LB and above
Design Temperature: ASME B16.34 pressure temperature rating.
General applications: water, oil , gas

DESIGN

Design & Manufacture: API 600, API 6D , ASME B16.34 are basic,other norms could be used according to orders.
F TO F dimensions: API 6D, ASME B16.10, BS EN 558
Connection: ASME B16.5, EN 1092, JIS 5K-20K. BW, RTJ are available.
Structure : FLEXIBLE OR SOLID DISC, OS&Y, BB, FB.

GENERAL MATERIAL

BODY AND BONNET: ASTM A216 WCB.
PLUG: ASTM A216 WCB+HARD FACED
CAGE: ASTM A276 416
STEM: ASTM A 182 F6A, F304,F316,XM-19, 17-4PH, INCONEL 718, MONEL K-500
SEAT:ASTM A105+HARD FACED.
OPERATOR: ELECTRIC HYDRAULIC ACTUATOR ON OFF TYPE OR MODULATING TYPE
OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST

Inspection and approval norm: API598, API6D.

QUALITY CONTROL:

100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.

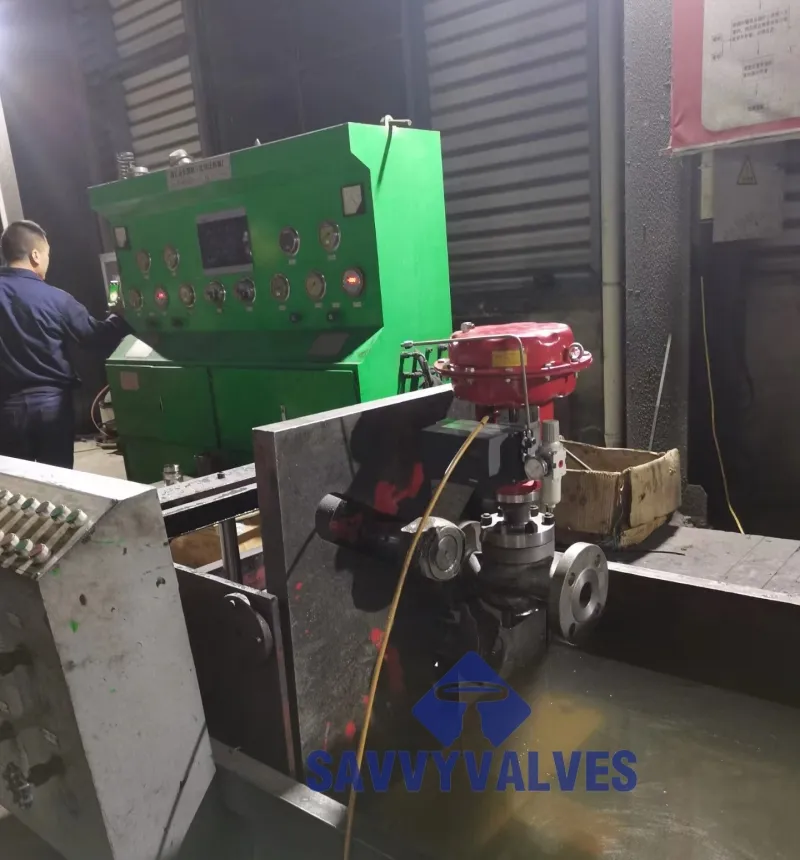

100% hydraulic test with the shell and seal and low pressure air test.

GUATANTEE

SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.

HOT SALE PRODUCTS

For over 10 years, we have been a leading supplier of industrial valves for major global projects in water supply, oil & gas, and desalination.

What Is The Main Function Of A SAVVY Diaphragm Pneumatic Control Valve?

The SAVVY diaphragm pneumatic control valve is designed for precise flow regulation in industrial systems, particularly where rapid response and reliability are essential. Utilizing a diaphragm actuator, it converts pneumatic signals into linear motion to modulate the valve position accurately. This design ensures smooth operation with minimal hysteresis, making it ideal for applications in oil and gas, chemical processing, and power generation. The valve's construction allows for easy maintenance and long service life, even under high-pressure and high-temperature conditions. Its compatibility with various control systems enhances automation capabilities, contributing to efficient and safe process control.
