TECHNICAL DATA SHEET

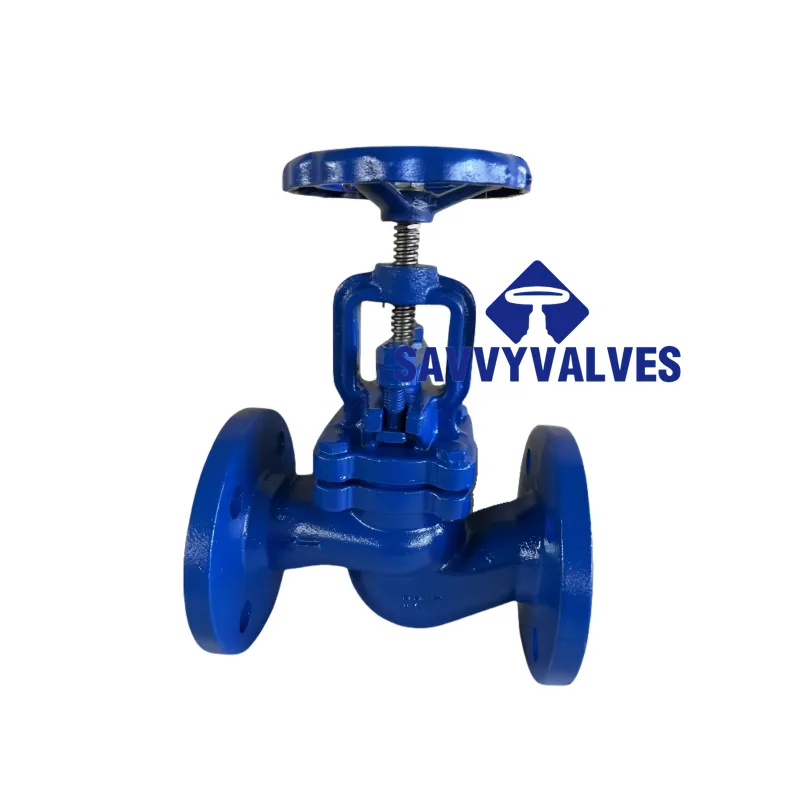

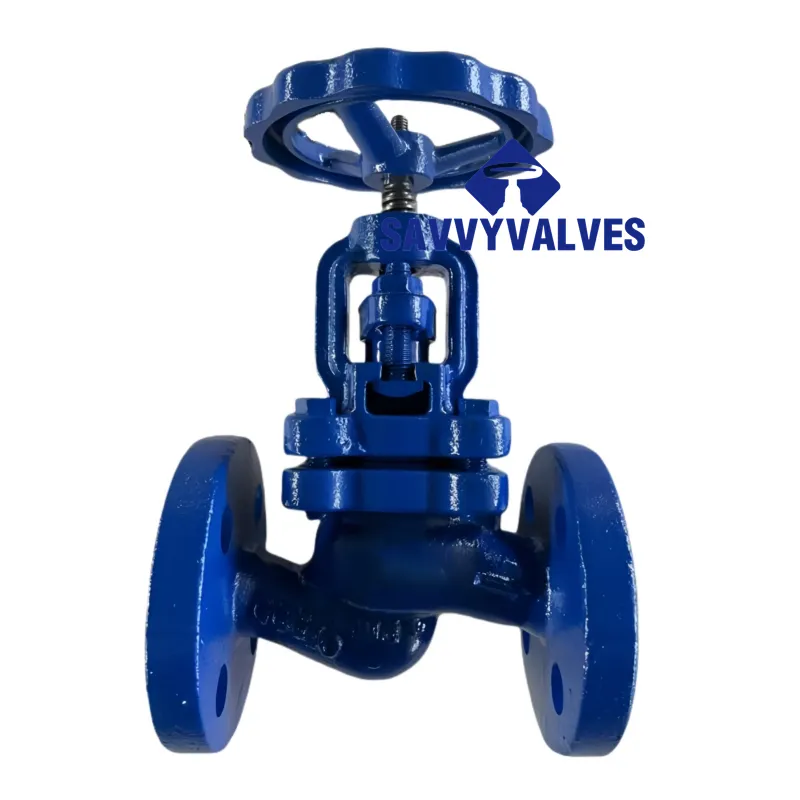

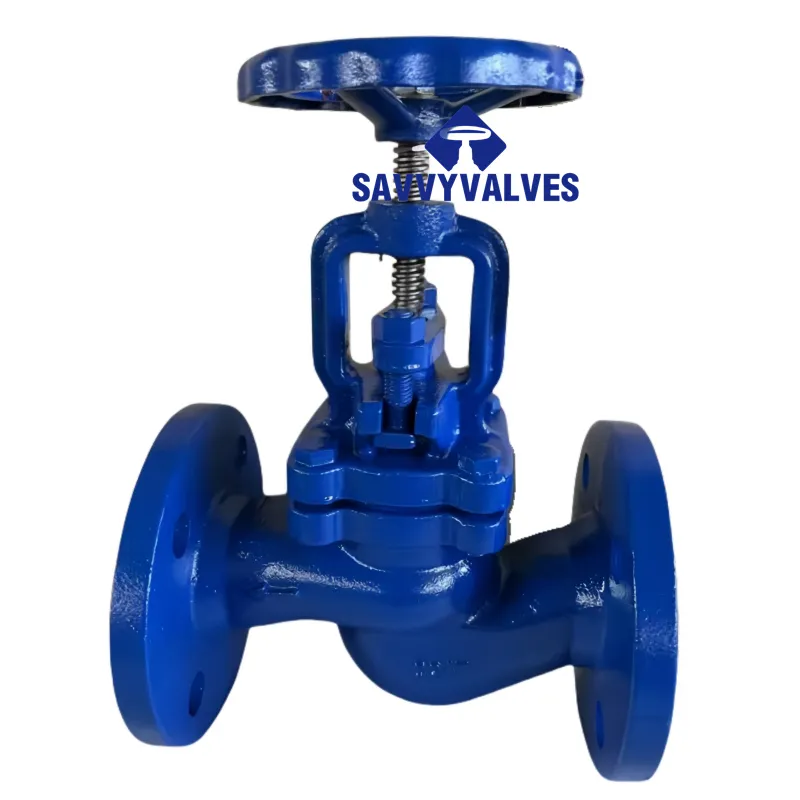

LIGHTWEIGHT DUCTILE IRON GLOBE VALVE
|
CATEGORY |
SPECIFICATION |
STANDARDS / NOTES |
|
|
Valve Type |
Bolted Bonnet Globe Valve |
Angle Pattern |
|
|
Design Standard |
EN 13397 / ISO 15761 |
Lightweight Body |
|
|
Size Range |
DN 15 to DN 100 (½" to 4") |
||
|
Pressure Rating |
PN16 (16 bar @ 120°C) |
EN 1092-2 |
|
|
End Connection |
RF Flanges (EN 1092-2 PN16 Series A) |
Drilling: EN 1092-2 |
|
|
Body/Bonnet Material |
EN-GJS-400-18 (Ductile Iron) |
ISO 1083 |
Tensile: 400 MPa |
|
Trim Material |
Disc & Seat: 13Cr SS (1.4021) |
Hardness: HRC 35-40 |
|
|
Stem Material |
AISI 410 SS (JIS F6 Equivalent) |
Hardened: 22-25 HRC |
|
|
Stem Seal |
Graphite Packing + PTFE V-rings |
Fire-Safe: EN ISO 10497 |
|
|
Gasket |
SS316L Spiral Wound + Graphite Filler |
EN 1514-1 |
|
|
Bolting |
ASTM A307 Gr.B (Zinc Plated) |
||
|
Face-to-Face (DN50) |
140 mm |
EN 558 Series 1 |
|
|
Temperature Range |
-10°C to +200°C |
Max intermittent: 250°C |
|
|
Hydrostatic Test |
Body: 24 bar | Seat: 17.6 bar |
EN 12266-1 |
|
|
Seat Leakage Class |
Class A (EN 12266-1) |
≤0.01×DN ml/min |
|
|
Flow Characteristic |
Equal Percentage |
||
|
Flow Coefficient (Kvs) |
DN50: 25 |
||
|
Operation |
Rising Stem Handwheel |
ISO 5211 Mounting Pad |
|
|
Weight (DN50) |
8.2 kg |
||
|
Coating |
Epoxy 250μm DFT |
ISO 12944 C4 Certified |
|
|
Certifications |
PED Cat.I | DVGW WRAS | EN 10204 3.1 Material |
DIMENSIONAL DATA (DN50 PN16)
|
Feature |
Value |
|
Flange OD |
165 mm |
|
Bolt Circle Diameter |
125 mm |
|
Flange Thickness |
18 mm |
|
Bolt Holes |
4 × Ø18 mm |
PERFORMANCE
|
Parameter |
Value |
|
Max Allowable ΔP |
10 bar (full close) |
|
Stroking Time (DN50) |
≤8 sec (90° rotation) |
|
Cycle Life |
≥5,000 cycles |
OPTIONAL FEATURES
▢ Bellows Stem Seal (Zero Emissions)
▢ Gear Operator (Max. Input: 250 Nm)
▢ Cryogenic Extension (-50°C)
▢ Position Indicator
▢ Stellite 6 Hardfacing (Seats/Disc)
