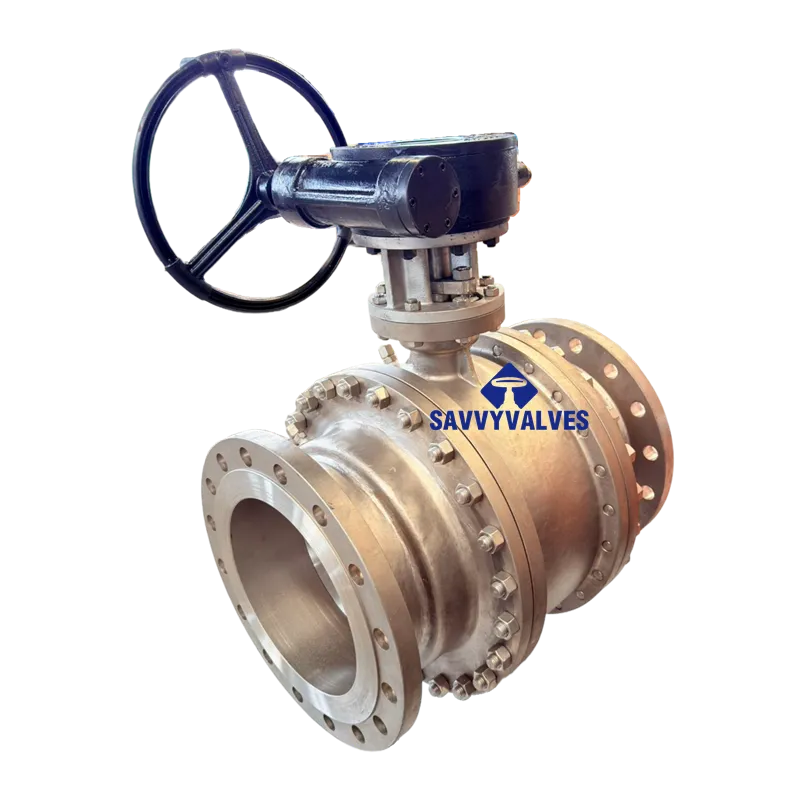

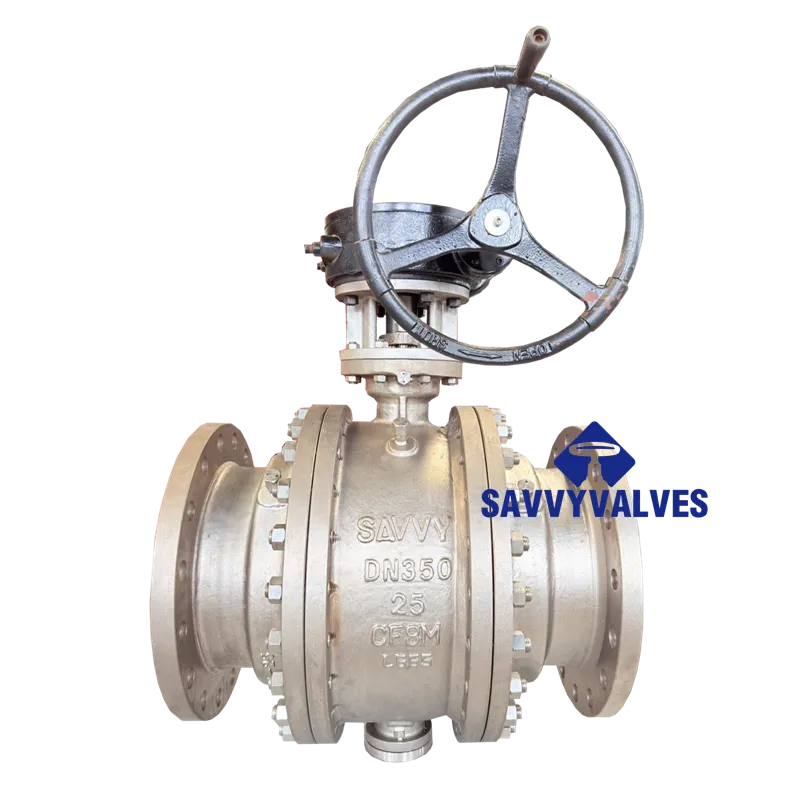

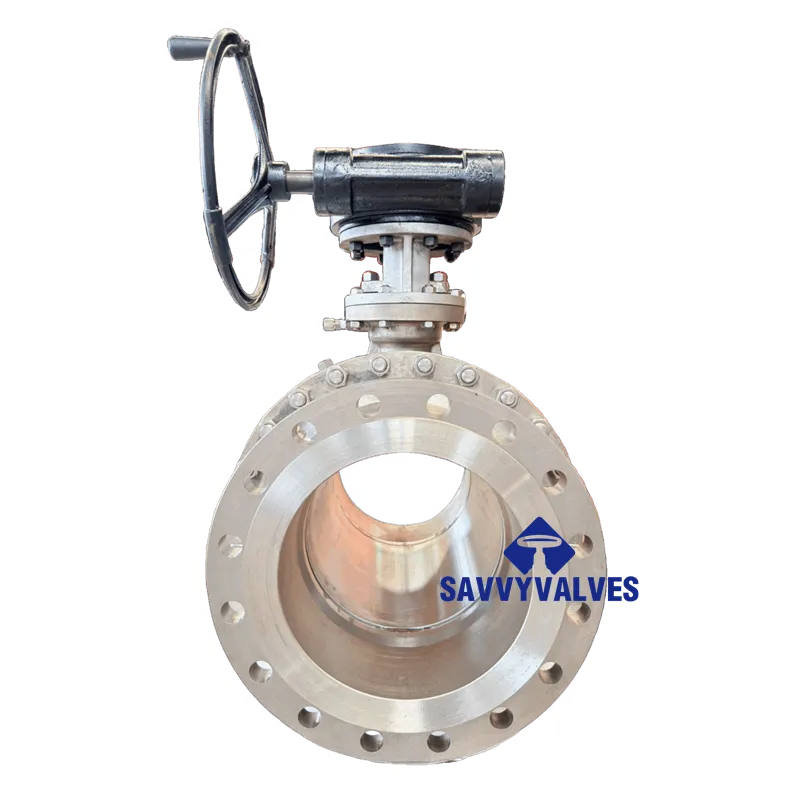

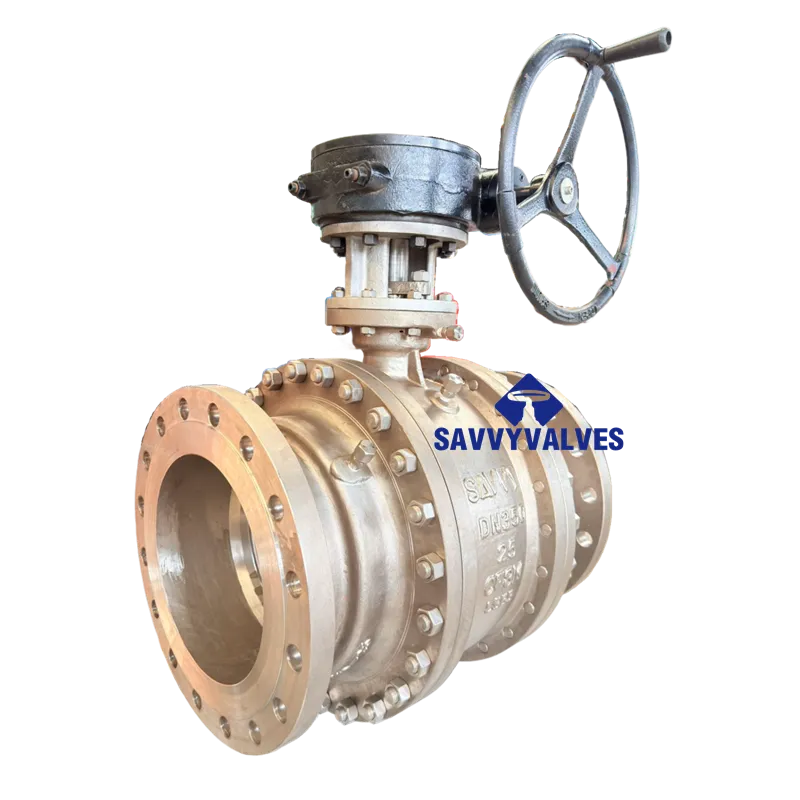

3-Piece Stainless Steel Trunnion Ball Valve PN25

Design & Manufacture GB/T 12237, API 6D, BS 5351
Valve Type Three-Piece, Trunnion Mounted Ball
Body Material CF8M (AISI 316)
Ball Material 316 Stainless Steel (Hard Chrome Plated or Coated)
Stem Material 316 Stainless Steel (Anti-Blowout Design)
Seat Material 316 Stainless Steel + PTFE (Politetrafluoroethylene)
Stem Seal / Packing Flexible Graphite + PTFE
Operation Worm Gear Operator
Flange Connection GB/T 9113, HG/T 20592, ASME B16.5, BS EN1092-1
Pressure Rating PN25 / Class150

Description

3-Piece Trunnion Mounted Ball Valve – Technical Datasheet

Item	Specification
Design & Manufacture	GB/T 12237, API 6D, BS 5351
Valve Type	Three-Piece, Trunnion Mounted Ball
Body Material	CF8M (AISI 316)
Ball Material	316 Stainless Steel (Hard Chrome Plated or Coated)
Stem Material	316 Stainless Steel (Anti-Blowout Design)
Seat Material	316 Stainless Steel + PTFE (Politetrafluoroethylene)
Stem Seal / Packing	Flexible Graphite + PTFE
Operation	Worm Gear Operator
Flange Connection	GB/T 9113, HG/T 20592, ASME B16.5, BS EN1092-1
Pressure Rating	PN25 / Class150
Test & Inspection	GB/T 13927, API 598, ISO 5208
Shell Test Pressure	3.8 MPa (PN38)
Seat Test Pressure (High Pressure)	2.8 MPa (PN28)
Seat Test Pressure (Low Pressure / Air)	0.6 MPa
Leakage Class	Grade A (GB/T 13927 / API 598 / ISO 5208)
Temperature Range	-29°C to +180°C (with PTFE Seat)
Applicable Media	Water, Steam, Oil, Acids, Alkalis, Corrosive Fluids
Fire Safe Design	Yes (Secondary Metal-to-Metal Seal)
Key Features	Trunnion Mounted Design, Anti-Static Device, Anti-Blowout Stem, Self-Pressure Relieving, Easy Maintenance

Main Connection Dimensions (PN25) – Standard: HG/T 20592

DN	Inch	L (mm)	D (mm)	K (mm)	n×φd	H≈ (mm)	D0 (Gear)
50	2″	250	165	125	4×φ18	320	200
65	2.5″	270	185	145	4×φ18	350	200
80	3″	280	200	160	8×φ18	380	250
100	4″	300	220	180	8×φ18	450	300
125	5″	325	250	210	8×φ18	550	350
150	6″	350	285	240	8×φ22	650	400
200	8″	400	340	295	8×φ22	850	500
250	10″	450	395	350	12×φ22	1050	600
300	12″	500	445	400	12×φ22	1250	700

Note: Dimensions are for reference only. ‘L’ is face-to-face length, ‘H’ is approximate overall height (with gear). Final dimensions are subject to the manufacturer’s product drawing.
