Description

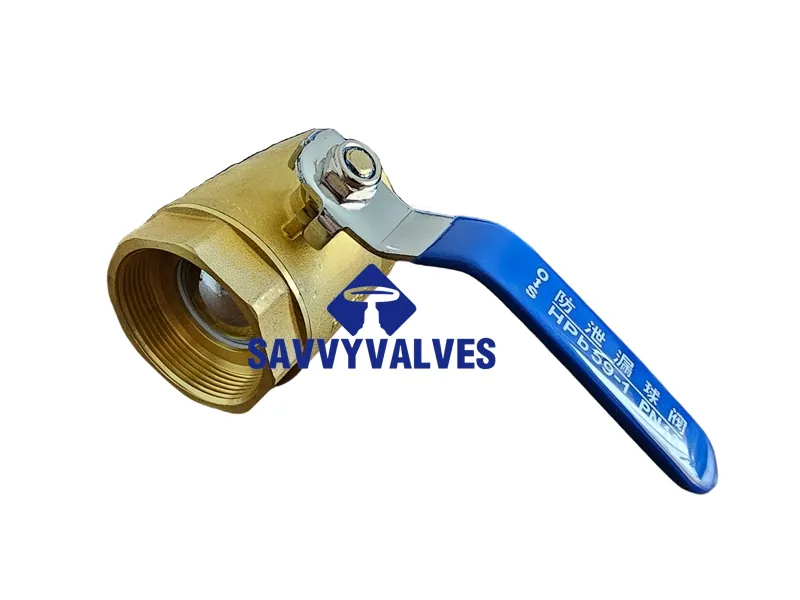

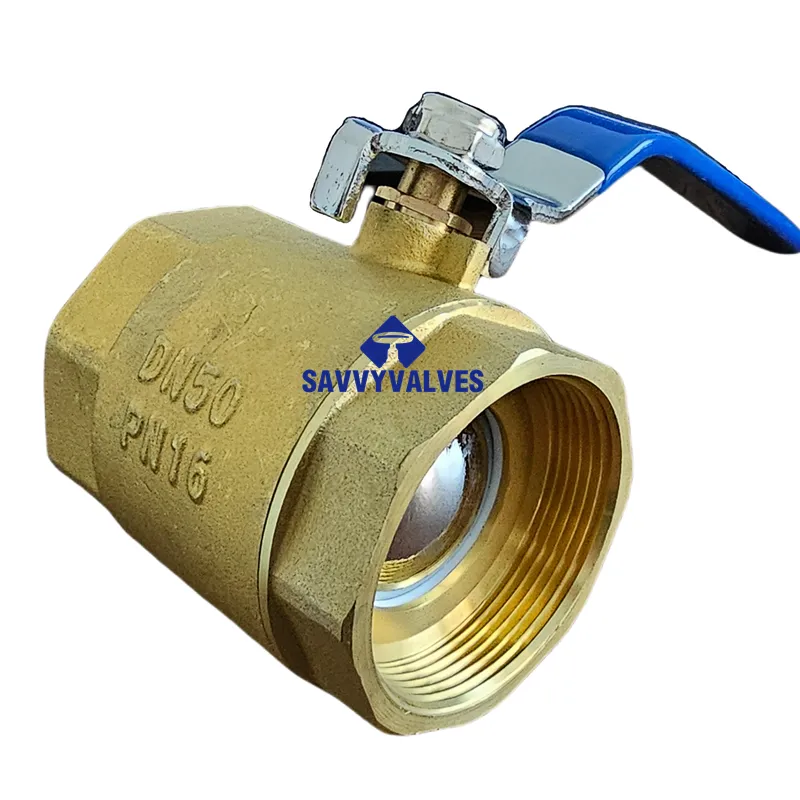

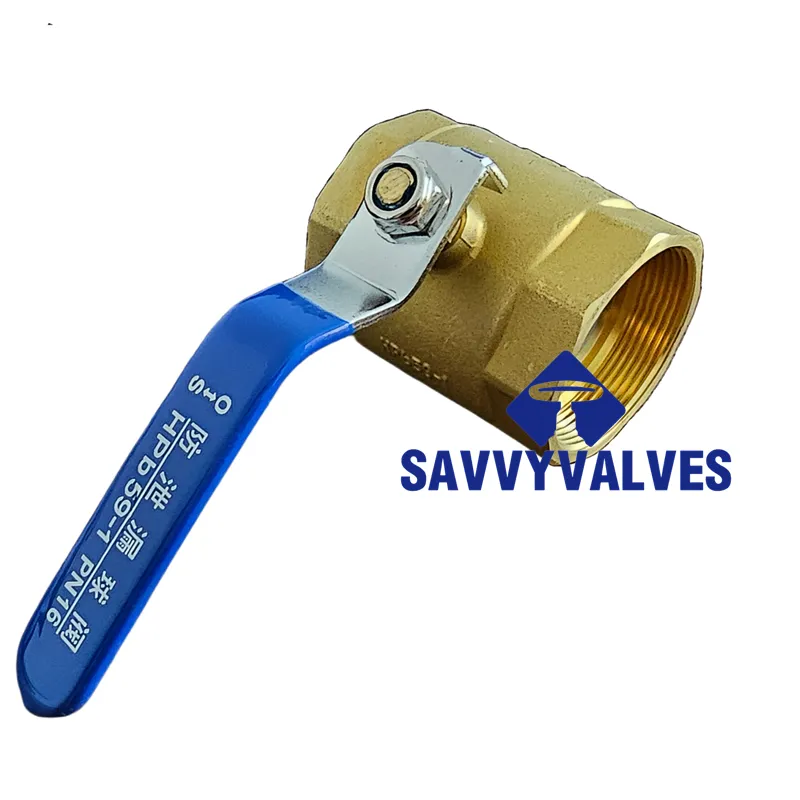

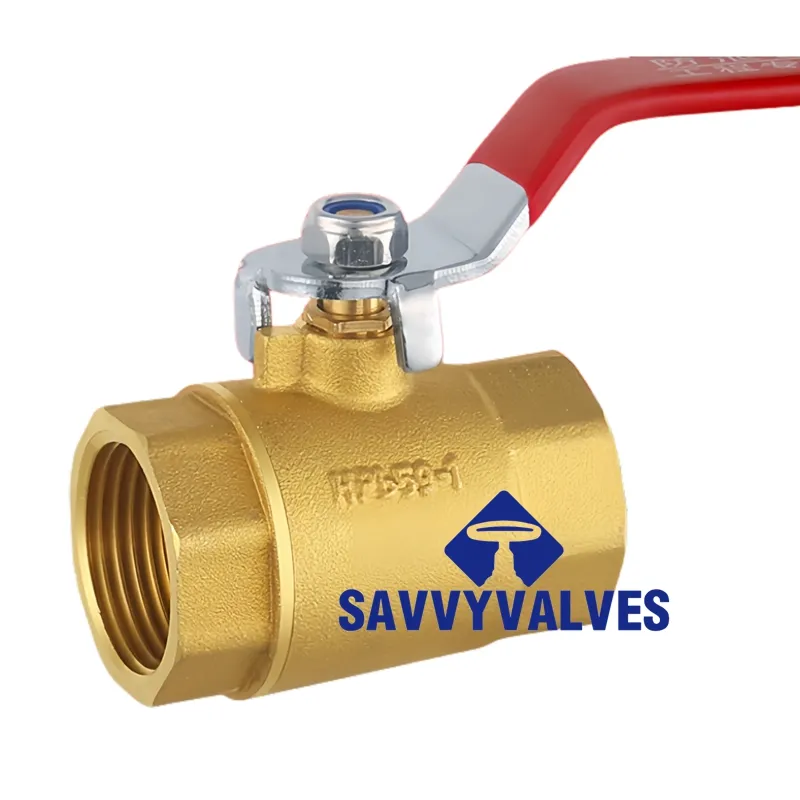

2-PIECE BRASS BALL VALVE TECHNICAL DATA SHEET
|
Parameter |
Specification |
|
Valve Type |
2-Piece Floating Ball Valve |
|
Body Material |
59-1 Brass (CuZn40Pb2 • GB/T 5231) • Dezincification Resistant |
|
Ball Material |
Chrome-Plated Brass (Surface Ra ≤0.8 μm) |
|
Seat Material |
Reinforced PTFE (Standard) • Optional: RPTFE + 15% Glass Fiber |
|
Stem Material |
Forged 59-1 Brass • Anti-Blowout Design |
|
Seals |
EPDM O-Rings (Standard) • Optional: VITON®/PTFE |
|
End Connections |
Female BSPT (ISO 228) / NPT (ASME B1.20.1) Threads |
|
Body Joint |
Threaded Center Connection (Hex Wrench Assembly) |
|
Size Range |
¼” to 2″ (DN8 to DN50) |
|
Pressure Rating |
600 PSI @ 38°C • 100 PSI @ 120°C • PN16 (16 bar) @ 20°C |
|
Temperature Range |
EPDM Seals: -20°C to 120°C • PTFE Seals: -10°C to 150°C |
|
Seat Leakage Class |
Class IV (ANSI B16.104) • Bubble-Tight for Liquids |
|
Flow Characteristic |
Full Port (100% Bore) • Cv Value (½”): 16 |
|
Operation |
Lever Handle (Stainless Steel Core) • Optional: Locking Handle/ISO 5211 Top |
|
Max. Torque (Operation) |
½”: 30 Nm • 1″: 50 Nm • 2″: 80 Nm |
|
Hydro Test |
Body: 24 bar (1.5x PN) • Seat: 17.6 bar (1.1x PN) (API 598) |
|
Fire Safe Option |
API 607 Certified Soft Seat Retention (Optional) |
|
Weight |
¼”: 0.08 kg • ½”: 0.18 kg • 1″: 0.6 kg • 2″: 1.2 kg |
|
Compliance |
RoHS • REACH • Lead Content: 0.8-1.9% (Non-potable) |
|
Design Standards |
API 608 • ASME B16.34 • ISO 228-1 |
|
Applications |
Water • Compressed Air • Gas (Non-corrosive) • Oil • HVAC |
|
Critical Notes |
Avoid chlorides >50 ppm/pH <6.5 • Max. steam: 5 bar @120°C • Center joint must not be loosened under pressure |
|
Maintenance |
In-Line Repairable (Seat/Ball Replacement via Body Joint) |
GUATANTEE:
SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.
