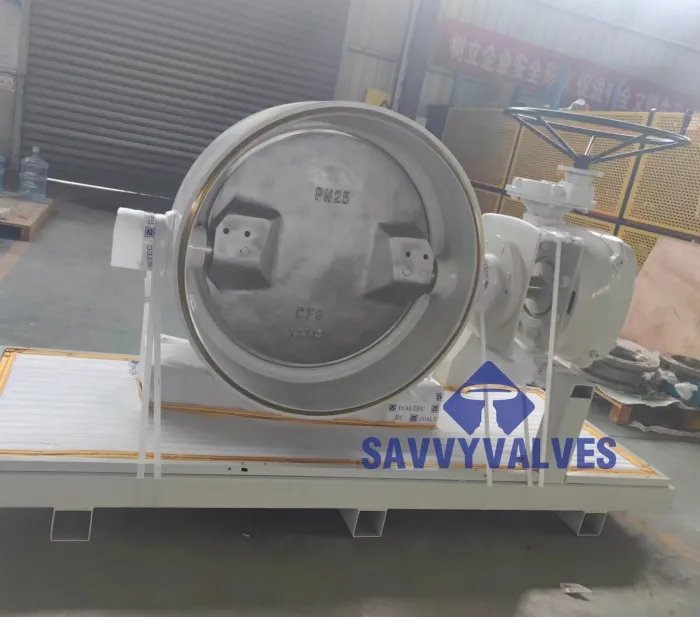

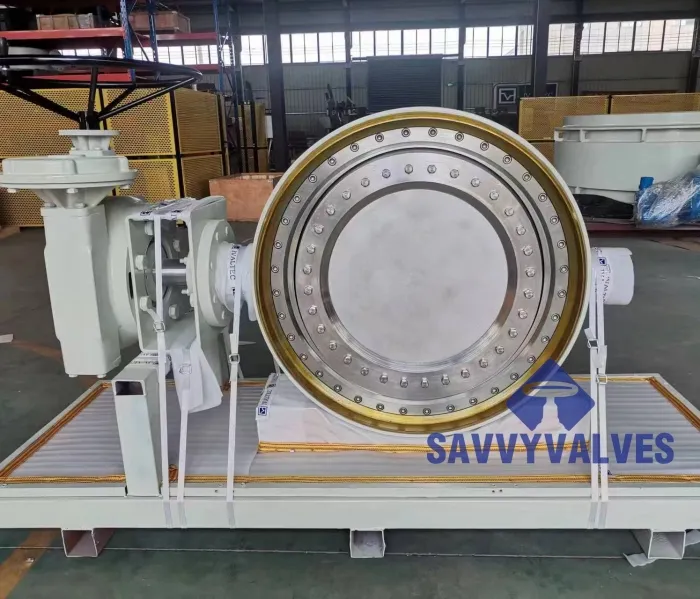

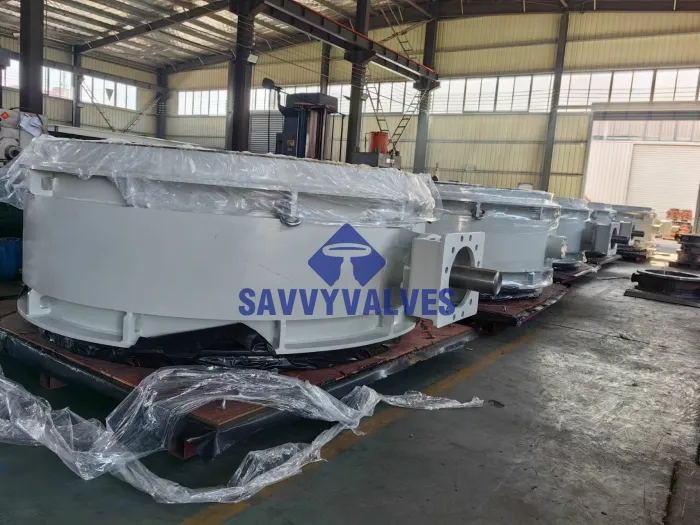

SAVVY Fabricated triple offset butterfly valve for thermal duty

SIZE: DN800
RATING: PN25
BODY: CS
DISC: CF8
EXTENDED YOKE: ASTM A182 F5
STEM: SS416
SEAT: ASTM A182 F5 REPLACEABLE
SEAL: SS316+GRAPHITE LAMINATED
ACTUATION: GEAR UNIT

GENERAL DESIGNED SPECIFICATION

Size: 2″~144″.
Pressure Rating: 150LB~4500LB
Design Temperature: MAX. 800℃.
General applications: STEAM.
Design & Manufacture: API 609, EN 593 are basic, ASME B16.34 ,other norms could be used according to orders.
F TO F dimensions: API 609, ASME B16.10,BS EN 558
Connection: ASME B16.25, EN 1092, JIS 5K-20K. RF, RTJ are available.
Safety design: anti-blow out stem.thermal plate.

TYPICAL MATERIAL LIST

BODY: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718

DISC: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718

EXTENDED YOKE: ASTM A216 WCB/WCC, ASTM A217

WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718

STEM: A182 F6A, F304, F304L, F316, F316L, F51, F53,17-4PH, XM-19, C95400, C95800, C83600, INCONEL 625, INCONEL 718, MONEL K400, MONEL K500, H-276

SEAT: STELLITE NO.6 HF

SEAL: SS316+GRAPHITE LAMINATED

OPERATOR: GEAR UNIT

OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST AND INSPECTION

Inspection and approval norm: API598, API6D.

QUALITY CONTROL

100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.

GUATANTEE

SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.

HOT SALE PRODUCTS

For over 10 years, we have been a leading supplier of industrial valves for major global projects in water supply, oil & gas, and desalination.

What Makes The SAVVY Fabricated Triple Offset Butterfly Valve Suitable For Thermal Duty?

The SAVVY fabricated triple offset butterfly valve is specially designed for thermal duty applications where high temperatures, pressure fluctuations, and zero leakage are critical. Its fabricated body offers design flexibility and reduced weight while maintaining structural strength, making it ideal for large-diameter pipelines and high-temperature services such as power generation, refining, and heat transfer systems. The triple offset geometry ensures non-rubbing, torque-seated metal-to-metal sealing, which extends service life and provides excellent shut-off even under extreme thermal cycling. Additionally, the valve’s precision-engineered components and advanced seat materials deliver consistent performance, resistance to thermal distortion, and ease of maintenance. Whether manual or actuated, the SAVVY valve integrates seamlessly into control systems, offering reliable flow control and thermal resilience in the most demanding environments.
