Two Piece Ball Valve: Material Specifications and Industrial Applications

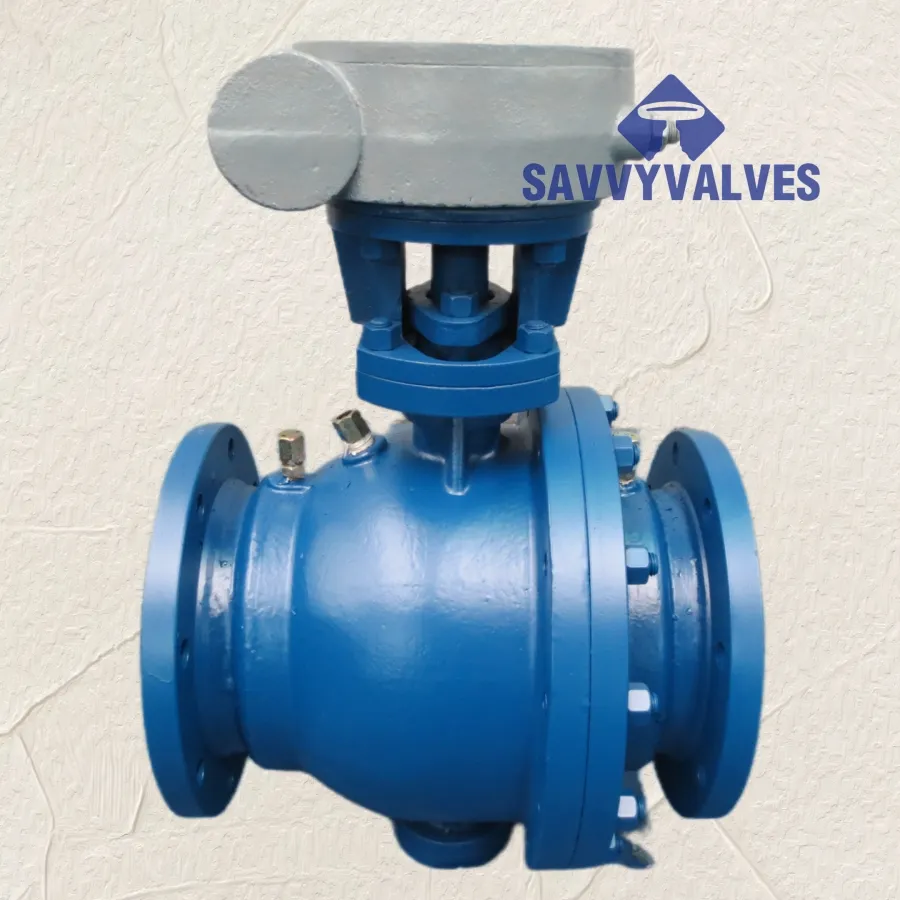

Two Piece Ball Valve is a compact and reliable industrial valve widely used for fluid cut-off, distribution, and flow direction control in various pipelines. Its two-piece split-body design enables easy disassembly and maintenance, making it a preferred choice in industries like petroleum, chemical, and water treatment. Two Piece Ball Valve adopts diverse body materials such as ASTM A216 WCB/WCC, ASTM A217 WC6/WC9, and corrosion-resistant alloys like MONEL K400/K500, ensuring adaptability to different medium conditions from general water to harsh corrosive fluids. The structural simplicity of Two Piece Ball Valve also contributes to its lightweight advantage, saving installation space in dense pipeline systems.

Two Piece Ball Valve’s performance is largely determined by its precision-machined ball component, which is available in materials like ASTM A182 F304/F316, INCONEL 625/718, and C95400 bronze

These materials are selected for their excellent wear resistance and sealing capabilities, allowing Two Piece Ball Valve to achieve tight shut-off with minimal leakage. The ball’s smooth surface cooperates with the seat insert to reduce fluid resistance, ensuring the valve’s flow coefficient is comparable to that of the connected pipeline section. Two Piece Ball Valve’s 90-degree rotation operation enables quick on-off control, enhancing operational efficiency in critical processes.

2 Piece Stainless Steel Ball Valve is a high-performance variant of Two Piece Ball Valve, engineered for corrosive and high-purity applications

Made from stainless steel grades such as A351 CF8/CF8M/CF3/CF3M, it resists rust and chemical erosion, making it ideal for food processing, pharmaceutical, and marine industries. 2 Piece Stainless Steel Ball Valve shares the two-piece body structure with standard Two Piece Ball Valve, while its stainless steel construction improves durability in humid or saline environments. The combination of stainless steel ball and seat collar (e.g., A182 F316) further reinforces its sealing reliability under extreme temperatures.

Two Piece Valve, as a broader category including Two Piece Ball Valve, is characterized by its split-body design that balances structural integrity and maintenance convenience

Unlike one-piece valves, 2 piece valve allows access to internal components without removing the entire valve from the pipeline, reducing downtime during repairs. Two Piece Valve’s stem materials, such as 17-4PH, XM-19, and INCONEL 625, are chosen for high tensile strength and anti-blowout performance, preventing stem displacement under high pressure. This safety feature is essential for Two Piece Ball Valve used in high-pressure gas or oil pipelines.

Two Piece Ball Valve’s sealing system is enhanced by specialized seat inserts and collars, with seat inserts available in RPTFE, DEVLON, PEEK, and other high-performance polymers

These materials provide excellent compatibility with different media, while the seat collar (made from materials matching the stem) ensures structural stability. The 2 piece ball valve’s spring component, typically INCONEL X-750, maintains consistent pressure on the seat, compensating for thermal expansion and ensuring tight sealing across temperature fluctuations. Operators of Two Piece Ball Valve can choose between lever or gear mechanisms, adapting to manual or semi-automated control needs.

In summary, Two Piece Ball Valve is a versatile industrial valve with customizable material options and reliable performance, supported by its two-piece structural design and precision components. It works in tandem with variants like 2 Piece Stainless Steel Ball Valve and other Two Piece Valve types to meet diverse industrial requirements. The careful selection of body, ball, stem, and sealing materials ensures adaptability to corrosive, high-pressure, and high-temperature conditions, while lever or gear operators enhance operational flexibility. With customizable special materials available, Two Piece Ball Valve remains a cost-effective and durable solution for fluid control in numerous industries, delivering consistent performance and easy maintenance.

Two Piece Ball Valve FAQ

1. What materials are used for the body of the two piece ball valve?

The body of the two piece ball valve adopts various materials such as ASTM A216 WCB/WCC, ASTM A217 WC6/WC9, ASTM A352 LCB/LCC, A351 CF8/CF8M, and special alloys like MONEL K400/K500 and H-276 to meet different working conditions.

2. What materials can be selected for the ball of the two piece ball valve?

The ball of the two piece ball valve is available in materials including ASTM A105, A182 F304/F316 series, A694 F60, copper alloys like C95400, and high-performance alloys such as INCONEL 625/718.

3. What are the common stem materials for the two piece ball valve?

Common stem materials for the two piece ball valve cover A182 F304/F316 series, 17-4PH, XM-19, copper alloys, and alloys like MONEL K400 and INCONEL 718, ensuring structural stability.

4. What types of seat inserts are applicable to the two piece ball valve?

The two piece ball valve can be equipped with seat inserts made of RPTFE, DEVLON, NYLON, MOLON, PCTFE, PEEK and other materials, adapting to different sealing requirements.

5. What operators are matched with the two piece ball valve?

The two piece ball valve is usually matched with lever or gear operators, and can be customized with other suitable operators according to actual application needs.
