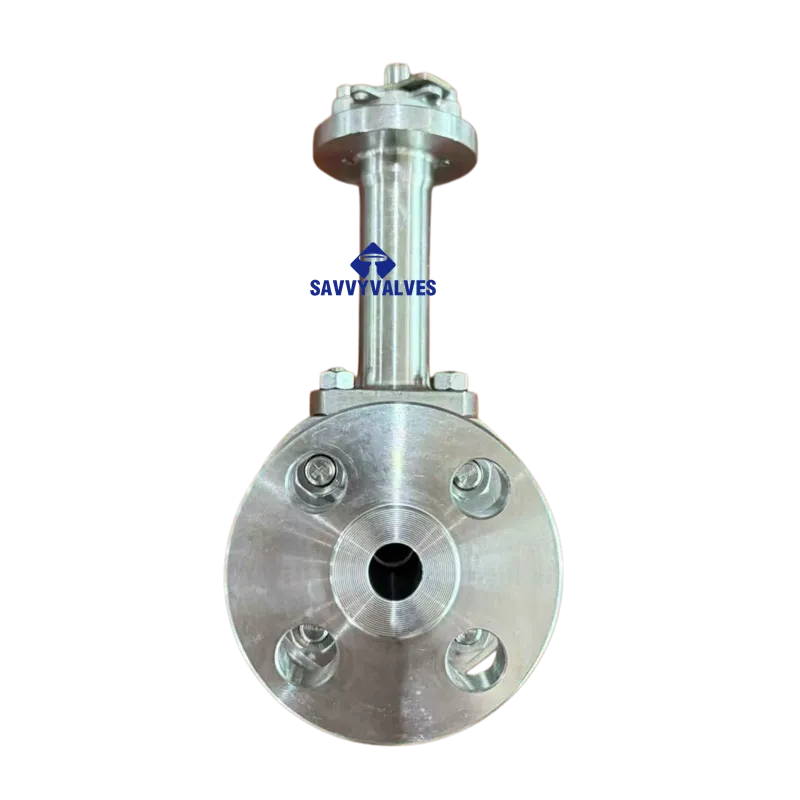

Open Die Forged Cryogenic Floating Ball Valve

Open Die Forged Cryogenic Floating Ball Valve

Design & Manufacture BS 6364, ISO 28921-1, MSS SP-134, ASME B16.34
Face-to-Face Dimension BS 6364 Table 1, ISO 5752 Series 11 (Extended)
End Connections ASME B16.5 (RF/RTJ), EN 1092-1, GB/T 9113, JB/T 79
Butt Weld Ends ASME B16.25, GB/T 12224
Socket Weld / Thread ASME B16.11, NPT/BSPT per ISO 7-1
Pressure Testing API 598, ISO 5208, BS 6364 Annex A (Cryogenic)

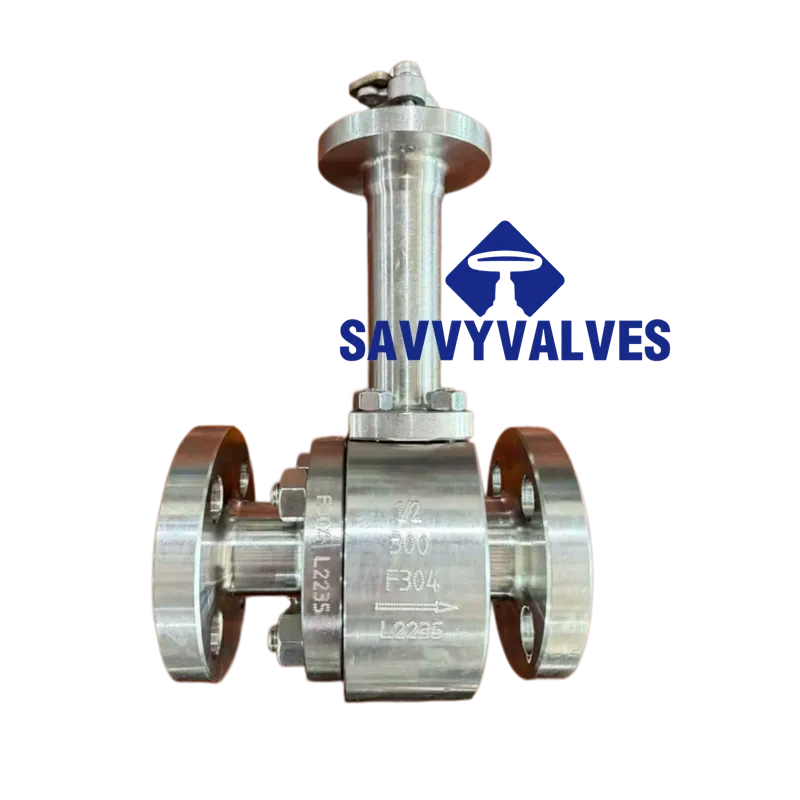

  • aboutimg3
  • aboutimg4

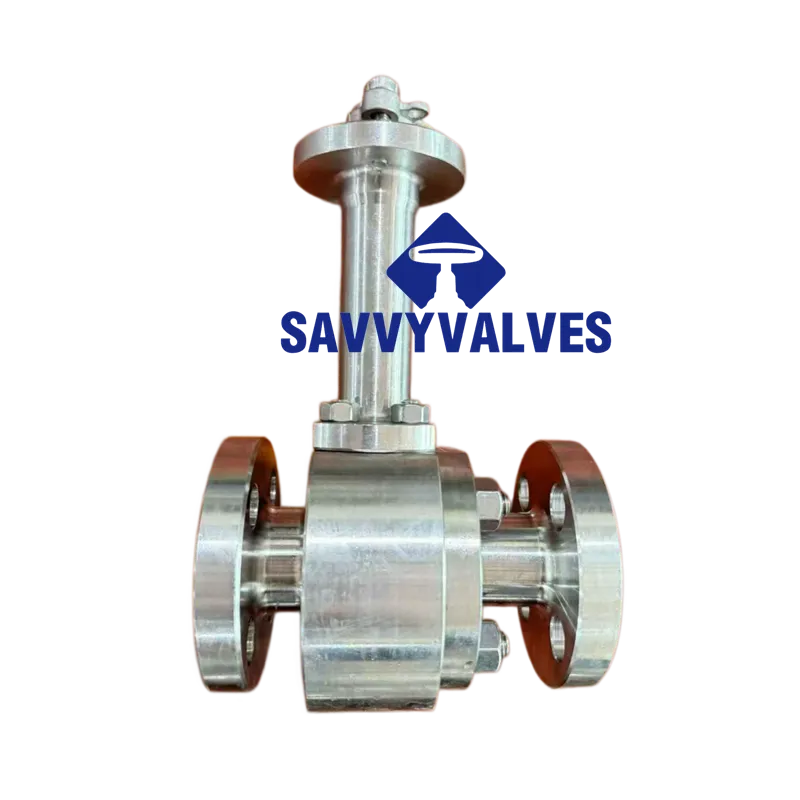

  • aboutimg5



Description

TECHNICAL DATA SHEET

Forged Stainless Steel Cryogenic Floating Ball Valve
Series: DQ41F/Y / DQ61F/Y
Models: Reduced Bore / Full Bore, Side-Entry (Split Body)

  1. PRODUCT OVERVIEW

This forged stainless steel cryogenic ball valve is specifically engineered for reliable shut-off and flow control of liquefied gases and cryogenic fluids down to -196°C. Designed in accordance with BS 6364, ISO 28921-1, and MSS SP-134 standards, it features a two-piece bolted body construction with extended bonnet and fully forged austenitic stainless steel components (ASTM A182 F304/F304L/F316L) to eliminate porosity and ensure structural integrity under extreme thermal cycling .

Key Features:

  • 100% Forged Body Construction: ASTM A182 F304/F304L stainless steel, no cast defects, superior low-temperature impact toughness .
  • Extended Bonnet (Long Neck): Minimum 250mm neck length for DN50 and above, positions stem packing at ambient temperature, prevents ice formation, and allows insulation application .
  • Cryogenic Stabilization Treatment: All pressure-containing parts undergo deep cryogenic treatment (LN₂ immersion, -196°C soak for 2-6 hours, 2-3 cycles) to stabilize microstructure and relieve machining stresses .
  • Blow-out Proof Stem: Integrally forged stem with anti-blowout shoulder, anti-static device (spring-loaded contact) per ISO 28921-1 .
  • Low Emission Packing: Live-loaded disc spring + graphite/RPTFE packing system, meets ISO 15848-1 Class B fugitive emission requirements .
  • Cavity Pressure Relief: Upstream seat is pressure-relieving design to prevent body cavity over-pressurization due to cryogenic fluid vaporization .
  • Full Traceability: Positive Material Identification (PMI) and EN 10204 Type 3.1 material certification available .
  1. DESIGN STANDARDS & SPECIFICATIONS

Item

Standard / Code

Design & Manufacture

BS 6364, ISO 28921-1, MSS SP-134, ASME B16.34

Face-to-Face Dimension

BS 6364 Table 1, ISO 5752 Series 11 (Extended)

End Connections

ASME B16.5 (RF/RTJ), EN 1092-1, GB/T 9113, JB/T 79

Butt Weld Ends

ASME B16.25, GB/T 12224

Socket Weld / Thread

ASME B16.11, NPT/BSPT per ISO 7-1

Pressure Testing

API 598, ISO 5208, BS 6364 Annex A (Cryogenic)

Fugitive Emission

ISO 15848-1 Class B

Fire Safe (Optional)

API 607 / ISO 10497

Anti-Static

ISO 28921-1, BS 5353

NACE

MR0175 / ISO 15156 (Optional)

SIL Rating

SIL 3 Capable (IEC 61508)

  1. GENERAL TECHNICAL PARAMETERS

Parameter

Specification

Valve Type

Floating Ball, Side-Entry (2-Piece Split Body), Anti-blowout Stem

Size Range

DN15 ~ DN300 (½” ~ 12″)

Pressure Classes

ASME Class 150, 300, 600 (PN16 ~ PN100)

Temperature Range

-196°C ~ +80°C (Standard Cryogenic)
-196°C ~ +200°C (High Temp Option, consult factory)

Design Temperature

-196°C (Liquid Nitrogen)

Minimum Design Temp

-196°C (316L), -101°C (LC3), -46°C (LCB)

Service Media

LNG, LN₂, LO₂, LAr, LHe, Ethylene, Liquid Propane, Ammonia, CO₂, Hydrogen

Flow Pattern

Full Bore (Regular) / Reduced Bore (Optional)

Flow Direction

Uni-directional (Standard), Bi-directional (Optional)

Operation

Manual (Lever/Gear), Pneumatic (DA/SR), Electric

Mounting

ISO 5211 top flange for direct actuator mounting

Insulation

Extended bonnet suitable for cold box installation

  1. MATERIALS OF CONSTRUCTION (FORGED STAINLESS STEEL)

Component

Material (ASTM)

Notes

Body Halves

A182 F304/F304L (Forged)

Carbon ≤ 0.03%, cryogenic stabilization treated, -196°C impact ≥ 50J

Bonnet (Extension)

A182 F304/F304L (Forged)

Extended length per BS 6364, integrally forged or welded construction

Ball

A182 F304/F304L (Forged)

Chrome-nickel austenitic, surface Ra ≤ 0.4μm, floating design

Stem

A182 F304/F304L/F316L (Forged)

Anti-blowout shoulder, cryogenic nitrogen hardening optional

Seat Rings

RPTFE (Glass/Carbon Fiber Reinforced) / PCTFE / PEEK

Spring-energized for low-temp sealing

Seal Carrier

A182 F304/F304L

Stem Packing

Graphite Foil + RPTFE, Live-loaded with Belleville springs

Low emission, ISO 15848-1 Class B

Gaskets

Spiral Wound (SS316L/Graphite)

Body Bolting

ASTM A193 B8M Class 2 (Stainless)

High strength, low-temperature compatible

Nuts

ASTM A194 8M

Thrust Washer

RPTFE / PTFE + Bronze

Anti-extrusion, low friction

Anti-Static Device

SS316L Spring + Plunger

Resistance ≤ 10Ω

Handle / Gearbox

SS304 / Ductile Iron

Alternative Forged Materials (Upon Request):

  • A182 F316/F316L: Enhanced pitting corrosion resistance
  • A182 F321: Stabilized grade for higher intermittent temperatures
  • Inconel 625 / Hastelloy C-276: For extreme low temp (< -196°C) + high corrosion
  • A352 LC3 / LCB: Cast low carbon steel (not forged, for non-SS requirements)
  1. CRYOGENIC TREATMENT & TESTING

Cryogenic Stabilization Process:

  1. All rough-machined forged components (body, bonnet, ball, stem) are immersed in liquid nitrogen (-196°C).
  2. Soaking time: 2-6 hours depending on mass (minimum 2 hours per cycle) .
  3. Components are returned to ambient temperature naturally (no forced heating).
  4. Process repeated for minimum 2 cycles .
  5. Final precision machining after stabilization to ensure dimensional stability at cryogenic service.

Purpose:

  • Transforms retained austenite
  • Relieves residual stresses from forging/welding
  • Prevents dimensional changes and seal leakage during thermal cycling

Impact Testing:

  • Charpy V-Notch test per ASTM A370
  • Acceptance criteria: ≥ 41J (average) at -196°C for F304L
  • AOKAVI standard: ≥ 50J at -196°C
  1. DIMENSIONS & CONNECTIONS (ASME CLASS 150/300 – REFERENCE)

6.1 Flanged Type (DQ41F/Y) – PN16/PN40 / Class 150/300

Unit: mm (Reference dimensions – subject to manufacturer design)

DN

Size (in)

L (RF)

L (RTJ)

D (Class 150)

D (Class 300)

Bonnet Extension H

Approx. Weight (kg)

15

½”

130

140

95

95

230

3.0

20

¾”

140

152

105

105

260

4.0

25

1″

150

165

115

115

280

5.0

32

1¼”

165

178

135

135

290

9.0

40

1½”

180

190

145

145

320

11.0

50

2″

203

216

160

165

340

15.0

65

2½”

222

241

180

190

370

19.0

80

3″

241

283

195

210

400

27.0

100

4″

305

305

215

255

450

38.0

150

6″

394

403

280

320

550

81.0

200

8″

457

502

345

380

680

95.0

250

10″

533

568

405

445

790

140.0

300

12″

610

648

485

520

890

200.0

Notes:

  • Flange drilling per ASME B16.5 (Class 150 / 300). For PN16/PN40, dimensions vary per EN 1092-1.
  • Bonnet extension length per BS 6364: Minimum 250mm for DN50 and above; actual H dimension includes operator clearance .
  • Weight shown for Class 150 carbon steel body; SS body slightly heavier.

6.2 Socket Weld / Threaded Type (DQ61F/Y) – NPT/BSPT/SW

Unit: mm

DN

Inch

L

d (Bore)

D (Socket)

D1 (Thread)

H (Extension)

W (Handle)

15

½”

92

13

36

21.8

230

160

20

¾”

111

18

42

27.3

260

220

25

1″

127

23

52

33.8

280

220

32

1¼”

140

28

60

42.6

290

250

40

1½”

152

35

68

48.7

320

250

50

2″

178

45

80

61.2

340

350

Source:

  1. PRESSURE-TEMPERATURE RATING

Forged A182 F304/F304L – ASME B16.34

Temperature (°C)

Class 150 (psi)

Class 300 (psi)

Class 600 (psi)

-29 to +38

285

740

1480

+50

270

705

1410

+100

235

615

1230

-196°C (Derated)

230

600

1200

Critical Notes:

  • Floating ball design is limited to Class 300 maximum due to stem thrust loading .
  • For Class 600 and above, trunnion-mounted cryogenic ball valve design is required.
  • Pressure rating at -196°C is derated per ASME B16.34 and BS 6364 requirements .
  1. PERFORMANCE & LEAKAGE TESTS

Test Type

Standard

Criteria

Shell Hydrostatic Test

API 598 / ISO 5208

1.5 × rated pressure at ambient, no visible leakage

High-Pressure Pneumatic Test

API 598

0.6 MPa (80 psi) air, soap bubble test

Cryogenic Seat Leakage Test

BS 6364 Annex A

Valve immersed in LN₂ (-196°C), 1.1× rated pressure, max leakage: 0.1 Nm³/hr × DN (mm) for gas

High-Performance Cryogenic Leakage

AOKAVI / ISO 28921-1

≤ 1×10⁻⁹ mL/min (Helium) at -196°C

Fugitive Emission (Stem)

ISO 15848-1 Class B

≤ 10⁻⁵ mbar·L/s (Helium)

Anti-Static Test

ISO 28921-1

Resistance ≤ 10Ω between stem and body

Fire Safe (Optional)

API 607

Per API 607 7th Edition

  1. OPERATING TORQUE (REFERENCE @ -196°C)

DN

Size

Torque (N·m) @ ΔP=40 bar

Actuator Recommendation

15

½”

8 – 12

Manual Lever / Small Pneumatic

25

1″

20 – 30

Manual Lever

50

2″

80 – 120

Manual Lever / Gear

80

3″

180 – 250

Gear / Pneumatic

100

4″

300 – 400

Gear / Pneumatic

150

6″

700 – 900

Gearbox / Pneumatic

Notes:

  • Torque increases significantly with pressure differential and seat material (PCTFE higher than RPTFE).
  • Safety factor for actuator sizing: 1.3 – 1.5 for pneumatic, 1.5 – 2.0 for electric .
  • Values shown for RPTFE seats, clean media, DN50 tested per .
  1. DESIGN FEATURES & CRYOGENIC SPECIALTIES

Extended Bonnet (Long Neck):

  • Mandatory for service below -50°C .
  • Positions stem packing and actuator at ambient temperature zone.
  • Prevents ice formation and lubrication solidification.
  • Standard neck length: 250mm for DN50, scaled proportionally for other sizes.

Pressure Relief Mechanism:

  • Floating ball design inherently allows upstream seat to act as pressure relief.
  • Prevents body cavity overpressure due to liquid vaporization (cryogenic pumping effect) .
  • For fixed ball designs, optional internal relief valve or self-relieving seat.

Anti-Static Device:

  • Required per ISO 28921-1 and BS 5353 for flammable cryogenic media (LNG, ethylene, etc.).
  • Spring-loaded plunger continuously grounds ball to body.

Oxygen Service Cleaning:

  • Optional degreasing and cleaning per CGA G-4.1 (for liquid oxygen service).
  • Chlorine-free packaging and labeling .
  1. APPLICATIONS & INDUSTRY USE

Industry

Typical Media

Temperature

LNG / LPG

Methane, Ethane, Propane, Butane

-162°C to -46°C

Industrial Gases (Air Separation)

Liquid Nitrogen (LN₂), Liquid Oxygen (LO₂), Liquid Argon (LAr)

-196°C to -183°C

Hydrogen Energy

Liquid Hydrogen (LH₂)

-253°C (Inconel/Ti req’d)

Petrochemical

Ethylene, Propylene

-104°C

Refrigeration

Ammonia (R717), CO₂ (R744)

-46°C to -78°C

Cryogenic Storage

Liquid Helium (LHe)

-269°C (Special alloy)

Aerospace

Rocket propellants (LO₂, LH₂)

-253°C to -183°C

Pharmaceutical / Biotech

Liquid nitrogen freezing

-196°C

  1. QUALIFICATION & CERTIFICATION

Certification

Scope

Availability

BS 6364

Cryogenic valve design & testing

Standard

ISO 28921-1

Industrial cryogenic valves

Standard

PED 2014/68/EU

Category III, Module H

Optional

TA-Luft (VDI 2440)

Fugitive emission

Optional

API 607

Fire safe testing

Optional

NACE MR0175

Sour service

Optional

ATEX 2014/34/EU

Explosive atmospheres (Zone 1/2)

Optional

ISO 9001:2015

Quality management

Standard

EN 10204 3.1/3.2

Material certification

Optional

  1. SELECTION & ORDERING INFORMATION

To ensure correct valve selection for your cryogenic application, please specify:

  1. Model: DQ41F (Flanged) / DQ61F (SW/NPT) / DQ47F (Gear)
  2. Size (DN/NPS): e.g., DN50 (2″)
  3. Pressure Class: Class 150 / 300 / PN16 / PN40
  4. Body MaterialA182 F304/F304L (Forged SS) — standard for -196°C
  5. Ball/Stem Material: A182 F304/F304L
  6. Seat Material: RPTFE / PCTFE / PEEK (specify)
  7. End Connection: RF flange, RTJ flange, NPT, BSPT, SW, BW
  8. Design Temperature: -196°C / -101°C / -46°C
  9. Service Media: LNG / LN₂ / LO₂ / Ethylene / Other (specify)
  10. Operation: Manual Lever / Gear / Pneumatic / Electric
  11. Special Requirements:
  • Cryogenic test with BS 6364 certificate
  • Oxygen cleaning (CGA G-4.1)
  • Anti-static device
  • Fire-safe design (API 607)
  • NACE MR0175
  • Extended bonnet length (custom)
  • PMI testing
  • EN 10204 3.1 material certs

GUATANTEE:

SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.



If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.
