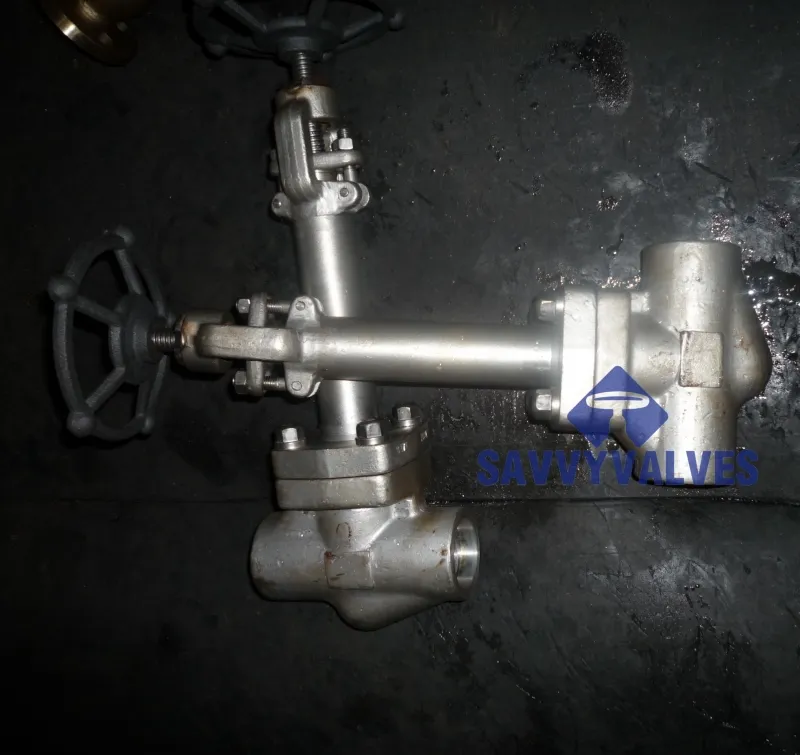

SAVVY Pattern forged globe valve CNG LNG LPG

SIZE: 1″
RATING: 800LB
END: SW AS PER ASME B16.11
TEMPERATURE: -196 ℃
BODY AND BONNET : ASTM A182 F304
WEDGE: SOLID ASTM A182 F304+HF
STEM: ASTM A182 F304
SEAT: HF METAL
ACTUATION: HAND WHEEL

Description

GENERAL

Size: 1/8″~4″.
Pressure Rating: 150LB~4500LB, PN6~PN750
Design Temperature: -196℃~800℃.
General applications: CNG, LNG,LPG, CO2, N2, other cryogenic duty.STEAM thermal duty.
Design & Manufacture: BS 6364, API 6D , ASME B16.34, API 602 are basic,other norms could be used according to orders.
F TO F dimensions: API 6D, ASME B16.10, BS EN 558
Connection: ASME B16.11, ASME B16.25, ASME B16.5, EN 1092, JIS 5K-20K. RF, RTJ are available.
Safety design: fire proof

GENERAL MATERIAL

BODY: ASTM A182 F304/F316/F304L/F316L/F51/F53, MONEL K400/K500, H276,INCONEL 625/718
PLUG: ASTM A182 F304, F316
SEAT: PCTFE, PEEK, HF METAL
OPERATOR: SPRING LOADED
OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.

TEST

Inspection and approval norm: API598, API6D, BS6364.

QUALITY CONTROL:

100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.

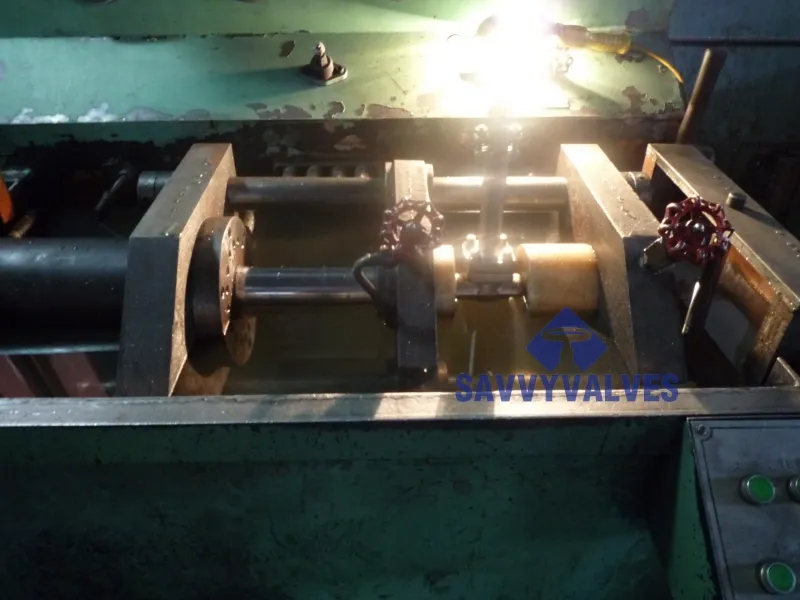

100% hydraulic test with the shell and seal and low pressure air test.

GUATANTEE

SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.

HOT SALE PRODUCTS

For over 10 years, we have been a leading supplier of industrial valves for major global projects in water supply, oil & gas, and desalination.

What Makes The SAVVY Pattern Forged Globe Valve Suitable For CNG, LNG, And LPG?

The SAVVY pattern forged globe valve is specifically engineered for CNG, LNG, and LPG systems, offering reliable flow regulation and excellent sealing under cryogenic and high-pressure conditions. Its forged body construction enhances mechanical strength and resistance to thermal stress, which is vital in low-temperature environments. The globe valve design allows precise throttling control, making it ideal for applications where accurate flow adjustment is essential. For cryogenic use, it is typically equipped with an extended bonnet, which helps insulate the stem seal area from cold media and prevents frosting or leakage. The forged structure ensures better grain uniformity and eliminates casting defects, enhancing safety and durability in critical gas handling processes. Whether used in storage, processing, or transportation of liquefied gases, this valve delivers robust performance, longevity, and operational security, making it a trusted choice for harsh and demanding CNG, LNG, and LPG applications.
