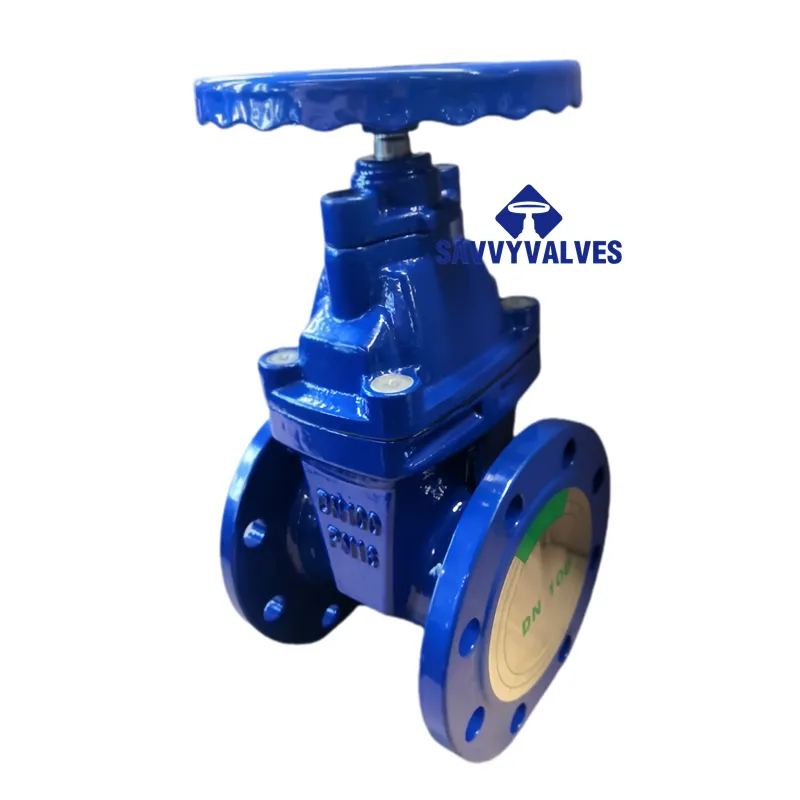

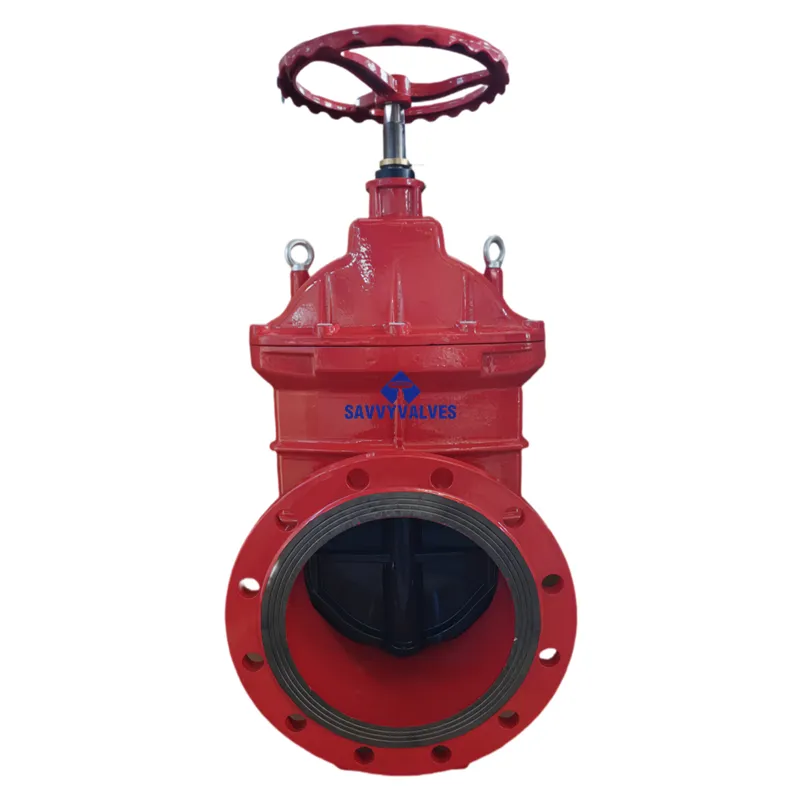

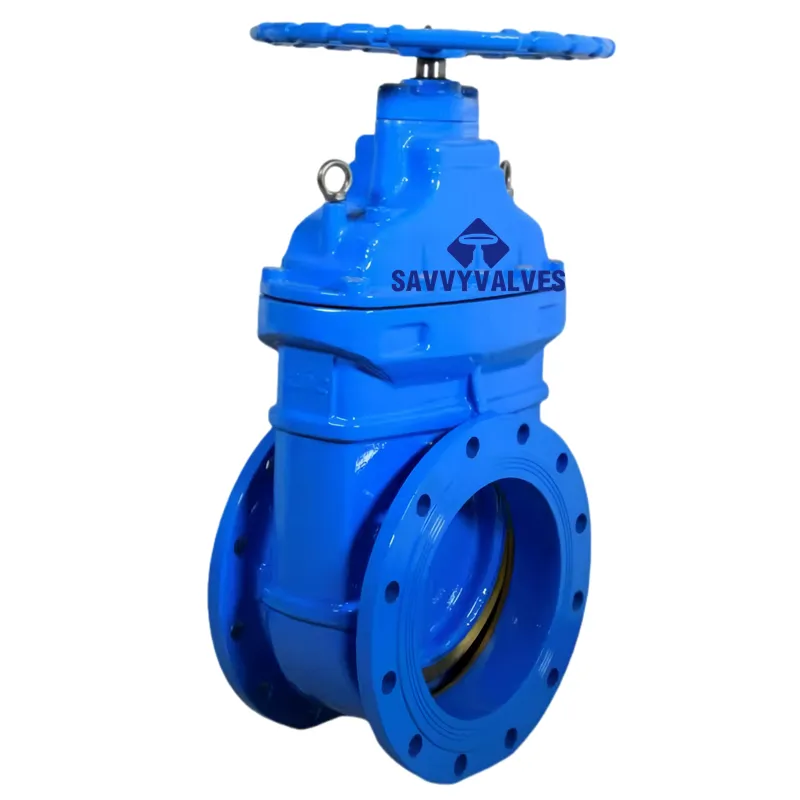

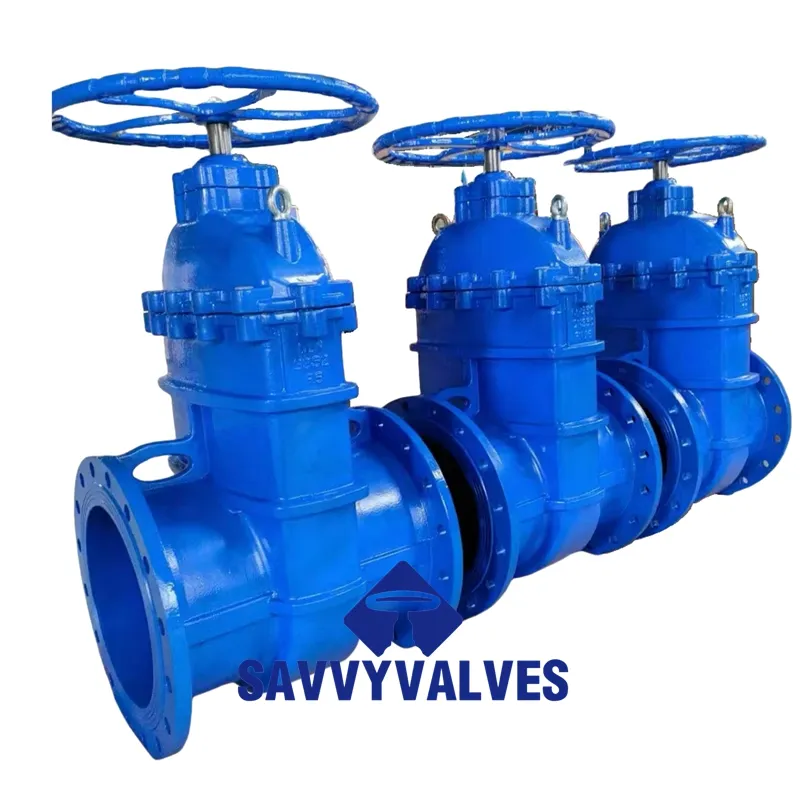

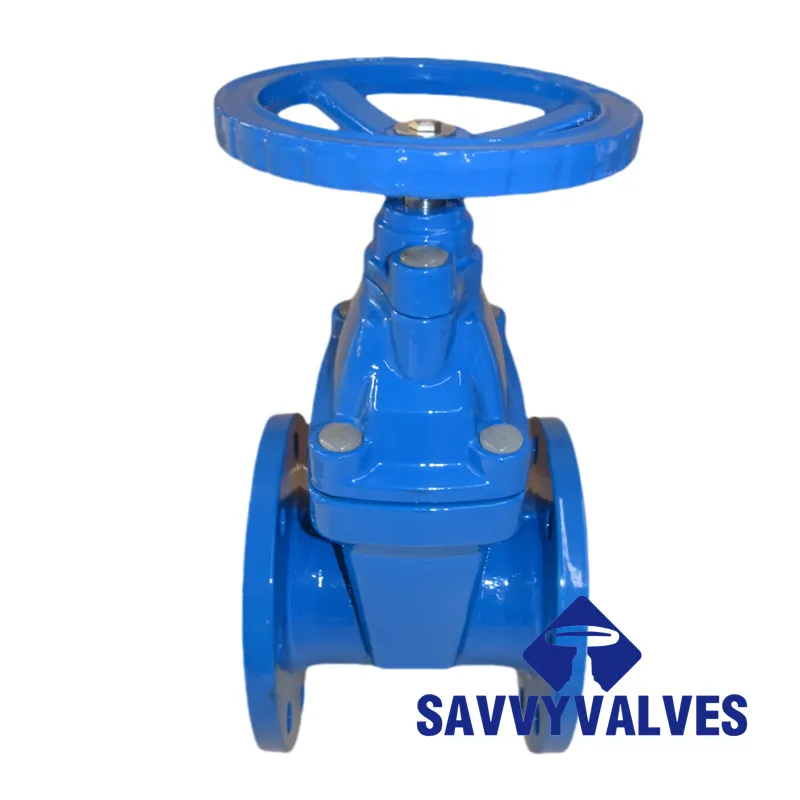

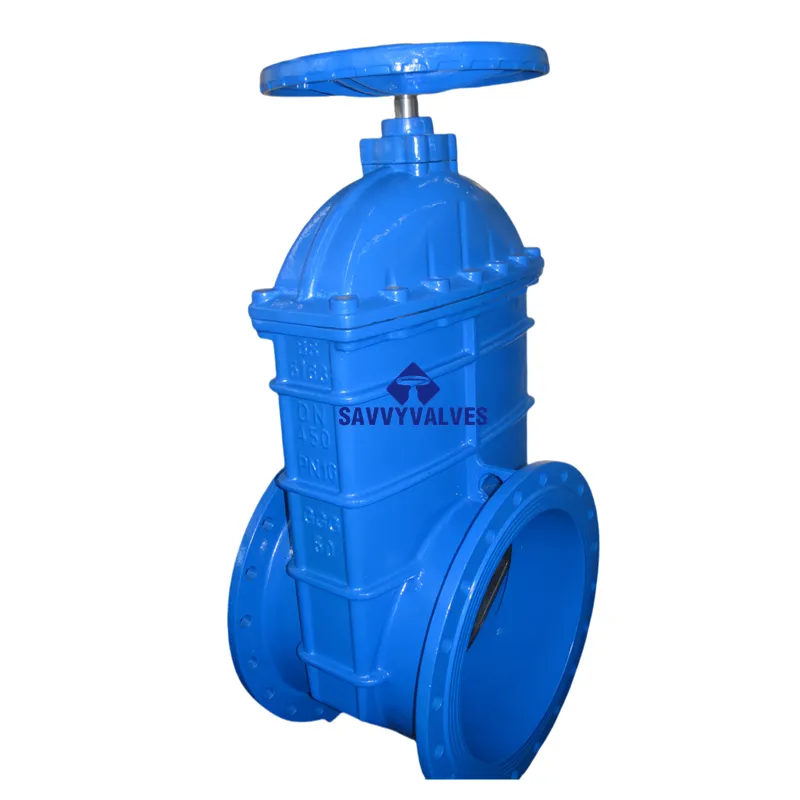

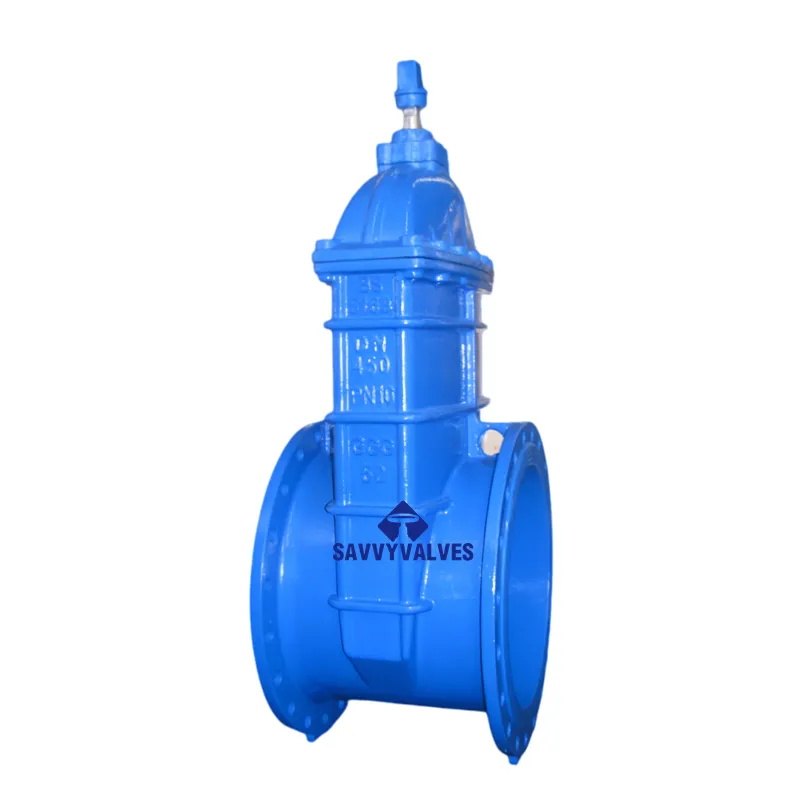

Non-Rising Stem Rubber Seated Gate Valve

1. Valve Type Non-Rising Stem (NRS) Resilient Wedge Gate Valve
2. Design Standard AWWA C509, ISO 5208, BS EN 1074-1
3. Size Range DN50 to DN600 (2″ to 24″)
4. Pressure Rating PN10/PN16 (150 psi / 230 psi)
• Test Pressure: 1.5×PN (Shell), 1.1×PN (Seat)
5. Temperature Range -10°C to +80°C (Standard EPDM)
-30°C to +130°C (Optional FKM)

Description

Technical Datasheet

Parameter	Specification
1. Valve Type	Non-Rising Stem (NRS) Resilient Wedge Gate Valve
2. Design Standard	AWWA C509, ISO 5208, BS EN 1074-1
3. Size Range	DN50 to DN600 (2″ to 24″)
4. Pressure Rating	PN10/PN16 (150 psi / 230 psi) • Test Pressure: 1.5×PN (Shell), 1.1×PN (Seat)
5. Temperature Range	-10°C to +80°C (Standard EPDM) -30°C to +130°C (Optional FKM)
6. Flow Design	Full Port (100% Bore) ∙ Low Turbulence ∙ Cv: DN150 ≈ 2000
7. Body Material	Ductile Iron (EN-GJS-500-7/GGG50) ∙ Epoxy Coated (RAL 5017)
8. Wedge/Gate	Ductile Iron + Full EPDM Encapsulation (3mm min. thickness)
9. Stem	AISI 316 Stainless Steel ∙ Threaded ∙ Non-Rising Design
10. Seat Seal	EPDM Rubber ∙ Bubble-Tight Shutoff (ISO 5208 Rate A)
11. Stem Seal	EPDM O-Rings + Gland Packing (Adjustable)
12. Bonnet	Bolted Ductile Iron ∙ EPDM Gasket
13. Operation	• Handwheel (Fixed/Tamper-Proof) • Gear Operator (DN≥300) • Actuator Mounting Pad (ISO 5211)
14. End Connections	• Flanged (EN 1092-1, AWWA C207) • Mechanical Joint (AWWA C111) • Grooved (AWWA C606)

Key Features

Space-Saving Design: Stem does not rise – suitable for confined spaces.
Corrosion Resistance: Full rubber encapsulation isolates metal from fluid.
Zero Leakage: Double-sealed stem (O-ring + packing) and resilient seat.
Low Torque Operation: EPDM wedge reduces friction vs. metal seats.
Bidirectional Sealing: Equal performance in both flow directions.
