Size: 2″~48″.
Pressure Rating: 150LB~4500LB
Design Temperature: -196℃~800℃.
General applications: water, oil , gas
Design & Manufacture: API 594, API 6D, ASME B16.34 are basic,other norms could be used according to orders.
F TO F dimensions: API 6D, API 594, ASME B16.10, BS EN 558
Connection: RF AS PER ASME B16.5,ASME B16.47, EN 1092, JIS 5K-20K. BW, RTJ are available.

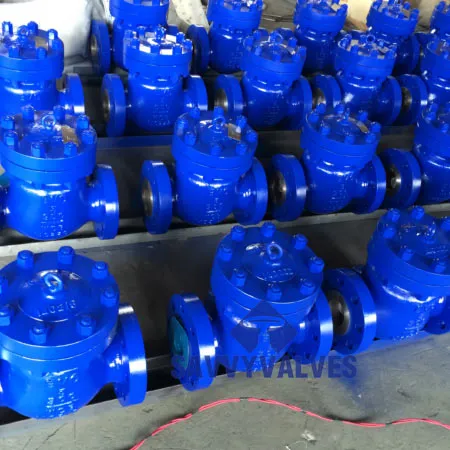

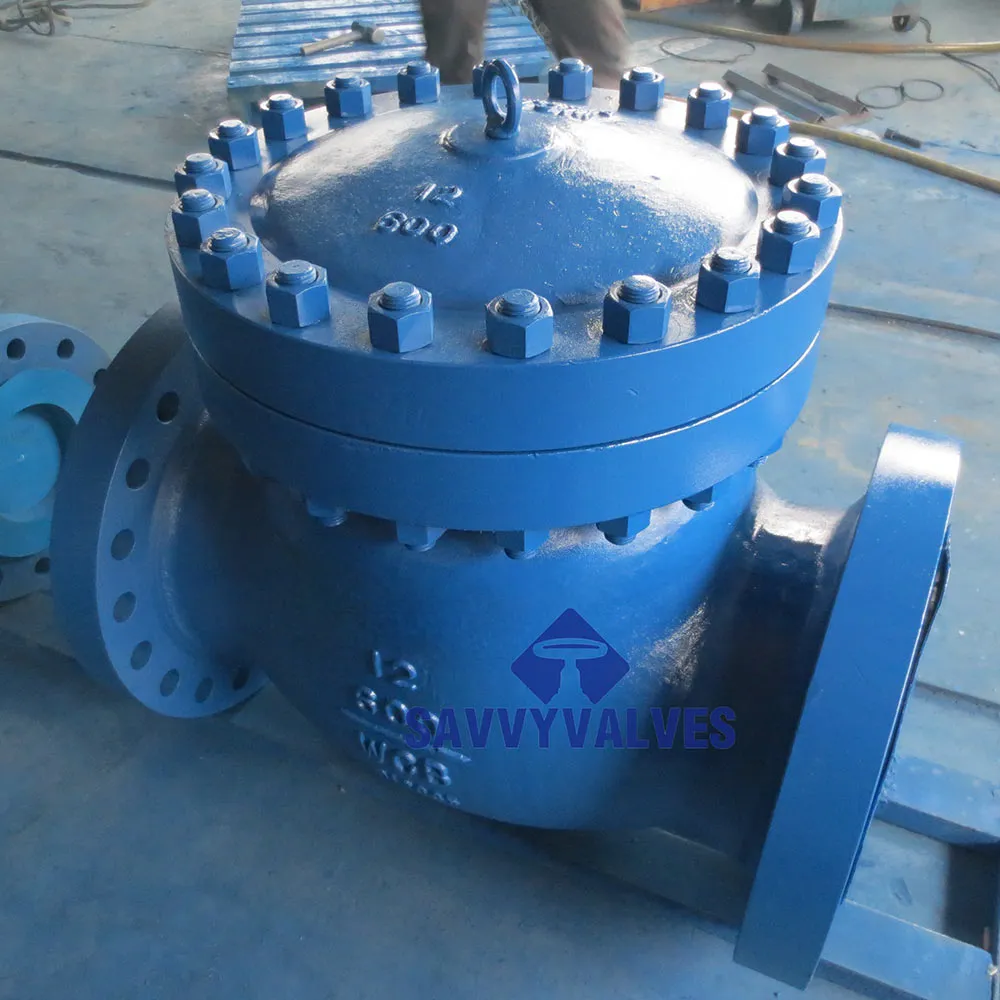

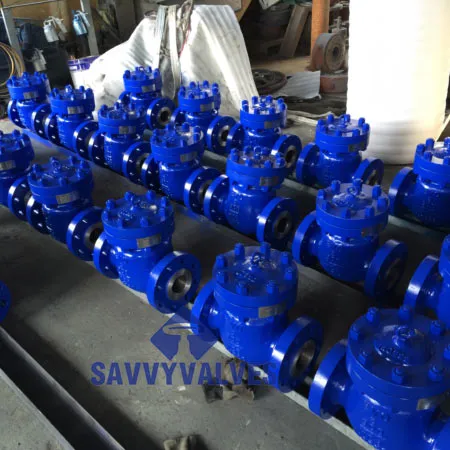

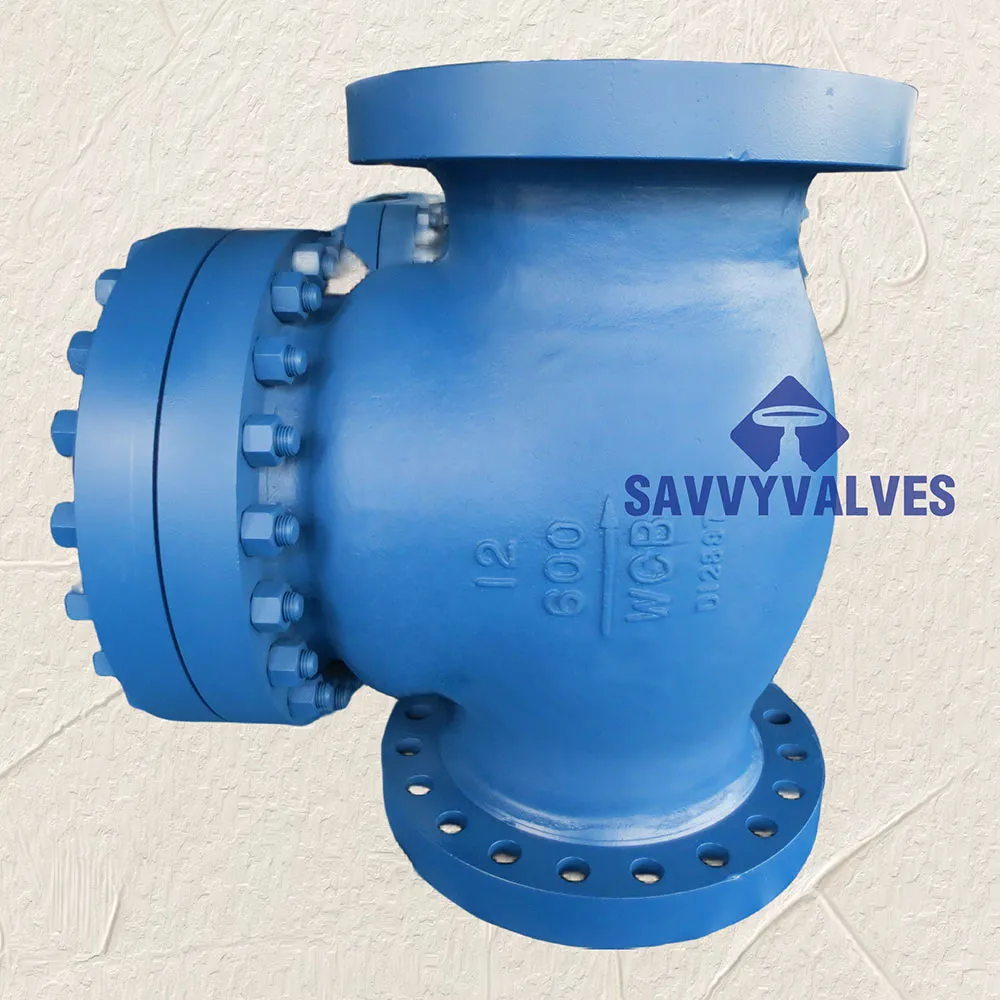

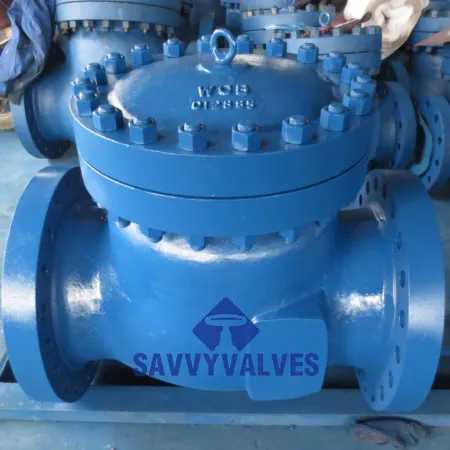

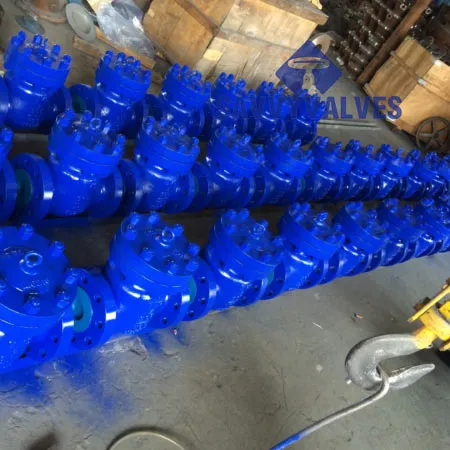

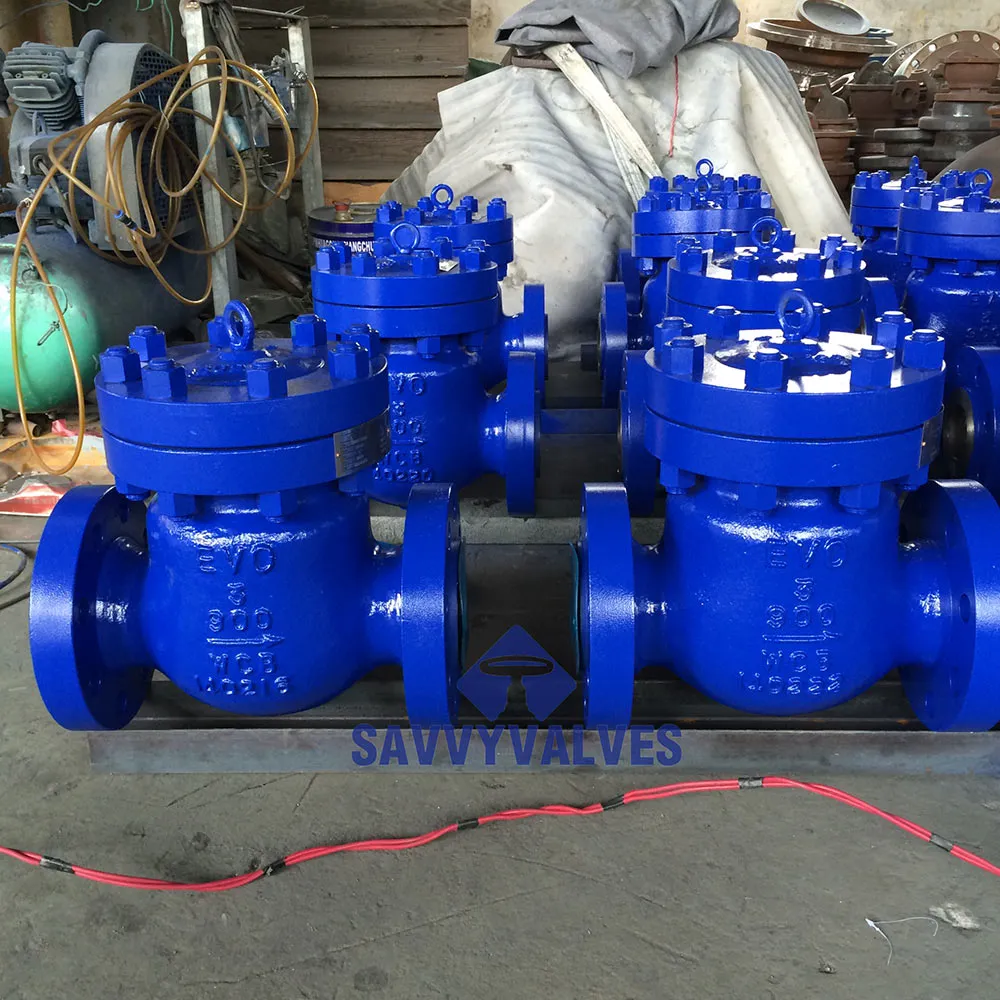

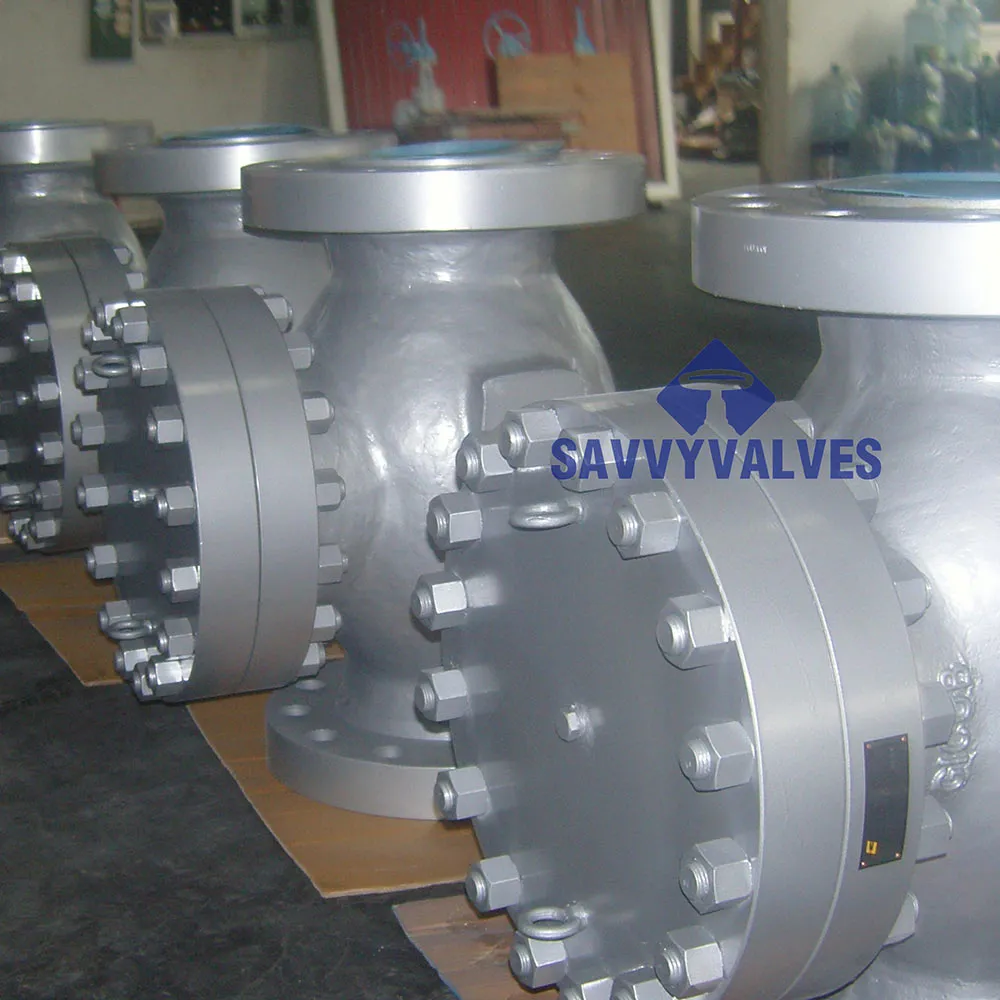

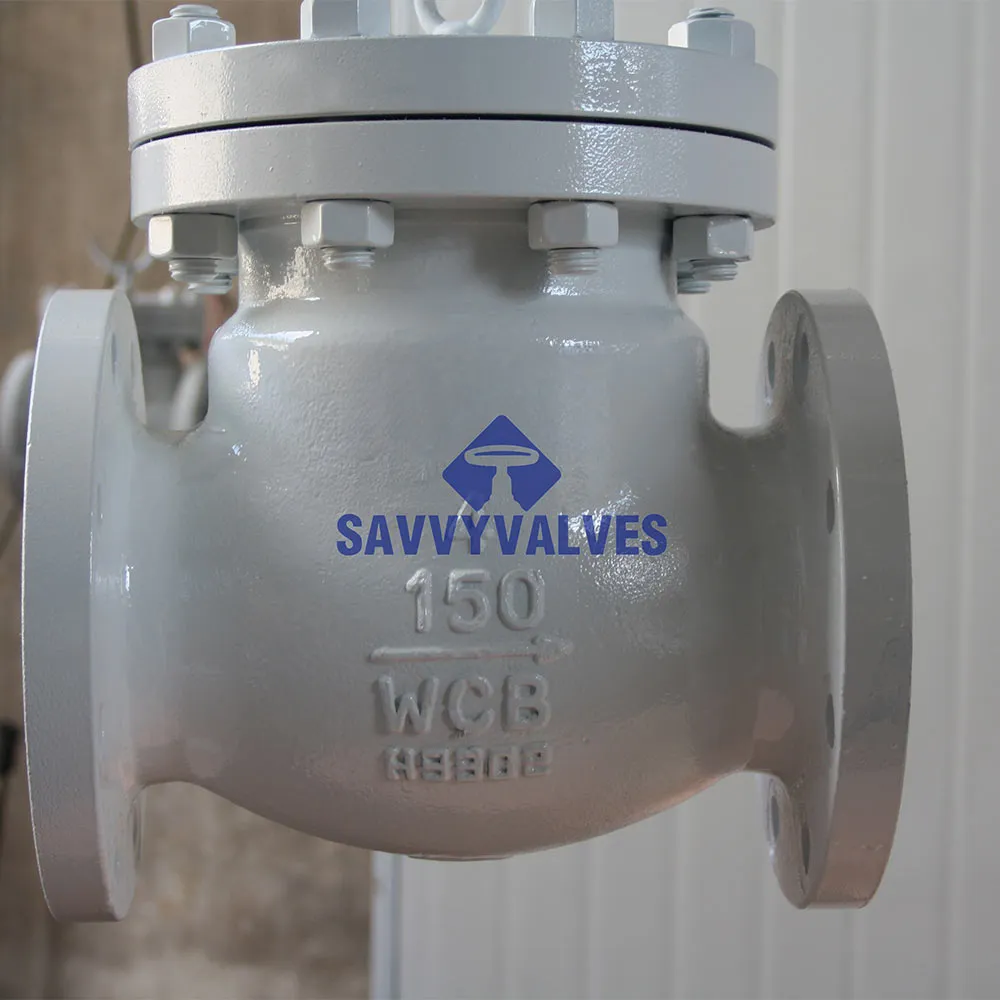

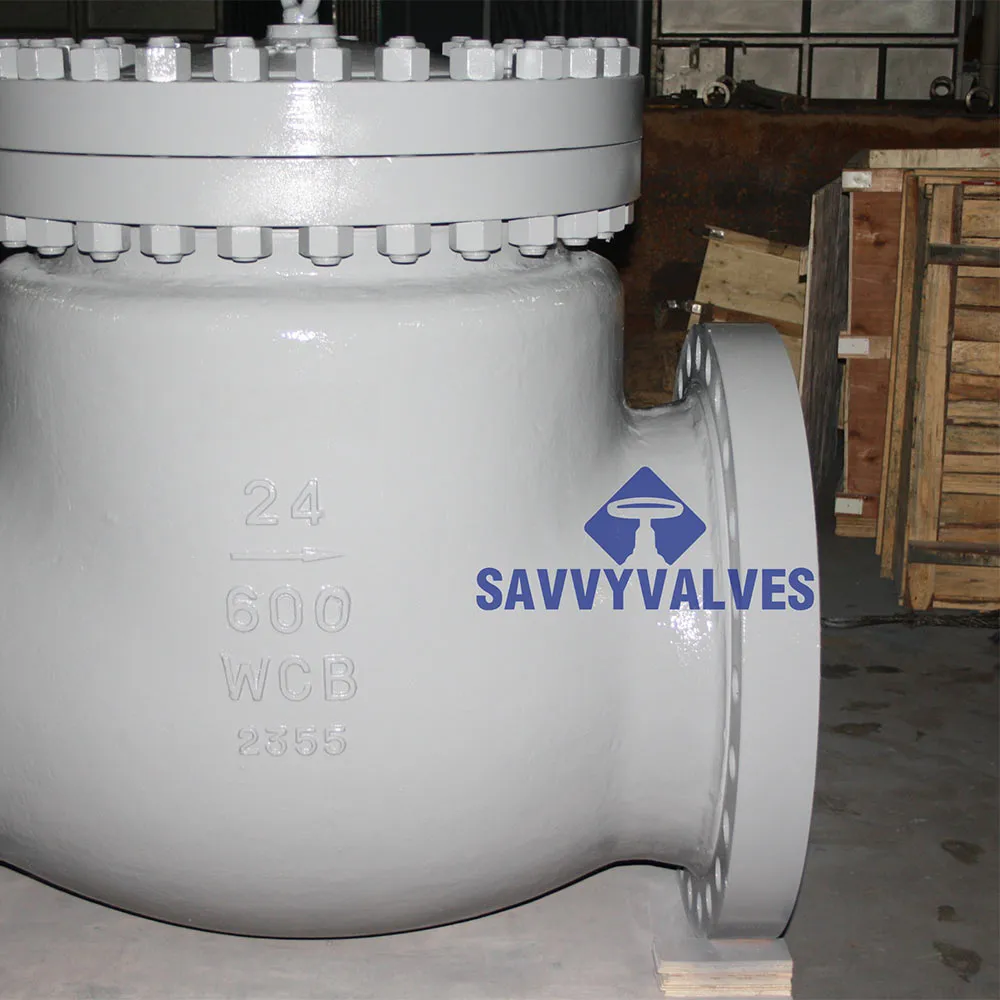

Structure : SWING DISC, BOLTED BONNET / PRESSURE SEAL BONNET / WELDED BONNET, STELLITED 21 HARD FACED SEAT
GENERAL MATERIAL
BODY AND BONNET: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718.
DISC: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718+HARD FACED
SHAFT: ASTM A 182 F6A, F304,F316,XM-19, 17-4PH, INCONEL 625/718, MONEL K-400/500
SEAT: ASTM A105, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718+HARD FACED.
OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.
TEST
Inspection and approval norm: API598, API6D.
QUALITY CONTROL:
100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.
GUATANTEE:
SAVVY VALVES provide 12 months service life at least, free spares and maintenance instruction will be provided when required.
