TECHNICAL DATA SHEET

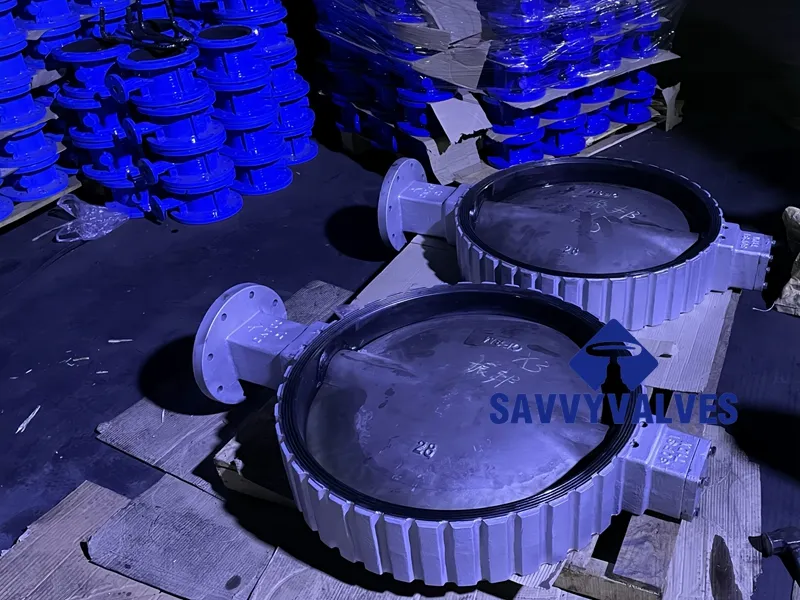

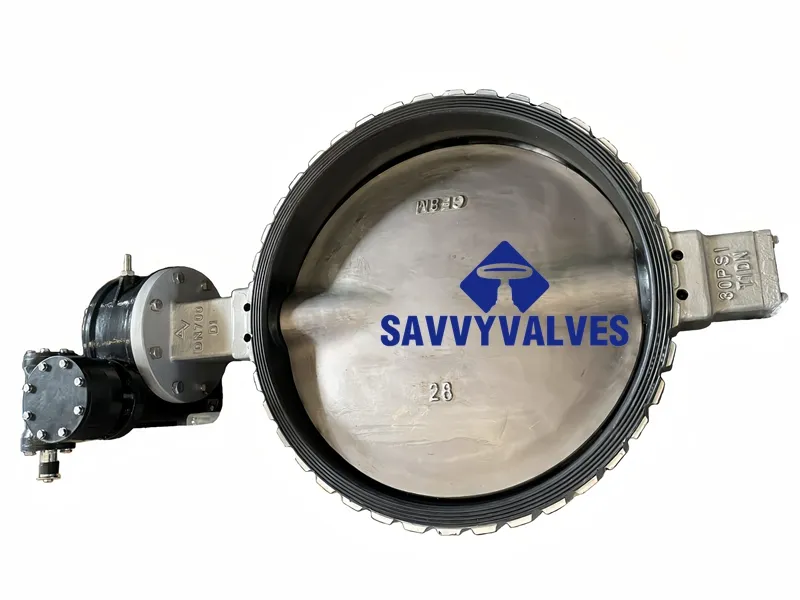

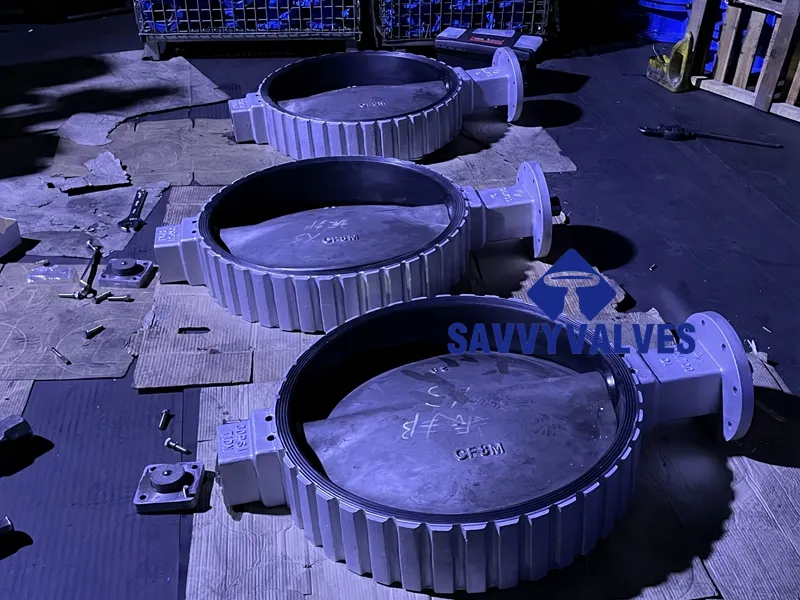

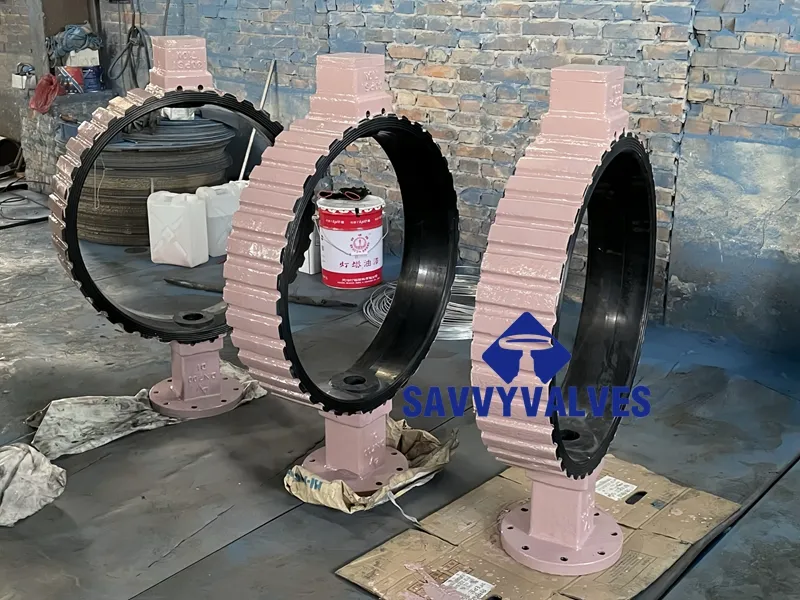

PRODUCT: 28″ 150LB WAFER BUTTERFLY VALVE (ASME B16.47 B DRILLING)
|
Parameter |
Specification |
|
Valve Type |
Centric Wafer Butterfly Valve |
|
Nominal Size |
28″ (DN700) |
|
Pressure Rating |
150LB (PN20) |
|
Face-to-Face Length |
EN558 Series 20 (165 mm) |
|
End Connection |
Wafer per ASME B16.47 B Drilling |
|
Design Standard |
API 609, EN 593 |
|
Leakage Class |
EN 12266-1 Class A (Zero Leakage), API 598 |
|
Standard |
Requirement |
Compliance |
|
EN558 Series 20 |
Face-to-Face (DN700) |
165 mm |
|
EN 558-1 |
Mounting Dimensions |
Compliant |
|
EN 1092-2 Type B |
Flange Drilling (Series B) |
8×Ø34.9 mm |
|
EN 12627 |
Stem Dimensions |
ISO 5211 F05 |
|
Component |
Material Standard |
Grade |
|
Body |
EN 1561 / ISO 1083 |
EN-GJS-500-7 (Ductile Iron) |
|
Disc |
EN 10283 |
G-X6CrNiMo 17-12-2 (Stainless Steel) |
|
Stem |
EN 10088-3 |
1.4021 (X20Cr13, Martensitic SS) |
|
Seat Seal |
EN 681-1 |
NBR P80 (Nitrile Rubber) |
|
Test |
Standard |
Result |
|
Shell Test |
EN 12266-1 |
3.0 MPa (PN30) |
|
Seat Leakage Test |
EN 12266-1 |
Class A (Zero Leakage) |
|
Cyclic Endurance Test |
EN ISO 17292 |
5,000 cycles |
|
Fire Safety Test |
EN ISO 10497 |
Passed |
|
CE/PED Certification |
2014/68/EU |
Category II |
|
Dimension |
Value |
Tolerance |
|
Face-to-Face Length (L) |
165 mm |
±0.8 mm |
|
Flange Drilling (EN 1092-2 Type B) |
||
|
– Bolt Circle Diameter |
1016 mm |
±1.5 mm |
|
– Bolt Holes |
8 × Ø34.9 mm |
H14 |
|
Disc Thickness |
38 mm |
+1.0/-0.5 mm |
|
Parameter |
Value |
|
Temperature Range (NBR Seat) |
-20°C to +120°C |
|
Max Working Pressure |
20 bar @ 120°C (290 psi) |
|
Operating Torque |
10,200 N·m (7,520 lb·ft) |
|
Flow Characteristic |
Equal Percentage (EN 60534) |
