Size: 8" (DN 200)
Pressure Rating: 2500LB (ASME B16.34)
Key Materials:
Body: ASTM A350 LF2
Bonnet: ASTM A350 LF2
Disc: ASTM A350 LF2 + STL.6 HF
Stem: AISI 410
Seat: ASTM A350 LF2 + STL.6 HF
Actuation: Self-operated
Connection End: Butt Weld (BW)

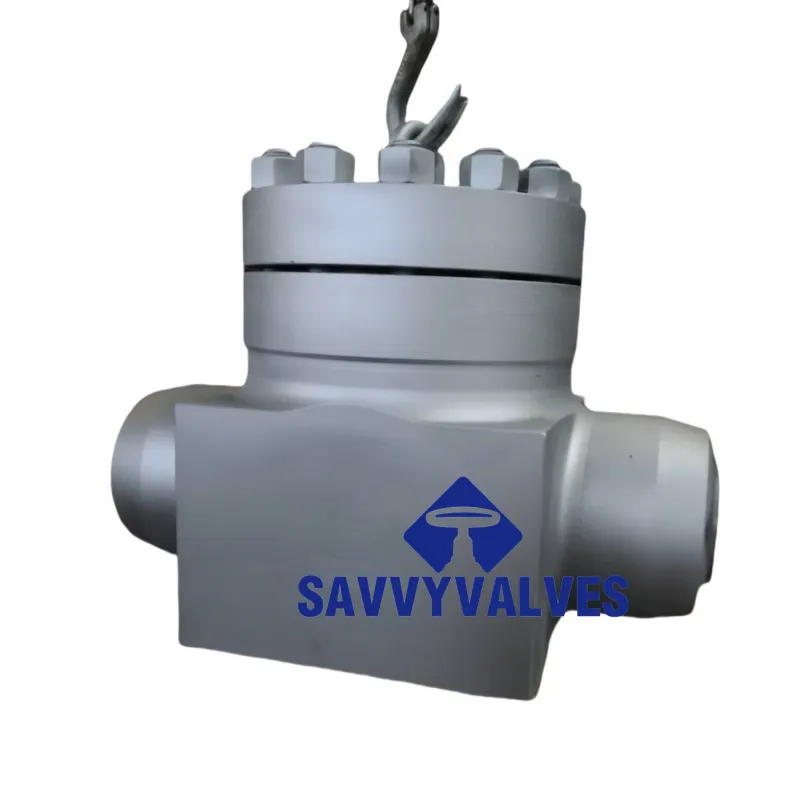

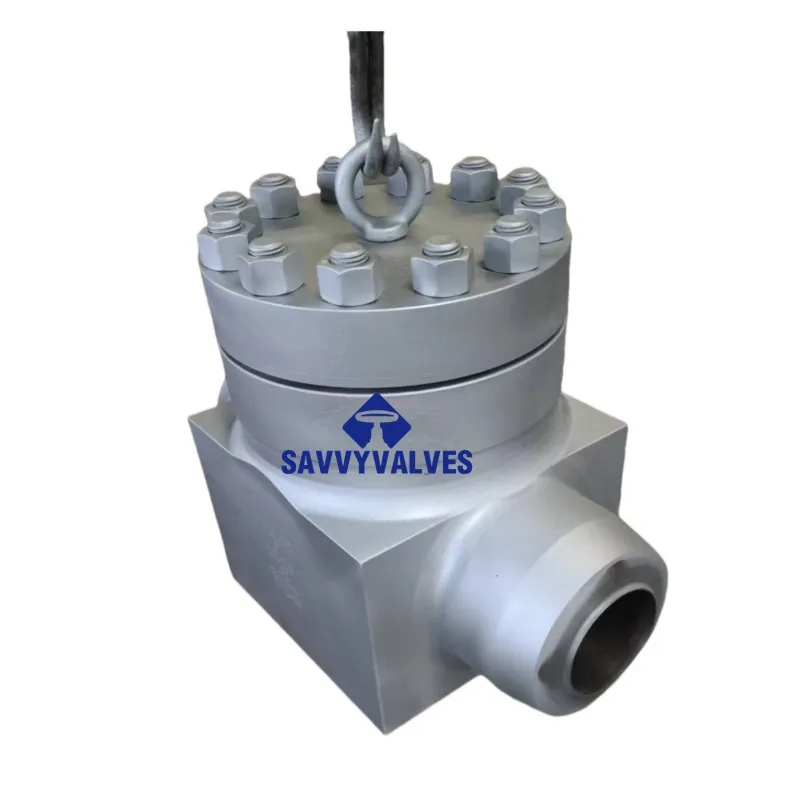

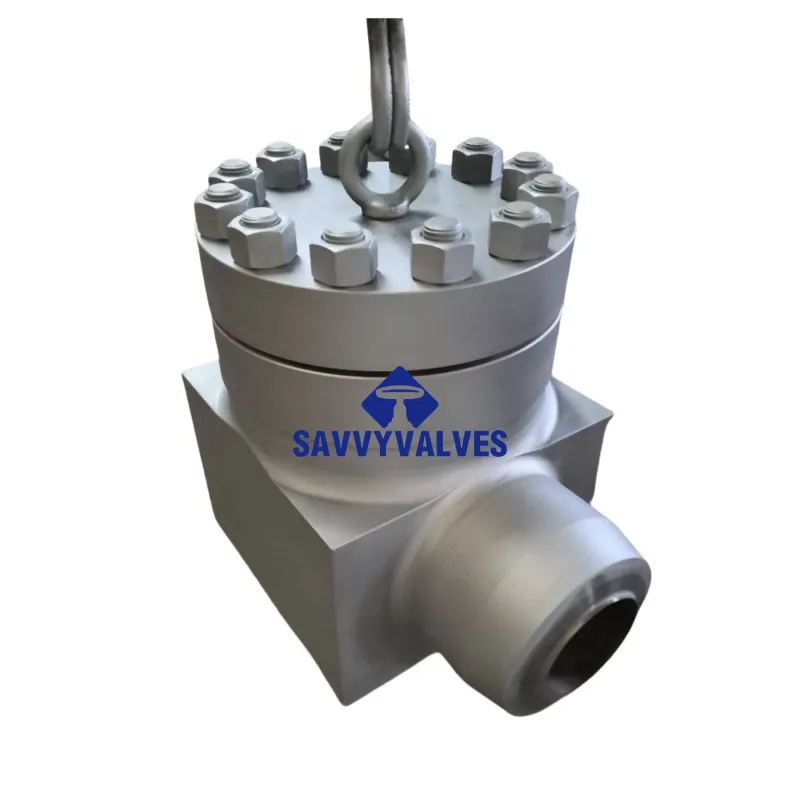

Design Configuration: Single disc, swing type
Surface Treatment: Sandblasted + epoxy coating
Temperature Range: -46°C to +425°C (-50°F to +800°F)
QUALITY CONTROL:
100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.
GUATANTEE
SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.
