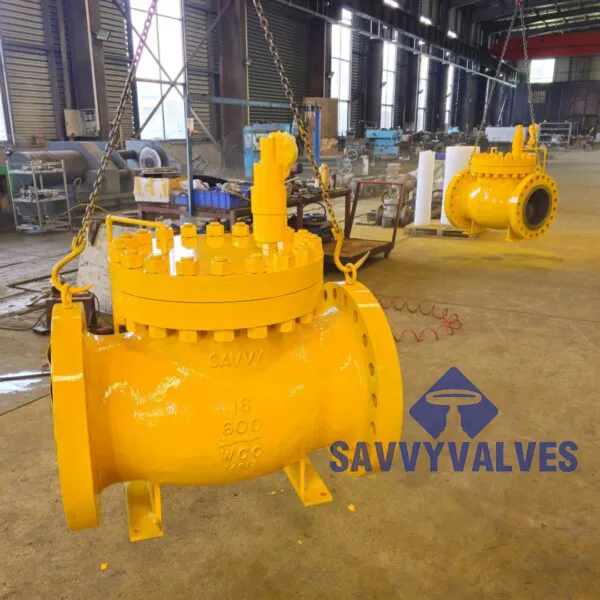

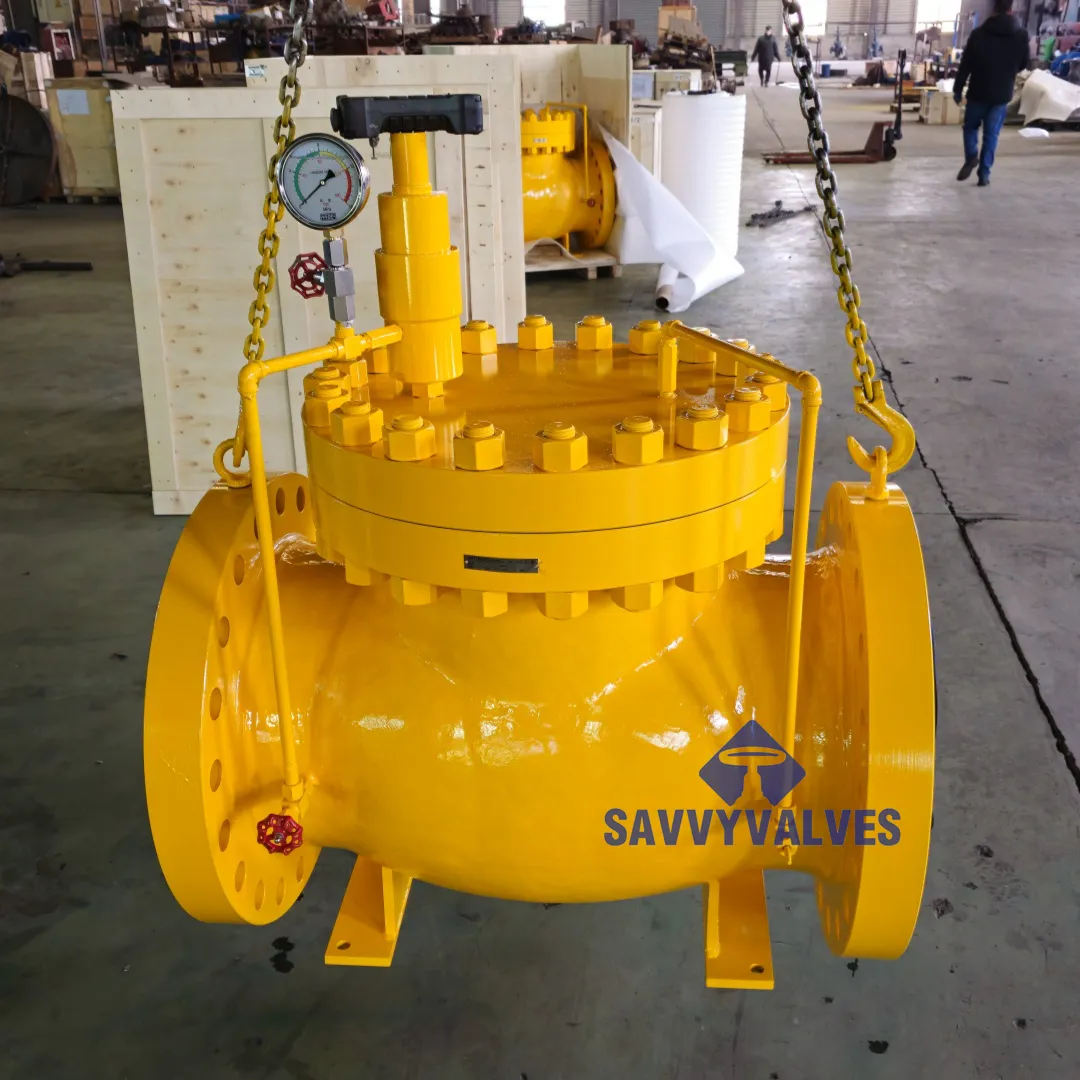

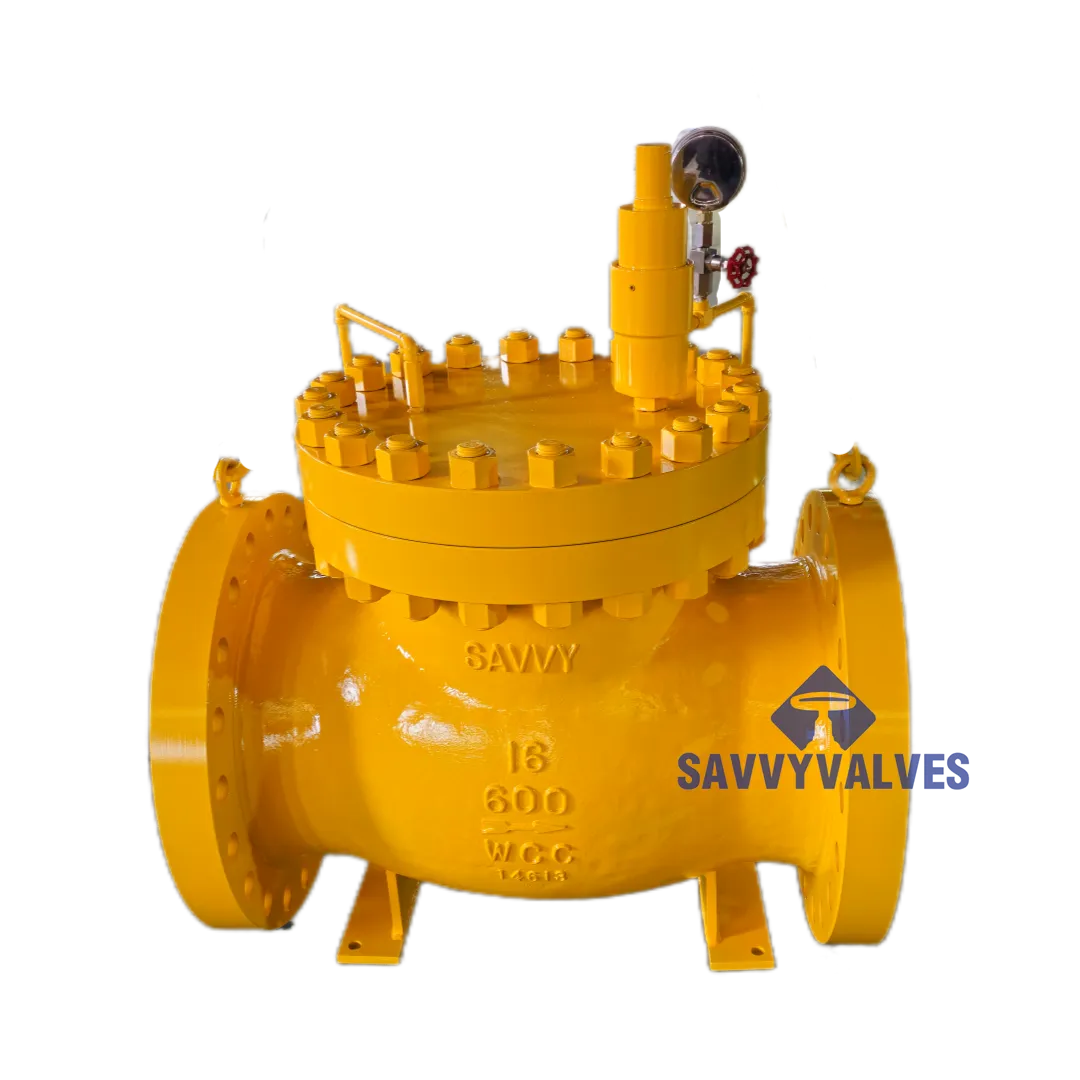

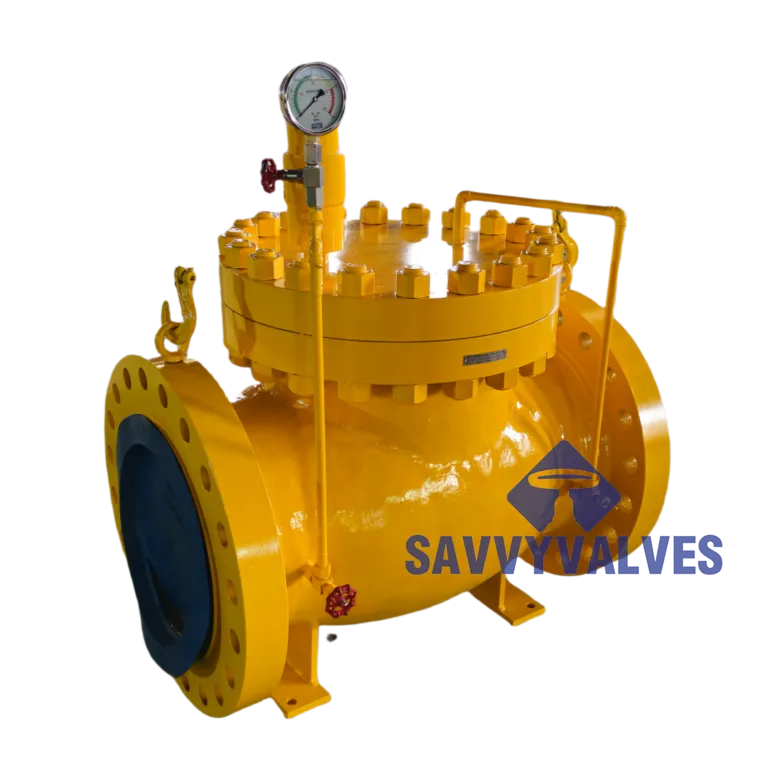

16″ 600lb Pressure Regulating Valve

Brief: regulating downstream flow pressure to the set point pressure. Balanced piston trims design.
Size:16″
Rating: 600LB
Materials: ASTM A216 WCC body and cover
ASTM A182 F316 trims
RPTFE seat
Operator: Pilot Self-controlled

Description

Cast Steel Pressure Regulating Valve (PRV)

Savvy cast steel PRV valves are offered in straight pattern, Y-pattern, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials.

The flow pressure can be self-control fixed to a set point pressure either on the upstream or on the downstream, set point pressure can be adjusted by pilot valve on the top by consulting pressure gauge value.

PRODUCT RANGE

Sizes NPS 2 to NPS 24

Class 150 to Class 2500

MATERIALS

Available in Forging for NPS ≤ 2 (A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5), Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2), Monel, Inconel, Hastelloy

DESIGN FEATURES

SW, NPT, RF, RTJ or BW

Pilot Control , self modulating

Piston balanced trims

Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet

DESIGN STANDARD

Design & manufacture according to API 602, ASME B16.34

End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)

Test & inspection according to API 598

Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624

GUATANTEE

SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.

HOT SALE PRODUCTS

For over 10 years, we have been a leading supplier of industrial valves for major global projects in water supply, oil & gas, and desalination.

What Is A 16″ 600lb Pressure Regulating Valve Used For?

A 16″ 600lb pressure regulating valve is designed to control and maintain a consistent downstream pressure in large-scale industrial pipeline systems. It is commonly used in applications such as oil and gas, power plants, chemical processing, and water treatment where high-pressure flow needs to be stabilized for safety and operational efficiency. The "16-inch" refers to the nominal diameter of the valve, allowing it to handle high-volume flow, while "600lb" indicates the pressure class, meaning it can withstand a pressure rating up to 600 pounds per square inch. This type of valve helps protect downstream equipment from pressure fluctuations and surges by automatically adjusting the valve opening in response to changes in pressure. Its robust construction and precise control mechanism ensure long-term reliability even under demanding conditions. Proper installation and regular maintenance are essential to ensure optimal performance and system protection.
