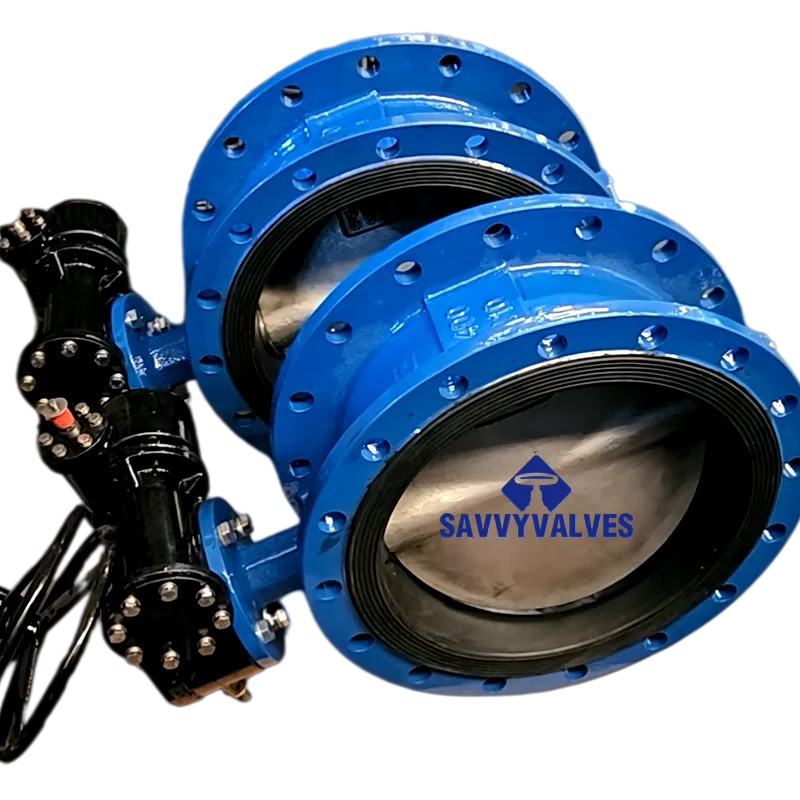

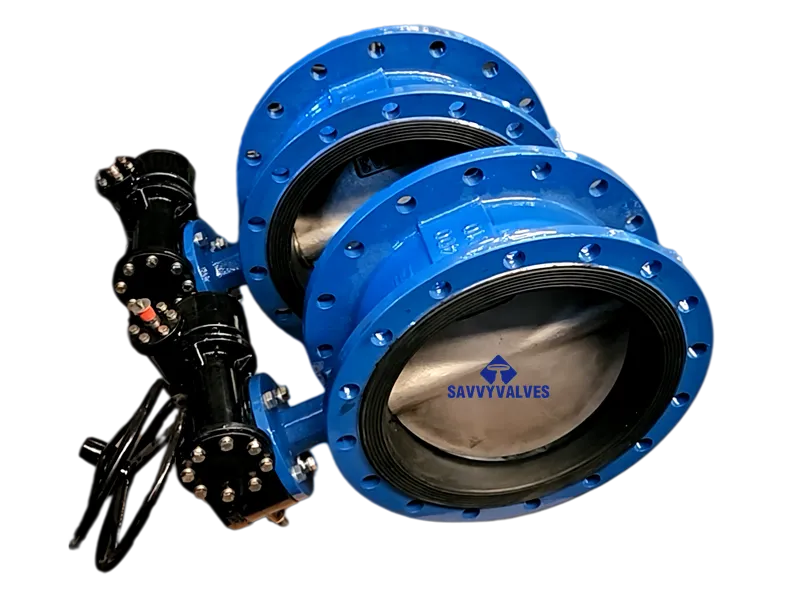

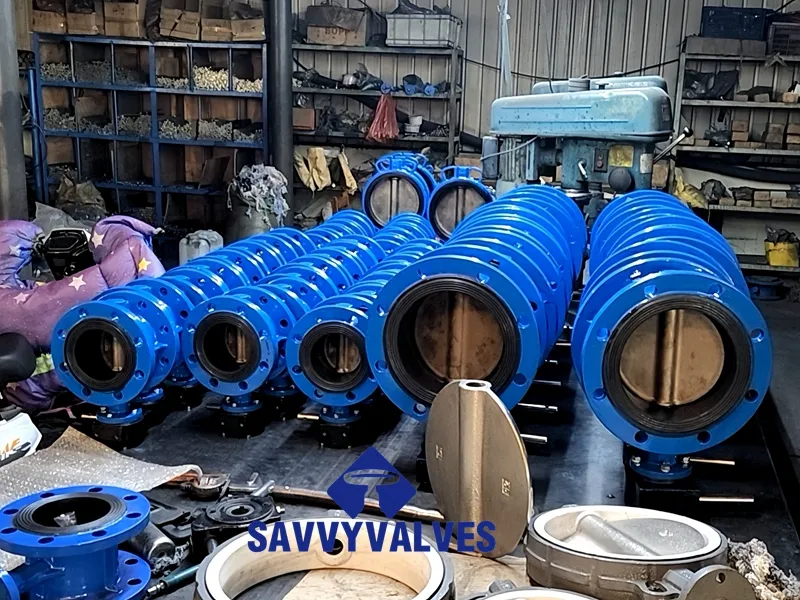

Double Flanged Butterfly Valve(DI/Al-bronze/EPDM)

Description

Double Flanged Butterfly Valve – Technical Datasheet

Model: D341X-16C-DIAB
Design Standard: API 609 · EN 593 · MSS SP-67
Configuration: Ductile Iron Body · C95400 Disc · SS416 Stem · EPDM Seat
Face-to-Face: EN 558 Series 13/14 (Selectable)

1. Product Overview

1. Material Specifications

III. Face-to-Face Dimensions (mm)

1. Performance Data

1. Material Advantages
2. C95400 Disc

• Saltwater corrosion rate: 0.025 mm/yr (ASTM G44)
• 3× better cavitation resistance vs. 316SS
• NACE MR0175 compliant for sour service (<50 ppm H₂S)

2. SS416 Stem

• Wear-resistant machined surface (Ra ≤0.8μm)
• Double O-ring seals (Viton®) + grease reservoir

3. EPDM Seat

• 35% compression recovery rate (ASTM D395)
• Withstands glycol mixtures up to 50%

1. Design Features

• Disc Assembly: Monolithic C95400 casting with integral hubs
• Stem Protection: Anti-blowout design + dual bearing support
• Seat System:
• Bi-directional sealing with dual-lip EPDM
• SS304 carrier with vulcanized bonding (≥5 MPa)
• Fire-Safe Option: Secondary metal seal (SS410 + Flexible Graphite)

VII. Series 13 vs. Series 14 Selection Guide

VIII. Certifications & Compliance

1. Applications

Engineering Notes:

1. Series 13 Limitation: Not recommended for >120°C service or DN≥500 valves
2. Galvanic Protection: Use dielectric kits when connecting to carbon steel piping
3. Disc Maintenance: Field-polish with 400-grit max to preserve corrosion resistance
4. Seat Replacement: Requires valve removal – Series 14 allows in-line servicing
