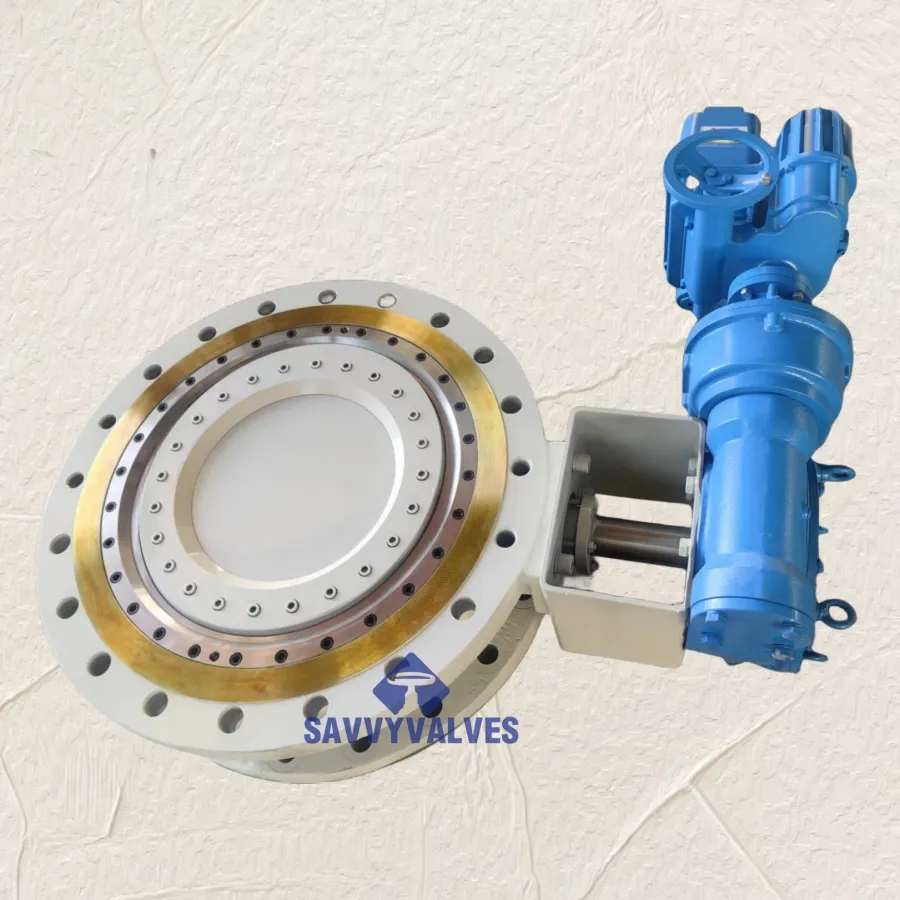

3 Offset Butterfly Valve: Technical Specifications and Application Insights

3 Offset Butterfly Valve is a high-performance industrial valve designed to handle extreme operating conditions, with a pressure rating ranging from 150LB to 4500LB and a maximum design temperature of 800℃. This valve type features a triple-eccentric structure that eliminates friction between the disc and seat during operation, ensuring reliable sealing and long service life, especially in harsh environments. 3 Offset Butterfly Valve is widely favored in steam systems, where its ability to withstand high temperature and pressure makes it an ideal choice for flow control and shut-off functions. The eccentric design of 3 Offset Butterfly Valve also enhances its regulating performance, allowing for precise flow adjustment in critical industrial processes.

3 Offset Butterfly Valve shares core structural features with Butterfly Triple Offset Valve, a terminology variant that emphasizes the valve’s triple-eccentric mechanism

Both valves adopt the same design principle to achieve zero leakage, even under high-pressure steam conditions. Butterfly Triple Offset Valve, like 3 Offset Butterfly Valve, adheres to strict design and manufacturing norms such as API 609 and EN 593 as the basic standards, with ASME B16.34 and other specifications available based on specific order requirements. This consistency in standards ensures interchangeability and compatibility across different industrial systems.

3 Offset Butterfly Valve is essentially a specialized form of Triple Offset Butterfly Valve, optimized for high-temperature steam applications

Triple Offset Butterfly Valve’s design incorporates anti-blow out stem and thermal plate as safety features, preventing stem displacement under pressure and mitigating thermal expansion impacts. These safety elements are integral to 3 Offset Butterfly Valve, ensuring operational stability in steam pipelines where temperature fluctuations and pressure surges are common.

3 Offset Butterfly Valve can be upgraded to Triple Offset Metal Seated Butterfly Valve for enhanced durability and sealing performance

Triple Offset Metal Seated Butterfly Valve uses metal-to-metal sealing pairs, which are more resistant to high temperatures and wear compared to soft seals, perfectly matching the 800℃ maximum temperature limit of 3 Offset Butterfly Valve. This variant is particularly suitable for steam systems requiring long-term reliability without frequent maintenance.

3 Offset Butterfly Valve aligns with the design logic of Triple Offset Valve Butterfly, focusing on precise dimensional control and versatile connection options

Its face-to-face (F TO F) dimensions comply with API 609, ASME B16.10, and BS EN 558, while connection methods cover ASME B16.25, EN 1092, JIS 5K-20K, with RF and RTJ sealing faces available. These standardized dimensions and connections make 3 Offset Butterfly Valve easy to integrate into existing industrial pipelines.

In summary, 3 Offset Butterfly Valve is a robust industrial valve tailored for high-temperature steam applications, with technical parameters and safety designs that meet rigorous industry standards. It maintains close ties with variants like Butterfly Triple Offset Valve, Triple Offset Butterfly Valve, Triple Offset Metal Seated Butterfly Valve, and Triple Offset Valve Butterfly, sharing core eccentric structures and performance attributes. Its wide pressure and temperature range, compliance with global norms, and safety features make it indispensable in critical steam systems. As industrial demands for reliability and efficiency grow, 3 Offset Butterfly Valve will remain a preferred choice, leveraging its structural advantages to deliver consistent performance in extreme operating environments.

Butterfly Triple Offset Valve FAQ

1. What is the pressure rating range of the butterfly triple offset valve?

The butterfly triple offset valve has a pressure rating range from 150LB to 4500LB, which enables it to adapt to various pressure conditions in industrial systems.

2. What is the maximum design temperature of the butterfly triple offset valve?

The maximum design temperature of the butterfly triple offset valve reaches 800℃, making it suitable for high-temperature working environments.

3. What is the general application scenario of the butterfly triple offset valve?

The butterfly triple offset valve is generally applied in steam systems, leveraging its high-temperature and pressure resistance to ensure stable operation.

4. What are the basic design and manufacture norms for the butterfly triple offset valve?

The basic design and manufacture norms for the butterfly triple offset valve are API 609 and EN 593, with ASME B16.34 and other norms optional per orders.

5. What safety designs does the butterfly triple offset valve have?

The butterfly triple offset valve is equipped with anti-blow out stem and thermal plate as safety designs to enhance operational reliability.
