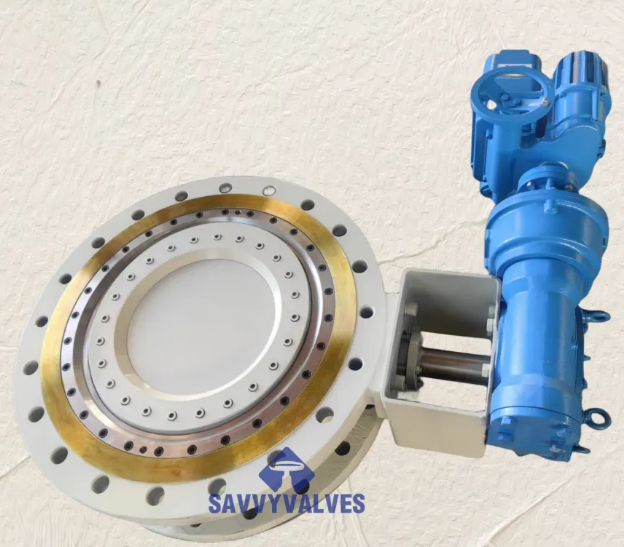

Triple Offset Butterfly Valve For High Performance Systems

The 3 offset butterfly valve has become an essential solution for industries that demand high performance under extreme conditions. Unlike conventional designs, the triple offset configuration ensures precise sealing with minimal friction between the seat and the disc. This structure eliminates wear during operation, significantly extending the service life of the valve. The first and second offsets shift the disc from the seat plane, while the third offset introduces a conical sealing surface that ensures tight shut-off even under high pressure or temperature.

This type of valve is ideal for steam systems, high-temperature services, and critical industrial pipelines where safety and efficiency are top priorities. The design reduces torque requirements, which means smoother operation and longer equipment life. With various body materials available such as ASTM A216 WCB/WCC and A995 4A/5A, the 3 offset butterfly valve is a preferred choice for refineries, petrochemical plants, and power stations. Its unique sealing technology prevents leakage and ensures durability, making it one of the most trusted components in modern fluid control systems.

Butterfly Triple Offset Valve For Precision Applications

A butterfly triple offset valve provides precision flow regulation and excellent sealing performance for demanding industrial environments. The triple offset design means the stem axis, disc axis, and seat cone axis are all uniquely offset, preventing any rubbing between the sealing surfaces during opening and closing. This ensures zero leakage and longer service life, especially in applications dealing with corrosive or high-temperature media.

Manufacturers often choose this type of valve for thermal power plants, offshore drilling, chemical processing, and steam pipelines where traditional valves fail under pressure. Its compact design, light weight, and low maintenance make it a cost-effective yet high-performance solution. The precision engineering behind the butterfly triple offset valve ensures stable flow control, minimal wear, and consistent sealing under fluctuating pressures.

Additionally, it can be customized with actuators or gear units for automation. The seat materials, such as SS316 with graphite laminated seal, ensure reliability even under 800°C. This valve meets API 609 and EN 593 standards, providing confidence for engineers seeking dependable components for complex systems.

Triple Offset Butterfly Valve For High Pressure Service

The triple offset butterfly valve stands out for its ability to handle high pressure and high temperature operations while maintaining tight shut-off performance. This valve is designed to meet strict international standards including API 609, ASME B16.34, and BS EN 558. Its superior sealing design, which uses a metal-to-metal seat with a conical geometry, ensures zero leakage across a wide range of applications.

Industries that deal with steam, hydrocarbons, or corrosive gases often rely on the triple offset butterfly valve for its proven ability to perform under harsh conditions. The body materials, such as ASTM A217 WC6/WC9, and the disc materials like INCONEL 625 or MONEL K500, provide excellent corrosion resistance and mechanical strength. The anti-blowout stem design and extended yoke options make it suitable for cryogenic and high-temperature installations alike.

Engineers prefer this valve for its operational efficiency and ease of maintenance. The stem, typically made from A182 F51 or F316L stainless steel, ensures excellent durability. This valve’s metal seated design allows operation at up to 4500LB pressure ratings, maintaining safe and consistent performance for years.

Triple Offset Metal Seated Butterfly Valve For Extreme Conditions

The triple offset metal seated butterfly valve is specifically designed for extreme conditions involving high pressure, temperature, or aggressive media. Its seat uses hard-faced or laminated materials like SS316+Graphite, ensuring tight sealing even under thermal expansion. Unlike soft-seated valves, this metal-seated model resists deformation and maintains sealing integrity across wide temperature ranges.

It is the preferred choice in oil & gas, power generation, and petrochemical industries. The valve’s design includes a conical sealing geometry and triple offset axes that eliminate friction during operation, drastically reducing wear. The operator unit, usually a robust gear system, allows precise torque control for smooth handling.

Material options are extensive, including ASTM A352 LCB/LCC, A351 CF8M, and special alloys like H-276, MONEL, and INCONEL. The valve undergoes 100% chemical and mechanical tests, along with DPT, MT, and hydraulic tests according to API 598 and API 6D inspection standards. This ensures each valve leaving the factory is fully certified for performance and safety.

The triple offset metal seated butterfly valve is not only durable but also designed for low maintenance, reducing downtime and operational costs. Its high sealing efficiency, even in harsh service conditions, makes it one of the most reliable solutions available today.

We provide triple offset butterfly valve solutions trusted by global industries. Our products combine advanced engineering, certified materials, and strict quality control to deliver long-term performance and safety. If you are looking for reliable flow control for your system, we invite you to explore our range and contact our team for technical consultation and quotes.

GENERAL DESIGNED SPECIFICATION

Size: 2″~144″.
Pressure Rating: 150LB~4500LB
Design Temperature: MAX. 800℃.
General applications: STEAM.
Design & Manufacture: API 609, EN 593, ASME B16.34
F TO F dimensions: API 609, ASME B16.10, BS EN 558
Connection: ASME B16.25, EN 1092, JIS 5K-20K. RF, RTJ are available.
Safety design: Anti-blow-out stem, thermal plate.

TYPICAL MATERIAL LIST

BODY: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
DISC: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
EXTENDED YOKE: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
STEM: A182 F6A, F304, F304L, F316, F316L, F51, F53, 17-4PH, XM-19, C95400, C95800, C83600, INCONEL 625, INCONEL 718, MONEL K400, MONEL K500, H-276
SEAT: STELLITE NO.6 HF
SEAL: SS316+GRAPHITE LAMINATED
OPERATOR: GEAR UNIT
Other special materials available upon request.

TEST AND INSPECTION:
Inspection and approval norm: API598, API6D.
QUALITY CONTROL:
100% chemical and mechanical tests for raw materials.
100% DPT test with castings; MT, UT, or RT upon request.
100% hydraulic test for shell and seal, low pressure air test included.

Triple Offset Butterfly Valve FAQs

What makes a 3 offset butterfly valve different from other valves?

The 3 offset design prevents friction between the disc and seat, providing longer service life and zero leakage, even under high pressure and temperature.

Where can a butterfly triple offset valve be used?

It is ideal for power generation, petrochemical, and gas transmission industries, offering reliable performance in high-temperature and steam applications.

Is the triple offset butterfly valve suitable for corrosive media?

Yes. With materials like INCONEL, MONEL, and stainless steel, it offers superior corrosion resistance in harsh chemical environments.

What is special about a triple offset metal seated butterfly valve?

It uses a metal-to-metal seat, providing secure sealing and long-term reliability where soft seats would deform under heat or pressure.

How can I purchase or learn more about these valves?

You can reach our team directly through our website for pricing, customization options, and professional technical support. We provide full specifications, consultation, and fast delivery worldwide.
