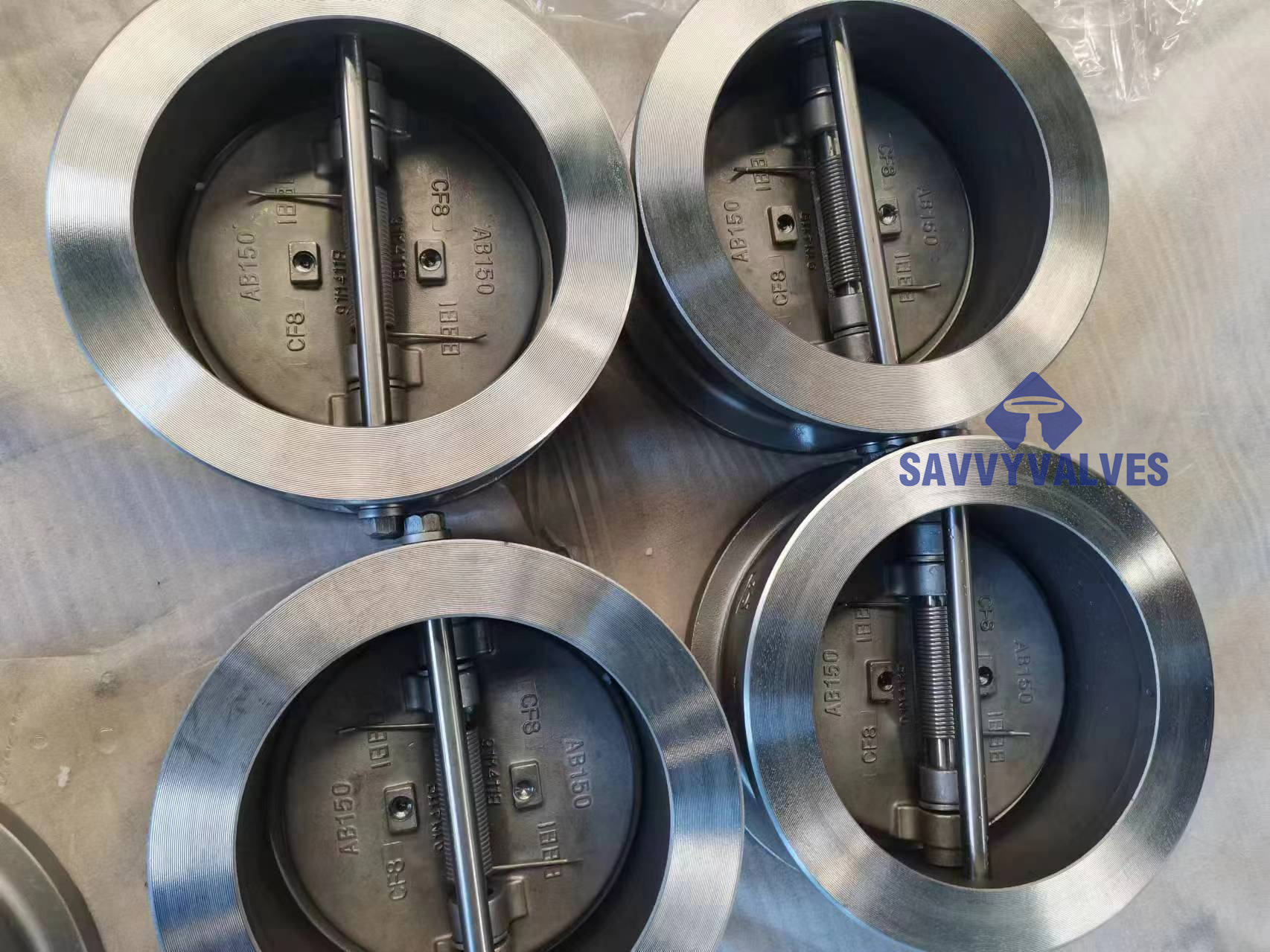

Applications of Dual Plate Check Valves in Water Treatment Plants

In water treatment plants, where reliable fluid control is essential to ensure the efficiency and safety of processes like raw water intake, filtration, disinfection, and wastewater discharge, dual plate check valve, dual plate wafer check valve, and dual plate check valve wafer type are key components.

Dual Plate Check Valve General Specifications Table

Core Applications of Dual Plate Check Valve in Water Treatment Processes

• Dual plate check valve plays a critical role in raw water intake systems, a foundational step in water treatment. Raw water, often sourced from rivers, lakes, or groundwater, is pumped into the plant under varying pressure. The dual plate check valve is installed in the intake pipelines to prevent backflow— a risk that could contaminate the raw water source with treated water or wastewater, disrupting the entire treatment chain. Its spring-loaded dual-plate structure ensures quick closure when the pump stops, minimizing reverse flow and protecting the integrity of the water source. For example, in large-scale plants handling high volumes of raw water (requiring valves up to 48″ in size, as offered by SAVVY VALVES CO.,LTD.), the dual plate check valve’s robust pressure rating (150LB~4500LB) withstands the high pumping pressures, ensuring consistent performance without leaks.

• Another key application is in filtration and sedimentation systems. After raw water is pre-treated to remove large sediments, it flows through filtration units (such as sand or activated carbon filters) to eliminate finer particles. Dual plate check valve is installed downstream of these filters to prevent backflow that could dislodge the filter media, reducing filtration efficiency and requiring costly media replacement. The valve’s compliance with standards like API 594 and ASME B16.34 ensures it meets the strict hygiene and performance requirements of water treatment, as any contamination or valve failure could compromise the quality of treated water. SAVVY VALVES CO.,LTD.’s dual plate check valve, with its corrosion-resistant materials (suitable for water’s chemical composition), maintains durability even in long-term contact with treated or untreated water, reducing maintenance needs for plant operators.

Adaptability of Dual Plate Wafer Check Valve to Space-Constrained Water Treatment Layouts

• Dual plate wafer check valve is uniquely suited for water treatment plants with limited space, a common challenge in both new and retrofitted facilities. Its wafer-type design (mounted between two flanges without requiring additional pipeline length for installation) saves valuable space compared to traditional swing check valves, which have a larger footprint. This is particularly advantageous in compact areas like pump rooms, where multiple valves (for different treatment stages) need to be installed in close proximity. For instance, in the disinfection stage—where chlorine or ozone is added to treated water—dual plate wafer check valve can be installed in the chemical injection pipelines, fitting seamlessly between existing flanges (per ASME B16.5 or EN 1092 standards) without disrupting the plant’s layout.

• The wafer lug connection option (offered by SAVVY VALVES CO.,LTD.) further enhances the dual plate wafer check valve’s adaptability. Lugged wafer valves have threaded lugs that allow them to be bolted directly to the pipeline flanges, providing additional stability and eliminating the need for separate support structures. This is critical in water treatment plants, where pipeline vibrations (from pumps or high water flow) can loosen valves over time. The dual plate wafer check valve’s spring-loaded dual plates also ensure quiet, low-maintenance operation—unlike swing check valves, which can slam shut and cause noise or pipeline damage—making it ideal for indoor areas of the plant where noise reduction is a priority.

Reliability of Dual Plate Check Valve Wafer Type in Wastewater Discharge Systems

• Dual Plate check valve wafer type is indispensable in wastewater discharge systems, the final stage of water treatment where treated wastewater is released into natural water bodies or reused for non-potable purposes (like irrigation). Wastewater discharge pipelines often face fluctuating pressures and potential debris buildup, making valve reliability a top concern. The dual plate check valve wafer type’s dual-plate structure resists clogging by debris, as the plates open and close smoothly without trapping particles—unlike single-plate check valves, which are more prone to blockages. SAVVY VALVES CO.,LTD.’s valve, with its wide temperature range (-196℃~800℃), also handles the varying temperatures of wastewater (which can be influenced by seasonal changes or plant processes) without compromising performance.

• Additionally, the dual plate check valve wafer type’s compliance with global standards (API 6D, ASME B16.34) ensures it meets the environmental regulations governing wastewater discharge. Leaks in discharge valves can lead to unauthorized release of untreated or partially treated wastewater, resulting in fines and environmental damage. The valve’s tight sealing (enabled by its spring-loaded design) prevents leaks even under low pressure, ensuring the plant adheres to regulatory requirements. Its wafer-type design also simplifies maintenance—when inspections or repairs are needed, the valve can be removed quickly from between flanges without disassembling long sections of pipeline, minimizing downtime in critical discharge operations.

Dual Plate Check Valve FAQS

Why is dual plate check valve preferred over other check valve types in water treatment plants?

Dual plate check valve is preferred for its compact design, quick closure, and low maintenance. Unlike swing check valves (which require more space and can slam shut) or lift check valves (which are prone to clogging), the dual-plate structure opens and closes smoothly with minimal pressure drop, making it ideal for water treatment’s varying flow rates. Its spring-loaded design ensures fast closure to prevent backflow, critical for protecting water quality. SAVVY VALVES CO.,LTD.’s dual plate check valve also uses corrosion-resistant materials, which withstand the chemical exposure (from disinfection agents or wastewater) common in water treatment, extending service life and reducing replacement costs—benefiting both wholesalers and plant operators.

What makes dual plate wafer check valve suitable for space-constrained water treatment plants?

Dual plate wafer check valve’s wafer-type design (mounted between flanges) eliminates the need for extra pipeline length, saving space compared to flanged check valves. Its compact size allows installation in tight areas like pump rooms or crowded pipeline racks, where traditional valves would not fit. The lugged wafer option (offered by SAVVY VALVES CO.,LTD.) adds stability without requiring separate supports, further optimizing space. Additionally, the valve’s low weight (due to its streamlined design) reduces stress on pipelines, making it easier to integrate into existing systems— a key advantage for retrofitted water treatment plants where space is already limited.

How does dual plate check valve wafer type handle debris in wastewater discharge systems?

Dual plate check valve wafer type’s dual-plate structure resists debris buildup because the plates open outward, creating a larger flow path that minimizes particle trapping. Unlike single-plate check valves (where debris can get stuck between the plate and seat), the dual plates move independently and close tightly without gaps, preventing clogs. SAVVY VALVES CO.,LTD.’s valve also features a robust seat design (compatible with water and wastewater) that withstands abrasion from debris, ensuring the valve remains functional even in harsh discharge conditions. Regular maintenance (like visual inspections) is simple due to the wafer-type design, allowing operators to address any debris-related issues quickly.

Can dual plate check valve be customized to meet specific water treatment plant requirements?

Yes, SAVVY VALVES CO.,LTD. offers customization for dual plate check valve to match water treatment plants’ unique needs. Customizations include material adjustments (e.g., using stainless steel for high-corrosion areas like disinfection pipelines), size modifications (from 2″ to 48″, or larger for specialized plants), and connection types (wafer lug, flange, BW, or RTJ). For example, plants treating seawater (which has high salt content) can request corrosion-resistant alloys for the valve body. SAVVY also adapts the valve to meet non-standard design norms (beyond API 594 or ASME B16.34) if required by the plant’s regulatory or operational needs, ensuring the valve integrates seamlessly into the treatment process.

What maintenance steps are required for dual plate check valve in water treatment applications?

Regular maintenance for dual plate check valve focuses on preserving sealing and preventing debris buildup. First, inspect the valve periodically for leaks (especially around the seat and connections) to ensure compliance with water quality standards. Second, clean the valve’s internal components (dual plates, spring) to remove any sediment or debris that could hinder operation—this is critical in raw water or wastewater pipelines. Third, lubricate the valve’s moving parts (if applicable) with water-compatible lubricants to ensure smooth plate movement. Finally, verify the valve’s closure speed (using pressure tests) to confirm it still prevents backflow effectively. SAVVY VALVES CO.,LTD. provides detailed maintenance guides for their valves, helping wholesalers support plant operators in extending valve life and minimizing downtime.
