In the unseen, intricate arteries of global industry—within the pipelines that carry water to our cities, oil and gas across continents, and steam through power plants—a silent, autonomous guardian works tirelessly to ensure unidirectional flow and prevent catastrophic reverse flow scenarios. This guardian is the valve check swing, more formally known as the swing check non return valve. Its function is deceptively simple: to allow media to flow freely in one direction and to slam shut should that flow attempt to reverse. Yet, this simplicity belies a critical role in protecting pumps, compressors, and other expensive equipment from damage, and in maintaining the integrity of entire process systems. Understanding the swing check valve application, along with a rigorous commitment to its maintenance, is not merely a matter of operational efficiency.
As a globally recognized leader in industrial valve manufacturing, Savvy Valves combines decades of engineering expertise with cutting-edge production capabilities to deliver high-performance, reliable valve solutions for the world's most demanding applications. Our valves, including our robust line of swing check valves, are engineered to perform under extreme conditions, ensuring uninterrupted operation in mission-critical systems. The very design of our swing check non return valve incorporates features born from this experience, such as the use of hardened materials on sealing surfaces to resist wear and erosion, the very enemies of long-term, reliable sealing.
Understanding the Core Mechanics and Critical Swing Check Valve Applications
- To effectively maintain a piece of equipment, one must first understand its function and where it is meant to operate. The swing check valve application spectrum is vast, covering nearly every sector that relies on pumped or pressurized piping systems. In water and wastewater treatment plants, they are installed at the discharge of pumps to prevent the backflow of water, which could cause water hammer, damage the pumps, and reverse the flow through the system.
- A swing check non return valveis crucial in protecting pumps and compressors in crude oil transportation lines. A failure here could lead to not only immense equipment damage but also significant environmental and safety incidents. Similarly, in power generation plants, these valves ensure that high-pressure steam and feedwater flow in one direction only, safeguarding turbines and boilers. The specific demands of each application dictate the valve's construction.
The design and manufacture of our valves adhere to the most stringent international standards, including API 6D and ASME B16.34, as a foundational requirement. This certified compliance is not just a badge; it is a promise of performance and safety. The materials specified are chosen for their ability to endure.

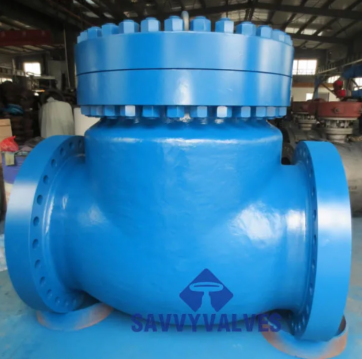

A Proactive Maintenance Regimen for Your Valve Check Swing
Reactive maintenance—waiting for a valve to fail—is a costly strategy in industrial settings. A proactive, scheduled maintenance regimen for your valve check swing is the single most effective way to extend its service life, prevent unplanned downtime, and ensure it functions as intended in an emergency. This regimen can be broken down into routine external checks and periodic internal inspections.
Periodic internal inspection, performed during planned system shutdowns, is where the true health of the valve is assessed. The key components to inspect are:
- The Disc and Seat:Examine the seating surfaces for any signs of erosion, pitting, cracking, or grooves. A tight seal requires smooth, matching surfaces. Light imperfections can sometimes be lapped out, but significant damage requires component replacement.
- The Hinge Pin and Bushings:This is the pivot point of the entire operation. The hinge pin must be inspected for wear, bending, or corrosion. Worn bushings or a worn pin will allow the disc to misalign, preventing it from seating properly and causing leakage.
- The Body Interior:Check the valve body interior for general corrosion, erosion, or the buildup of debris that could obstruct the free movement of the disc.
Our commitment to extended service life is realized through this kind of disciplined maintenance. Furthermore, SAVVY VALVES provides a 12-month service life guarantee at a minimum, with free spares and maintenance instruction provided when required, giving our partners a firm foundation for their maintenance planning.
Valve Check Swing：Strategic Installation and Best Practices
- Proper installation is just as critical as proper maintenance for the long-term health of a valve check swing. A valve that is incorrectly installed may never function correctly, regardless of its quality or how well it is maintained. The most fundamental rule is to observe the flow direction. The valve body is almost always marked with an arrow indicating the correct flow direction. Installing the valve backwards renders it useless, as flow will force it closed.
- Orientation is the second critical factor. A swing check non return valvemust be installed in a horizontal pipeline with the vertical centerline oriented upwards, or in a vertical pipeline with upward flow. Installing it in a vertical line with downward flow is impossible, as gravity will hold the disc closed. A general rule is to have 5-10 pipe diameters of straight run before the valve to allow for flow profile development and avoid turbulent flow that can cause premature wear and disc instability.
Our partnership built on innovation and trust means we go beyond manufacturing. We collaborate closely with clients to ensure that the valves we supply are not only built to the highest standards but are also the correct type and size for the specific swing check valve application.
FAQs About Swing Check Valves Application
What is the primary purpose of a swing check non return valve?
The primary and singular purpose of a swing check non return valve is to prevent reverse flow in a piping system. It acts as an automatic, one-way gate, allowing fluid (liquid or gas) to flow freely in the desired direction and closing automatically to block any flow in the opposite direction. This protects equipment like pumps and compressors from damage, prevents the mixing of different media, and maintains system pressure.
How often should a valve check swing be inspected and maintained?
There is no one-size-fits-all answer, as the maintenance interval depends entirely on the service conditions. The best practice is to start with the manufacturer's recommendations and then establish a site-specific schedule based on historical inspection data and observed performance. Our maintenance instructions, provided with every valve, offer a solid baseline for this planning.
What are the consequences of a swing check non return valve slamming shut too violently?
Violent slamming, often resulting in water hammer, has several detrimental consequences. It can cause immediate damage to the valve itself, including cracking the disc, damaging the seat seal, or deforming the hinge pin. The pressure surge transmitted through the piping system can damage gaskets, cause pipe joint leaks, and even damage pumps and other equipment.
Can a swing check non return valve be installed in any orientation?
No, this is a common misconception. A standard valve check swing is designed for installation in horizontal pipes with the disc hinge pin horizontal. It can also be installed in vertical pipes, but only if the flow direction is upward. Gravity is a key component in its closing mechanism. Installing it in a vertical line with downward flow is impossible, as gravity will keep the disc closed.
What materials are best for a valve check swing in a seawater application?
Seawater is highly corrosive and often contains abrasive sediments. For a swing check valve application in seawater, such as in a seawater desalination system or offshore platform, standard carbon steel is not sufficient. The valve body and internals require materials with high corrosion resistance.
This mastery, however, is best achieved in partnership with a manufacturer whose commitment to quality is unwavering. Savvy Valves – Engineering Excellence in Valve Solutions for Global Industries – stands as such a partner. With 30 years of precision manufacturing and a proven track record of supplying valves for major global projects from the Middle East to South America, we build uncompromising reliability into every swing check non return valve we produce. Our certified compliance with international standards, vertically integrated manufacturing control, and commitment to providing extended service life through superior engineering and support make us more than just a supplier; we are a dedicated partner in your operational success.
