In the intricate world of industrial flow control, where precision, reliability, and durability are non-negotiable, the valve stands as a critical sentinel. Among the various types of valves available, one design has consistently proven its mettle across a vast spectrum of demanding applications: the double offset butterfly valve. This sophisticated piece of engineering, also commonly referred to as a double eccentric butterfly valve, represents a significant evolution from its simpler, centric counterpart. Its design addresses fundamental challenges of sealing, wear, and operational torque, making it a preferred choice for industries that cannot afford failure.
From managing the flow of potable water in vast municipal systems to controlling volatile hydrocarbons in offshore platforms, the eccentric butterfly valve has become synonymous with high-performance and long-term service life. The core principle of the eccentric design is deceptively simple, yet its execution requires precision manufacturing and a deep understanding of material science to ensure that it performs flawlessly under pressure, temperature, and corrosive conditions. This article will explore the intricacies of these valves, their widespread uses, and the engineering excellence that companies like Savvy Valves bring to their manufacture, ensuring they meet the rigorous demands of global infrastructure.
Understanding the Fundamental Design of Eccentric Butterfly Valve
At its heart, the term eccentric butterfly valve describes a valve where the disc is mounted on a shaft that is offset from the centerline of the disc and the centerline of the valve body. This is a fundamental departure from concentric butterfly valves, where the shaft runs directly through the center of the disc.
- The first offset is the shaft axis being positioned behind the centerline of the disc seat.
- The second offset is the shaft axis being positioned to one side of the pipeline centerline.
The magic of this configuration unfolds during the operation. As the disc begins to rotate from the closed to the open position, it immediately moves away from the seat in a cam-like motion. This action eliminates the constant, abrasive scraping that occurs in concentric designs. The implications are profound. The double eccentric butterfly valve is engineered to utilize the line pressure to its advantage; in the closed position, the greater the system pressure, the tighter the disc is forced into the resilient seat, creating a bubble-tight seal that is capable of meeting stringent international standards for leakage. This design is particularly adept for applications requiring bi-directional shut-off, a common requirement in many oil and gas and water transmission systems.

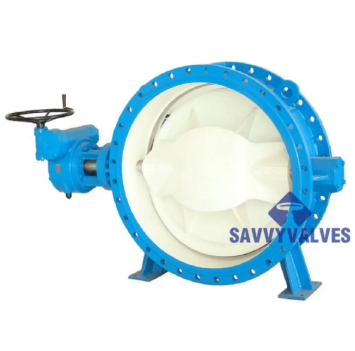

Double Offset Butterfly Valves Excel
The unique design advantages of the double offset butterfly valve make it exceptionally versatile, finding critical roles in some of the world's most important industries.
- Its ability to handle a wide range of pressures and temperatures, combined with a robust sealing capability, allows it to be a cost-effective and reliable alternative to more complex gate or ball valves in many situations. In the water and wastewater treatment sector, these valves are indispensable. They are used for isolation and control in pump stations, distribution networks, and treatment plants.
- The eccentric butterfly valve's resilience to corrosive water chemistries, aided by protective coatings like the internal and external nylon spray on ductile iron components, ensures long-term performance without degradation. This proven reliability is why companies like Savvy Valves have been a trusted supplier for major projects, including the Municipal Water Supply System in the UK and large-scale irrigation systems, where valve failure is not an option.
In the demanding sectors of oil and gas, and petrochemicals, the double eccentric butterfly valve is a workhorse. It is deployed in crude oil transportation pipelines, refinery process lines, and on offshore platforms. Here, the valves must contend with not only high pressures but also potentially abrasive fluids and extreme temperatures.
A Partnership in Engineering: Double Offset Butterfly Valve Commitment
Selecting a valve for a critical application is about more than just comparing specifications on a data sheet; it is about choosing a manufacturing partner. The engineering and quality embedded into every double offset butterfly valve are a reflection of the manufacturer's philosophy and capabilities. For over three decades, Savvy Valves has established itself as a globally recognized leader in industrial valve manufacturing, combining decades of engineering expertise with cutting-edge production capabilities. This proven expertise is built on a foundation of uncompromising reliability, where valves are engineered to perform under extreme conditions, ensuring uninterrupted operation in mission-critical systems across the oil & gas, petrochemical, power generation, and water treatment industries.
The company’s value proposition is clear: to provide partners with certified compliance, extended service life, and a reduced total cost of ownership through durable, low-maintenance solutions. Their strategic manufacturing location provides full control over quality, cost, and lead times, which is crucial for large-scale global projects. This operational model has enabled them to successfully participate in the bidding and valve supply for numerous major projects worldwide, from pump stations in Venezuela to seawater desalination systems in the UAE, serving renowned industry leaders like ADNOC and PDVSA. The partnership extends beyond mere supply.
FAQs About Double Eccentric Butterfly Valves
What is the primary advantage of a double offset butterfly valve design over a concentric butterfly valve?
The primary advantage lies in the dramatic reduction of wear and operating torque. In a concentric valve, the disc constantly rubs against the seat during operation, leading to rapid wear and eventual seal failure. The double offset butterfly valve utilizes its two eccentricities to cam the disc away from the seat upon the first few degrees of rotation.This design also enables a tighter seal, as system pressure assists in pushing the disc against the seat in the closed position.
Can a double eccentric butterfly valve be used for throttling or flow control?
While the primary design is optimized for isolation, a double eccentric butterfly valve can be used for moderate throttling applications. However, it is not as precise as a globe valve or a specialized control valve for fine flow modulation. The key is to operate the valve in the 30 to 70-degree open range to avoid the high-velocity, cavitation-prone regions near the closed position and the unstable flow region near the fully open position.
What does the "nylon spray" coating on the double offset butterfly valve’s disc and body accomplish?
The nylon spray coating is a protective layer applied to components such as the ductile iron body and disc. It serves as a highly effective barrier against corrosion and abrasion. In applications involving water, mild chemicals, or abrasive slurries, this coating prevents the base metal from being directly exposed to the corrosive media, thereby drastically increasing the valve's lifespan. It also provides a slightly resilient surface that can contribute to a better seal.
How does the "anti-blow out stem" feature enhance eccentric butterfly valve’s safety?
The anti-blowout stem is a critical safety feature, especially in high-pressure applications. It is a mechanical design within the valve that prevents the stem from being forcibly ejected from the valve body if the retaining mechanism at the top were to fail. In high-pressure systems, the internal pressure exerts a significant force trying to push the stem out. A blown-out stem would create a major safety hazard, causing a sudden, uncontrolled release of the process fluid. This feature is a standard in many high-performance eccentric butterfly valve designs and is a non-negotiable safety requirement in industries like oil and gas.
What is the expected double offset butterfly valve’s service life, and what maintenance is required?
The service life of a high-quality double offset butterfly valve is significantly extended due to its low-wear design. With proper selection for the service conditions and correct installation, these valves can operate for decades with minimal maintenance.The 12-month service life guarantee we provide is a baseline assurance of quality, but the actual lifespan is often many times longer, a direct result of our focus on advanced materials, precision machining, and strict quality control that results in durable, low-maintenance solutions reducing the total cost of ownership.
From ensuring the reliable delivery of clean water to cities to managing the complex and hazardous flows in a petrochemical refinery, the double eccentric butterfly valve proves its worth daily.Choosing the right valve, however, extends beyond understanding the technology; it requires a partnership with a manufacturer that embodies reliability and expertise. Savvy Valves – Engineering Excellence in Valve Solutions for Global Industries – has built its reputation on this very principle. With 30 years of precision manufacturing and a proven track record on major international projects, we provide more than just a product; we deliver confidence.
