In the intricate and demanding world of industrial process control, the ability to precisely manage the flow of fluids—be it steam, water, oil, gas, or aggressive chemicals—is a cornerstone of efficiency, safety, and profitability. At the heart of many of these critical control loops sits a workhorse of engineering: the electric actuated globe valve. This combination of a time-tested valve design with modern electric automation represents a pinnacle of control capability. The decision to buy electric actuated globe valve units is a significant one, with implications for your system's performance, reliability, and total cost of ownership. This comprehensive guide will navigate the engineering principles, key features, and critical procurement considerations to ensure you select the optimal valve for your application, delivering uncompromising control for years to come.
Savvy Valves combines decades of engineering expertise with cutting-edge production capabilities to deliver high-performance, reliable valve solutions for the world's most demanding applications. Our valves are engineered to perform under extreme conditions, including high-pressure, high-temperature, and corrosive environments, ensuring uninterrupted operation in mission-critical systems. Whether for a Municipal Water Supply System, a Crude Oil Transportation project, or a Seawater Desalination System, the principles of precision and durability remain the same.
Understanding the Core Advantages of an Electric Globe Valve
The choice to buy electric actuated globe valve systems over other actuated valve types is driven by a set of distinct and powerful advantages.
- The most significant of these is precision control. Electric actuators can be equipped with precision positioning electronics that allow the valve to be stopped and held at any point within its stroke with a high degree of accuracy. This is essential for throttling applications where the flow needs to be maintained at a specific rate, not just fully on or off.
- Another key advantage is the simplicity of integration and control. An electric globe valvetypically requires only a power source and a control signal to operate. This eliminates the need for complex and costly air compression systems, dryers, and distribution piping associated with pneumatic actuators.
- Energy efficiency is another compelling benefit. An electric actuator consumes power primarily only when it is moving to a new position. Once it reaches its commanded position, it can hold that position without drawing significant power, unlike a pneumatic actuator which may require a constant air supply to maintain diaphragm pressure. This can lead to substantial energy savings over time.
Our commitment at Savvy Valves to providing extended service life through advanced materials and strict quality control dovetails perfectly with the long-term reliability and low maintenance demands of a well-engineered electric actuated globe valve.
The Critical Role of the Cage Guided Globe Valve in High-Performance Applications
When procuring a valve for severe service conditions, the internal design of the globe valve becomes paramount. This is where the cage guided globe valve proves its superior worth. This design represents a significant evolution from the basic disc-and-seat arrangement, offering enhanced stability, durability, and control.
- Firstly, it guides the plug with exceptional stability throughout its entire travel, minimizing vibration and lateral movement that can cause premature wear and poor control in high-velocity flows. This guided stability is crucial for maintaining a precise flow characteristic and ensuring long-term sealing integrity.
- Secondly, the cage is the defining element for the valve's flow characteristic. The shape of the openings or holes machined into the cage wall—whether linear, equal percentage, or quick opening—directly determines the relationship between the plug's lift and the flow rate. This allows engineers to select a trim that provides the best possible control for their specific process, ensuring loop stability.
- Thirdly, and perhaps most importantly for demanding duties, the cage can be designed to mitigate the destructive effects of cavitation and noise. Multi-stage pressure drop trims, often incorporated into the cage design, break a single large pressure drop into several smaller, managed steps.
Electric Actuated Globe Valve: Strategic Applications and Sourcing Considerations
The electric actuated globe valve finds its home in applications where control and reliability are non-negotiable.
- In Power Generation, these valves are indispensable for controlling the flow of high-pressure steam to turbines and regulating feedwater flow to boilers. The cage guided globe valveis particularly vital here to handle the extreme pressures and temperatures and to manage cavitation in feedwater systems.
- InOil and Gas production and refining, these valves are used for pressure let-down, level control on separators, and flow control throughout the process. The ability to handle flammable and toxic fluids safely and reliably is paramount.
- In Water and Wastewater Treatment, large electric globe valveunits control flow into treatment basins, manage pump discharge, and regulate chemical dosing.
When you decide to buy electric actuated globe valve equipment, the choice of manufacturer is as strategic as the technical specifications. A partner with a proven track record in your industry brings invaluable application expertise. Savvy Valves, with 30 years of precision manufacturing and service to the global energy and water industries, has built a reputation for uncompromising reliability. Our certified compliance with API, ASME, EN, and ISO standards is not just a claim.
FAQs About Electric Actuated Globe Valves
What is the main difference between an electric actuated globe valve and an electric ball valve?
The core difference lies in their primary function. An electric actuated globe valve is designed for precise throttling or modulating control. Its linear stem motion and specific plug/seat design allow for fine control over flow rate. An electric ball valve is primarily designed for quick, full-open or full-closed (on/off) service. Using a ball valve for throttling can cause cavitation, erosion, and unstable control due to its high recovery flow characteristic.
When is a cage guided globe valve necessary?
A cage guided globe valve is necessary in applications with high pressure drops, high fluid velocities, or where cavitation and noise are concerns. If your application involves steam let-down, feedwater control, or any process where a standard globe valve has failed prematurely due to vibration or wear, a cage-guided design is the solution.
What are the typical maintenance requirements for an electric globe valve?
Maintenance is generally predictive and preventative. The major maintenance involves inspecting and potentially replacing the internal trim (plug, seat, cage) during planned plant shutdowns.
How do I determine the correct size for my electric globe valve?
Sizing a control valve is a critical engineering task that should not be done based on pipe size alone. It requires specific data: the flow rates (minimum, normal, and maximum), the upstream and downstream pressures, fluid properties (density, viscosity, temperature), and the desired control characteristic. Using these, an calculation is performed to determine the required Flow Coefficient and to select a valve size and trim that can provide stable control across the entire operating range without being oversized or undersized.

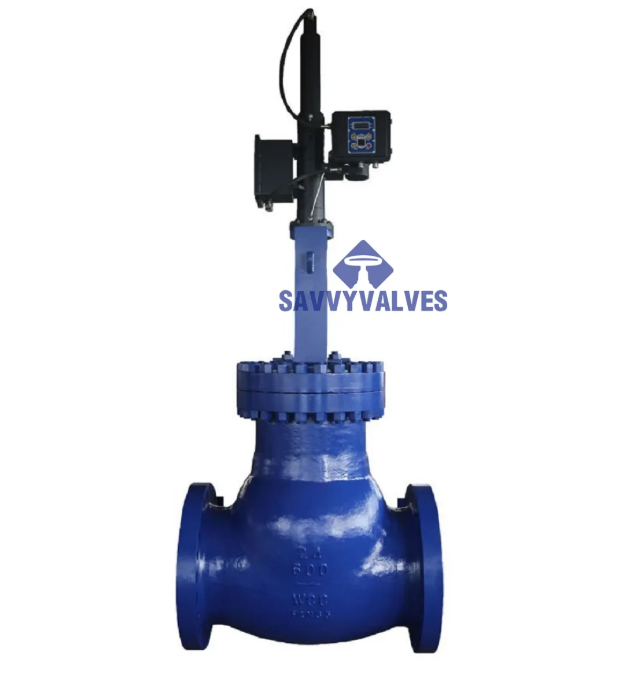

What Is A 24″ 600lb Electric Globe Valve?
A 24″ 600lb Electric globe Valve is a large-diameter, high-capacity globe valve designed for precise flow regulation in high-pressure industrial systems. The balanced trim structure helps minimize the actuator force needed to open or close the valve, making it especially efficient when paired with electric-hydraulic actuation. This combination allows for accurate, automated control of flow in critical applications such as thermal power plants, water treatment facilities, and large-scale oil and gas pipelines.
The journey to buy electric actuated globe valve equipment is a technical endeavor that demands careful consideration of application requirements, valve design, actuator capabilities, and manufacturer credibility. The electric globe valve, particularly in its advanced cage guided globe valve form, is not a commodity but a precision instrument whose performance directly impacts process outcomes. From ensuring the safe and efficient operation of a power plant to guaranteeing the consistent flow of water in a municipal system, the right valve is a foundational component of industrial infrastructure.In an industry where reliability is non-negotiable, trusting your most critical control applications to Savvy Valves is a strategic decision for long-term success. It is a decision to invest in quality, to prioritize engineered solutions, and to engage in a partnership built on innovation and trust. Let's engineer success together.
